Yokogawa AAI835-S50 S3 Retrofit Analog I/O Module

Yokogawa AAI835-S50 S3 Retrofit Analog I/O Module: Legacy System Compatible Upgrade

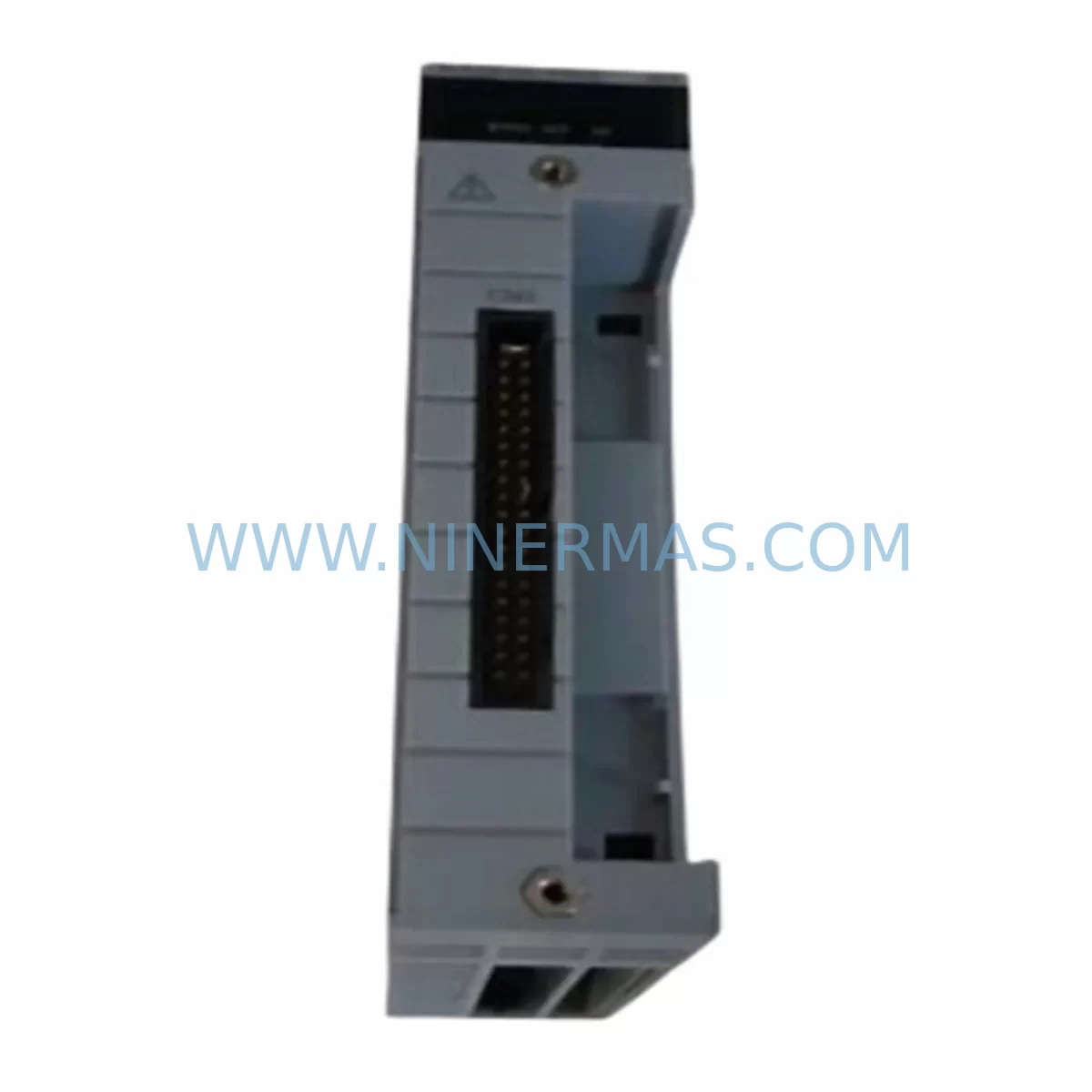

The Yokogawa AAI835-S50 S3 is a ruggedized analog input/output module engineered for demanding industrial environments and designed to serve as a direct retrofit-compatible replacement within Yokogawa CENTUM CS 3000 and CENTUM VP distributed control system (DCS) architectures. As aging process automation infrastructure reaches end-of-life, the AAI835-S50 S3 provides a reliable, field-proven path to extend system longevity without requiring full platform migration or costly control room redesign.

Industrial facilities operating legacy Yokogawa DCS platforms — including refineries, chemical plants, LNG terminals, power generation stations, and pulp and paper mills — frequently encounter the challenge of sourcing discontinued or hard-to-find I/O modules. The AAI835-S50 S3 addresses this directly: it maintains backward compatibility with existing field wiring, terminal block assignments, and backplane slot configurations, enabling maintenance teams to execute module-level replacements with minimal disruption to live process control loops.

Each unit supplied by NINERMAS undergoes pre-shipment functional testing to verify analog channel accuracy, signal conditioning performance, and communication integrity within the CENTUM node environment. Backed by a 12-month warranty, the AAI835-S50 S3 is stocked to support both emergency breakdown replacements and planned maintenance schedules across global industrial sites.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the AAI835-S50 S3 within an operational CENTUM CS 3000 or CENTUM VP system requires a structured approach that accounts for the interdependencies between I/O modules, field instruments, and the broader control architecture. Before initiating a module swap, engineering teams should audit the node’s current power consumption — particularly when the node also houses power supply modules such as the Yokogawa PW481 or PW482, as cumulative load from multiple analog I/O modules can approach node power limits in densely populated cabinets.

Terminal block wiring must be verified against the as-built loop drawings. The S50 terminal block configuration on the AAI835-S50 S3 accommodates 50 field connections, and each channel’s signal type (current or voltage) must match the field instrument output. Instruments such as Yokogawa EJA110E differential pressure transmitters or EJX910A multivariable transmitters connected to these channels should be confirmed for loop integrity using a HART communicator or field calibrator prior to module reinsertion.

Within the CENTUM node, the AAI835-S50 S3 occupies a defined slot position on the ANB10D or ANB10S node backplane. Slot addressing is managed by the Field Control Station (FCS), and the replacement module’s address must be validated in the FCS builder or CENTUM VP engineering environment to ensure tag-to-channel assignments remain intact. If the facility is running an older CENTUM CS 3000 R3 or R4 revision, compatibility with the existing FCS firmware version should be confirmed before deployment.

Communication continuity is a critical concern during migration. The CENTUM architecture relies on Vnet/IP or legacy V-net for inter-node communication, and any disruption to the node bus during module replacement can affect upstream HMI displays on Yokogawa FAST/TOOLS or Exaopc OPC server interfaces. Coordinating the replacement window with the control room operator ensures that affected process variables are placed in manual mode or bypassed in the safety instrumented system (SIS) before the module is removed.

For facilities undertaking broader control cabinet upgrades — such as migrating from CENTUM CS 3000 to CENTUM VP or integrating new ProSafe-RS safety controllers — the AAI835-S50 S3 can serve as an interim solution that preserves existing field wiring infrastructure while the migration project is phased. This approach avoids the cost and risk of simultaneous field rewiring and platform cutover, allowing engineering teams to migrate control logic in the FCS builder incrementally while maintaining process availability.

Signal isolators such as the Yokogawa MTL5041 or equivalent DIN-rail mounted isolators may be present in the signal path for intrinsically safe applications. These should be inspected and re-certified as part of the retrofit scope to ensure the complete signal chain — from field instrument through isolator to the AAI835-S50 S3 — meets the required accuracy and safety integrity level (SIL) for the process loop.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy DCS module replacement. For the AAI835-S50 S3, the replacement procedure can typically be completed within a planned maintenance window of two to four hours when all preparatory steps are completed in advance. Key actions that reduce exposure time include: pre-staging the replacement module with firmware verification, preparing a channel-by-channel loop check sheet, and coordinating with the DCS vendor’s field service team or a qualified systems integrator for on-site commissioning support.

The CENTUM FCS supports online module replacement in certain node configurations, allowing the replacement module to be inserted while the node remains powered and other I/O modules continue to operate. However, the specific channels served by the AAI835-S50 S3 will be unavailable during the swap interval. Process loops connected to these channels should be transferred to manual control at the HMI, and any interlock logic referencing these signals should be temporarily inhibited in the ProSafe-RS or CENTUM SCS safety layer — with appropriate management of change (MOC) documentation completed before work begins.

Post-replacement commissioning should include a full channel-by-channel signal verification using a loop calibrator, confirmation of engineering unit scaling in the FCS tag database, and a review of alarm setpoints to ensure no spurious alarms are generated during the return-to-auto sequence. NINERMAS provides pre-shipment test reports for each AAI835-S50 S3 unit, which can be used as a baseline reference during site acceptance testing to accelerate the commissioning process and reduce the risk of field rework.

Retrofit Support FAQ

Q1: Is the Yokogawa AAI835-S50 S3 a direct replacement for the original module in CENTUM CS 3000 systems?
Yes. The AAI835-S50 S3 is designed as a retrofit-compatible replacement for the same module designation within Yokogawa CENTUM CS 3000 and CENTUM VP node architectures. It uses the same backplane connector, S50 terminal block interface, and module addressing scheme, allowing direct slot-for-slot substitution without mechanical or wiring modifications. Customers should confirm the FCS firmware revision supports the module variant before installation.

Q2: What pre-shipment testing does NINERMAS perform on the AAI835-S50 S3?
Each unit undergoes functional verification of all analog I/O channels, signal conditioning accuracy across the 4–20 mA and 1–5 V DC ranges, backplane communication handshake testing, and visual inspection for connector integrity and component condition. A test report is available upon request and can be provided with the shipment to support site acceptance testing and quality records.

Q3: How do I confirm wiring compatibility before installing the replacement module?
Refer to the as-built loop drawings and the CENTUM CS 3000 or CENTUM VP I/O wiring manual for the AAI835-S50 S3 terminal block pinout. Verify that each field cable termination matches the channel signal type (current input, current output, or voltage input) configured in the FCS tag database. Use a multimeter or loop calibrator to confirm field loop continuity and signal levels before reinserting the module. If signal isolators are present in the loop, verify their output range matches the module’s input specification.

Q4: What is the warranty coverage and what does it include?
NINERMAS provides a 12-month warranty from the date of shipment on all AAI835-S50 S3 units. The warranty covers manufacturing defects, functional failures under normal operating conditions, and channel-level performance deviations from the published specification. It does not cover damage resulting from incorrect installation, overvoltage conditions, or unauthorized modification. For warranty claims or technical support, contact NINERMAS directly at sale@ninermas.com.
