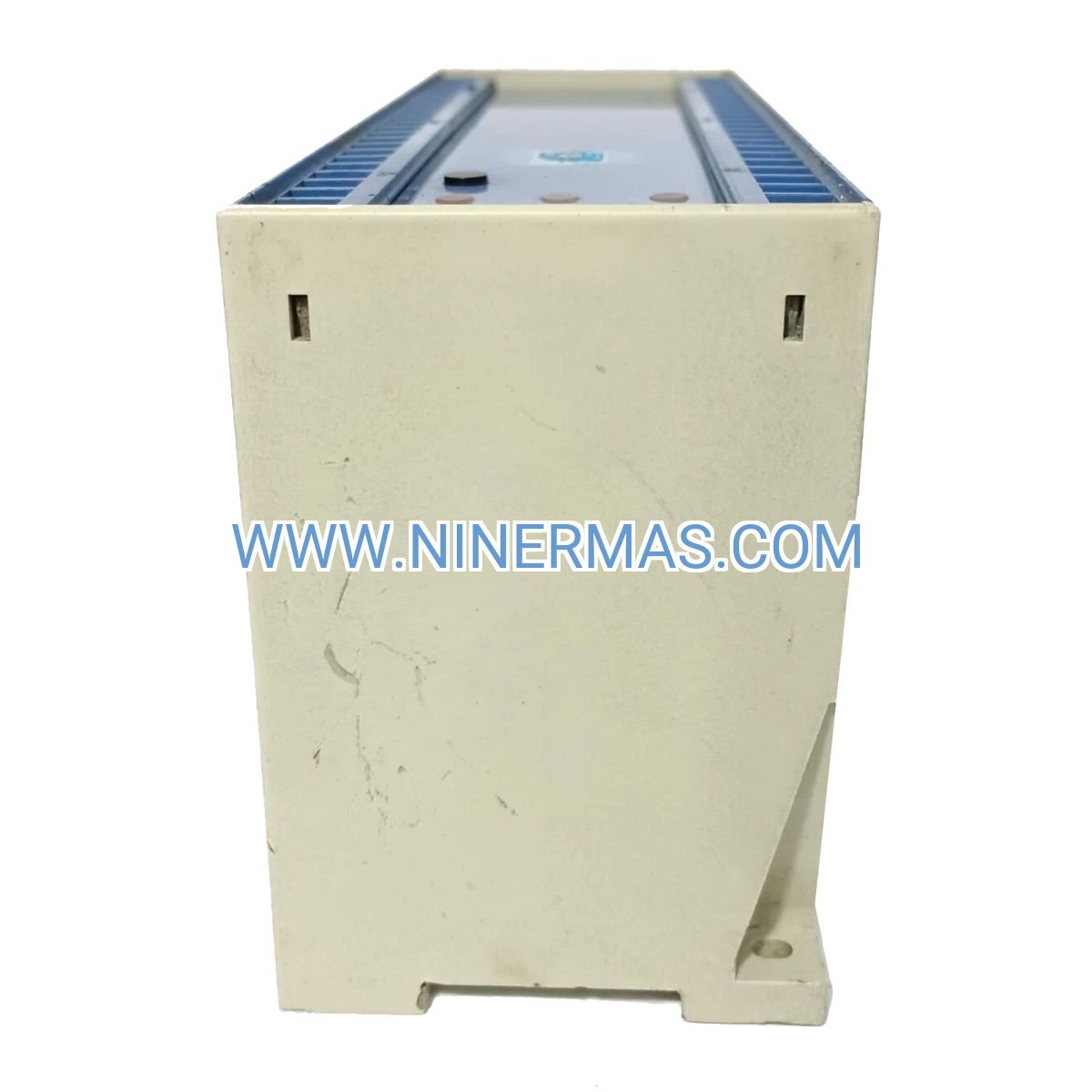

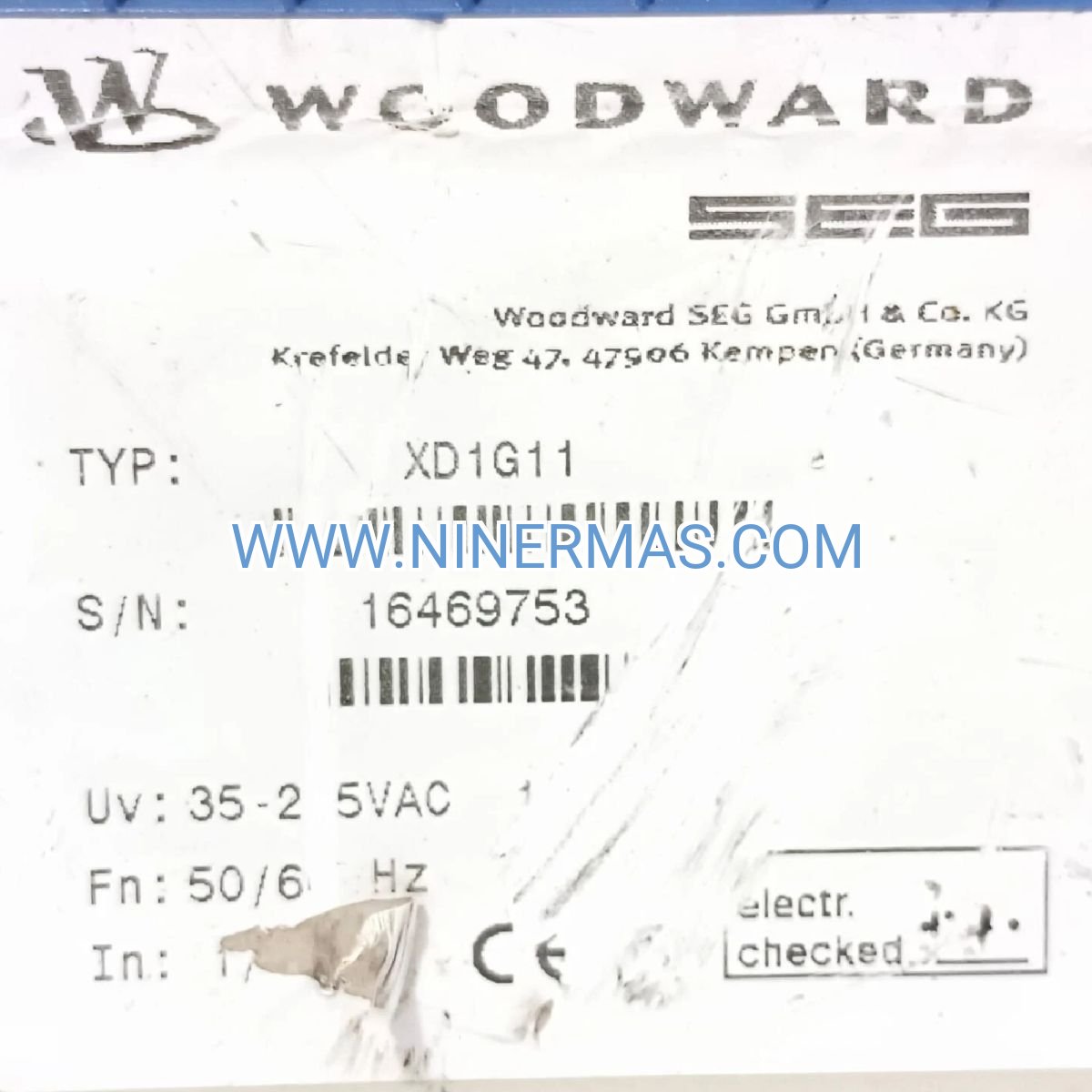

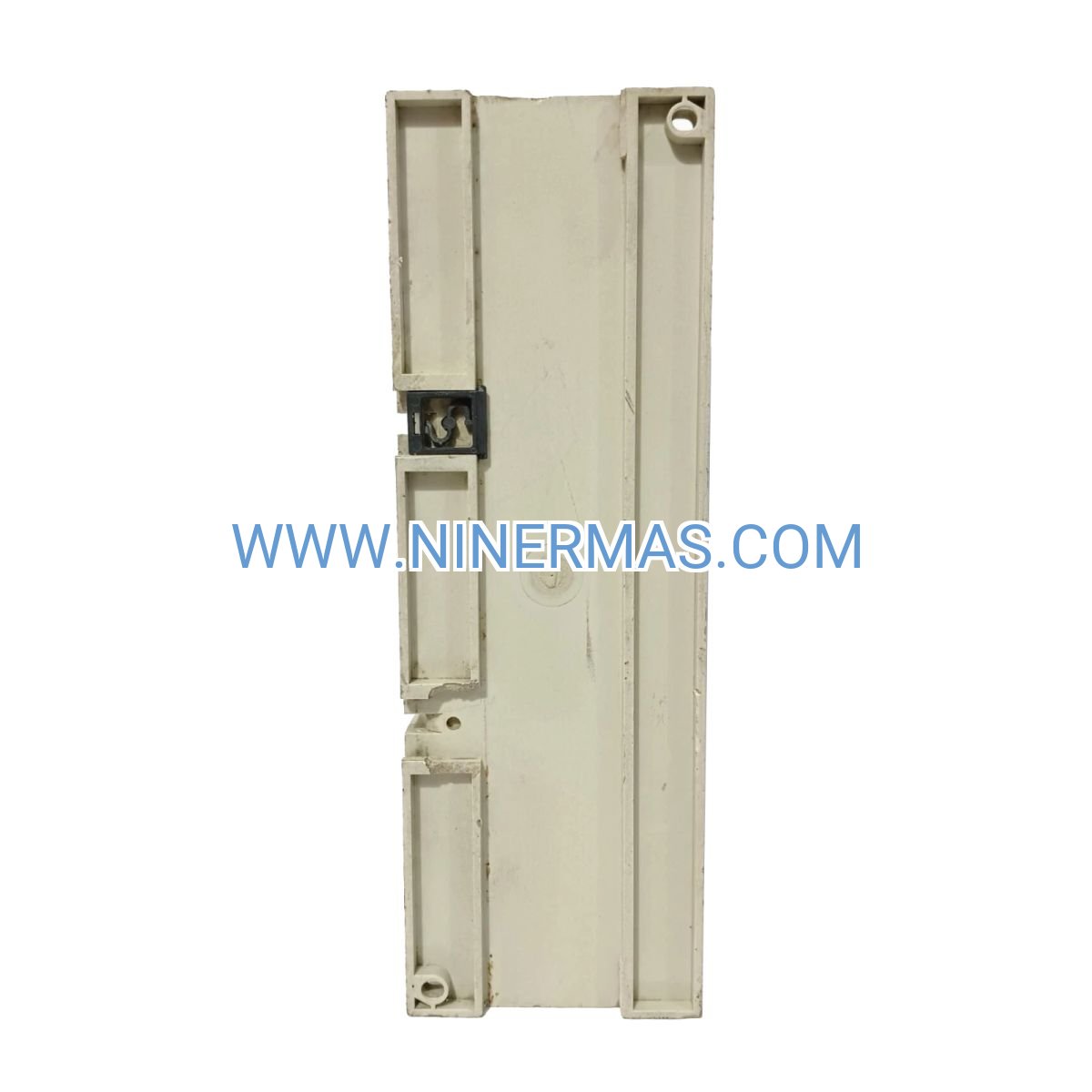

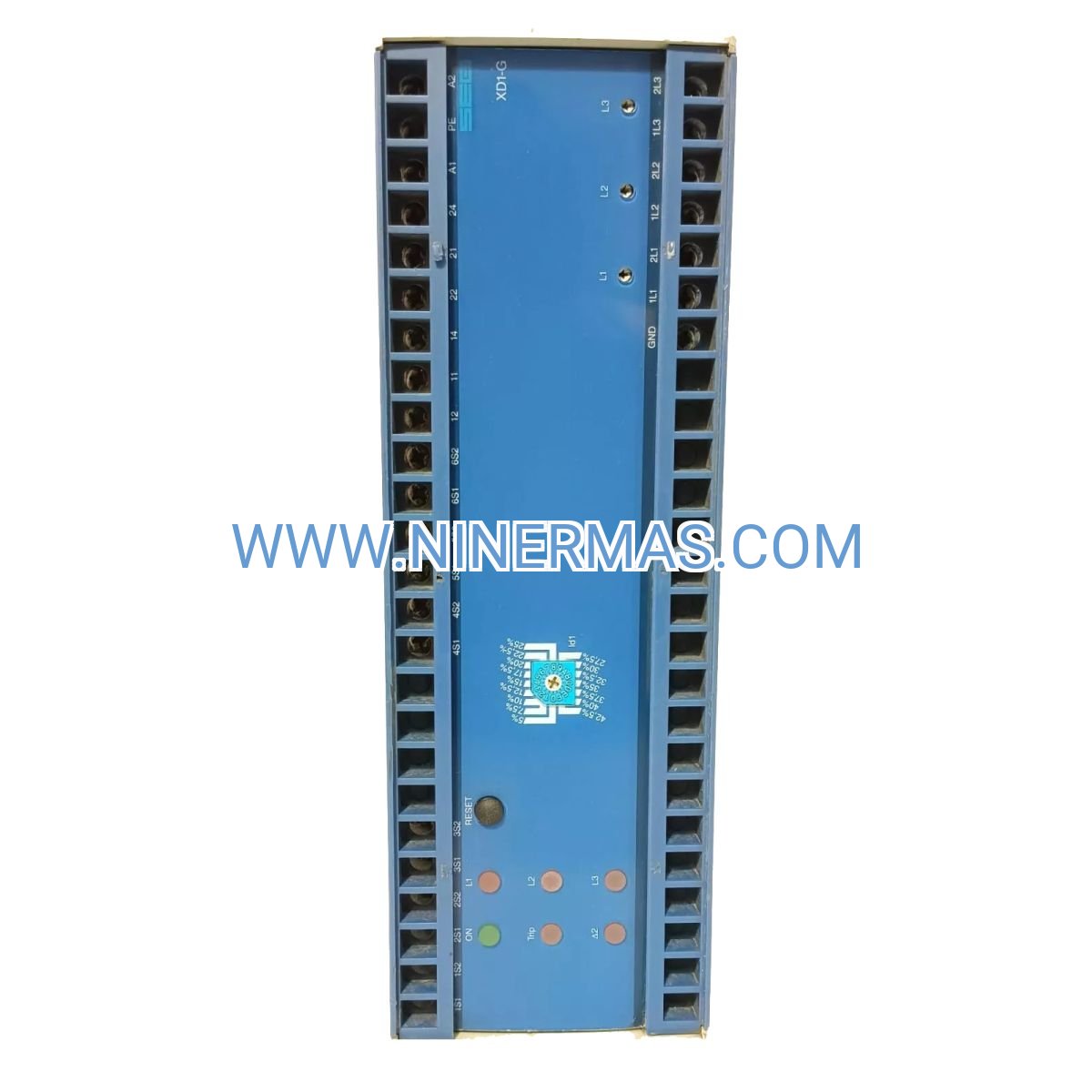

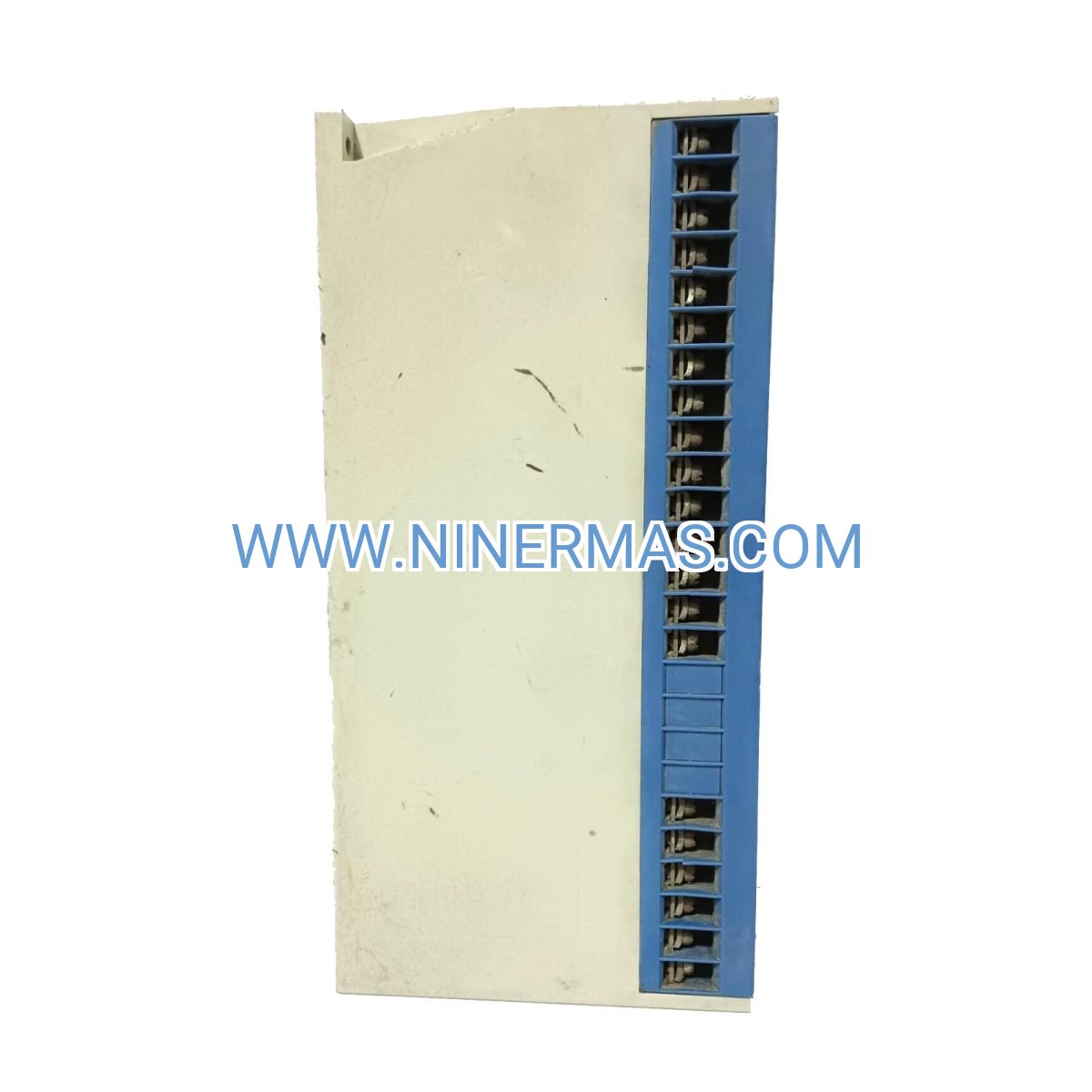

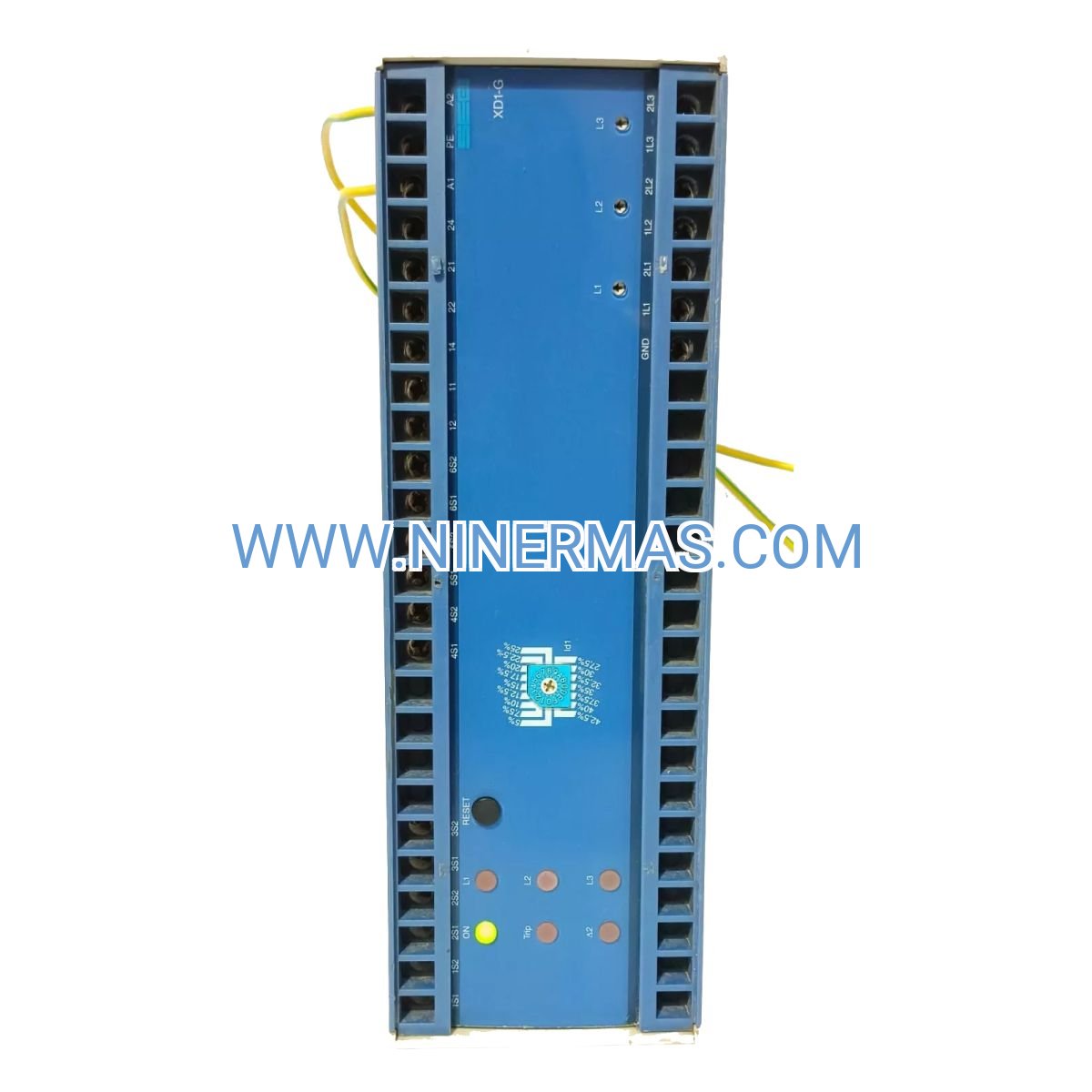

XD1G11 Differential Relay (Industrial-Grade Generator Fault Protection)

Engineered for high-stakes power environments, the XD1G11 serves as your first line of defense against catastrophic generator failures. This intelligent differential relay continuously monitors current flow patterns across generator windings, instantly detecting internal faults before they escalate into equipment destruction or unplanned shutdowns. Designed for utility operators, facility engineers, and marine electrical teams managing synchronous generators from 500 kVA to multi-megawatt installations, the XD1G11 combines Woodward's four decades of protection expertise with modern digital diagnostics.

What sets this relay apart is its adaptive intelligence—automatically compensating for CT errors during startup transients while maintaining hair-trigger sensitivity to genuine fault conditions. Whether you're protecting a hospital's emergency genset, a data center's backup power train, or an offshore platform's primary generation, the XD1G11 delivers the reliability your operation demands.

Core Protection Capabilities & Business Value

✓ Sub-20ms Fault Isolation: Lightning-fast differential algorithms detect stator winding faults in under one electrical cycle, limiting arc energy exposure and preventing winding burnout that could sideline your generator for months.

✓ Harmonic Restraint Technology: Distinguishes between harmonic-rich magnetizing inrush currents (normal startup) and fault currents (emergency condition), eliminating nuisance trips that cost you $5,000-$50,000 per false shutdown in lost production.

✓ Multi-Protocol Connectivity: Native Modbus RTU/TCP, DNP3.0, and IEC 61850 support integrates seamlessly with Allen-Bradley, Siemens, Schneider, and GE control platforms—no protocol converters required.

✓ Waveform Capture System: 128-sample-per-cycle recording preserves fault signatures for root cause analysis, helping your team identify whether failures stem from insulation degradation, mechanical issues, or external grid disturbances.

✓ Self-Diagnostic Monitoring: Continuous CT circuit supervision, relay health checks, and firmware integrity validation ensure the protector itself never becomes a single point of failure.

→ Cybersecurity Hardened: TLS 1.2 encryption, role-based access with audit logging, and NERC CIP compliance features protect your critical infrastructure from unauthorized configuration changes.

Where XD1G11 Solves Real Problems

Mission-Critical Facilities (Hospitals, Data Centers, Telecom Hubs):
Your backup generators must start reliably during grid failures—but internal faults during emergency operation could leave you completely dark. The XD1G11's split-phase differential protection catches turn-to-turn faults at 5-10% sensitivity levels, far below the threshold where damage becomes irreversible. One healthcare facility avoided a $2.3M generator replacement by catching an incipient stator fault during monthly testing.

Industrial Cogeneration & Combined Heat-Power Plants:
When your generator supplies both electrical load and process steam, unplanned trips cascade into production losses across multiple departments. XD1G11's adaptive restraint settings prevent false trips during load swings while maintaining protection integrity—keeping your 95%+ availability targets within reach.

Marine & Offshore Drilling Platforms:
Salt fog, vibration, and temperature extremes from -40°C to +70°C demand ruggedized protection that won't drift out of calibration. Conformal-coated circuitry and shock-rated enclosures ensure the XD1G11 maintains ±2% accuracy even after years of harsh service, meeting ABS and DNV-GL marine certification requirements.

Renewable Energy Hybrid Systems:
Wind-diesel and solar-genset microgrids require protection relays that coordinate with inverter-based resources. The XD1G11's programmable time-current curves and directional sensitivity settings integrate smoothly with IEEE 1547 compliant systems, preventing sympathetic tripping during renewable source fluctuations.

Utility Peaking & Black-Start Generators:
Grid support generators cycling multiple times daily face accelerated insulation aging. XD1G11's trending analytics track differential current baselines over thousands of starts, alerting you to degradation patterns 6-12 months before failure—transforming reactive maintenance into predictive asset management.

Technical Parameters & Selection Guide

Selection Criteria: Choose the XD1G11 when your generator requires dedicated differential protection per NFPA 70 or IEEE 242 guidelines. For generators below 500 kVA, consider multifunction relays with integrated differential elements. For units above 10 MVA, verify CT accuracy class meets 10C200 or better to ensure relay sensitivity isn't compromised by CT saturation during through-faults.

Extended Integration & Customization

SCADA Integration: Pre-configured Modbus register maps and DNP3 point lists accelerate commissioning with Wonderware, Ignition, or iFIX systems. Real-time data points include differential current magnitude, restraint current, harmonic content (2nd through 5th), and relay health status—giving operators full visibility into protection system performance.

Redundant Protection Architectures: Deploy dual XD1G11 relays in primary/backup configurations with independent DC supplies and trip circuits. Cross-monitoring logic detects relay failures and automatically transfers protection responsibility, achieving SIL-2 safety integrity levels for critical generation assets.

Custom Curve Programming: Factory or field-configurable restraint characteristics accommodate unusual generator designs—salient-pole hydro units, high-reactance industrial generators, or permanent magnet machines requiring non-standard protection slopes.

Predictive Maintenance Outputs: Optional 4-20mA analog outputs transmit differential current trends to vibration monitoring systems or thermal imaging platforms, enabling multi-parameter condition monitoring that correlates electrical, mechanical, and thermal degradation patterns.

Delivery Timeline & Service Commitment

→ Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for emergency replacements (additional fees apply).

→ Custom Configuration: Factory-programmed relays with your specific settings ship within 7-10 business days—arrives ready to install with zero on-site programming required.

→ Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and firmware defects. Extended 36-month coverage available for critical applications.

→ Technical Support: Lifetime access to application engineers for setting calculations, CT sizing verification, and troubleshooting assistance. Remote commissioning support via secure VPN connection included with purchase.

→ Documentation Package: Every relay ships with calibration certificate, IEC 61850 ICD file, Modbus register map, AutoCAD panel cutout drawings, and quick-start commissioning guide—everything your electricians need for first-time-right installation.

Frequently Asked Questions

How does the XD1G11 prevent false trips during generator synchronization?
The relay's second-harmonic restraint algorithm detects the characteristic harmonic signature of magnetizing inrush (typically 20-40% second harmonic content) and blocks tripping for 100-200ms during breaker closure. Once inrush decays and harmonic content drops below 15%, full protection sensitivity is restored within two cycles.

Can this relay protect generators with neutral grounding resistors?
Absolutely. The XD1G11 monitors phase currents independently of neutral grounding method—compatible with solidly grounded, resistance-grounded, or ungrounded neutral systems. For high-resistance grounded systems (limiting fault current to 5-10A), configure the relay's minimum pickup to 3-5A to ensure sensitivity to ground faults.

What's the maximum cable distance between generator CTs and the relay?
With 5A CTs and #12 AWG control cable, you can reliably run 300-400 feet without significant burden issues. For longer distances or 1A CTs, calculate total loop resistance (wire + CT secondary + relay burden) to ensure it stays below the CT's rated burden at maximum fault current—typically 1-2 ohms for Class C CTs.

Does the XD1G11 require annual calibration like electromechanical relays?
No. Digital relays maintain ±1% accuracy over their 15-20 year service life without calibration drift. We recommend functional testing every 12-24 months (injecting test currents to verify trip operation), but precision recalibration isn't necessary unless the relay experiences a lightning strike or severe electrical transient.

How do I integrate this relay with existing generator control panels?
The XD1G11's configurable relay outputs can directly drive your existing trip coils, annunciator circuits, or PLC inputs. For panels with 24VDC logic, use outputs 1-4 (solid-state, 50mA sink). For 125VDC trip circuits, use outputs 5-6 (electromechanical relays rated 5A). Wiring diagrams for Caterpillar, Cummins, and Kohler control panels are included in the installation manual.

What happens if one CT fails or loses connection during operation?
The relay's CT supervision circuit detects open or shorted CT secondaries within 2-3 seconds and issues a "CT Failure" alarm while blocking differential trip logic to prevent false operation. The alarm output can drive a local annunciator or send a notification to your SCADA system, prompting immediate investigation before the next generator start.

Take the Next Step in Generator Protection

Don't wait for a catastrophic failure to expose gaps in your protection strategy. Our application engineers are standing by to review your generator specifications, CT ratios, and protection coordination requirements—ensuring the XD1G11 integrates flawlessly with your existing electrical infrastructure.

Request a detailed application note, custom setting calculations, or expedited quote:
