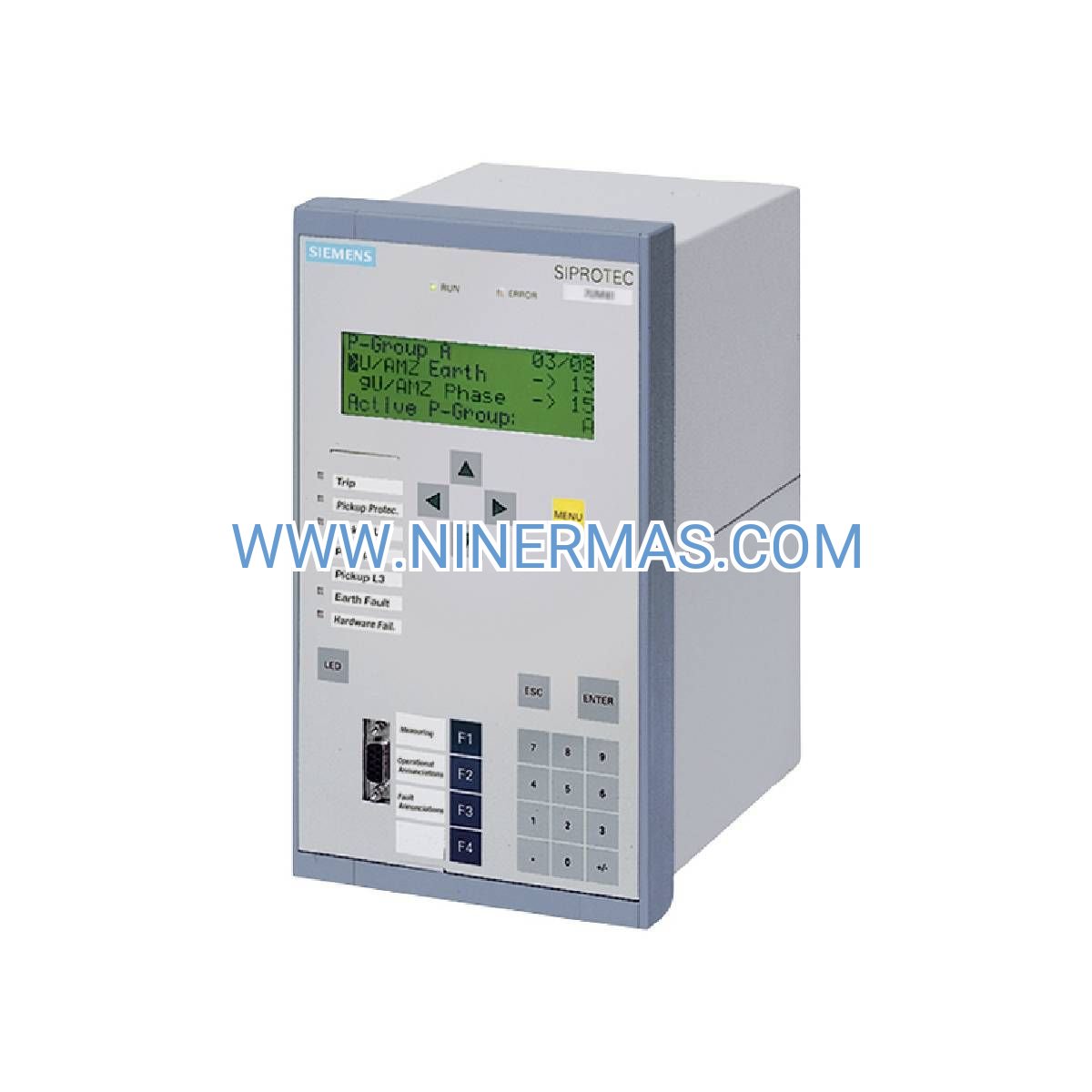

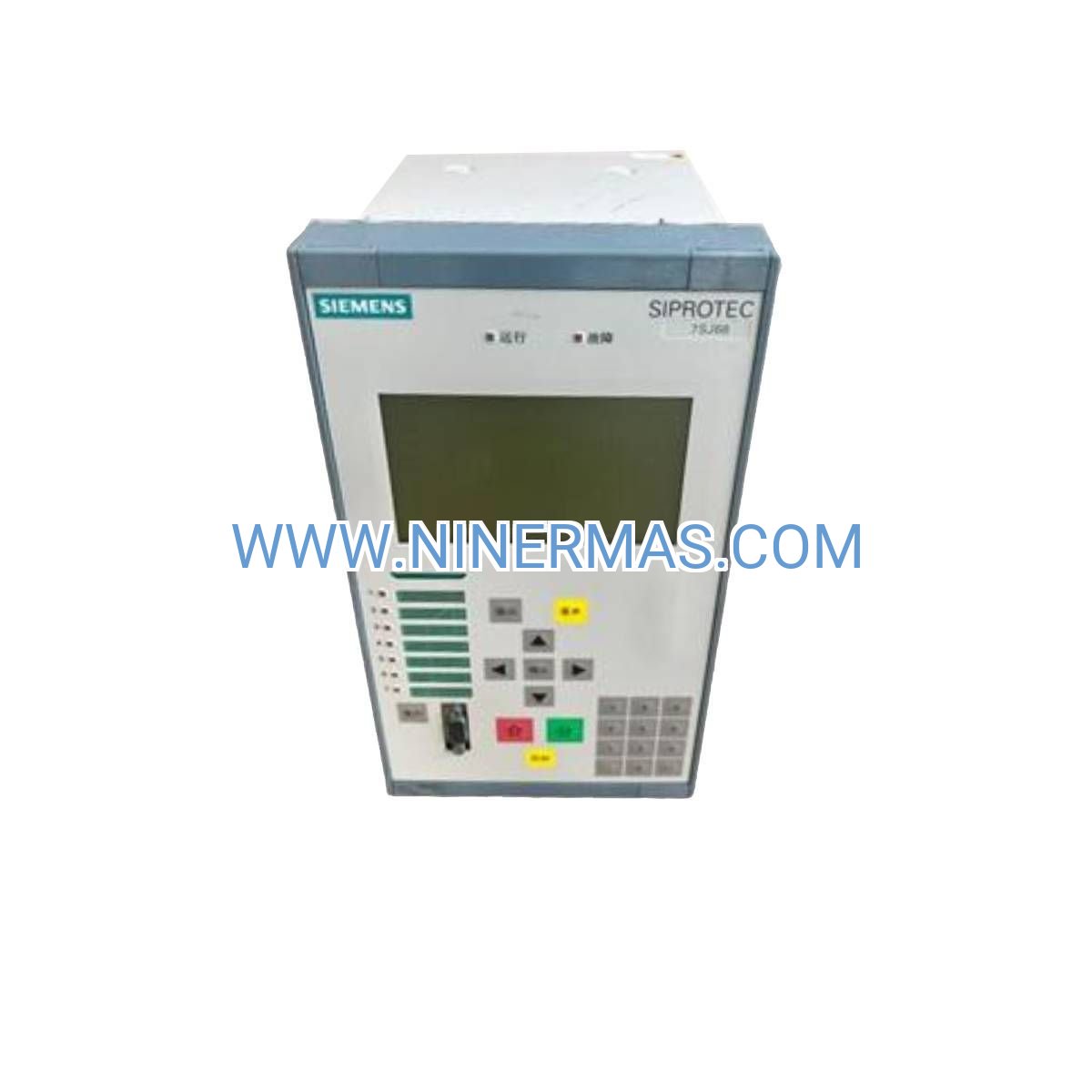

SIEMENS 7SJ6825-4EW20-0FE0/BB – Industrial-Grade Overcurrent Protection Relay

The SIEMENS 7SJ6825-4EW20-0FE0/BB is a high-performance SIPROTEC overcurrent protection relay engineered for mission-critical power distribution networks. Designed to detect and isolate electrical faults with millisecond precision, this relay combines German manufacturing excellence with intelligent protection algorithms to safeguard transformers, feeders, motors, and generators across industrial, utility, and renewable energy installations.

Built for substations operating in harsh environments, the 7SJ6825 delivers multi-function protection including phase overcurrent (ANSI 50/51), earth fault (ANSI 50N/51N), and directional elements (ANSI 67). Its programmable logic and IEC 61850 communication capability make it the ideal choice for modern substation automation projects requiring interoperability, remote diagnostics, and real-time fault analysis.

Whether you're upgrading legacy protection systems or designing new electrical infrastructure, the 7SJ6825-4EW20-0FE0/BB provides the reliability, flexibility, and advanced features demanded by power engineers worldwide. Backed by SIEMENS' proven track record in protection technology, this relay ensures continuous uptime and rapid fault clearance to minimize equipment damage and operational disruption.

Core Features & Benefits

✓ Multi-Function Protection Suite
Integrates overcurrent, earth fault, directional, and breaker failure protection in a single compact unit, reducing panel space and wiring complexity while delivering comprehensive system coverage.

✓ IEC 61850 Native Communication
Seamless integration with modern substation automation systems via standardized GOOSE and MMS messaging, enabling real-time data exchange, remote configuration, and centralized monitoring without proprietary protocols.

✓ Adaptive Protection Algorithms
Intelligent fault discrimination distinguishes between transient inrush currents and genuine fault conditions, eliminating nuisance trips while maintaining sub-cycle response times for critical events.

→ Self-Monitoring Diagnostics
Continuous internal health checks validate measurement circuits, logic processors, and communication paths, triggering alarms before component degradation affects protection performance.

→ Graphical Configuration Interface
DIGSI software provides intuitive parameter setting, simulation testing, and documentation generation, reducing commissioning time by up to 40% compared to traditional relay programming methods.

→ Wide Operating Range
Dual-voltage auxiliary supply (100-240V AC/DC) and extended temperature rating (-25°C to +70°C) ensure reliable operation across diverse geographic regions and installation environments.

Application Scenarios

Utility Substation Protection
Deployed in transmission and distribution substations to protect incoming feeders, bus sections, and transformer banks. The relay's directional elements coordinate with upstream and downstream devices to isolate faults while maintaining service continuity to unaffected network segments, reducing customer outage duration by 60-80%.

Industrial Power Distribution
Safeguards critical manufacturing processes by protecting motor control centers, generator sets, and process equipment feeders. Programmable trip curves accommodate motor starting currents while providing sensitive ground fault detection to prevent equipment damage and fire hazards in chemical, petrochemical, and heavy industry facilities.

Renewable Energy Integration
Ensures grid code compliance for wind farms and solar power plants by providing anti-islanding protection, fault ride-through capability, and synchronized fault recording. IEC 61850 communication enables seamless integration with SCADA systems for remote performance monitoring and regulatory reporting.

Marine & Offshore Platforms
Withstands vibration, humidity, and salt spray exposure in shipboard electrical systems and offshore oil/gas installations. Conformal coating and ruggedized construction maintain protection integrity in environments where equipment failure could compromise personnel safety and operational continuity.

Data Center Power Infrastructure
Protects UPS systems, generator paralleling switchgear, and critical distribution panels serving IT loads. Fast fault clearance and selective coordination minimize disruption to mission-critical servers while comprehensive event logging supports root cause analysis and uptime optimization.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 7SJ6825 when your application requires comprehensive overcurrent protection with network communication capability. For transformer-specific differential protection, consider the SIPROTEC 7UT series. For feeder applications requiring distance protection, evaluate the 7SA series. Consult with protection engineers to determine optimal CT ratios and trip curve settings based on fault current calculations and coordination studies.

Extended Functions

Advanced Fault Recording: Captures high-resolution waveforms (up to 20 kHz sampling) during fault events, storing pre-fault and post-fault data for detailed power quality analysis and forensic investigation. Oscillography files export in COMTRADE format for compatibility with third-party analysis tools.

Programmable Logic Controller: Built-in CFC (Continuous Function Chart) editor enables custom protection schemes, interlocking logic, and automated switching sequences without external PLCs. Reduces system complexity and improves response time for complex protection scenarios.

Cybersecurity Features: Role-based access control, encrypted communication channels, and audit logging comply with IEC 62351 security standards, protecting critical infrastructure from unauthorized access and cyber threats.

Modular Expansion: Field-upgradable firmware and optional I/O modules allow functionality enhancement as system requirements evolve, protecting your investment and extending relay service life beyond 15 years.

Delivery & Service Assurance

Lead Time: Standard configuration units ship within 3-5 business days. Custom-configured relays with specific firmware or I/O requirements typically deliver within 10-15 business days. Expedited shipping available for critical outage situations.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials, workmanship, and electronic components. Extended warranty programs available for long-term projects and fleet deployments.

Technical Support: Access to SIEMENS-certified protection engineers for application assistance, commissioning support, and troubleshooting. Remote diagnostic services available via secure VPN connection to minimize site visit requirements.

Documentation Package: Each relay ships with installation manual, configuration guide, protection function descriptions, and test certificates. DIGSI configuration software and IEC 61850 ICD files available for download from SIEMENS support portal.

Frequently Asked Questions

How does the 7SJ6825 integrate with existing SCADA systems?
The relay supports IEC 61850 MMS for seamless SCADA integration, plus legacy protocols including Modbus RTU and PROFIBUS DP. Protocol gateways enable connectivity to DNP3 and IEC 60870-5-104 systems. Configuration files (ICD/CID) simplify engineering and reduce commissioning time.

What current transformer ratios are compatible with this relay?
The 7SJ6825 accepts standard 1A or 5A secondary CT inputs with ratios from 5:1 to 10,000:1. Wide dynamic range (0.1-40× rated current) accommodates both sensitive ground fault detection and high-magnitude short circuit measurement without saturation.

Can this relay provide backup protection for adjacent zones?
Yes, programmable time-overcurrent curves (IEC, IEEE, and custom characteristics) enable selective coordination with upstream and downstream devices. Directional elements prevent false tripping during external faults while maintaining backup protection capability.

Is remote firmware updating supported?
Firmware updates can be performed locally via front USB port or remotely through Ethernet connection using DIGSI software. Version control and rollback features ensure safe updates without compromising protection availability.

What training resources are available for commissioning engineers?
SIEMENS offers online training modules, hands-on workshops, and certification programs covering SIPROTEC relay configuration, testing, and maintenance. Technical documentation includes step-by-step commissioning procedures and troubleshooting flowcharts.

Does the relay support synchrophasor measurement?
While the 7SJ6825 focuses on protection functions, it provides synchronized time-stamping via IRIG-B or IEEE 1588 PTP for accurate fault location and sequence-of-events recording. For dedicated PMU functionality, consider SIPROTEC 7KE series devices.

Take the Next Step

Protect your critical electrical infrastructure with proven SIPROTEC technology. Contact our protection specialists today for application consultation, technical specifications, or project quotations. Our team provides comprehensive support from initial design through commissioning and lifecycle maintenance.

Ready to upgrade your protection system?
Email: sale@ninermas.com | Phone: +0086 187 5021 5667
Request a technical datasheet or schedule a consultation with our protection engineers.
