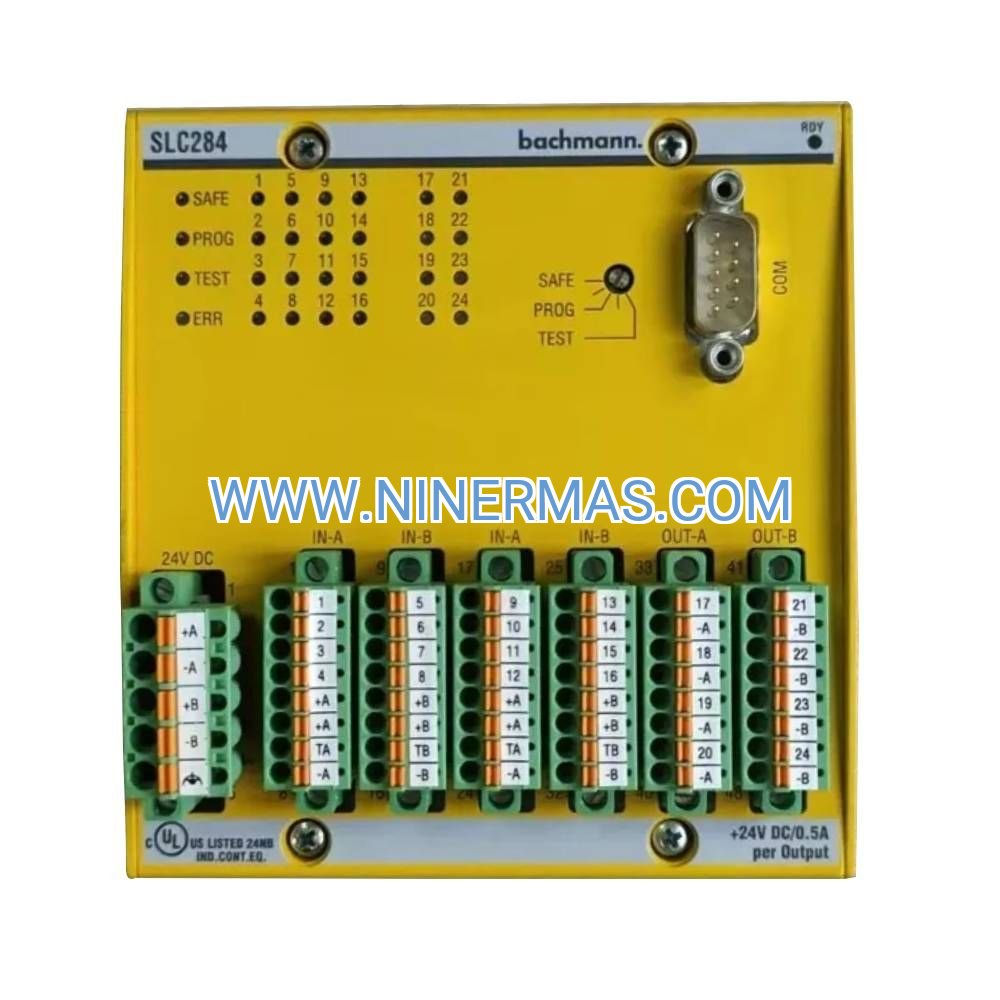

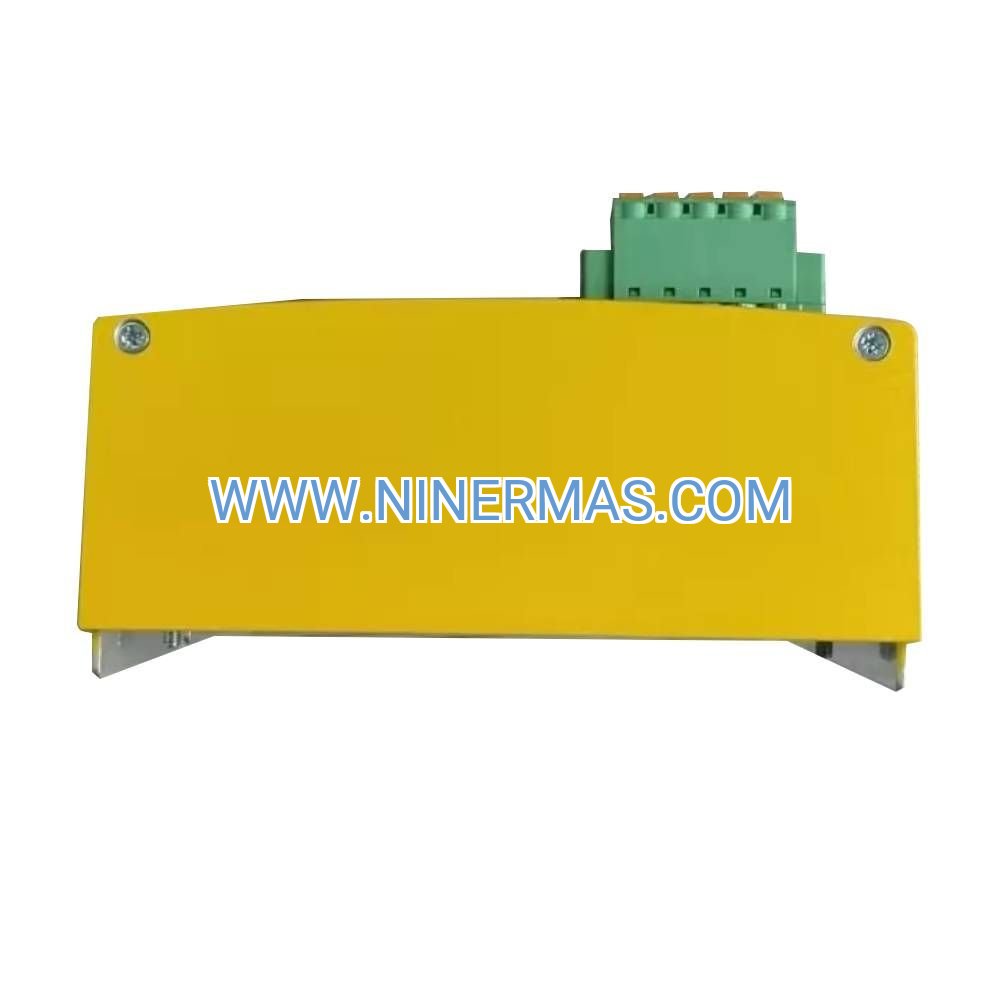

SLC284 Safety Controller (Industrial-Grade Fail-Safe Processor)

The Bachmann SLC284 is a certified safety processor engineered to protect personnel, equipment, and processes in high-risk industrial environments. Combining SIL3 (Safety Integrity Level 3), PL e (Performance Level e), and Category 4 compliance, this fail-safe controller delivers deterministic safety logic execution with dual-channel redundancy and comprehensive diagnostic coverage exceeding 99%.

Designed for manufacturers who cannot afford downtime or safety incidents, the SLC284 integrates seamlessly into Bachmann M1 automation platforms while maintaining complete independence from standard control systems. Whether you're implementing emergency stop circuits, burner management systems, or machine guarding solutions, this safety processor provides the reliability and certification required by global safety standards.

With sub-20ms response times, extended temperature range (-40°C to +70°C), and multi-protocol communication support, the SLC284 stands ready to safeguard your most critical operations. Contact our safety automation specialists to configure your certified protection system.

Core Features & Benefits

✓ Triple-Certified Safety Performance
Achieves IEC 61508 SIL3, ISO 13849-1 PL e, and IEC 62061 Category 4 certification through independent dual-channel processing with continuous cross-checking. Ensures compliance with international machinery directives and reduces liability exposure.

✓ Redundant Architecture with Diagnostic Coverage >99%
Two independent processing channels execute identical safety logic simultaneously, comparing results every scan cycle. Automatic transition to safe state upon any discrepancy detection, eliminating single points of failure in safety-critical applications.

✓ 16-Channel Safety Input Processing
Handles diverse safety sensor types including emergency stop buttons, safety light curtains, two-hand controls, safety door switches, and enabling devices. Configurable input filtering and debounce settings optimize response for specific application requirements.

→ Sub-20ms Deterministic Response Time
Guaranteed maximum reaction time from input signal change to safety output activation ensures predictable system behavior. Critical for applications requiring rapid hazard mitigation such as press brake controls and robotic cell protection.

→ Multi-Protocol Industrial Communication
Native support for Ethernet, CANopen, and PROFIBUS enables integration with existing automation infrastructure. Safe communication protocols allow distributed safety I/O expansion up to 512 points without compromising certification.

→ Extended Environmental Specifications
Operates reliably across -40°C to +70°C temperature range with IP20 protection rating. Designed for harsh industrial conditions including vibration, electrical noise, and temperature cycling common in manufacturing environments.

Typical Application Scenarios

Emergency Shutdown Systems (ESD) in Process Industries
Chemical plants, refineries, and pharmaceutical facilities deploy the SLC284 to manage emergency shutdown sequences protecting against overpressure, temperature excursions, and hazardous material releases. The certified safety performance meets regulatory requirements while the redundant architecture ensures availability during critical events.

Machine Guarding & Perimeter Protection
Manufacturing operations integrate the SLC284 with safety light curtains, laser scanners, and safety mats to create certified protection zones around robotic cells, automated assembly lines, and material handling equipment. Configurable muting functions allow material flow while maintaining personnel protection.

Burner Management Systems (BMS)
Power generation facilities and industrial boiler operations rely on the SLC284 for flame monitoring, fuel valve control, and purge sequence management. The processor's deterministic timing and diagnostic capabilities ensure safe ignition, operation, and shutdown of combustion equipment.

Press Brake & Forming Machine Safety
Metal fabrication shops implement two-hand control, light curtain integration, and anti-tie-down logic using the SLC284 to protect operators during bending, stamping, and forming operations. Configurable safety functions adapt to different tooling setups and production modes.

Automated Guided Vehicle (AGV) Safety Systems
Mobile robot manufacturers embed the SLC284 to manage safety-rated laser scanners, emergency stop circuits, and speed monitoring functions. The compact form factor and extended temperature range suit vehicle-mounted applications in warehouse and logistics environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SLC284 when your application requires certified SIL3/PL e protection with up to 16 local safety inputs. For larger systems exceeding 16 points, plan for distributed safety I/O modules connected via safe communication protocols. Applications requiring safety outputs should incorporate certified safety relay modules or safety I/O expansion units. Consult with certified functional safety engineers during system design to ensure proper architecture and validation.

Extended Functions

Advanced Safety Logic Programming
Develop complex safety applications using IEC 61131-3 programming languages (Ladder Diagram, Function Block Diagram, Structured Text) within Bachmann's SolutionCenter development environment. Pre-certified safety function blocks accelerate development of emergency stop, safety door monitoring, two-hand control, and muting sequences.

Industrial IoT Integration Capabilities
Export safety system diagnostics, event logs, and performance metrics to SCADA systems, historians, and cloud platforms via standard Ethernet protocols. Monitor safety circuit status, response times, and fault conditions remotely while maintaining complete separation between safety and standard control networks.

Customization & Application-Specific Configuration
Factory customization services available for OEM applications requiring pre-configured safety logic, custom I/O mapping, or application-specific certification documentation. Reduce commissioning time and ensure consistent deployment across multiple machine builds or facility installations.

Delivery & Service Assurance

Lead Time: Standard configuration units ship within 3-5 business days from our distribution center. Custom-configured or application-specific units require 2-3 weeks for programming, testing, and documentation preparation. Expedited processing available for emergency replacement requirements.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty programs available for critical applications requiring guaranteed replacement and advanced exchange services.

Technical Support: Access to certified functional safety engineers for application consultation, safety validation support, and troubleshooting assistance. Support includes configuration review, safety calculation verification, and compliance documentation guidance throughout project lifecycle.

Documentation Package: Each SLC284 ships with safety manual, technical datasheet, certification documents (TÜV certificates, conformity declarations), and quick-start programming guide. Complete safety validation documentation available for download including FMEDA reports and safety function specifications.

Frequently Asked Questions

What programming software is required for the SLC284 safety controller?
The SLC284 is programmed using Bachmann's SolutionCenter development environment, which includes certified safety function block libraries compliant with IEC 61131-3 standards. The software provides integrated simulation, validation tools, and automatic safety documentation generation to streamline certification processes.

Can the SLC284 interface with non-Bachmann safety devices and sensors?
Yes, the SLC284 accepts standard 24V DC safety-rated input signals from any manufacturer's emergency stop buttons, safety light curtains, enabling devices, and safety door switches. Output control requires certified safety relay modules or safety-rated I/O expansion units compatible with the processor's communication protocols.

How does the SLC284 achieve energy efficiency in continuous operation?
The processor's optimized architecture consumes typically 8W during normal operation, significantly lower than competitive safety PLCs. Low power consumption reduces heat generation, extends component lifespan, and minimizes cooling requirements in enclosed control cabinets—particularly valuable in multi-module safety systems.

What installation requirements must be met for proper SLC284 mounting?
The SLC284 mounts directly onto Bachmann M1 system backplanes (BS206, BS209, BS210 models) using standard DIN rail clips. Ensure adequate ventilation clearance (minimum 50mm above and below module), proper grounding connections, and separation from high-voltage switching devices to maintain EMC compliance and optimal performance.

Does the SLC284 support remote safety monitoring and diagnostics?
The processor provides comprehensive diagnostic data via Ethernet communication, including safety circuit status, input/output states, response time measurements, and fault event logs. This information integrates with SCADA systems and maintenance management platforms while maintaining complete functional separation from safety-critical processing.

How frequently does the SLC284 require recertification or validation testing?
The module itself maintains certification throughout its operational life. However, complete safety system validation is required whenever safety logic is modified, I/O configurations change, or after component replacement. Annual functional testing of complete safety circuits is recommended per ISO 13849-2 guidelines to verify continued proper operation.

Take Action: Secure Your Safety System Today

Protect your personnel, equipment, and operations with certified SIL3/PL e safety control. Contact our automation specialists at sale@ninermas.com or +0086 187 5021 5667 to discuss your safety application requirements, receive technical consultation, and obtain detailed quotations. Our team provides complete support from initial system design through commissioning and validation.
