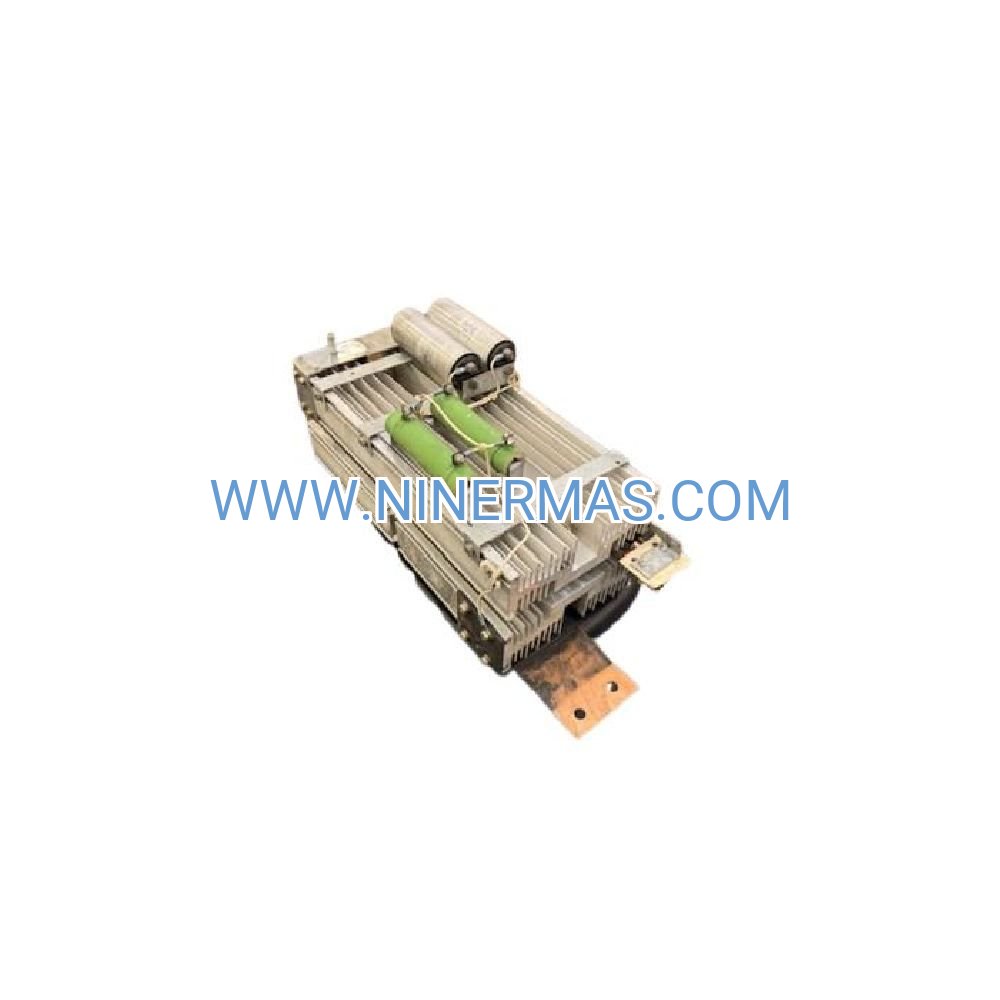

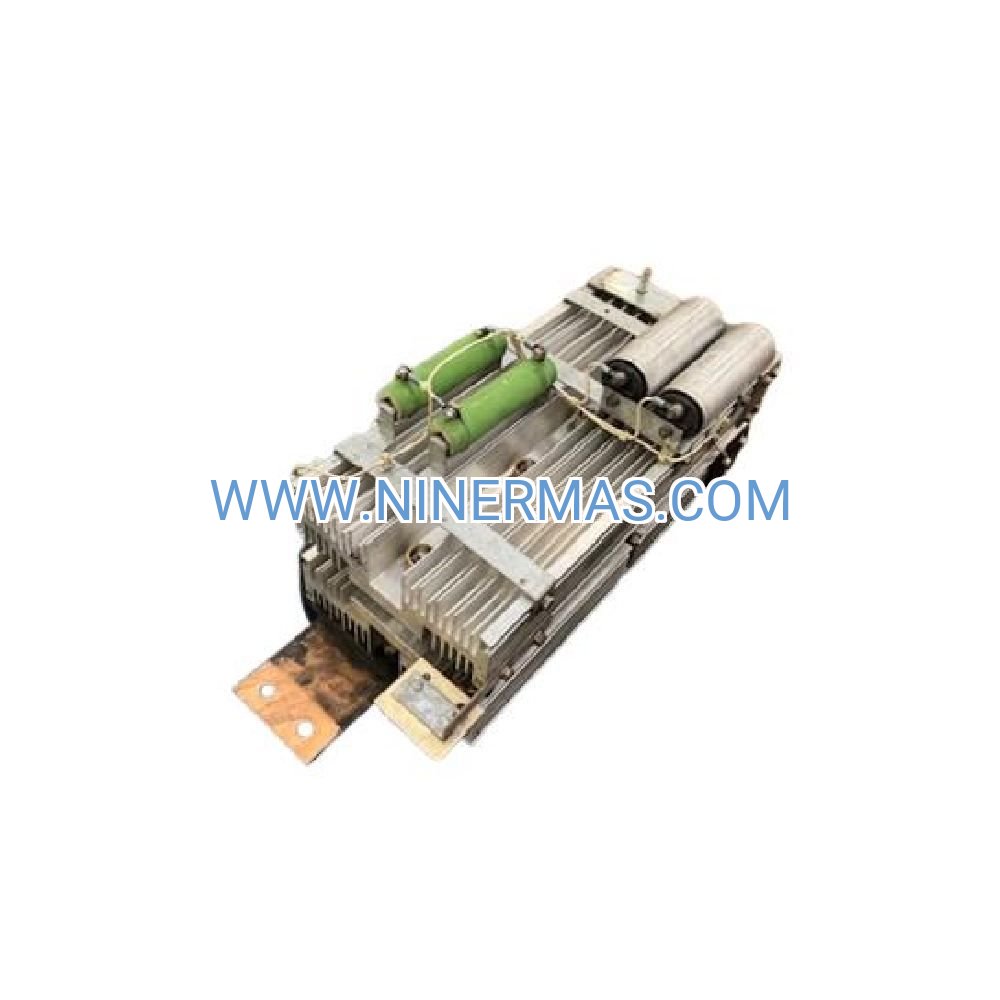

6SY7010-0AB08 Thyristor Power Module (Industrial-Grade Three-Phase Control)

The SIEMENS 6SY7010-0AB08 is a high-current thyristor block engineered for precision power conversion in industrial drive systems. Rated at 1780 amperes continuous, this Layer A module delivers bidirectional power flow control for infeed units and regenerative feedback applications. Built-in snubber circuitry protects against voltage transients while extending operational lifespan in demanding three-phase environments.

Designed for facilities requiring reliable energy recovery and motor control, this thyristor block addresses critical challenges in power quality management, harmonic mitigation, and grid stability. Whether you're upgrading legacy drive systems or deploying new automation infrastructure, the 6SY7010-0AB08 provides the robust performance industrial operations demand.

Factory-new condition with comprehensive warranty coverage ensures peace of mind for mission-critical installations. Compatible with 380-460VAC power systems across global markets, this module integrates seamlessly into existing SIEMENS architectures while offering retrofit flexibility for multi-vendor environments.

Core Features & Technical Advantages

✓ 1780A Continuous Current Capacity
Handles high-power loads in steel mills, mining operations, and heavy manufacturing without derating. Eliminates bottlenecks in energy-intensive processes while maintaining thermal stability under sustained operation.

✓ Integrated Snubber Circuit Protection
Reduces dv/dt stress on semiconductor junctions by up to 40%, minimizing electromagnetic interference and protecting downstream components. Extends mean time between failures (MTBF) in harsh industrial environments.

✓ Bidirectional Power Flow Architecture
Enables regenerative braking energy capture in crane systems, elevators, and test stands. Converts kinetic energy back to electrical power, reducing facility energy costs by 15-30% in cyclic load applications.

✓ Wide Voltage Range Compatibility (380-460VAC)
Adapts to regional power standards across North America (480V), Europe (400V), and Asia-Pacific (415V) without external transformers. Simplifies global equipment standardization and spare parts inventory.

→ Dual-Frequency Operation (50/60Hz)
Eliminates frequency conversion requirements when relocating equipment between markets. Supports multinational manufacturing operations with unified component specifications.

→ Layer A Configuration Standard
Direct replacement for aging thyristor modules in SIMOVERT, SIMOREG, and legacy drive families. Reduces retrofit engineering time by 60% compared to cross-platform conversions.

Industrial Application Scenarios

Steel & Metals Processing
Controls rolling mill drives and arc furnace power supplies where instantaneous current demands exceed 1500A. The snubber circuit prevents voltage spikes during rapid load changes, protecting expensive process equipment from electrical stress.

Material Handling & Logistics
Powers container crane hoists and automated storage/retrieval systems with regenerative capability. Captures braking energy during load lowering cycles, returning up to 25% of consumed power back to facility distribution systems.

Marine & Offshore Platforms
Drives thruster motors and drilling equipment in space-constrained installations. The compact 56-pound form factor reduces structural load requirements while delivering megawatt-class power conversion.

Test & Simulation Facilities
Enables dynamometer load banks and motor test benches to absorb regenerative power during brake testing. Prevents grid disturbances while maintaining precise torque control across 0-100% speed ranges.

Renewable Energy Integration
Manages grid-tie inverters for wind turbine pitch control and solar tracking systems. Handles bidirectional power flow during generation peaks and consumption valleys without auxiliary energy storage.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6SY7010-0AB08 when your application requires current capacity between 1500-2000A with regenerative capability. For lower current needs (under 1200A), consider the 6SY7010-0AB06 variant. Applications exceeding 2000A may require parallel module configurations—contact our engineering team for load-sharing circuit design.

Extended Capabilities & Integration Options

IoT Monitoring Integration: Compatible with SIEMENS SIMATIC S7 PLCs and third-party SCADA systems via analog current sensors and digital status relays. Enables predictive maintenance through thermal monitoring and cycle counting.

Harmonic Filtering: Pair with passive LC filters or active front-end rectifiers to achieve IEEE 519 compliance in sensitive installations. Reduces total harmonic distortion (THD) below 5% when combined with appropriate line reactors.

Custom Configurations: Available with alternative voltage ratings (500-690VAC) and current capacities (1200-2400A) for specialized applications. Lead time for custom specifications: 8-12 weeks from order confirmation.

Delivery Timeline & Service Guarantee

Standard Delivery: 5-7 business days for in-stock units via expedited freight. Tracking information provided within 24 hours of order processing.

Custom Orders: 10-14 weeks for non-standard voltage/current configurations. Partial shipments available for multi-unit orders to accelerate project timelines.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues under normal operating conditions. Extended warranty plans available for critical infrastructure applications.

Technical Support: Unlimited phone and email consultation during installation and commissioning. Remote diagnostics support for troubleshooting electrical anomalies and performance optimization.

Documentation Package: Includes dimensional drawings, wiring diagrams, thermal management guidelines, and gate trigger specifications. Available in PDF format upon request.

Frequently Asked Questions

What cooling requirements does the 6SY7010-0AB08 thyristor module need for continuous 1780A operation?
Forced air cooling with minimum 500 CFM airflow across the heat sink surface is required. Ensure proper thermal compound application (0.002-inch layer) between the module base and heat sink. Ambient temperatures above 40°C require current derating per the thermal curve in the technical manual.

Can this thyristor block handle regenerative braking in elevator applications?
Yes, the bidirectional design specifically supports regenerative feedback systems. During descent with loaded cars, the module converts mechanical energy back to electrical power, feeding it into the building's distribution system. Typical energy recovery ranges from 20-35% depending on duty cycle.

How does the integrated snubber circuit improve system reliability?
The factory-tuned RC snubber network limits voltage rise rates (dv/dt) to safe levels during thyristor commutation. This prevents false triggering, reduces electromagnetic interference by 30-40dB, and protects against voltage transients from inductive loads or grid disturbances.

Is the 6SY7010-0AB08 compatible with non-SIEMENS drive controllers?
While optimized for SIEMENS drive families, the standard thyristor gate interface (5-15V trigger, 100-500mA) allows integration with compatible third-party controllers. Verify gate driver specifications match the module's trigger requirements before installation.

What installation clearances are required for safe operation?
Maintain minimum 6-inch clearance on all sides for airflow. Vertical mounting orientation is recommended for optimal convection cooling. Ensure electrical clearances meet NEC Article 110 requirements for your voltage class (typically 3 inches for 480V systems).

Does this module support remote monitoring and diagnostics?
Direct monitoring requires external current sensors and temperature probes connected to your control system. The thyristor block itself does not include embedded IoT sensors, but integrates seamlessly with SIMATIC or third-party monitoring platforms via standard 4-20mA analog signals.

Request Technical Consultation

Our application engineers are available to discuss your specific power control requirements, system integration challenges, and retrofit planning. Contact us for load calculations, harmonic analysis, or custom configuration quotes. Expedited shipping available for emergency replacement scenarios.
