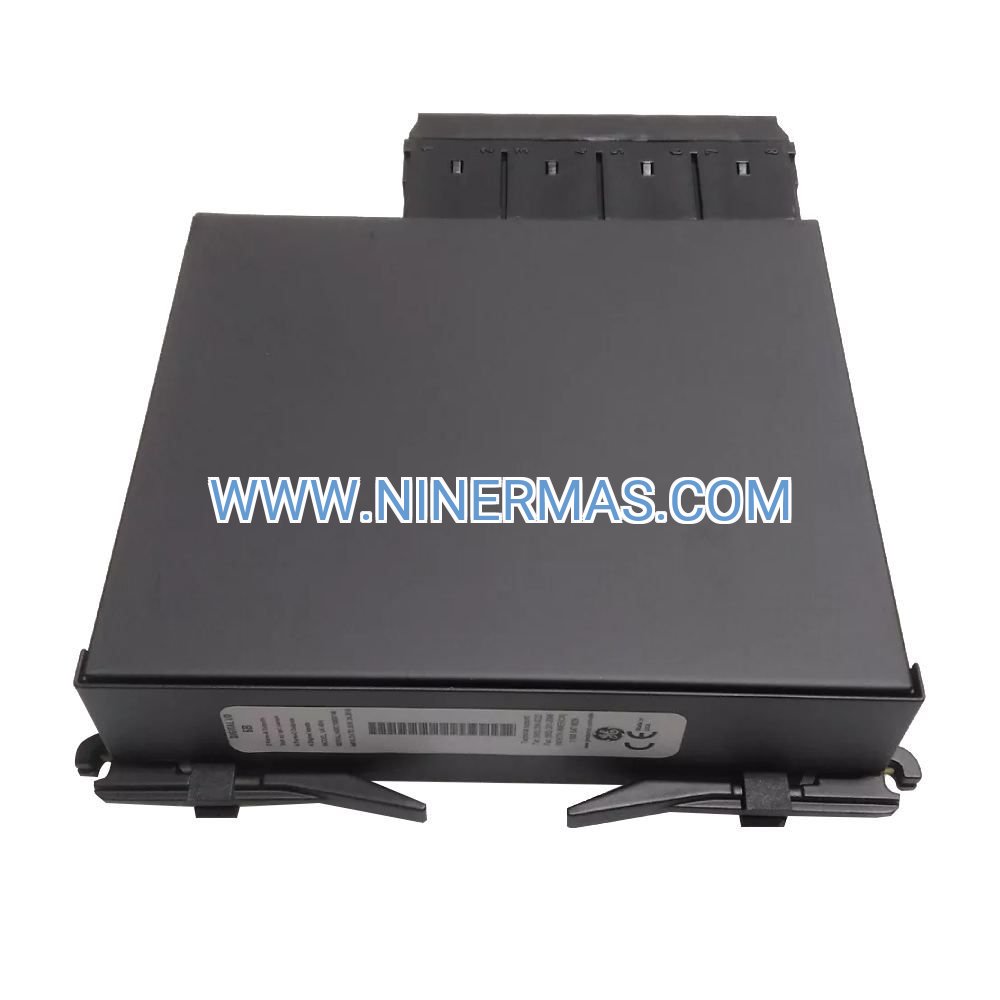

UR6BH Digital I/O Module (Industrial-Grade 32-Channel Controller)

The UR6BH is a high-density digital input/output module engineered for mission-critical industrial control systems. With 32 independently configurable 24V DC channels, this module provides unmatched versatility in discrete signal management across power generation facilities, process plants, and automated manufacturing lines.

Designed for environments where reliability cannot be compromised, the UR6BH addresses the growing demand for compact, scalable I/O solutions that integrate seamlessly with legacy and modern control architectures. Whether you're upgrading aging relay logic or expanding a distributed control system, this module delivers the performance and flexibility your operation demands.

Key advantages include channel-level isolation to prevent cross-contamination of faults, dual sinking/sourcing capability to eliminate inventory complexity, and Modbus protocol support for universal connectivity. The result: faster commissioning, reduced downtime, and lower total cost of ownership.

Core Features & Benefits

→ 32 Configurable Channels
Each channel operates independently as either input or output, sinking or sourcing. This eliminates the need for multiple module variants and simplifies spare parts management—one SKU covers diverse application requirements.

→ Channel-to-Channel Isolation
Electrical isolation between channels prevents fault propagation. A short circuit on Channel 1 won't affect Channel 32, ensuring continuous operation of critical processes even during component failures.

→ Sub-5ms Response Time
Fast signal processing enables real-time control of high-speed machinery and rapid event detection in protection systems. Ideal for applications where milliseconds matter—emergency shutdowns, synchronization logic, and pulse counting.

→ Extended Temperature Range (-40°C to +70°C)
Proven performance in extreme environments from Arctic installations to desert power plants. No derating required across the full industrial temperature spectrum.

→ Modbus RTU/TCP Native Support
Plug-and-play integration with SCADA systems, PLCs, and HMIs from all major vendors. Pre-configured register maps accelerate commissioning and reduce engineering hours.

→ DIN Rail Mounting
Tool-free installation on standard 35mm DIN rail. Compact form factor saves up to 45% panel space compared to equivalent terminal block solutions.

Application Scenarios

✓ Power Generation & Substation Automation
Monitor breaker status, control auxiliary relays, and interface with protection devices in generating stations and transmission substations. The UR6BH handles the discrete signals that coordinate generator start sequences, synchronization logic, and load shedding schemes.

✓ Chemical & Petrochemical Processing
Manage valve position feedback, pump run status, and alarm signals in hazardous area control panels (when paired with appropriate barriers). Isolation prevents ground loops in distributed I/O networks spanning large process units.

✓ Water & Wastewater Treatment
Control motor starters, read float switches, and coordinate sequential batch processes. The module's wide temperature tolerance suits outdoor installations in pump stations and lift facilities.

✓ Manufacturing & Assembly Lines
Interface with proximity sensors, photoelectric eyes, and pneumatic valve solenoids in high-speed packaging and material handling systems. Fast response time supports conveyor synchronization and reject mechanisms.

✓ Building Management Systems
Integrate HVAC damper controls, lighting contactors, and security system interfaces. Modbus connectivity enables centralized monitoring through standard BMS platforms.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose UR6BH when you need high channel density (32 points) in limited panel space
• Select this model for mixed sinking/sourcing requirements to reduce SKU proliferation
• Ideal for retrofit projects where 24V DC infrastructure already exists
• Recommended for Modbus networks requiring distributed I/O with minimal configuration
• Best suited for non-hazardous locations (IP20 rating); use with approved barriers for Zone 2/Div 2 applications

Extended Functions

IoT & Remote Monitoring Integration
When paired with Modbus-to-cloud gateways, the UR6BH enables remote diagnostics and predictive maintenance. Monitor channel status, detect wiring faults, and log historical I/O states through web-based dashboards—no site visit required.

Advanced Diagnostics
Built-in self-test routines continuously verify channel integrity. LED indicators provide instant visual feedback on power status, communication health, and individual channel activity. Diagnostic registers accessible via Modbus simplify troubleshooting.

Customization Options
Factory configuration services available for volume orders. Pre-programmed Modbus addresses, custom labeling, and application-specific firmware can be specified to reduce commissioning time on large projects.

Delivery & Service Assurance

Lead Time:
• Standard Stock Items: 3-5 business days (subject to inventory availability)
• Custom Configurations: 4-6 weeks (MOQ may apply)

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty programs available for critical infrastructure applications.

Technical Support:
Our application engineers provide pre-sales consultation, system design review, and post-installation troubleshooting. Support includes wiring diagrams, Modbus register maps, and integration guides for common SCADA platforms.

Documentation Package:
Each module ships with installation manual, quick-start guide, Modbus communication protocol specification, and CAD drawings (DXF/PDF formats). Firmware update utilities and configuration software available for download.

Frequently Asked Questions

Q: How do I configure individual channels for sinking versus sourcing operation?
A: Channel configuration is set via DIP switches or software registers (model-dependent). Consult the installation manual for your specific hardware revision. Most installations use a screwdriver-adjustable switch bank accessible without removing terminal blocks.

Q: What is the maximum recommended cable length for reliable digital signal transmission?
A: With shielded twisted-pair cable, digital I/O signals remain stable up to 100 meters (328 feet) in typical industrial EMI environments. For longer runs, consider using remote I/O modules or signal repeaters to maintain noise immunity.

Q: Can the UR6BH module operate in outdoor enclosures without climate control?
A: Yes, the -40°C to +70°C operating range covers most outdoor installations. However, ensure the enclosure provides IP54 or better protection against moisture and dust. Condensation prevention (heaters/ventilation) recommended in high-humidity climates.

Q: Is this module compatible with 12V DC or 48V DC field devices?
A: The UR6BH is optimized for 24V DC nominal (19.2V to 28.8V range). For 12V or 48V systems, voltage conversion or alternative module selection is required. Contact our technical team for multi-voltage application guidance.

Q: Does the module support hot-swapping for maintenance without system shutdown?
A: Hot-swap capability depends on system architecture. The module itself can be removed/installed under power, but connected field devices may experience brief signal interruption. Implement redundant I/O or maintenance bypass logic for zero-downtime requirements.

Q: What cybersecurity features protect Modbus communication from unauthorized access?
A: The UR6BH supports standard Modbus security practices including network segmentation, firewall rules, and read-only register locking. For enhanced security, deploy the module behind industrial firewalls and use VPN tunnels for remote access.

Ready to Optimize Your Control System?

The UR6BH Digital I/O Module represents proven technology trusted in thousands of installations worldwide. Whether you're designing a new facility or modernizing existing infrastructure, this module delivers the reliability, flexibility, and performance your operation demands.

Next Steps:
• Request a detailed quotation with volume pricing
• Schedule a technical consultation to review your application
• Download CAD models and integration documentation
• Order sample units for evaluation and testing

Contact our industrial automation specialists today to discuss how the UR6BH fits your project requirements.
