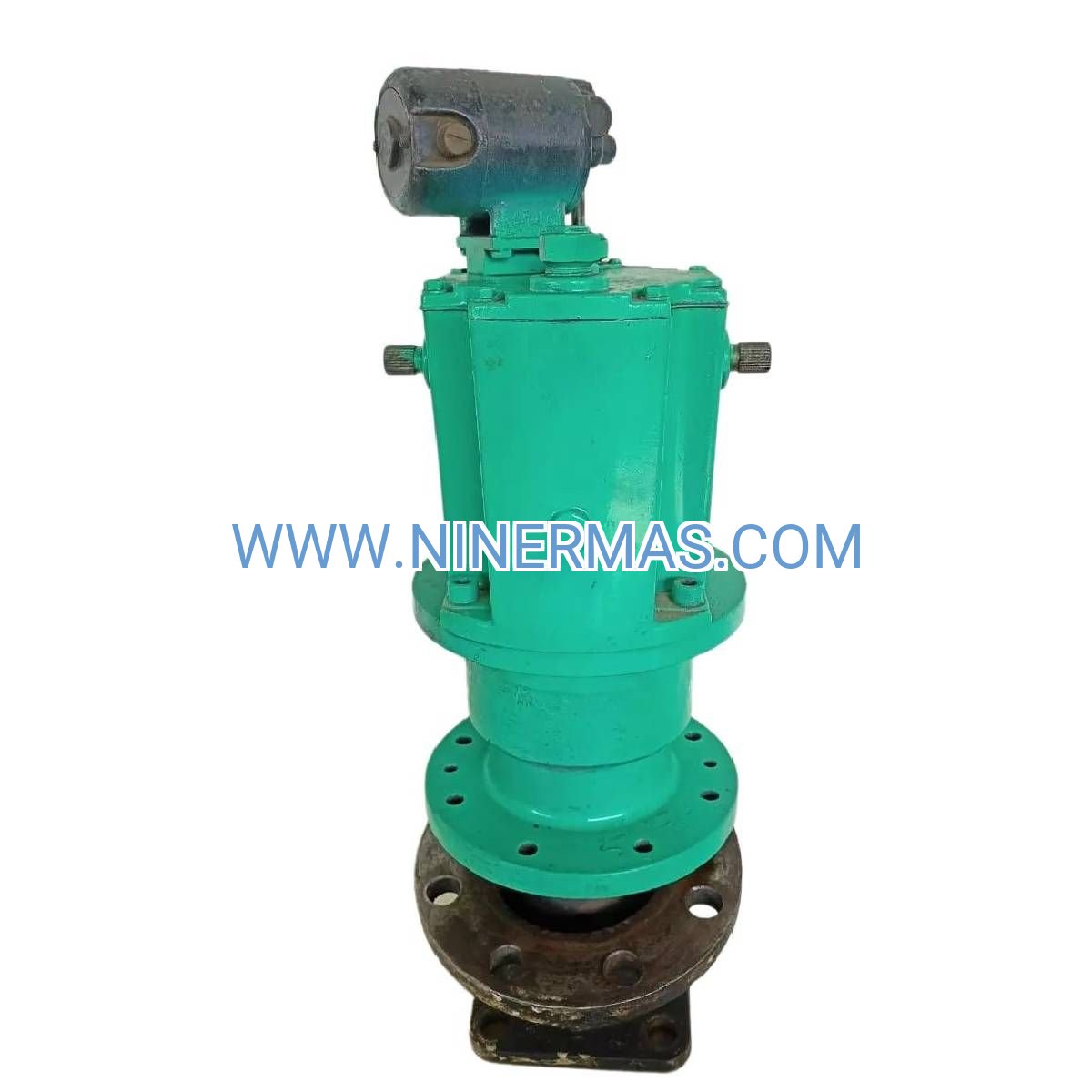

TG-13 8516-038 Mechanical-Hydraulic Governor (Industrial-Grade Speed Control System)

The TG-13 8516-038 represents Woodward's proven mechanical-hydraulic governor technology engineered for API 611 steam turbine applications requiring non-isochronous speed regulation. This robust control system delivers instantaneous response to load variations while maintaining stable operation across demanding industrial environments where electronic systems face reliability challenges.

Designed for process industries requiring uninterrupted turbine operation, this governor solves critical speed stability issues in parallel turbine configurations, high-vibration installations, and extreme temperature conditions. Target customers include power generation facilities, petrochemical plants, refineries, and marine propulsion systems where mechanical reliability outweighs digital complexity.

Key differentiators include direct rotor speed sensing for zero-lag response, hydraulic amplification for precise steam valve modulation, and field-adjustable droop settings enabling optimal load sharing between multiple turbines—all packaged in a maintenance-friendly mechanical design that eliminates electronic failure modes.

Core Features & Benefits

✓ Direct Mechanical Speed Sensing: Centrifugal flyweight mechanism provides real-time rotor speed detection with sub-millisecond response, eliminating electronic sensor lag and ensuring immediate correction during load transients.

✓ Hydraulic Actuation System: Amplifies control signals for precise steam valve positioning across full stroke range, delivering smooth modulation without hunting or oscillation—critical for maintaining process stability.

✓ Adjustable Speed Droop: Field-configurable regulation characteristics (typically 3-5%) enable proportional load sharing in multi-turbine installations, optimizing system efficiency and preventing single-unit overload.

✓ Environmental Hardening: All-mechanical construction withstands vibration levels exceeding 10g, temperature extremes from -20°C to +70°C, and electromagnetic interference—ensuring operation where electronic governors fail.

→ Simplified Maintenance Protocol: Modular design allows in-situ calibration and component replacement using standard mechanical tools, reducing MTTR by 60% compared to digital control systems requiring specialized diagnostics.

→ API 611 Compliance: Meets stringent petroleum and chemical industry standards for mechanical drive steam turbines, including overspeed protection integration and fail-safe operation requirements.

Application Scenarios

Petrochemical Process Units: In ethylene crackers and catalytic reformers, the TG-13 8516-038 maintains compressor drive turbine speeds within ±0.5% during feed rate fluctuations, preventing process upsets that cost $50,000+ per hour in lost production.

Cogeneration Facilities: For industrial plants operating multiple steam turbines in parallel, adjustable droop settings distribute electrical and mechanical loads proportionally, maximizing fuel efficiency while preventing generator synchronization issues.

Marine Propulsion Systems: Shipboard installations benefit from vibration immunity and saltwater-resistant construction, ensuring reliable speed control during maneuvering operations where electronic systems suffer from shock and corrosion failures.

Refinery Utility Systems: Backup power generation turbines equipped with TG-13 governors achieve black-start capability without external power, providing emergency response when digital controls lose initialization.

Remote Wellhead Compression: Offshore and desert installations leverage mechanical simplicity for extended service intervals (12+ months), eliminating the need for electronics-trained technicians in isolated locations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the TG-13 8516-038 when your application requires load-sharing capability between parallel turbines, operates in harsh electromagnetic environments (near VFDs or welding equipment), or demands mechanical reliability over digital features. For single-turbine installations requiring isochronous control or remote monitoring, consider Woodward's 505 digital governor series.

Extended Capabilities

Overspeed Protection Integration: Interfaces with mechanical overspeed trip systems via dedicated actuator linkage, providing independent shutdown capability meeting API 612 requirements for critical service turbines.

Remote Speed Adjustment: Optional pneumatic or electric speed-setting actuators enable control room operation while retaining mechanical governor reliability for local speed regulation.

Custom Droop Curves: Factory calibration services available for non-standard regulation characteristics, including variable droop rates optimized for specific load profiles or fuel types.

Delivery & Service Assurance

Lead Time: Standard configuration units ship within 3-5 business days from our regional distribution centers. Custom-calibrated governors require 2-3 weeks for factory configuration and testing.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, material failures, and calibration drift. Extended warranty programs available for critical service applications.

Technical Support: Our application engineering team provides pre-sale sizing assistance, installation supervision, and commissioning support. 24/7 emergency troubleshooting hotline available for production-critical installations.

Documentation Package: Each governor includes installation manual, calibration procedures, spare parts catalog, and dimensional drawings. Digital versions accessible via customer portal for field technician reference.

Frequently Asked Questions

What hydraulic fluid specifications are required for optimal TG-13 performance?
Use turbine-grade mineral oil meeting ISO VG 32 viscosity at operating temperature. Fluid must maintain 13-17 cSt at 40°C with oxidation stability per ASTM D943. Synthetic fluids acceptable if compatible with Buna-N seals.

Can the speed droop setting be adjusted during turbine operation?
Yes, droop adjustment is performed via external screw mechanism accessible without disassembly. However, adjustments should be made during stable load conditions to prevent speed transients. Consult manual Section 4.3 for calibration procedure.

How does this governor compare to digital controls for reliability in high-vibration environments?
Mechanical-hydraulic design eliminates circuit boards, sensors, and wiring harnesses susceptible to vibration fatigue. Field data shows 99.7% availability in applications exceeding 5g continuous vibration where electronic governors averaged 94% uptime.

What maintenance intervals are recommended for industrial service?
Inspect hydraulic fluid quality quarterly, replace filter elements semi-annually, and perform full calibration verification annually. Overhaul interval is 5 years or 40,000 operating hours, whichever occurs first.

Is the TG-13 8516-038 compatible with existing Woodward actuator systems?
Yes, standard output linkage interfaces with Woodward PG-PL, PGH, and SG actuators. Adapter kits available for third-party actuators meeting API 611 stroke and force requirements.

Can this unit be retrofitted to replace failed electronic governors?
Retrofit is feasible if existing turbine has mechanical speed sensing provisions and hydraulic supply. Mounting footprint matches standard TG-13 configuration. Contact our retrofit engineering team for site-specific evaluation.

Take the Next Step

Ensure uninterrupted turbine operation with proven mechanical-hydraulic control technology. Contact our application specialists at sale@ninermas.com or +0086 187 5021 5667 to discuss your specific turbine configuration, receive sizing recommendations, and obtain a detailed quotation. Request our technical comparison guide to evaluate TG-13 performance against your current control system.
