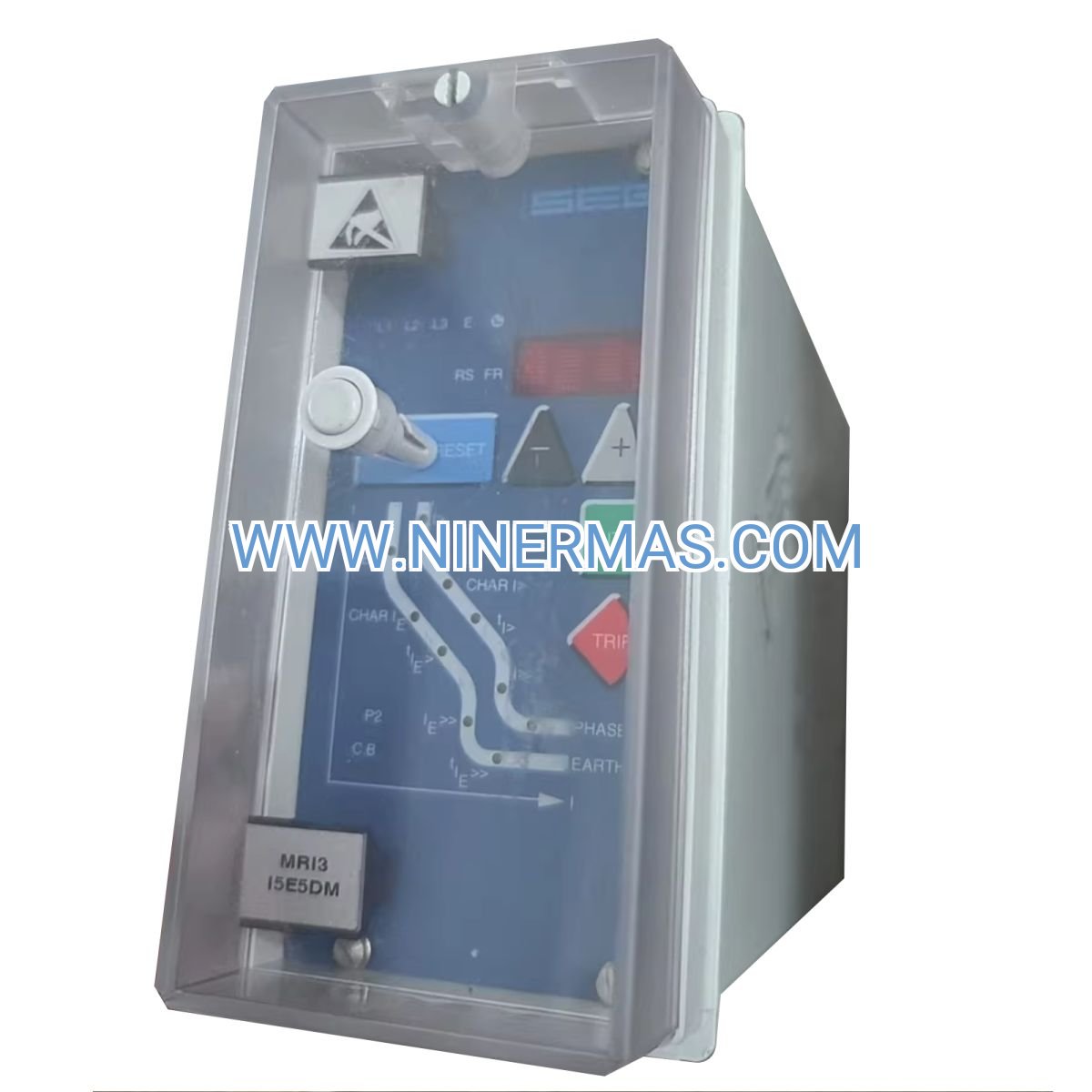

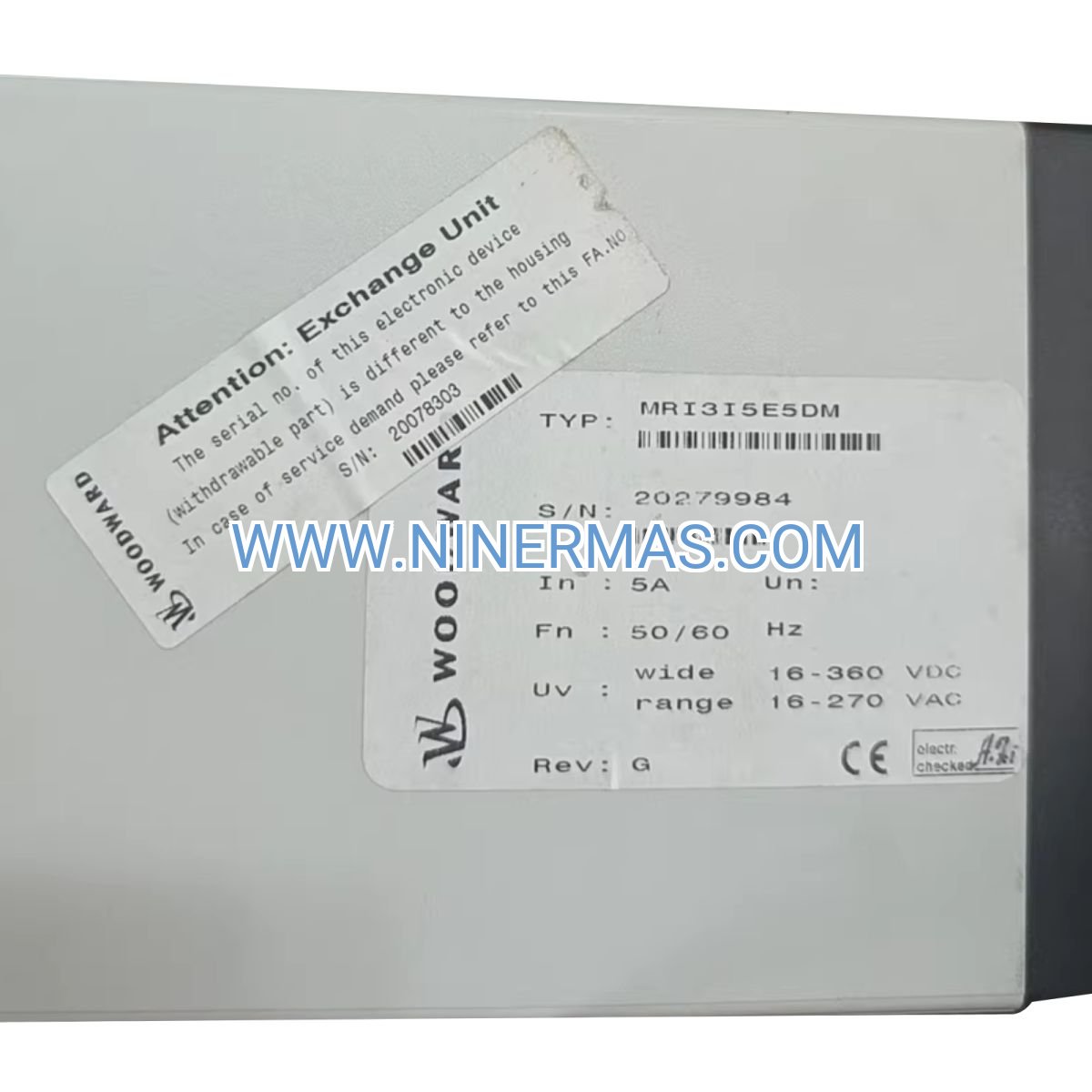

MRI3I5E5DM Protection Relay (Microprocessor-Based Feeder Guardian)

Engineered for mission-critical power distribution networks, the Woodward MRI3I5E5DM represents a next-generation approach to feeder protection. This intelligent relay platform integrates directional overcurrent sensing, sensitive earth fault detection, and voltage monitoring into a single compact unit, delivering comprehensive protection for utility substations, industrial feeders, and commercial power distribution systems. Built on proven microprocessor technology, it combines real-time protection algorithms with advanced communication protocols to safeguard electrical infrastructure while enabling seamless integration into modern SCADA and substation automation environments.

Designed for engineers and facility managers who demand reliability without compromise, the MRI3I5E5DM addresses the complex challenges of networked distribution systems where traditional non-directional relays fall short. Whether protecting loop feeders in utility networks, coordinating with upstream breakers in industrial plants, or monitoring critical infrastructure loads, this relay provides the intelligence and precision required for selective fault isolation and rapid system restoration.

With support for IEC 61850, DNP3.0, and Modbus RTU protocols, the relay bridges legacy systems and modern digital substations, offering flexible deployment options for greenfield projects and retrofit applications alike. Its rugged construction, extended temperature range, and comprehensive self-diagnostics ensure dependable operation in the harshest industrial environments.

Core Capabilities & Technical Advantages

✓ Multi-Element Protection Architecture
Integrates phase overcurrent (ANSI 50/51), ground fault (50N/51N), directional elements (67/67N), and voltage protection (27/59) in a unified platform, eliminating the need for multiple discrete relays and reducing panel space requirements by up to 60%.

✓ Directional Power Flow Discrimination
Utilizes voltage-polarized directional algorithms to distinguish forward and reverse fault currents, enabling selective tripping in loop feeders, parallel feeders, and networked distribution topologies where coordination with non-directional devices is impossible.

✓ Sensitive Ground Fault Detection
Detects low-magnitude earth faults down to 0.1A with adjustable time-current curves, protecting against insulation degradation, cable faults, and high-impedance ground faults that conventional relays miss, reducing fire risk and equipment damage.

→ Comprehensive Metering & Data Logging
Provides real-time measurement of RMS currents, voltages, active/reactive power, energy consumption, power factor, and frequency with ±0.5% accuracy, supporting energy management initiatives and power quality analysis without additional instrumentation.

→ Multi-Protocol Communication Gateway
Supports simultaneous operation of Modbus RTU, DNP3.0, and IEC 61850 protocols over RS-485 and Ethernet interfaces, enabling integration with diverse SCADA platforms, building management systems, and cloud-based analytics services.

→ Event Recording & Fault Analysis
Captures up to 100 time-stamped events with pre-fault and post-fault waveform data, facilitating root cause analysis, protection scheme validation, and compliance documentation for regulatory audits.

Industry Applications & Use Cases

Utility Distribution Substations
Protects medium-voltage feeders (4.16kV to 34.5kV) in municipal and cooperative utility networks, providing directional backup protection for transformer banks and enabling selective fault isolation in radial and loop distribution schemes. Reduces outage duration by 40-70% through precise fault localization.

Industrial Manufacturing Facilities
Safeguards critical production feeders in automotive plants, chemical processing facilities, and semiconductor fabs where unplanned downtime costs $50,000-$500,000 per hour. Coordinates with motor protection relays and upstream breakers to maintain production continuity during external faults.

Commercial & Data Center Infrastructure
Monitors and protects main distribution boards, generator tie feeders, and UPS bypass circuits in mission-critical facilities requiring 99.99%+ availability. Integrates with building automation systems for centralized alarm management and predictive maintenance scheduling.

Renewable Energy Integration Points
Manages bidirectional power flow at solar farm interconnections, wind turbine collector feeders, and battery energy storage system (BESS) interfaces, adapting protection settings dynamically based on generation mode and grid conditions.

Mining & Heavy Industry Operations
Withstands extreme environmental conditions (-40°C to +70°C) in open-pit mines, steel mills, and offshore platforms, protecting mobile substation feeders and temporary power distribution systems with IP-rated enclosures and conformal-coated electronics.

Technical Specifications & Selection Guide

Selection Criteria: Choose the MRI3I5E5DM when your application requires directional protection (loop feeders, parallel sources), multi-protocol communication (mixed SCADA environments), or sensitive ground fault detection (high-resistance grounded systems). For radial feeders without directional requirements, consider the MRI3I5E5D variant. For applications requiring arc flash detection or motor protection, evaluate integrated multifunction relays with expanded I/O.

Advanced Features & IoT Integration

Remote Configuration & Diagnostics: Access relay settings, real-time data, and event logs remotely via Ethernet or serial connections using Woodward's configuration software. Supports secure VPN tunneling for off-site commissioning and troubleshooting, reducing site visit requirements by 50-80%.

Cybersecurity Compliance: Implements role-based access control, encrypted communication channels, and audit logging to meet NERC CIP, IEC 62351, and IEEE 1686 cybersecurity standards for critical infrastructure protection.

Predictive Maintenance Analytics: Exports time-series data to cloud platforms (AWS IoT, Azure IoT Hub) for machine learning-based anomaly detection, thermal trending, and remaining useful life estimation of protected equipment.

Custom Logic Programming: Supports user-defined protection schemes via programmable logic equations, enabling complex interlocking, load shedding, and automatic transfer switch (ATS) control sequences without external PLCs.

Delivery, Warranty & Technical Support

Lead Time: Standard units ship within 3-5 business days from our regional distribution centers. Custom-configured relays with specialized firmware or extended I/O require 2-3 weeks for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended 36-month warranties available for critical infrastructure applications.

Technical Assistance: Unlimited access to application engineers for protection coordination studies, settings calculations, and commissioning support. On-site startup services available in major metropolitan areas.

Documentation Package: Includes installation manual, protection settings worksheet, Modbus/DNP3/IEC 61850 register maps, AutoCAD panel cutout drawings, and sample SCADA integration code (Python, C#, LabVIEW).

Frequently Asked Questions

How does directional overcurrent protection improve feeder reliability?
Directional elements (67/67N) measure both current magnitude and power flow direction, allowing the relay to distinguish between faults on the protected feeder versus faults on adjacent feeders or upstream buses. This prevents nuisance tripping during external faults and enables selective coordination in networked systems where multiple sources feed a common bus.

What CT ratio and PT ratio should I specify for my application?
Select CT secondary current (1A or 5A) based on feeder load: use 5A for feeders <800A, 1A for feeders >800A to minimize burden and improve accuracy. PT ratio depends on system voltage: for 4.16kV systems, use 4160:120V PTs; for 13.8kV, use 13800:120V. The relay auto-scales internally based on programmed ratios.

Can this relay interface with legacy RTUs using Modbus and modern IEDs using IEC 61850 simultaneously?
Yes. The MRI3I5E5DM supports concurrent operation of Modbus RTU (RS-485), DNP3.0 (RS-485), and IEC 61850 (Ethernet), allowing gradual migration from legacy SCADA systems to modern substation automation architectures without forklift upgrades.

What is the minimum detectable ground fault current for high-resistance grounded systems?
The sensitive ground fault element (51N) detects currents as low as 0.1A secondary (equivalent to 5A primary with 50:5 CT), making it suitable for high-resistance grounded (HRG) systems common in industrial facilities where ground fault currents are intentionally limited to 5-10A to prevent arc flash hazards.

Does the relay support IEC 61850 GOOSE messaging for peer-to-peer communication?
The MRI3I5E5DM supports IEC 61850 MMS (client-server) communication for SCADA integration and data exchange. For applications requiring GOOSE (Generic Object-Oriented Substation Event) messaging for high-speed peer-to-peer tripping, consult factory for firmware upgrade options or consider the MRI3I5E5DM-G variant.

How do I configure time-current coordination with upstream and downstream devices?
Use protection coordination software (SKM PowerTools, ETAP, CYME) to model the relay's time-current curves alongside upstream breakers and downstream fuses. The relay supports standard IEC and IEEE curves with adjustable pickup (0.5-20x CT rating) and time dial (0.05-10.0), providing flexibility to achieve 0.3-0.4 second coordination intervals.

Ready to Enhance Your Feeder Protection?

Contact our protection engineering team for application-specific settings calculations, coordination studies, and integration support. We provide detailed technical documentation, sample SCADA configurations, and on-site commissioning assistance to ensure your MRI3I5E5DM relay delivers optimal performance from day one.

Request a Quote: Email your single-line diagram and protection requirements to our sales team for same-day pricing and delivery estimates.
