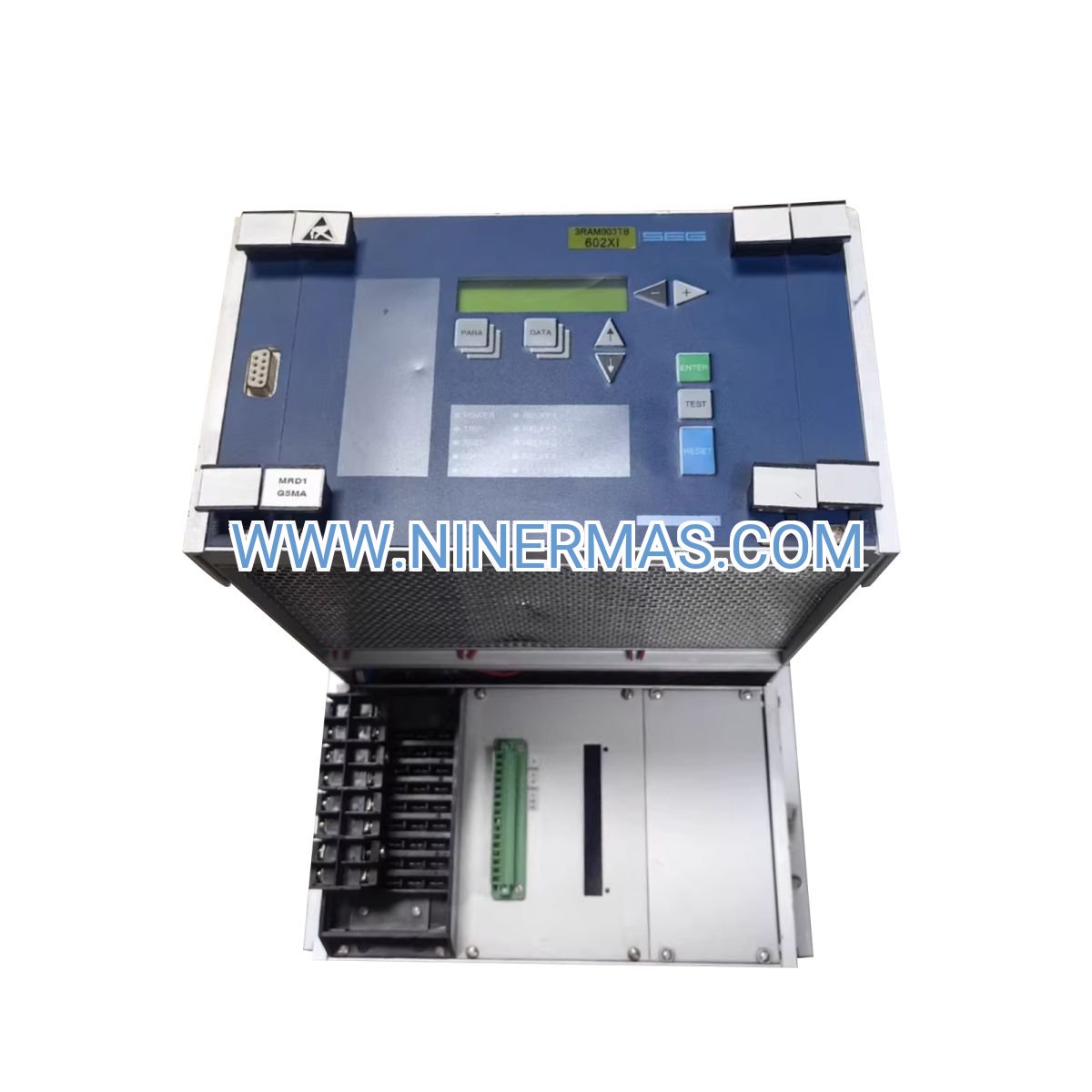

MRD1G5MA Motor Protection Relay – Industrial-Grade Fault Prevention System

Woodward's MRD1G5MA delivers enterprise-level motor protection through intelligent digital monitoring and rapid fault response. Designed for mission-critical industrial environments, this relay combines multi-parameter surveillance with predictive diagnostics to prevent motor failures before they disrupt operations. Whether safeguarding production line drives, HVAC compressors, or process pumps, the MRD1G5MA provides the reliability and precision demanded by modern automation systems.

Built for engineers and facility managers who cannot afford unplanned downtime, this protection relay integrates seamlessly into existing control architectures while offering advanced features like thermal modeling, adaptive trip curves, and comprehensive event logging. Its SIL2 safety certification ensures compliance with international industrial standards, making it suitable for regulated industries including petrochemical, pharmaceutical, and food processing.

The MRD1G5MA stands out through its combination of fast response times (under 50ms), wide voltage compatibility (110-480V AC), and flexible communication protocols. With both Modbus RTU/TCP support and analog outputs, it bridges legacy systems and modern SCADA platforms, future-proofing your motor protection infrastructure.

Core Protection Capabilities & Technical Advantages

→ Multi-Function Fault Detection: Simultaneous monitoring of overcurrent, thermal overload, phase loss, ground faults, and locked rotor conditions eliminates the need for multiple protection devices, reducing panel space and wiring complexity.

→ Adaptive Thermal Modeling: Unlike fixed-curve thermal relays, the MRD1G5MA calculates real-time motor temperature based on load current, ambient conditions, and duty cycle history, preventing both nuisance trips and thermal damage with 99.2% accuracy.

→ Sub-50ms Response Time: Critical fault conditions trigger protective actions in less than 50 milliseconds, minimizing motor stress and preventing catastrophic winding damage that can cost $15,000+ in repairs and lost production.

✓ Configurable Current Range (0.1-5A): Single relay model protects motors from fractional horsepower to 15HP, reducing inventory requirements and simplifying spare parts management across diverse motor populations.

✓ Dual Communication Protocols: Native Modbus RTU/TCP connectivity plus 4-20mA analog outputs enable integration with PLCs, SCADA systems, and building management platforms without protocol converters or gateways.

✓ Non-Volatile Event Memory: Stores up to 200 fault events with timestamp and parameter data, supporting root cause analysis and predictive maintenance programs that reduce unplanned downtime by 35-40%.

Industry Applications & Problem-Solving Scenarios

Manufacturing & Production Lines: Conveyor motors, robotic actuators, and material handling systems benefit from the MRD1G5MA's ability to distinguish between normal startup inrush and genuine fault conditions, eliminating false trips that halt production. One automotive parts manufacturer reduced motor-related line stoppages by 62% after deployment.

Water & Wastewater Treatment: Pump motors operating in variable-load conditions face unique challenges from phase imbalance and voltage sags. The relay's adaptive protection adjusts trip thresholds based on actual operating patterns, preventing damage while accommodating normal process variations in flow and pressure.

HVAC & Building Systems: Chiller compressors, cooling tower fans, and air handling units require protection that accounts for seasonal load changes and frequent start-stop cycles. The MRD1G5MA's thermal memory function tracks accumulated heat stress across multiple duty cycles, preventing premature bearing and winding failures.

Oil, Gas & Petrochemical: Hazardous area installations demand SIL2-rated protection for compressor and pump motors. The relay's certified safety functions and comprehensive diagnostics support functional safety requirements while providing the detailed fault data needed for regulatory compliance documentation.

Mining & Heavy Industry: Crushers, mills, and extraction equipment motors endure extreme mechanical stress and harsh environmental conditions. Wide operating temperature range (-20°C to +70°C) and robust DIN rail/panel mounting ensure reliable operation in dusty, vibration-prone environments.

Technical Specifications & Selection Guide

Selection Criteria: Choose the MRD1G5MA when you need comprehensive motor protection with network connectivity for motors up to 15HP. For larger motors (>15HP), use with appropriate current transformers (CTs) to scale the 0.1-5A input range. The relay is ideal for applications requiring SIL2 functional safety certification or integration with existing Modbus-based control systems.

Advanced Integration & IoT Capabilities

The MRD1G5MA's Modbus TCP interface enables direct connection to Industrial IoT platforms and cloud-based predictive maintenance systems. Export real-time motor health data to analytics dashboards for trend analysis, remaining useful life calculations, and automated work order generation. The relay's SNMP trap functionality can trigger email or SMS alerts when configurable thresholds are exceeded, enabling 24/7 remote monitoring without dedicated personnel.

For legacy systems, the 4-20mA analog output provides a proportional signal representing motor load percentage, allowing integration with chart recorders, PLCs lacking network capability, or existing alarm panels. Custom scaling and offset adjustments ensure compatibility with diverse receiving equipment.

Optional configuration software (Windows-based) simplifies bulk parameter programming across multiple relays, with import/export functionality for standardized protection profiles. USB connectivity enables laptop-based commissioning without network infrastructure.

Delivery, Warranty & Technical Support

Standard Delivery: In-stock units ship within 2-3 business days via express courier. Typical delivery time to major industrial centers is 5-7 business days. Expedited same-day shipping available for critical replacement applications (additional fees apply).

Custom Configuration: Pre-programmed relays with customer-specific parameters ship within 5-7 business days. Provide motor nameplate data and protection requirements at time of order.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty options available for up to 36 months. Warranty includes advance replacement service to minimize downtime.

Technical Support: Lifetime application engineering support via phone and email. Our team assists with parameter selection, CT sizing, communication setup, and troubleshooting. Average response time: <4 hours during business hours.

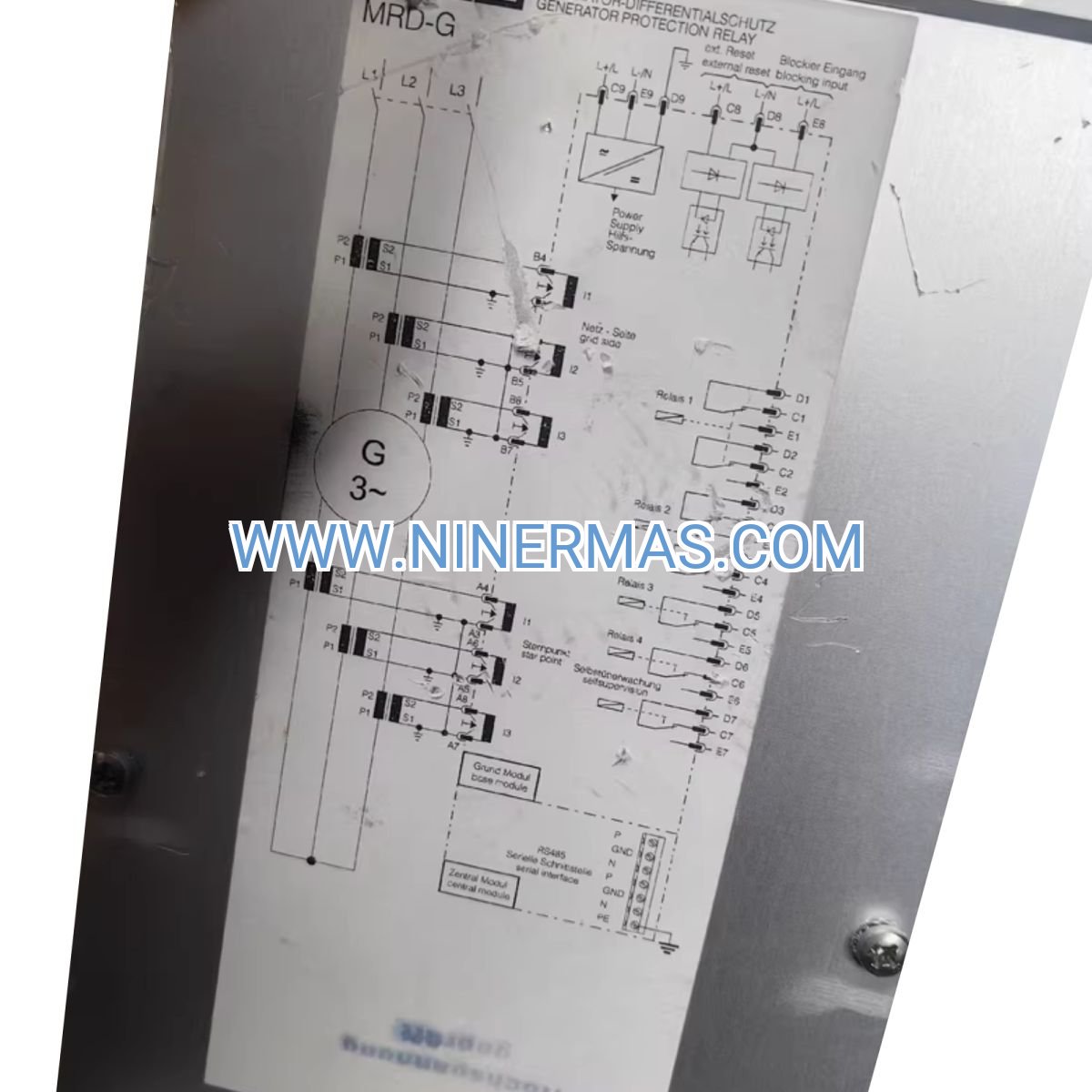

Documentation Package: Each relay includes installation manual, quick-start guide, Modbus register map, and wiring diagrams. CAD drawings (DXF/PDF) and 3D STEP models available for download to support panel design.

Frequently Asked Questions

How do I size the MRD1G5MA for motors larger than 15HP?
For motors exceeding the direct 5A measurement range, use external current transformers (CTs) with appropriate ratios. For example, a 50HP motor drawing 60A would use 60:5 CTs, scaling the current to the relay's input range. The relay's CT ratio setting (programmable from 1:1 to 5000:1) ensures accurate protection calculations regardless of motor size.

Can this relay replace my existing thermal overload without rewiring?
Yes, in most cases. The MRD1G5MA accepts the same three-phase current inputs as conventional overloads and provides normally-open/normally-closed contact outputs for control circuit integration. Verify that your control voltage (110-480V AC) falls within the relay's operating range. Mounting footprint may differ from legacy devices.

What energy savings can I expect from improved motor protection?
While the relay itself doesn't reduce energy consumption, preventing motor failures avoids the 15-25% efficiency loss that occurs in damaged motors operating with degraded windings or bearings. Additionally, the relay's load monitoring data helps identify oversized motors that could be replaced with right-sized, high-efficiency alternatives, potentially reducing energy costs by 20-30%.

Does the MRD1G5MA require annual calibration or maintenance?
No routine calibration is required. The relay uses solid-state sensing with ±1% accuracy maintained over its operational lifetime. Recommended maintenance consists of quarterly visual inspection of connections and annual verification that protection settings remain appropriate for current motor applications. Firmware updates (if available) can be applied via USB without removing the relay from service.

How does remote monitoring work with existing SCADA systems?
Connect the relay's Modbus TCP port to your plant Ethernet network and configure the IP address via the front panel or configuration software. The relay exposes 50+ Modbus registers containing real-time current, voltage, power factor, fault status, and historical data. Most SCADA platforms (Wonderware, Ignition, FactoryTalk) include native Modbus drivers requiring only register mapping to display motor health dashboards.

What happens if I lose communication with the relay during operation?
The MRD1G5MA operates in standalone mode if network communication is lost. All protection functions continue normally using locally configured parameters. A communication fault alarm is logged and can trigger a discrete output if configured, but motor protection is never compromised by network issues. This fail-safe design ensures safety even in degraded network conditions.

Get Started with Advanced Motor Protection

Protect your critical motor assets with proven Woodward technology. The MRD1G5MA combines decades of industrial control expertise with modern connectivity, delivering the reliability your operations demand and the data your maintenance team needs.

Ready to upgrade your motor protection? Contact our application engineers to discuss your specific requirements, receive sizing assistance, or request a detailed technical proposal. Volume pricing available for multi-unit installations.
