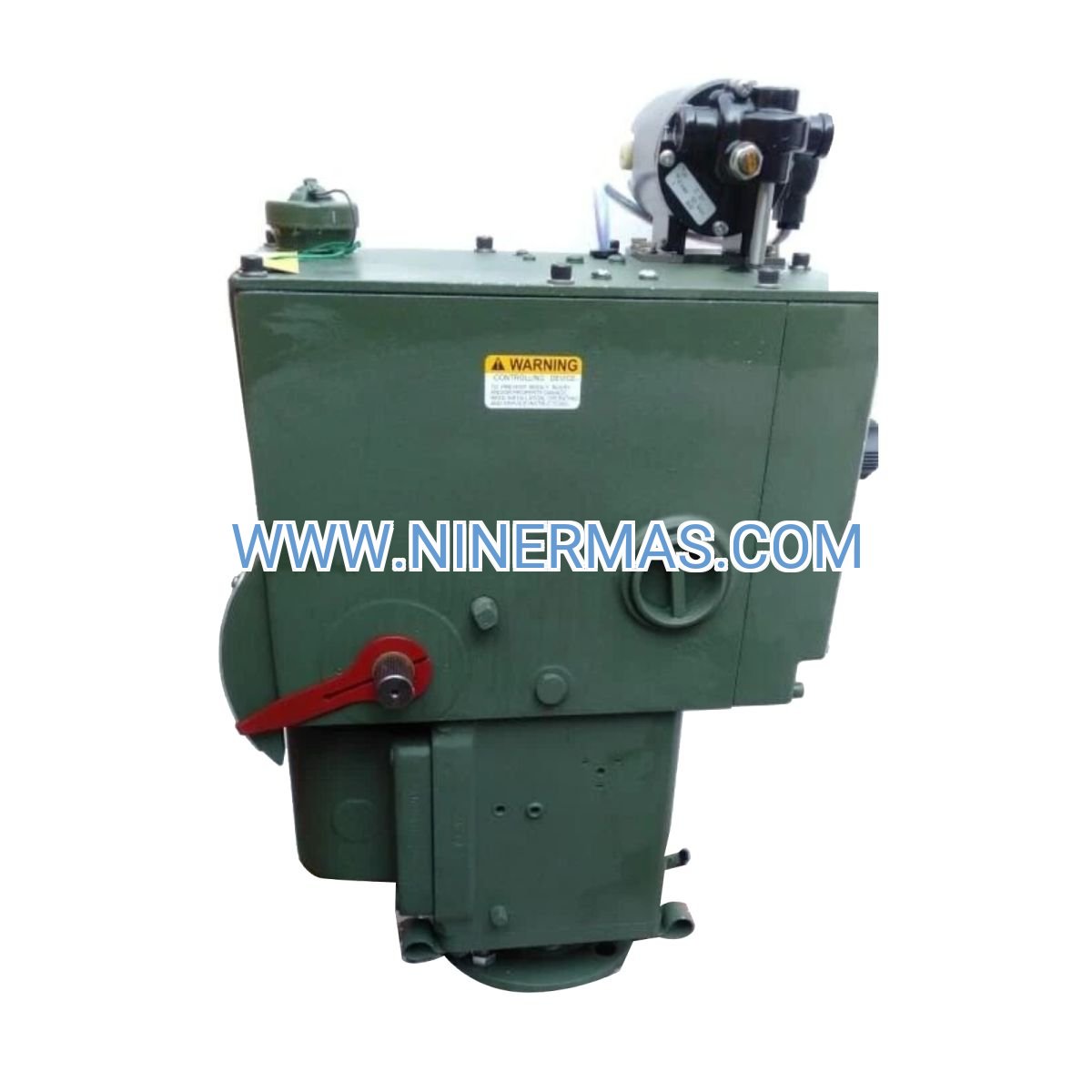

EGB-13P Governor Actuator (Industrial-Grade Speed Control Solution)

The Woodward EGB-13P represents a proven mechanical-hydraulic actuator engineered for critical speed regulation applications in dual fuel engines and industrial turbines. Delivering 13 ft-lb (17.6 N·m) work capacity, this actuator converts electronic control signals into precise fuel rack movements, maintaining engine stability under dynamic load conditions. Designed for power generation, marine propulsion, and oil & gas installations, the EGB-13P combines Woodward's 150+ years of governor technology with modern control system compatibility.

Industrial operators face constant challenges: fuel switching delays, speed droop during load transients, and actuator failures in harsh environments. The EGB-13P addresses these pain points through rapid response times (<100ms full stroke), corrosion-resistant materials meeting IACS marine standards, and field-proven reliability across millions of operating hours globally. Whether you're managing a cogeneration facility requiring seamless diesel-to-gas transitions or operating offshore platforms demanding vibration tolerance, this actuator delivers consistent performance where downtime is not an option.

Key advantages include direct retrofit compatibility with legacy EG-13P models, integration with both analog and digital control architectures, and extended maintenance intervals reducing total cost of ownership. The EGB-13P is your solution for applications demanding precision, durability, and operational flexibility in mission-critical speed control systems.

Core Features & Benefits

→ Precision Fuel Rack Positioning
Mechanical-hydraulic design ensures accurate stroke control with minimal hysteresis, translating to tighter speed regulation (±0.25% droop) and reduced emissions during transient loads. Business value: Lower fuel consumption and compliance with environmental regulations.

→ Rapid Response Dynamics
Full stroke completion in under 100 milliseconds enables immediate reaction to load changes, preventing engine stall or overspeed conditions. Business value: Enhanced system reliability and protection of downstream equipment.

→ Marine-Grade Construction
Corrosion-resistant alloys and protective coatings withstand saltwater exposure, humidity, and temperature extremes (-40°F to 160°F). Business value: Extended service life in offshore and coastal installations with reduced replacement costs.

→ Universal Control Compatibility
Accepts standard 4-20mA signals and integrates with Woodward 2301D, 505 digital systems, and third-party DCS platforms. Business value: Simplified retrofits and future-proof system upgrades without actuator replacement.

→ Field-Proven Reliability
Over 50,000 units deployed globally with documented MTBF exceeding 80,000 hours in power generation applications. Business value: Minimized unplanned downtime and predictable maintenance scheduling.

→ Adjustable Stroke Configuration
Field-adjustable linkage accommodates various engine fuel rack geometries without custom manufacturing. Business value: Reduced lead times and inventory requirements for multi-engine fleets.

Application Scenarios

✓ Power Generation Facilities
Dual fuel gensets in hospitals, data centers, and industrial plants require instant fuel switching during natural gas supply interruptions. The EGB-13P enables seamless diesel backup transitions while maintaining grid synchronization, preventing costly power quality events and ensuring continuous operation during utility outages.

✓ Marine Propulsion Systems
Commercial vessels and offshore support ships operating in variable sea states demand governors that tolerate vibration and corrosive atmospheres. This actuator's robust construction and rapid response prevent propeller shaft speed fluctuations, protecting gearboxes and optimizing fuel efficiency across diverse operating profiles.

✓ Oil & Gas Compression
Gas pipeline compressor stations and wellhead installations face extreme temperature swings and remote locations with limited maintenance access. The EGB-13P's extended service intervals (8,000-hour calibration cycles) and proven durability reduce site visits while maintaining precise speed control critical for process stability.

✓ Cogeneration Plants
Combined heat and power facilities balancing electrical output with thermal loads require governors that respond to rapid demand changes. The actuator's fast stroke speed enables load-following operation, maximizing energy efficiency and revenue from capacity markets.

✓ Emergency Standby Systems
Critical infrastructure backup generators must achieve rated speed within seconds of start commands. The EGB-13P's reliable cold-start performance and minimal maintenance requirements ensure readiness during emergency activation, meeting NFPA 110 response time standards.

Technical Parameters & Selection Guide

Selection Criteria: Verify your engine's fuel rack force requirement falls within 8-13 ft-lb range. Confirm available hydraulic supply pressure meets 80-120 psi specification. For applications requiring higher work capacity, consider the EGB-23P model (23 ft-lb). Consult engine OEM documentation for recommended actuator stroke length and linkage geometry. Systems operating below -40°F require optional cold-weather seals (specify at order).

Extended Functions

IoT Integration Capability: When paired with Woodward LS-5 Link-Speed modules, the EGB-13P enables remote monitoring of actuator position, control signal health, and maintenance alerts via Modbus TCP/IP or HART protocols. Predictive maintenance algorithms analyze stroke consistency to forecast seal wear before failure occurs.

Advanced Load Sharing: Multi-engine installations benefit from the actuator's linear response characteristics, enabling precise droop compensation and isochronous load distribution when integrated with Woodward 2301D-ST load sharing controllers. Supports up to 32 parallel units with ±0.1% load balance accuracy.

Customization Options: Factory modifications available for non-standard stroke lengths, alternative mounting flanges, and special material specifications for extreme chemical exposure. Custom calibration curves can be programmed for non-linear fuel rack applications. Consult engineering team for feasibility assessment.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from regional distribution centers (North America, Europe, Asia-Pacific). Custom configurations require 4-6 weeks manufacturing time. Expedited processing available for critical outage situations.

Warranty Coverage: 12-month manufacturer warranty covering materials and workmanship defects. Extended warranty programs available for fleet purchases. Warranty excludes damage from improper installation, contaminated hydraulic supply, or operation beyond rated specifications.

Technical Support: 24/7 global support hotline staffed by Woodward-certified engineers. On-site commissioning assistance available in major industrial regions. Remote diagnostics support via secure VPN connection to customer control systems.

Documentation Package: Each unit includes installation manual, dimensional drawings, recommended spare parts list, and calibration certificates. Digital resources available through Woodward's online portal: wiring diagrams, troubleshooting flowcharts, and training videos.

Frequently Asked Questions

Q: How does the EGB-13P actuator interface with modern digital control systems?
A: The actuator accepts standard 4-20mA current loop signals, making it compatible with virtually all industrial controllers including Woodward 505/723 PLUS, Siemens SPPA-T3000, and GE Mark VI systems. Signal conditioning modules are available for voltage input applications.

Q: What maintenance intervals are recommended for continuous duty applications?
A: Inspect mechanical linkages and mounting bolts every 2,000 operating hours. Replace hydraulic fluid annually or per engine manufacturer specifications. Perform full calibration verification every 8,000 hours or during major engine overhauls. Seal replacement typically required at 40,000-hour intervals.

Q: Can this governor actuator operate in hazardous area classifications?
A: The standard EGB-13P is suitable for non-classified areas. For Zone 1/Division 1 installations, specify the EGB-13P-HZ variant with explosion-proof conduit seals and certified intrinsically safe control interfaces. Consult local electrical codes for specific requirements.

Q: What are the typical failure modes and how can they be prevented?
A: Most failures stem from contaminated hydraulic supply (install 10-micron filtration), loose linkage connections (apply thread-locking compound), or control signal wiring issues (use shielded cable). Implementing oil analysis programs and vibration monitoring extends actuator life by 40-60%.

Q: Is the EGB-13P compatible with biodiesel or renewable fuel blends?
A: Yes, the actuator's seals and materials are compatible with biodiesel blends up to B20 and renewable diesel (HVO). For higher biodiesel concentrations or ethanol blends, specify Viton seal upgrades at time of order to prevent premature degradation.

Q: How do I determine if my existing governor requires replacement or just calibration?
A: Perform a stroke test: command full range input signal and measure actuator travel with dial indicator. If stroke is <90% of specification or exhibits sticking/jerking motion, replacement is recommended. Calibration alone suffices if stroke is smooth and within ±5% of nominal.

Ready to Optimize Your Speed Control System?

Contact our application engineering team for technical consultation on your specific engine platform. We'll verify compatibility, recommend optimal configuration, and provide detailed integration support. Request a quote today or speak with a specialist to discuss volume pricing for fleet upgrades.
