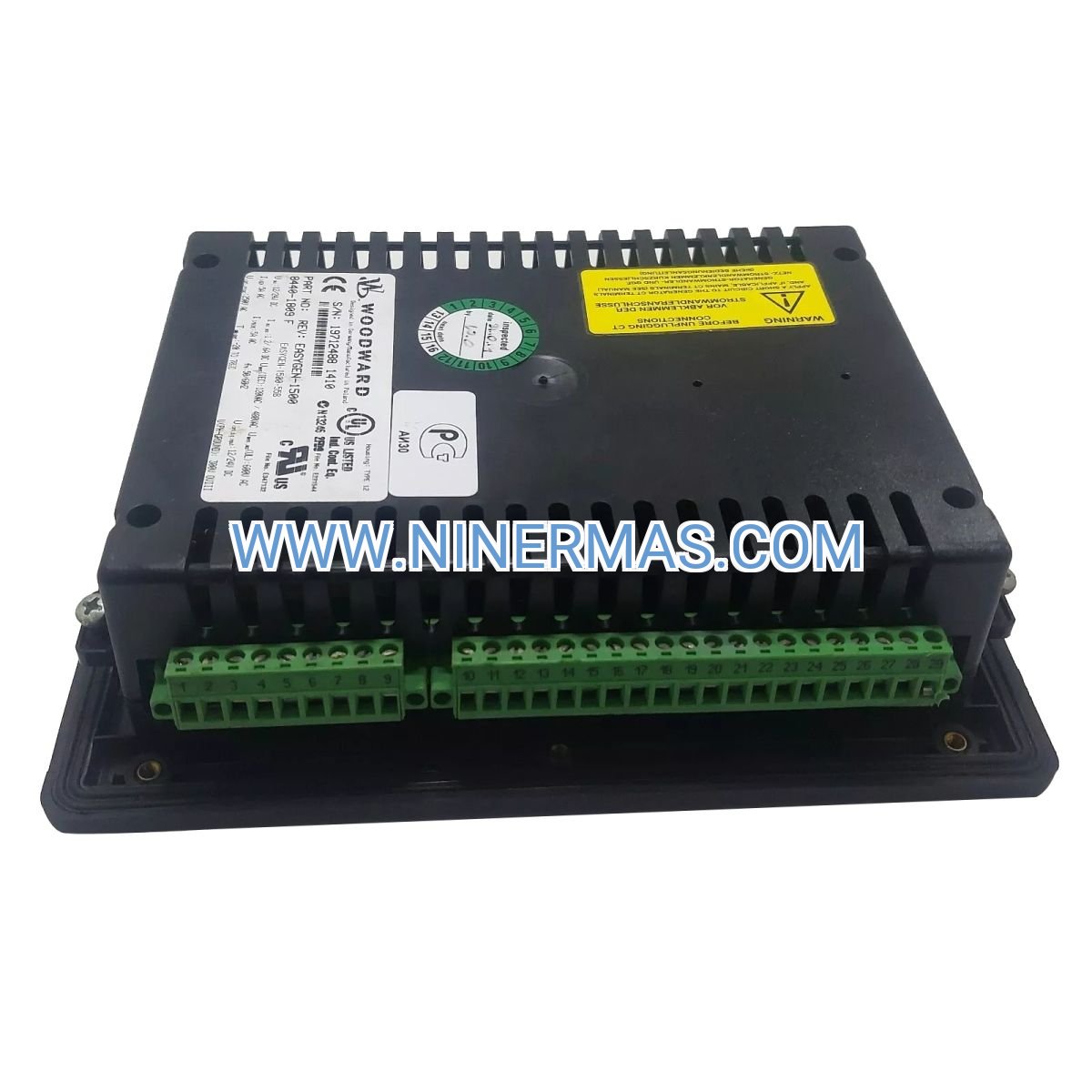

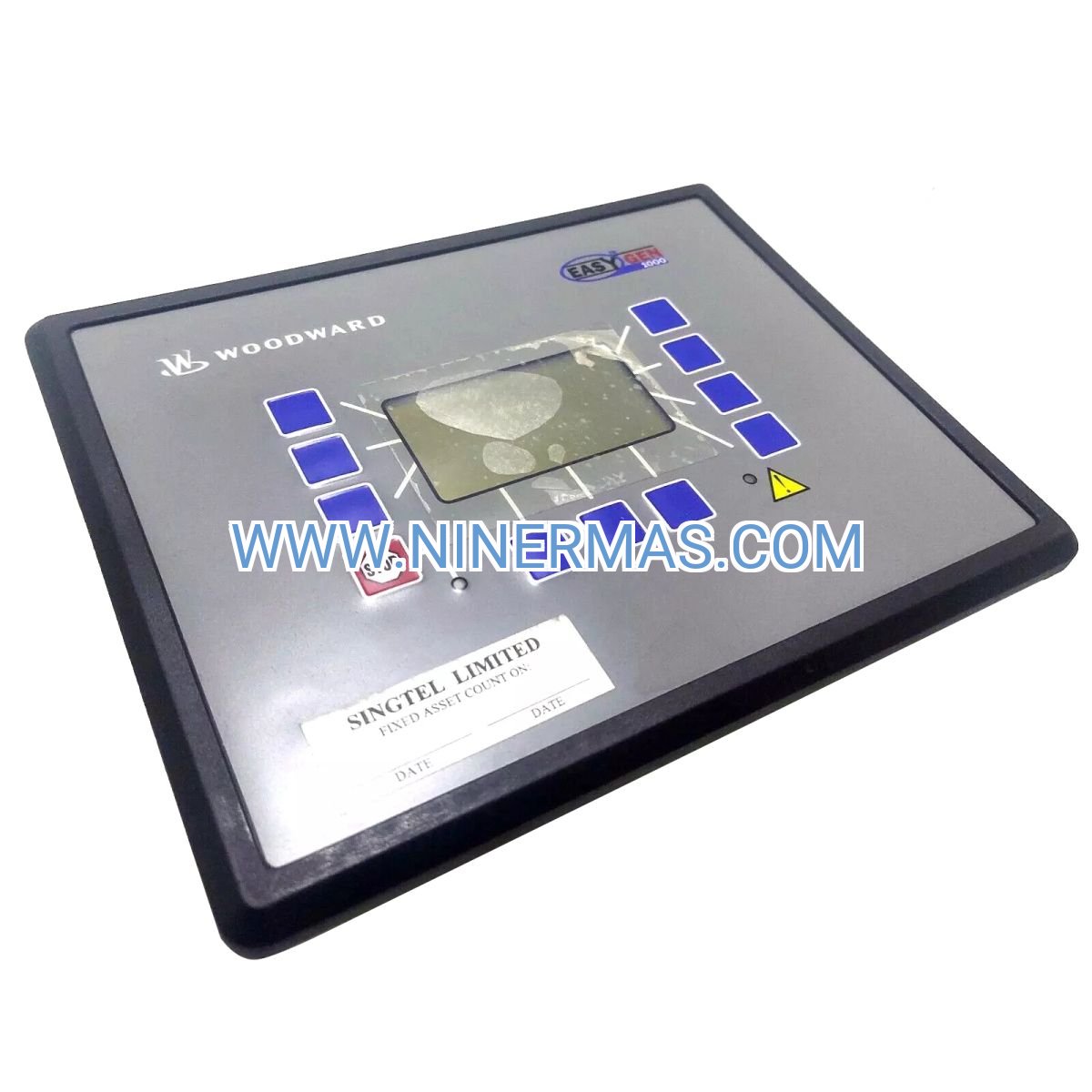

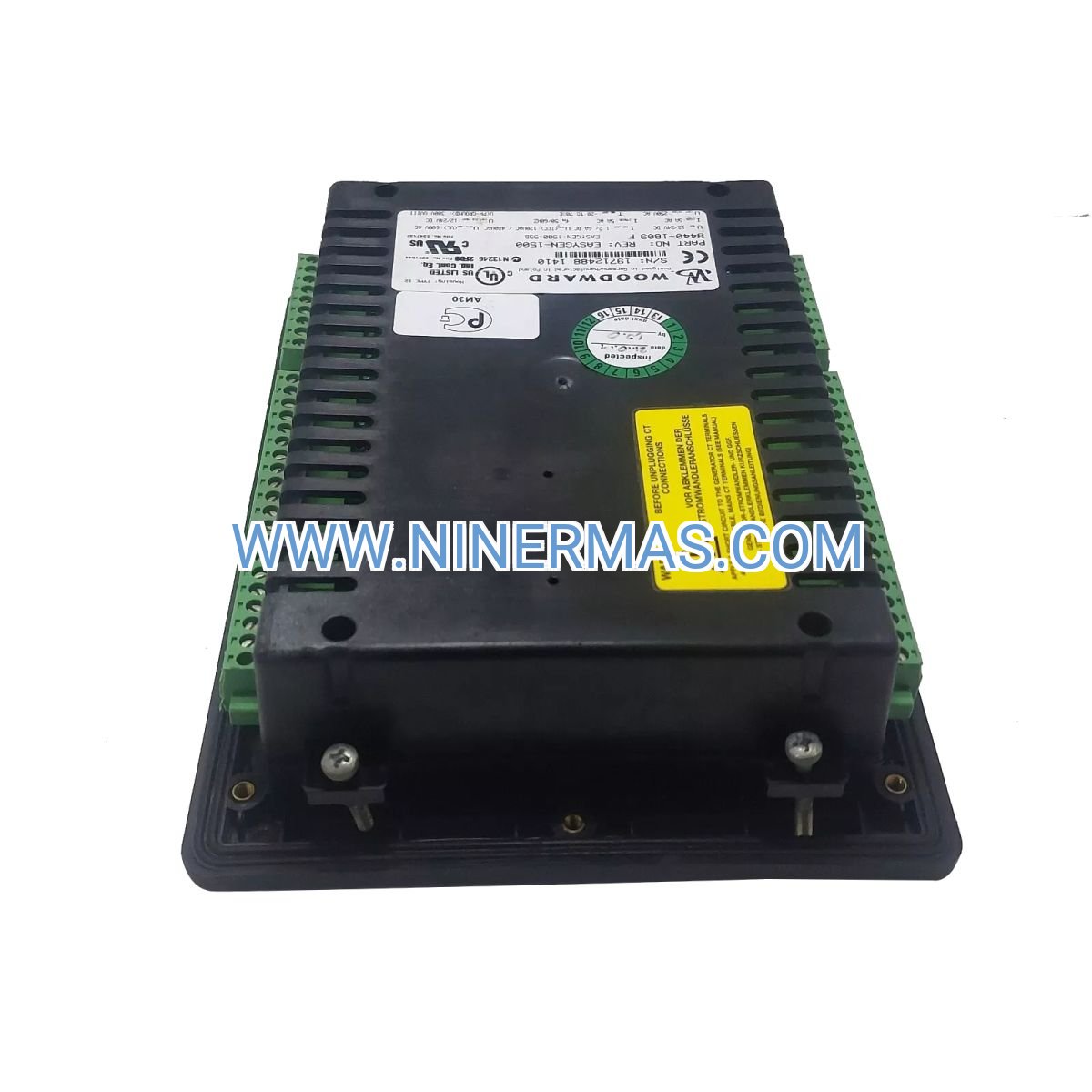

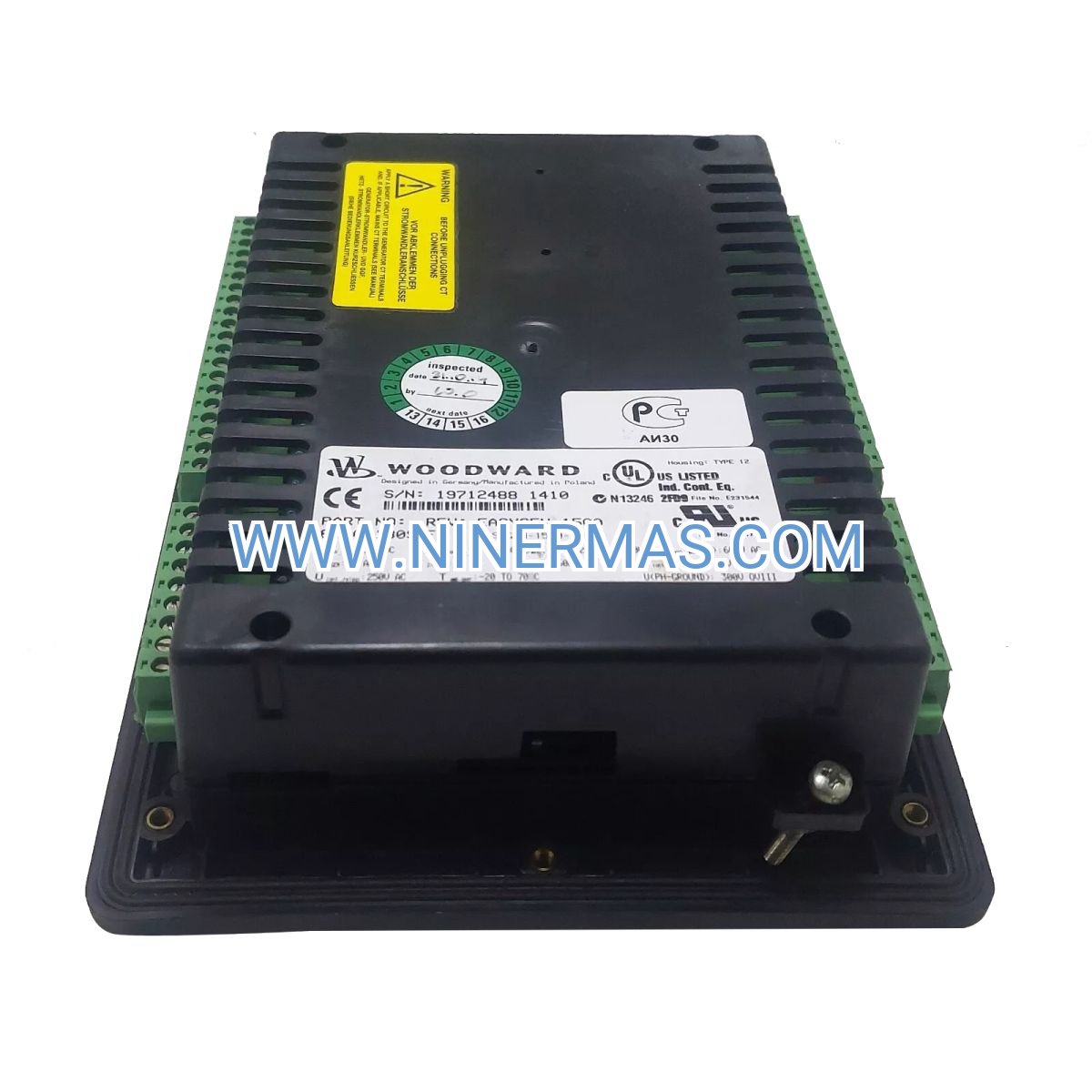

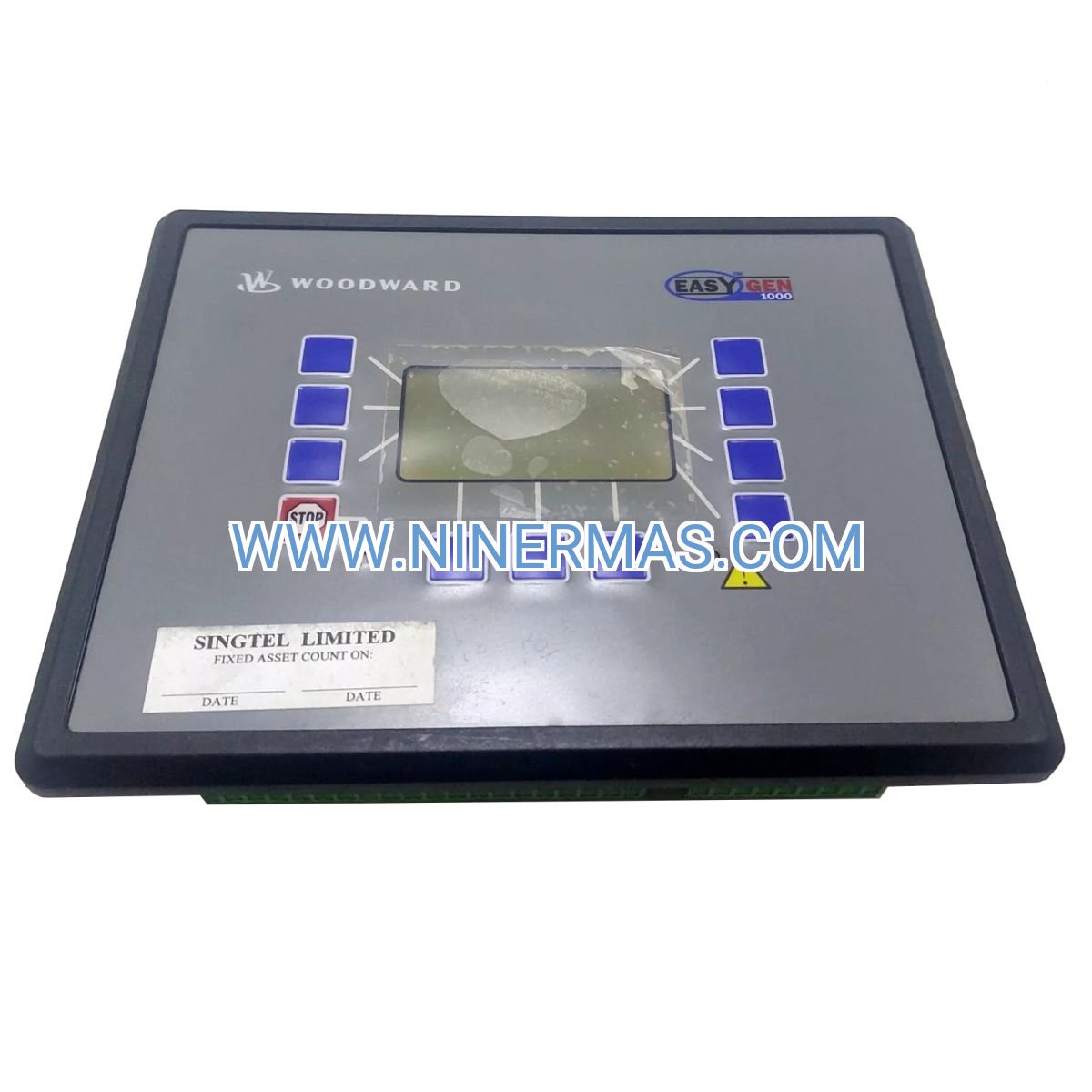

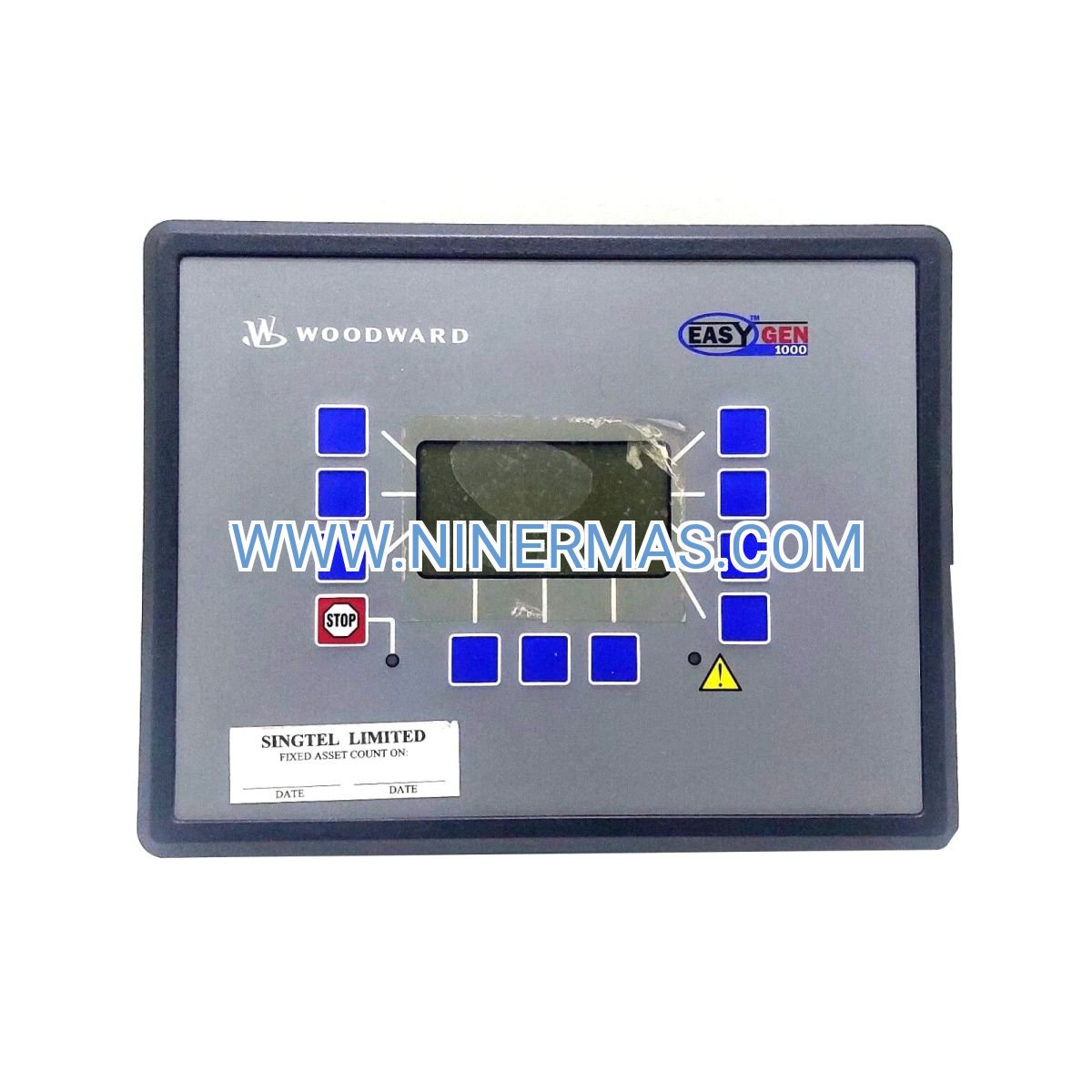

EASYGEN-1500 Generator Controller (Industrial-Grade Automation Platform)

The EASYGEN-1500 represents a purpose-built control solution for single generator set automation in mission-critical environments. Engineered by Woodward, this controller combines real-time monitoring, automated start/stop sequencing, and comprehensive protection logic into a compact, field-proven package designed for industrial, marine, and commercial standby power applications where reliability is non-negotiable.

Designed for system integrators and facility managers who demand rapid deployment without compromising functionality, the EASYGEN-1500 addresses the core challenge of unattended generator operation: ensuring seamless transition from mains to backup power while protecting both the generator and connected loads. Its configurable architecture adapts to diverse engine types, voltage configurations, and site-specific requirements.

With IP54-rated front panel protection, extended temperature tolerance, and dual communication protocols, this controller delivers enterprise-grade performance in a cost-effective form factor. Whether you're securing uptime for a data center, hospital, or offshore platform, the EASYGEN-1500 provides the intelligence layer that transforms a generator into a fully automated backup power system.

Core Features & Business Value

→ Automated Mains Failure Response
Detects utility outages within milliseconds and executes pre-programmed start sequences, eliminating manual intervention and reducing downtime from minutes to seconds—critical for operations where every second of power loss translates to revenue impact or safety risk.

✓ Multi-Protocol Connectivity
Integrates seamlessly with SCADA systems via Modbus RTU and communicates directly with ECU-equipped engines through CANbus J1939, enabling centralized monitoring across distributed sites and reducing diagnostic time by up to 60% through remote troubleshooting capabilities.

✓ Configurable Protection Matrix
Offers 20+ programmable alarm thresholds covering voltage, frequency, temperature, and pressure parameters, preventing catastrophic failures and extending generator lifespan by 15-25% through early fault detection and controlled shutdown procedures.

→ Environmental Resilience
Operates reliably across -30°C to +70°C temperature range with IP54 front panel sealing, making it suitable for harsh industrial environments, marine installations, and outdoor enclosures where conventional controllers fail.

✓ Intuitive Configuration Interface
Features multi-language LCD display and PC-based setup software that reduces commissioning time by 40% compared to legacy controllers, allowing technicians to configure complex sequences without specialized training.

→ Flexible I/O Architecture
Provides expandable digital inputs, relay outputs, and analog channels that accommodate custom sensor integration, third-party ATS coordination, and building management system interfaces without requiring external logic modules.

Application Scenarios & Problem Resolution

Data Center Backup Power
Challenge: Server farms require instantaneous power transfer to prevent data corruption and service interruptions during grid failures.
Solution: EASYGEN-1500 monitors mains quality continuously and initiates generator start within 3 seconds of detecting voltage deviation, coordinating with UPS systems to ensure zero-downtime transitions. Automated load shedding prevents generator overload during peak demand scenarios.

Healthcare Facility Emergency Systems
Challenge: Hospitals need guaranteed power for life-support equipment, operating rooms, and critical infrastructure with regulatory compliance requirements.
Solution: Controller executes weekly self-test routines, logs all operational events for audit trails, and provides priority load management to ensure essential circuits receive power first. Alarm escalation notifies maintenance staff of any anomalies before they impact patient care.

Offshore Platform Auxiliary Power
Challenge: Marine environments demand controllers that withstand salt spray, vibration, and temperature extremes while maintaining communication with remote operations centers.
Solution: IP54-rated construction and conformal-coated electronics resist corrosion, while Modbus connectivity enables real-time status monitoring from onshore control rooms. Automatic synchronization logic manages generator paralleling with platform electrical systems.

Manufacturing Continuity Protection
Challenge: Production lines with sensitive equipment require clean power transfer to avoid costly process interruptions and equipment damage.
Solution: EASYGEN-1500's voltage and frequency regulation monitoring ensures generator output meets quality standards before load transfer, while configurable time delays prevent nuisance trips during momentary grid disturbances. Integration with PLCs enables coordinated shutdown of non-essential loads to maximize backup runtime.

Telecommunications Tower Reliability
Challenge: Remote cell sites need autonomous operation with minimal maintenance visits and early warning of potential failures.
Solution: CANbus engine diagnostics provide predictive maintenance alerts, while Modbus telemetry transmits operational data to network operations centers. Fuel level monitoring and runtime tracking optimize service intervals and prevent unexpected outages.

Technical Parameters & Selection Guide

Selection Criteria: Choose EASYGEN-1500 for single-generator applications up to 3000 kVA where basic automation and monitoring suffice. If your application requires load sharing between multiple generators, mains paralleling, or advanced power management features, consider the EASYGEN-3500 or EASYGEN-3200XT models with expanded I/O and touchscreen interfaces.

Key Technical Indicators: Voltage measurement range 50-690V AC (L-L), frequency detection 40-70 Hz, current measurement via external CT inputs (1A or 5A secondary), configurable start attempts (1-10 cycles), programmable cranking intervals (5-60 seconds), cooldown timer (0-30 minutes).

Extended Capabilities

IoT Integration Readiness: Modbus RTU interface enables connection to industrial IoT gateways for cloud-based analytics platforms. Monitor fleet-wide generator performance, track fuel consumption trends, and receive predictive maintenance alerts through third-party energy management systems.

Advanced Sequencing Logic: Program custom start/stop sequences for applications requiring staged load application, soft-start coordination with VFDs, or timed load shedding during extended outages. Boolean logic functions allow creation of complex interlocks without external PLCs.

Customization Options: Factory configuration services available for high-volume OEM applications. Custom firmware modifications can accommodate proprietary communication protocols, specialized sensor inputs, or industry-specific regulatory requirements (marine classification societies, nuclear facility standards).

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier. Tracking information provided within 24 hours of order confirmation.

Custom Configuration: 7-10 business days for factory-programmed units with customer-specific parameter sets and firmware versions.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting guidance, and firmware updates. Remote support sessions available via screen-sharing for complex commissioning scenarios.

Documentation Package: Each controller ships with installation manual, quick-start guide, Modbus register map, CANbus parameter list, and configuration software license. Wiring diagrams and sample ladder logic available for download.

Frequently Asked Questions

What generator power ratings are compatible with the EASYGEN-1500 controller?
The controller supports generator sets from 5 kVA to 3000 kVA across diesel, natural gas, and bi-fuel engine types. Voltage compatibility spans 50-690V AC line-to-line configurations, accommodating both low-voltage and medium-voltage applications through appropriate CT and PT scaling.

How does remote monitoring integration work with existing SCADA systems?
Modbus RTU connectivity uses industry-standard register mapping compatible with Wonderware, Ignition, and Siemens WinCC platforms. Connection requires RS-485 serial interface (2-wire or 4-wire) with configurable baud rates from 9600 to 115200 bps. Complete register documentation enables custom HMI development.

Can the controller manage automatic transfer switch coordination?
Yes, dedicated relay outputs and digital inputs facilitate ATS integration. Programmable time delays ensure generator stabilization before load transfer, while voltage and frequency monitoring prevents transfer until output quality meets preset thresholds. Compatible with both open-transition and closed-transition switching schemes.

What installation requirements should I plan for?
Panel cutout dimensions: 138mm x 138mm (5.43" x 5.43"). Mounting depth behind panel: 65mm minimum. Requires dedicated 8-35 VDC power supply (battery-backed recommended). CT and PT connections via screw terminals rated for 14-22 AWG wire. Ambient temperature at installation location must remain within -30°C to +70°C operational range.

Does the EASYGEN-1500 support load bank testing automation?
Controller includes programmable exercise modes that can initiate scheduled load bank tests. Configure weekly, monthly, or custom intervals with adjustable load levels and duration. Automatic logging records test results for compliance documentation and trend analysis.

How do firmware updates get applied to the controller?
Firmware updates install via USB connection using Woodward's configuration software. Update process takes approximately 5 minutes and preserves existing parameter settings. Backward compatibility maintained across firmware revisions to protect configuration investments.

Take the Next Step

Ready to automate your standby power system? Contact our application engineering team for site-specific configuration recommendations, integration planning, and volume pricing. We'll help you specify the optimal controller setup for your generator, ATS, and monitoring requirements—ensuring first-time-right deployment.

Request a quote: Email your generator specifications, site electrical drawings, and monitoring requirements to our team. Expect detailed proposal within 24 hours including controller configuration, recommended accessories, and implementation timeline.
