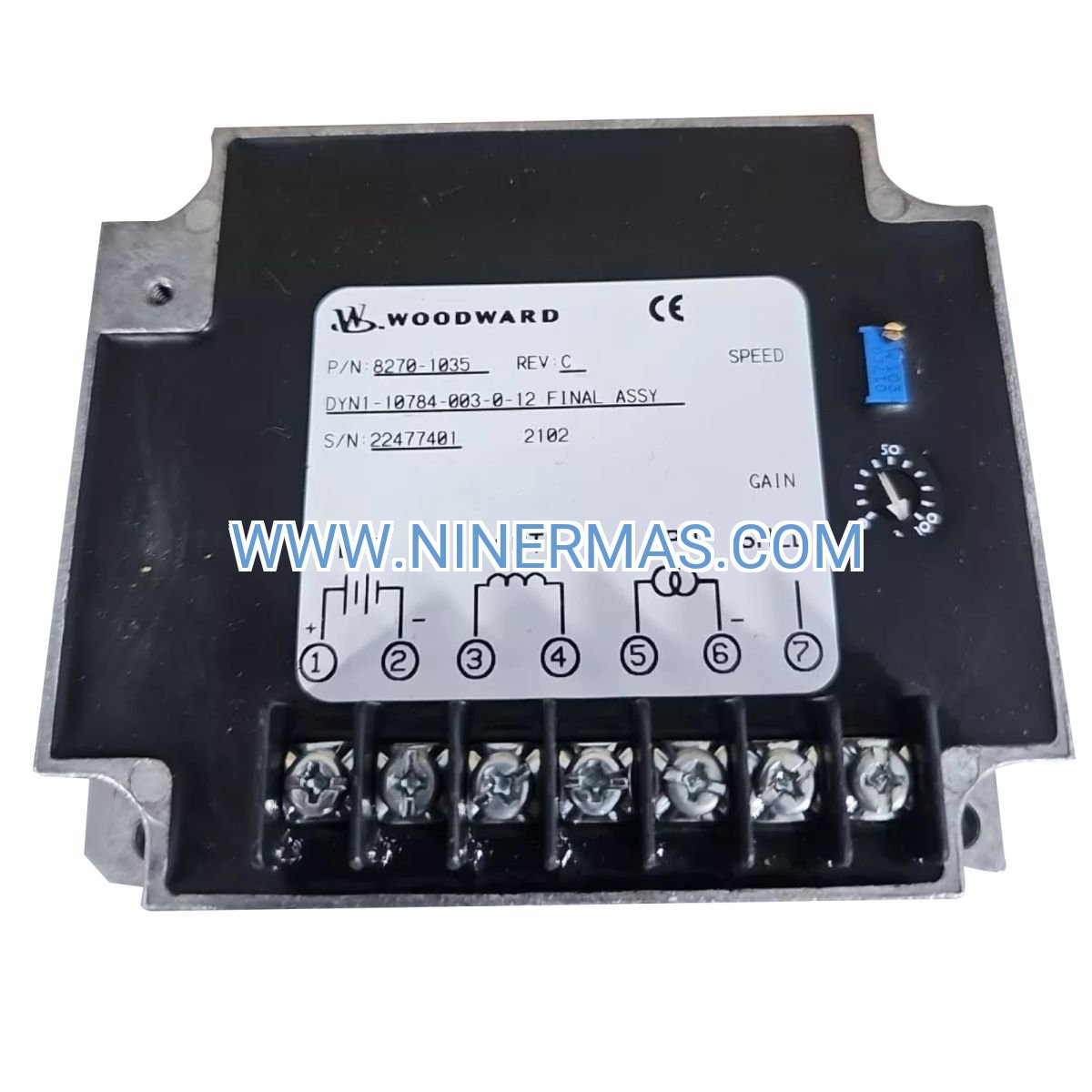

DYN1-10784-003-0-12 Electronic Governor (Industrial-Grade Speed Regulation System)

The DYN1-10784-003-0-12 represents Woodward's time-tested approach to analog engine speed control, delivering consistent performance across diesel, natural gas, and gasoline prime movers. This 12-volt DC governor combines field-proven analog circuitry with industrial-grade construction to maintain precise RPM setpoints in generator sets, pump drives, and process equipment where digital complexity is unnecessary.

Designed for operators who value simplicity and reliability, this controller solves the critical challenge of speed instability during load transients—a common issue that causes frequency fluctuations in standby power systems and flow rate variations in pumping applications. Target users include facility maintenance teams, OEM integrators, and industrial plant engineers managing engine-driven equipment in manufacturing, marine, and utility sectors.

Key advantages include proven analog control architecture requiring no programming, field-adjustable tuning for application-specific optimization, and rugged packaging that withstands vibration, temperature extremes, and electrical interference common in industrial environments.

Core Features & Benefits

→ Steady-State Accuracy: Maintains engine speed within ±0.25% of setpoint under constant load conditions, ensuring stable frequency output for generator applications and consistent flow rates for pump drives.

→ Rapid Transient Recovery: Advanced compensation circuits minimize speed droop during sudden load changes, reducing voltage sags in electrical systems and pressure fluctuations in hydraulic applications.

→ Multi-Fuel Compatibility: Engineered to control diesel, natural gas, propane, and gasoline engines from 10 HP to 500 HP, providing flexibility for diverse equipment fleets.

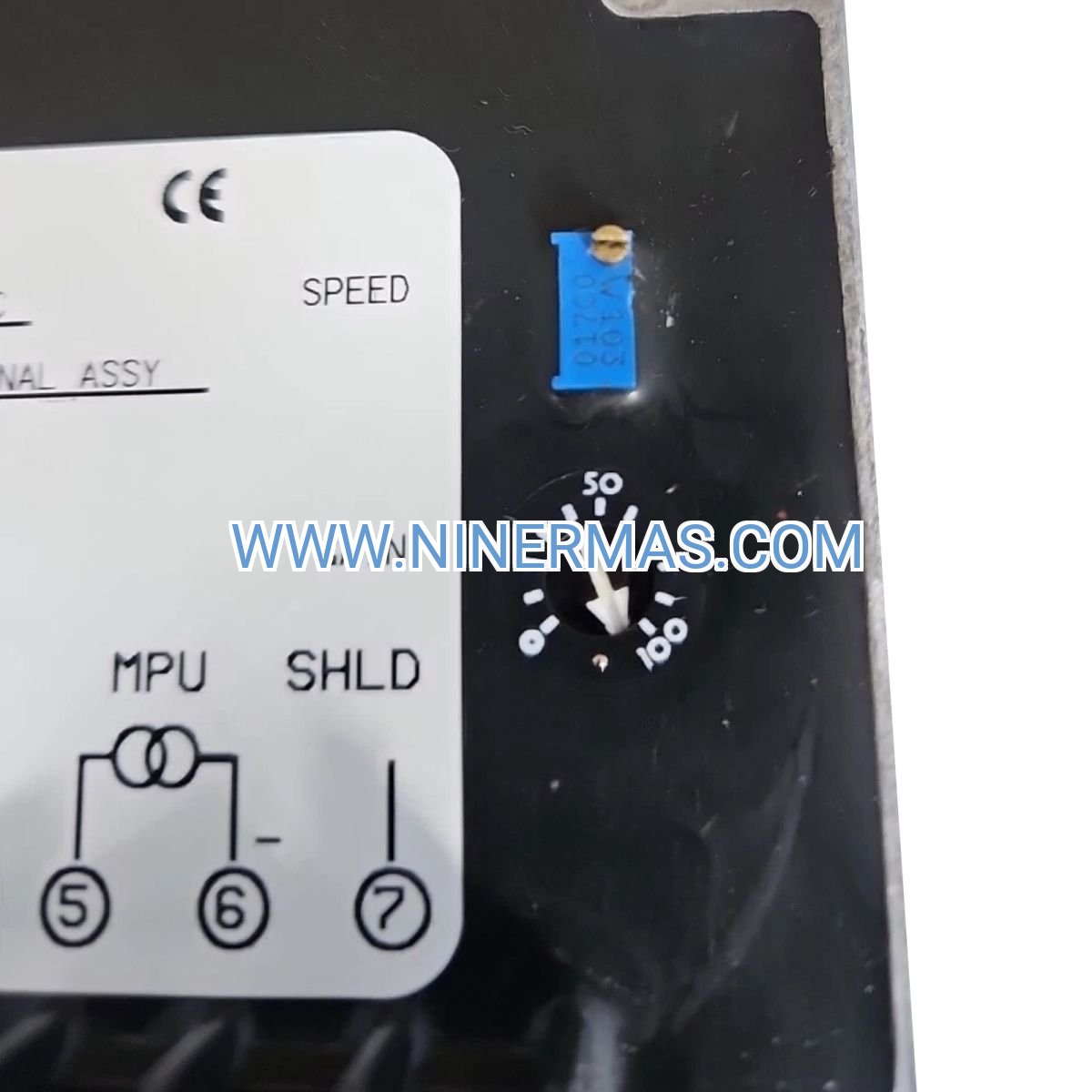

→ Field-Tunable Parameters: Onboard potentiometers allow adjustment of gain, stability, and droop characteristics without external programming tools, enabling commissioning technicians to optimize performance on-site.

→ Industrial Environmental Rating: Operates reliably from -40°C to +70°C with resistance to shock, vibration, and EMI/RFI interference per industrial automation standards.

→ Analog Reliability: Eliminates software vulnerabilities and firmware compatibility issues inherent in digital systems, ensuring long-term serviceability with readily available replacement components.

Typical Application Scenarios

✓ Emergency Standby Generators: Hospitals, data centers, and critical facilities require rock-solid frequency regulation during utility outages. This governor maintains 60 Hz ±0.15 Hz output even when large motor loads start, preventing sensitive equipment damage and ensuring seamless automatic transfer switch operation.

✓ Municipal Water Treatment: Variable-speed pump drives in water/wastewater plants demand consistent flow control to maintain treatment process parameters. The DYN1 controller eliminates flow rate hunting that causes chemical dosing errors and clarifier upset conditions.

✓ Natural Gas Compression: Pipeline booster stations and wellhead compressor packages benefit from precise speed regulation that optimizes compression ratios while preventing surge conditions. Droop mode capability enables load sharing across multiple compressor units.

✓ Marine Auxiliary Power: Shipboard generator sets and hydraulic power units face continuous load cycling and harsh vibration environments. This governor's rugged construction and salt-fog resistance ensure reliable operation in offshore and coastal service.

✓ Industrial Process Equipment: Manufacturing facilities using engine-driven air compressors, refrigeration chillers, and material handling systems require governors that integrate seamlessly with existing pneumatic or hydraulic actuators without complex interface modules.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DYN1-10784-003-0-12 when your application requires 12-volt DC control power, analog output compatibility with existing actuators, and field-adjustable tuning without laptop programming. For 24 VDC systems, consider the DYN1-10784-003-0-24 variant. Applications requiring digital communication protocols (Modbus, CANbus) should evaluate Woodward's 505E or easYgen series digital governors.

Extended Functions

Remote Speed Adjustment: Accepts external 0-5 VDC signal or 5 kΩ potentiometer for operator control panel integration, enabling centralized speed setpoint management in multi-engine installations.

Load Sharing Capability: Droop adjustment range of 0-10% supports parallel operation of multiple generator sets with proper load-sharing module integration, critical for redundant power systems.

Actuator Drive Options: Compatible with proportional solenoid actuators, stepper motor drives, and hydraulic servo valves, providing flexibility for retrofit applications where existing fuel control hardware must be retained.

Diagnostic Test Points: Built-in test jacks allow real-time monitoring of speed sensor signal, control output, and internal reference voltages using standard multimeter equipment, simplifying commissioning and troubleshooting procedures.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom-configured units with special calibration or mounting hardware require 10-15 business days for factory preparation.

Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 3-5 year coverage.

Technical Support: Application engineering assistance provided for system integration questions, actuator sizing, and control loop tuning. Phone and email support available during business hours with 4-hour response commitment.

Documentation Package: Each unit includes installation manual, wiring diagrams, tuning procedure guide, and dimensional drawings. Replacement parts list and troubleshooting flowcharts provided in PDF format.

Frequently Asked Questions

What type of speed sensor works with the DYN1-10784-003-0-12 governor?
The controller requires a magnetic pickup (MPU) sensor that generates AC voltage proportional to engine speed. Standard automotive-type sensors with 100-10,000 Hz output frequency are compatible. Sensor gap should be set to 0.020-0.040 inches from the flywheel gear teeth.

Can this analog governor interface with modern electronic fuel injection systems?
The DYN1 outputs an analog control signal suitable for driving proportional actuators or throttle servos. Direct control of ECM-based fuel injection requires a digital governor platform. However, many EFI retrofit kits include analog input modules that accept the DYN1's output signal.

How do I adjust the governor for optimal stability in my specific application?
Start with factory default settings (gain and stability potentiometers at mid-position). Increase gain until slight hunting occurs, then reduce 10-15%. Adjust stability control to eliminate overshoot during load steps. Droop setting depends on whether isochronous (0% droop) or load-sharing (3-5% droop) operation is required.

What is the expected service life for industrial governor applications?
Woodward analog governors routinely achieve 15-20 years of continuous operation in properly maintained installations. Key longevity factors include adequate ventilation (keep ambient below 60°C), clean electrical connections, and protection from moisture ingress.

Does the DYN1-10784-003-0-12 support remote monitoring or SCADA integration?
This analog model does not include digital communication ports. For remote monitoring applications, add external signal conditioning modules to convert the governor's analog outputs to 4-20 mA or Modbus signals compatible with SCADA systems.

Can I retrofit this governor to replace a mechanical flyweight-type governor?
Yes, the DYN1 is commonly used to upgrade mechanical governors on older engines. You'll need to install a magnetic pickup sensor on the flywheel and replace the mechanical linkage with an electric actuator. Consult factory application notes for specific engine models.

Take the Next Step

Ready to upgrade your engine control system with proven analog technology? Contact our application engineering team for system integration guidance, actuator compatibility verification, and volume pricing for multi-unit projects. Request a detailed quotation by providing your engine specifications, operating environment details, and delivery timeline.
