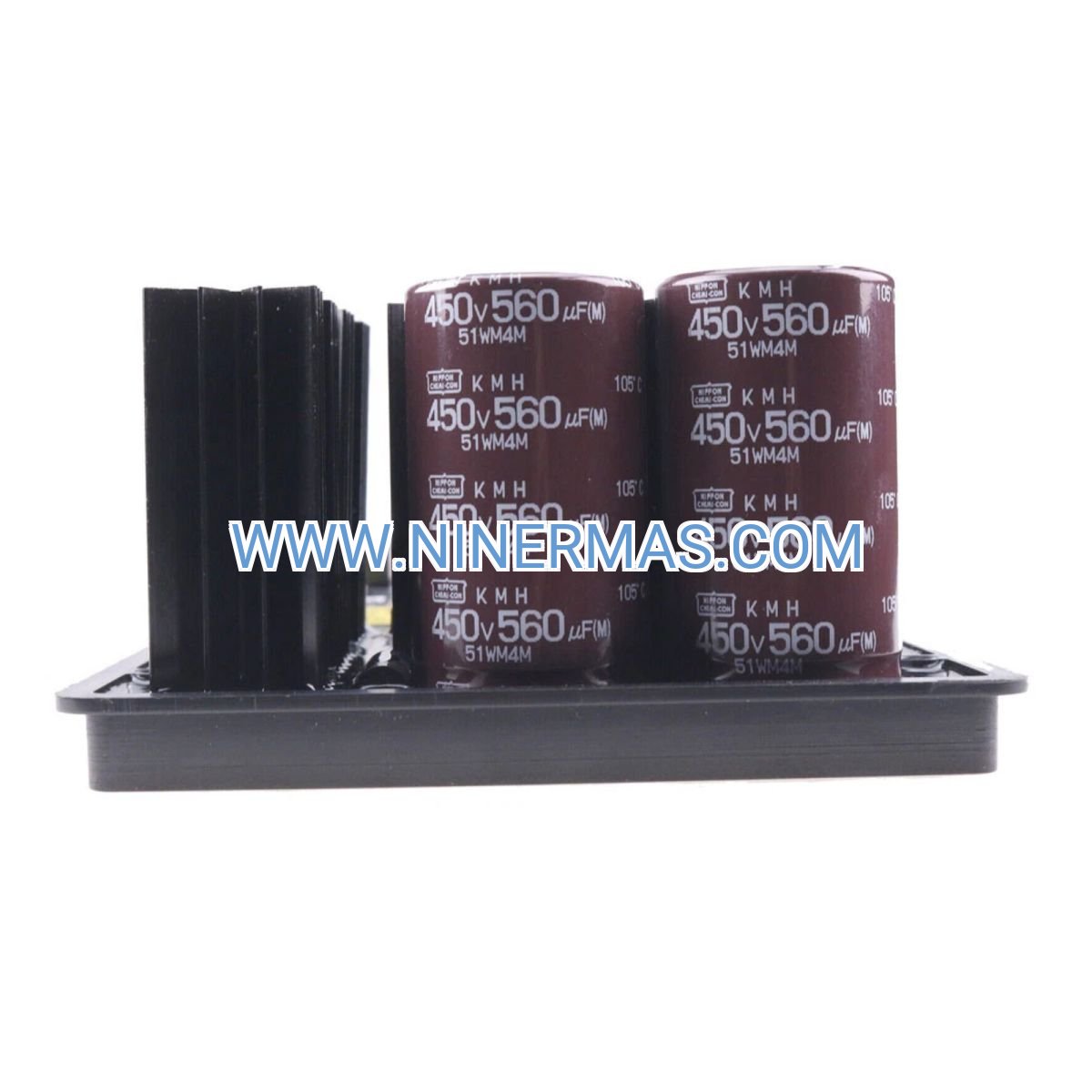

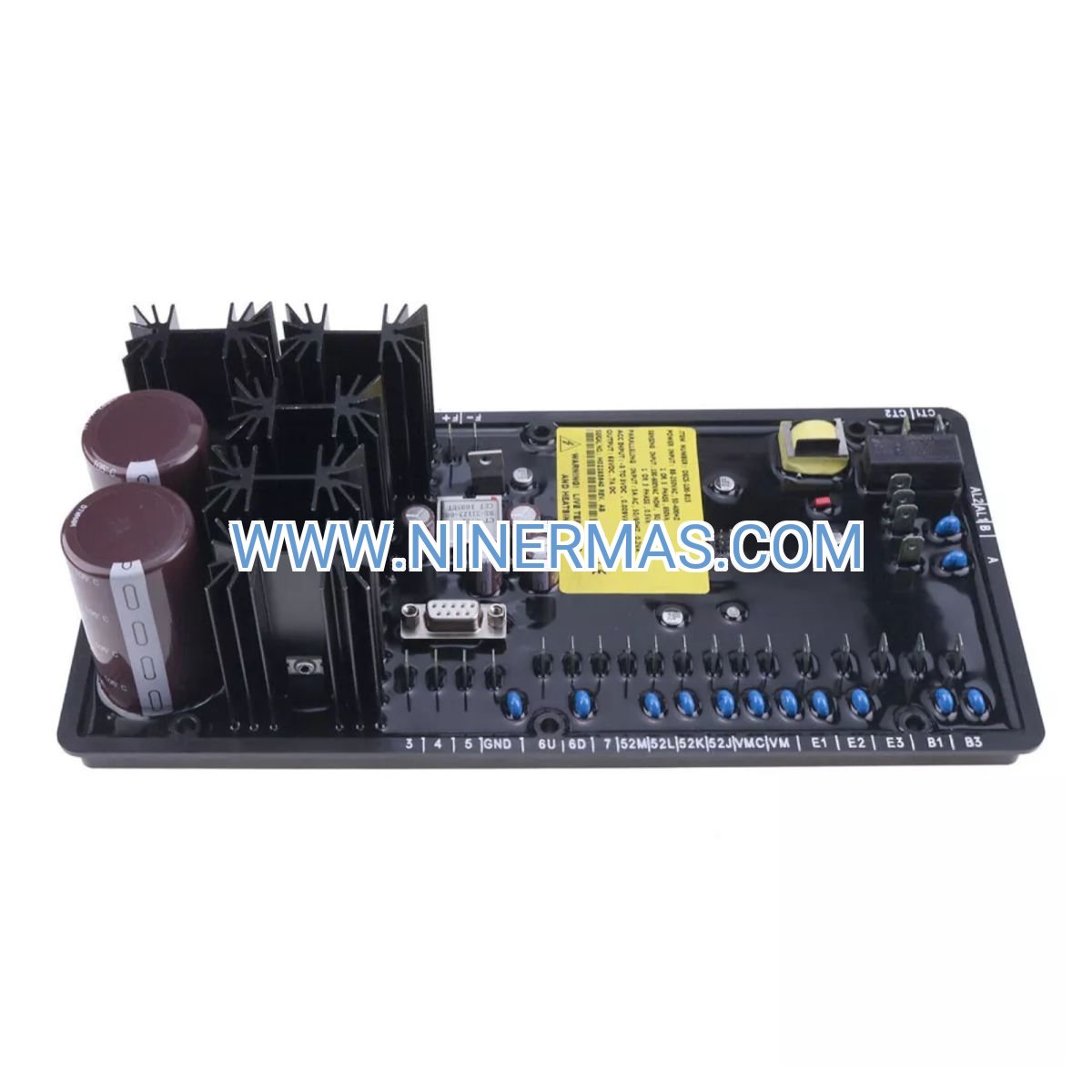

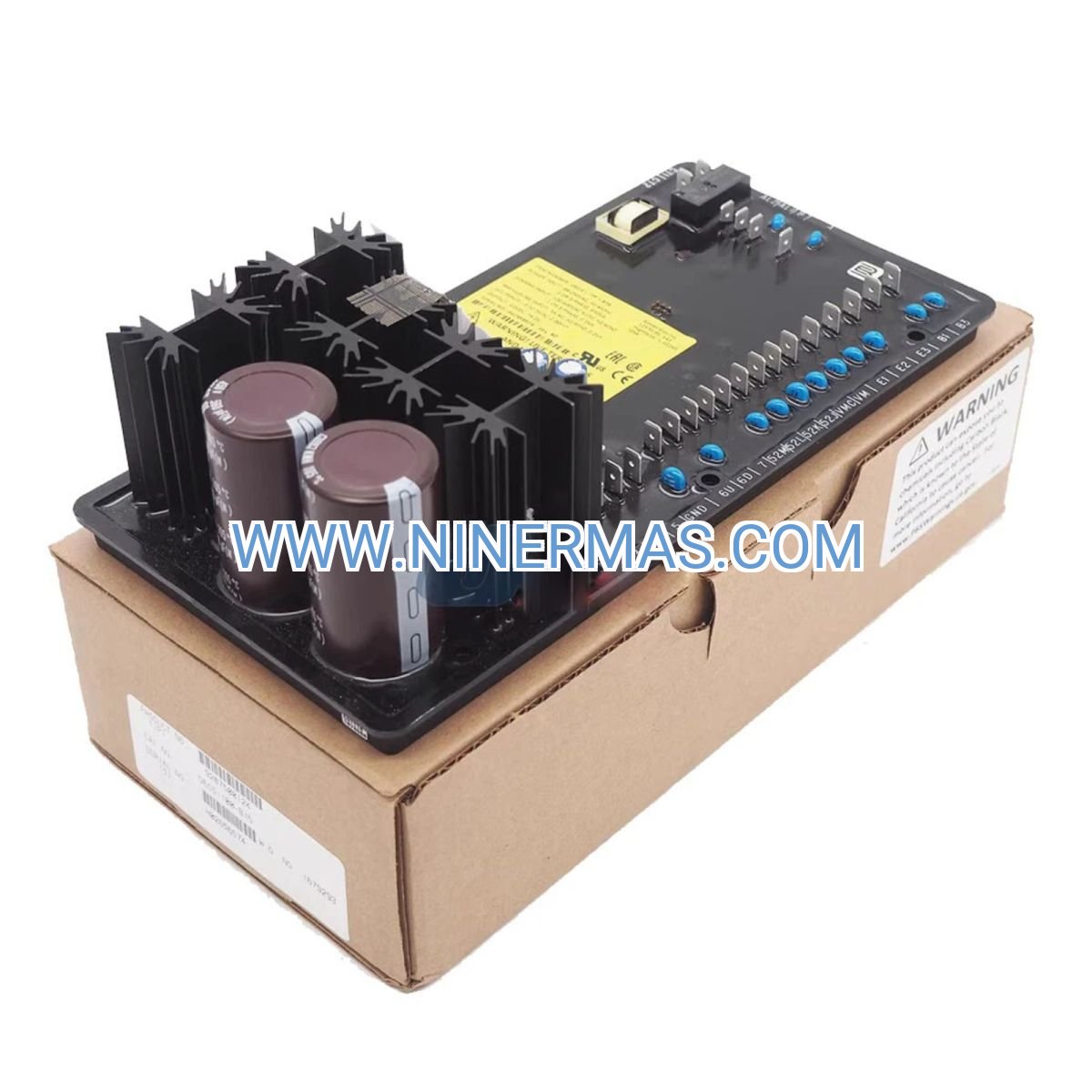

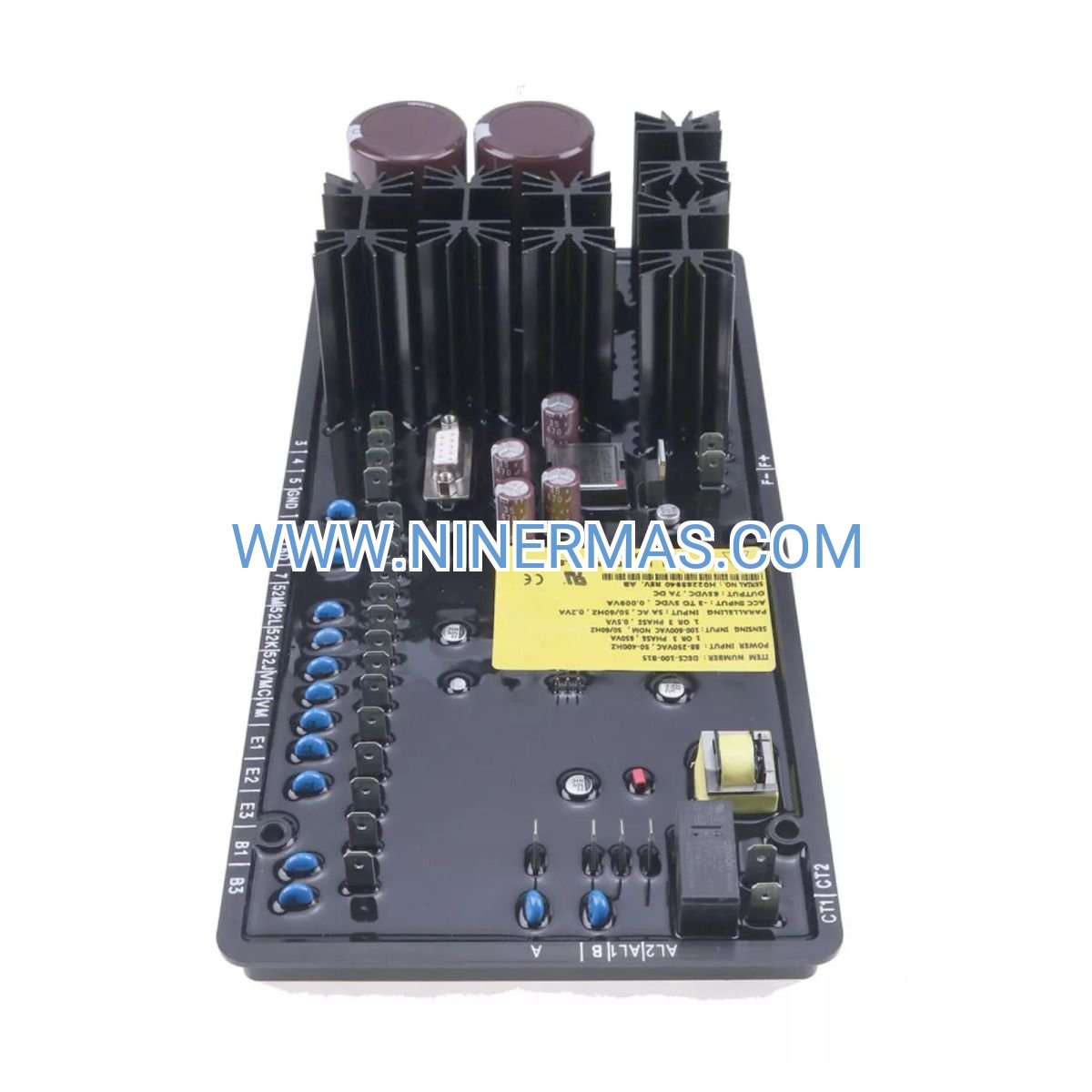

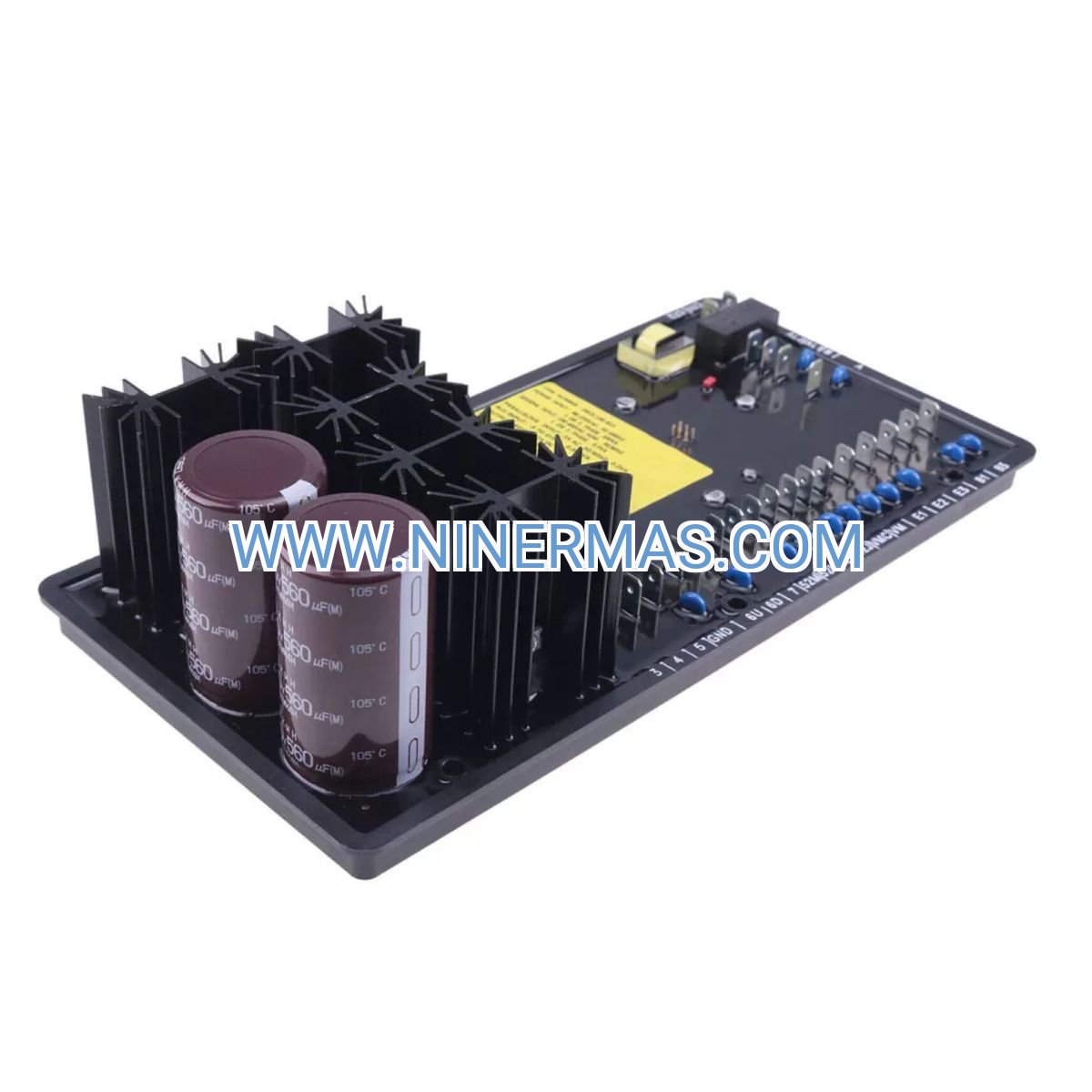

DECS-100-B15 Digital Excitation Controller (Industrial-Grade Voltage Regulation)

The DECS-100-B15 is a microprocessor-based automatic voltage regulator engineered to deliver precise excitation control for synchronous generators in mission-critical power generation environments. Designed for applications demanding exceptional voltage stability and rapid transient response, this digital excitation system combines advanced control algorithms with robust industrial construction to ensure reliable operation across utility, marine, and industrial power systems.

Built to address the challenges of fluctuating loads, grid disturbances, and parallel operation requirements, the DECS-100-B15 provides comprehensive voltage regulation with integrated protection features. Power plant operators, marine engineers, and industrial facility managers rely on this controller to maintain generator terminal voltage within stringent tolerances while optimizing reactive power distribution and system stability.

With field-proven reliability in thousands of installations worldwide, the DECS-100-B15 represents Woodward's commitment to precision control technology. Its programmable architecture adapts to diverse generator configurations, while built-in diagnostics and communication capabilities streamline commissioning, monitoring, and maintenance workflows.

Core Features & Benefits

→ Precision Digital Regulation
Microprocessor-based control architecture achieves ±0.25% steady-state voltage accuracy with sub-100ms transient response, ensuring stable power delivery even during sudden load changes or grid disturbances.

→ Multi-Mode Reactive Power Control
Flexible VAR, power factor, and voltage droop control modes enable optimal load sharing in parallel generator configurations while maintaining grid code compliance for utility interconnection.

→ Comprehensive Equipment Protection
Integrated over-excitation limiter (OEL), under-excitation limiter (UEL), and V/Hz protection safeguard both the generator and excitation system from damaging operating conditions, reducing maintenance costs and extending equipment lifespan.

✓ Industrial Communication Integration
Modbus RTU protocol over RS-485 interface enables seamless integration with SCADA systems, PLCs, and power management controllers for remote monitoring, setpoint adjustment, and alarm notification.

✓ Wide Operating Range Compatibility
Auto-sensing dual-voltage power supply (88-132 VAC / 176-264 VAC) and configurable field current output accommodate generators from 50 kVA to 10 MVA across diverse voltage classes and excitation system types.

✓ Simplified Configuration & Diagnostics
Front-panel interface with LED status indicators and programmable parameters streamlines commissioning, while built-in self-diagnostics accelerate troubleshooting and reduce downtime during maintenance activities.

Typical Application Scenarios

Utility Power Generation Facilities
In base-load and peaking power plants, the DECS-100-B15 maintains grid voltage stability during load variations and system disturbances. The controller's fast transient response and precise regulation prevent voltage excursions that could trigger grid protection relays, while VAR control modes optimize reactive power contribution to support transmission system voltage profiles.

Industrial Cogeneration & CHP Systems
Manufacturing facilities operating combined heat and power systems benefit from the DECS-100-B15's ability to manage voltage regulation during transitions between grid-parallel and islanded operation modes. The controller's droop and cross-current compensation features ensure smooth load sharing when multiple generator sets operate in parallel to meet facility power demands.

Marine Propulsion & Auxiliary Power
Shipboard generator sets face highly dynamic loading from propulsion drives, cargo handling equipment, and hotel loads. The DECS-100-B15's rapid response characteristics maintain voltage stability during these transient conditions, while its rugged construction withstands the vibration, temperature extremes, and electromagnetic interference typical of marine environments.

Data Center & Critical Infrastructure Backup
Emergency standby generators protecting mission-critical IT infrastructure require fast voltage build-up and precise regulation during utility outages. The DECS-100-B15 delivers rapid excitation response to establish rated voltage within seconds of engine start, while maintaining tight voltage tolerances to protect sensitive electronic loads.

Renewable Energy Hybrid Systems
In microgrids combining diesel generators with solar PV or wind turbines, the DECS-100-B15 provides the voltage regulation and reactive power support necessary for stable operation during renewable resource fluctuations. Its communication capabilities facilitate coordination with energy management systems controlling hybrid power plant dispatch.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the DECS-100-B15 for your application, verify that your generator's field current requirement does not exceed 15A continuous. For larger generators or those with higher excitation demands, consider the DECS-100-B30 (30A) or DECS-100-B63 (63A) variants. Confirm compatibility with your excitation system type (brushless, static, or PMG-based) and ensure adequate panel space for mounting and ventilation clearances.

Extended Functions

Advanced Control Modes: Beyond basic voltage regulation, the DECS-100-B15 offers power factor control, reactive power (VAR) control, and voltage droop modes for sophisticated load management. These modes can be selected via front-panel programming or remotely through the Modbus interface, enabling adaptive control strategies that respond to changing grid conditions or operational requirements.

IoT & Remote Monitoring Integration: The Modbus RTU protocol facilitates integration with industrial IoT gateways and cloud-based monitoring platforms. Real-time data including voltage setpoint, field current, operating mode, and alarm status can be transmitted to centralized control rooms or mobile applications, enabling predictive maintenance and remote diagnostics that reduce site visits and improve system availability.

Customization & Application Engineering: For specialized applications requiring non-standard voltage sensing ranges, custom protection setpoints, or integration with proprietary control systems, Woodward's application engineering team provides factory customization services. Custom firmware configurations, modified I/O arrangements, and application-specific testing can be arranged to meet unique project requirements.

Delivery & Service Assurance

Lead Time: Standard DECS-100-B15 units ship within 3-5 business days from our regional distribution centers. Custom-configured units or large quantity orders may require 2-3 weeks for factory programming and testing. Expedited shipping options are available for emergency replacement scenarios.

Warranty Coverage: Each DECS-100-B15 includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Extended warranty programs up to 36 months are available for critical applications requiring enhanced protection.

Technical Support: Our global technical support team provides application assistance, commissioning guidance, and troubleshooting support via phone, email, and remote connectivity. Field service engineers are available for on-site commissioning, training, and emergency repair services in major industrial regions.

Documentation Package: Every unit ships with installation manual, wiring diagrams, parameter configuration guide, Modbus register map, and quick-start commissioning checklist. CAD drawings, 3D STEP models, and panel cutout templates are available for download from our technical documentation portal.

Frequently Asked Questions

What generator power ratings are compatible with the DECS-100-B15 excitation controller?
The DECS-100-B15 is designed for synchronous generators ranging from 50 kVA to approximately 10 MVA, depending on the generator's excitation system design and field current requirements. The "B15" designation indicates a maximum continuous field current output of 15 amperes. Generators with higher excitation demands should use the B30 (30A) or B63 (63A) variants. Consult your generator's excitation system specifications or contact our application engineers for compatibility verification.

How does the DECS-100-B15 interface with existing SCADA or power management systems?
The controller features a built-in Modbus RTU communication interface over RS-485, supporting baud rates from 9600 to 115,200. This industry-standard protocol enables seamless integration with most SCADA systems, PLCs, and power management controllers. The Modbus register map provides access to real-time operating parameters, setpoint adjustments, alarm status, and diagnostic information. Multi-drop configurations support up to 32 devices on a single RS-485 network.

Can the DECS-100-B15 be retrofitted to replace older analog voltage regulators?
Yes, the DECS-100-B15 is commonly used as a direct replacement for aging analog AVRs in generator modernization projects. The controller's flexible voltage sensing inputs and configurable field current output accommodate most legacy excitation system architectures. Panel cutout dimensions are designed to fit standard DIN-rail or panel-mount configurations. Retrofit projects typically require 4-6 hours for mechanical installation, wiring, and commissioning by qualified technicians.

What protection features prevent generator damage during abnormal operating conditions?
The DECS-100-B15 incorporates multiple protection functions including over-excitation limiting (OEL) to prevent rotor overheating, under-excitation limiting (UEL) to maintain synchronous stability, and volts-per-hertz (V/Hz) protection against core saturation during frequency variations. Loss-of-sensing detection automatically reduces field current if voltage feedback is interrupted. All protection thresholds are programmable to match specific generator thermal and stability characteristics.

Does the controller support parallel operation of multiple generators?
Absolutely. The DECS-100-B15 includes dedicated features for parallel generator operation including reactive droop compensation, cross-current compensation, and load-sharing modes. These functions ensure equitable distribution of reactive power between paralleled units while maintaining system voltage stability. For complex multi-generator installations, the controller can be coordinated with automatic synchronizers and load-sharing controllers via the Modbus interface.

What maintenance procedures are required to ensure long-term reliability?
The digital design minimizes maintenance requirements compared to analog regulators. Recommended annual maintenance includes verification of voltage sensing accuracy using calibrated test equipment, inspection of terminal connections for tightness and corrosion, and functional testing of protection features. The controller's self-diagnostic capabilities continuously monitor internal functions and provide early warning of potential issues. Firmware updates, when available, can be installed via the communication interface to add features or enhance performance.
