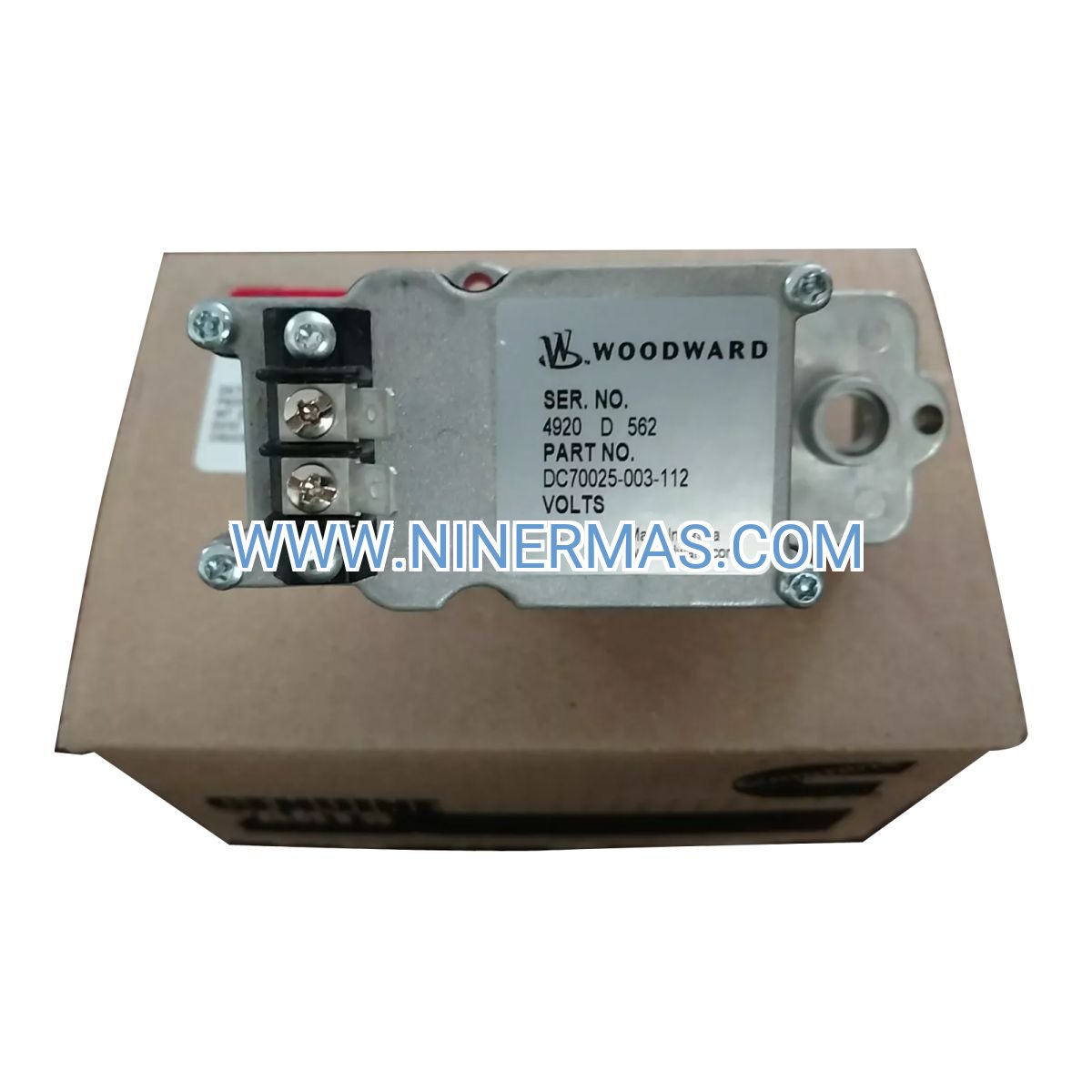

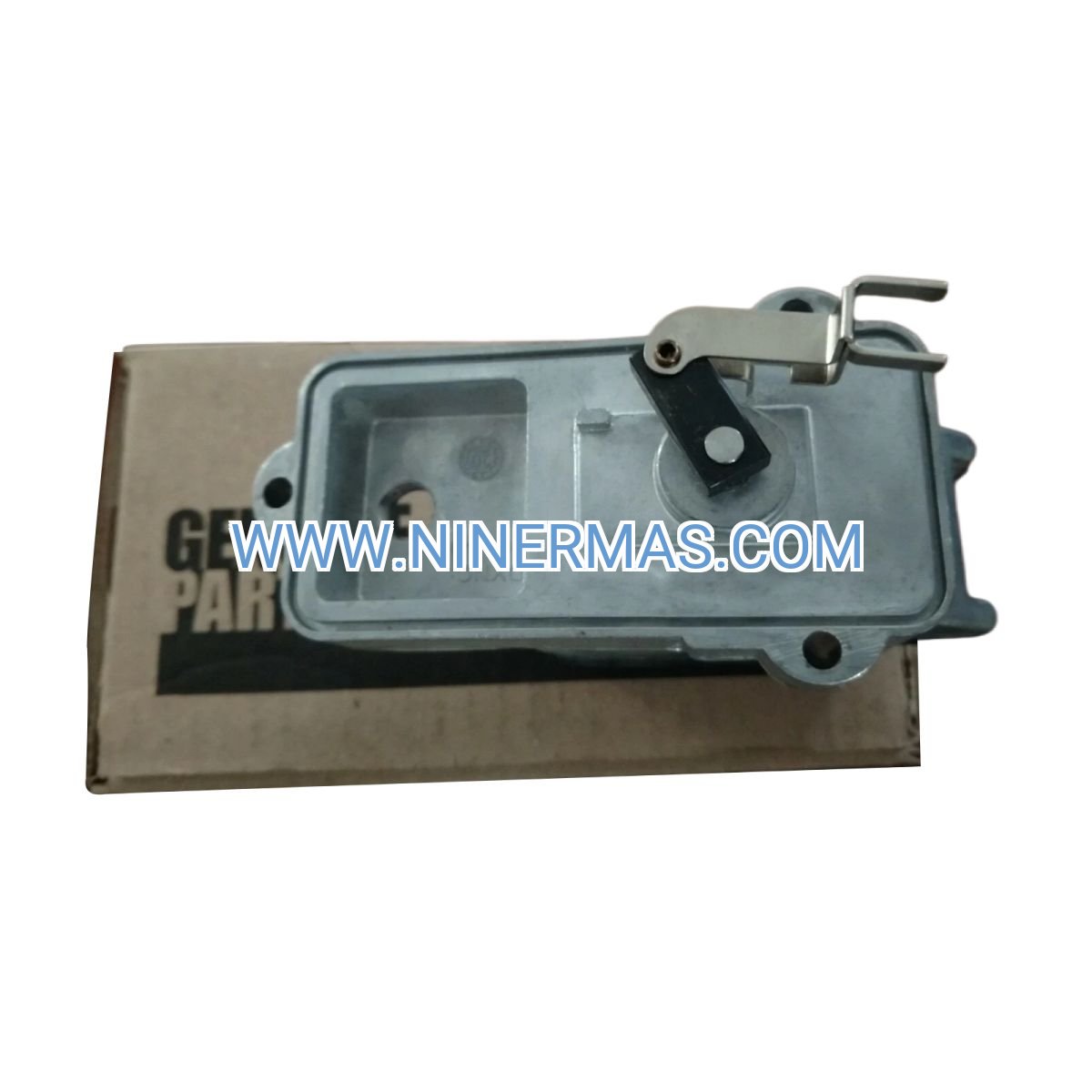

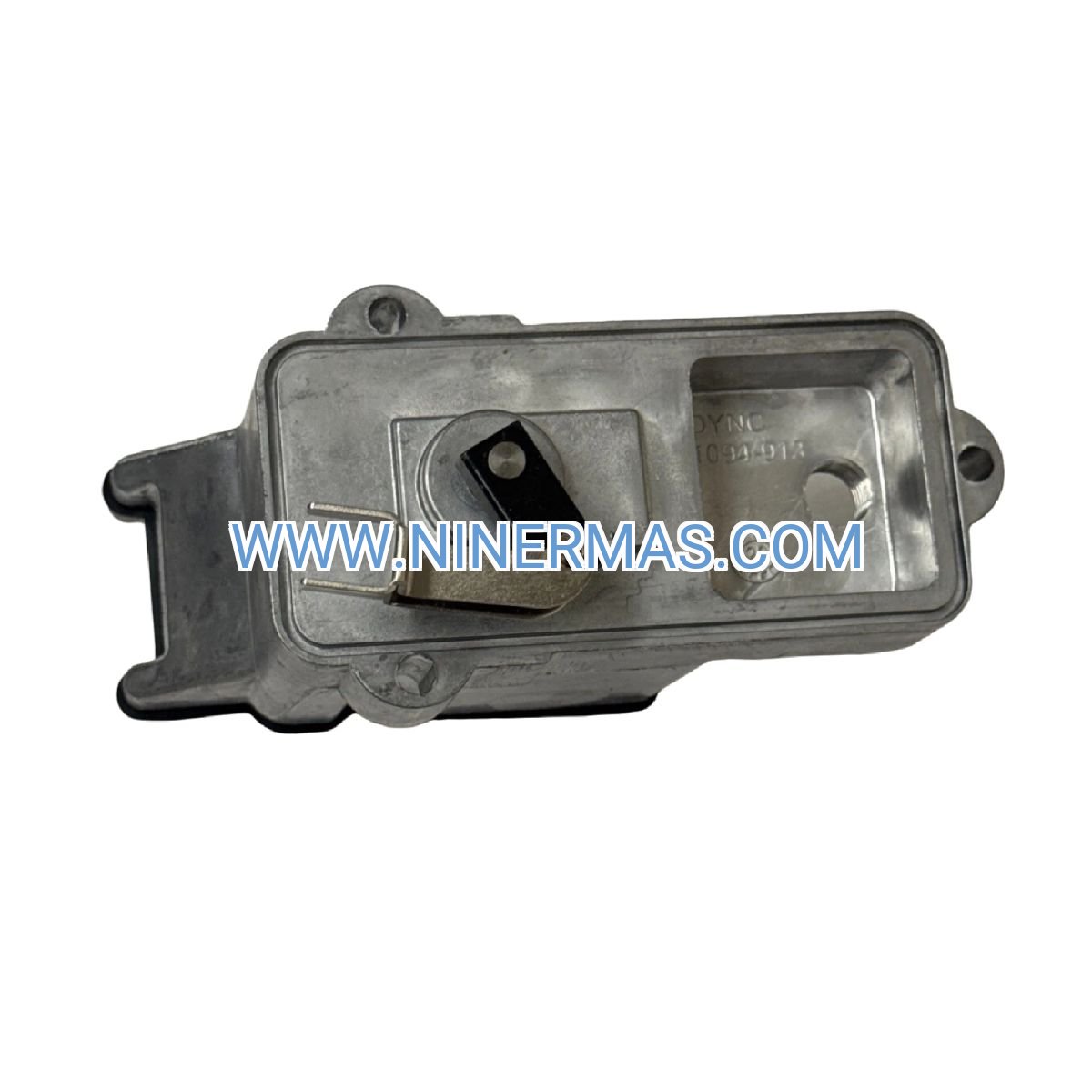

DC70025-003-112 Electronic Governor Actuator (Industrial-Grade Diesel Control)

The DC70025-003-112 represents Woodward's proven solution for electronic fuel metering in Stanadyne D-Series rotary injection systems. Engineered for 12-volt diesel platforms, this sealed actuator translates control signals into precise mechanical positioning—delivering consistent governor response across temperature extremes, vibration profiles, and contaminated environments where mechanical linkages fail.

Target operators include power generation contractors managing backup gensets, marine engineers maintaining auxiliary propulsion systems, and fleet managers overseeing off-highway equipment. Whether you're retrofitting legacy mechanical governors or replacing failed OEM units, this actuator integrates directly with existing Stanadyne pump housings and standard engine control modules.

Key differentiators: hermetically sealed electronics resist moisture ingress, fast-acting solenoid design minimizes load-step overshoot, and field-proven durability reduces unplanned downtime in mission-critical applications. Compatible with both standalone speed controllers and integrated ECM platforms.

Core Features & Benefits

→ Sealed Construction for Harsh Environments
Hermetic enclosure protects internal circuitry from saltwater spray, hydraulic fluid contamination, and dust infiltration—extending mean time between failures in marine, mining, and agricultural settings.

→ Direct-Fit Stanadyne Compatibility
Bolt-pattern alignment with D-Series pump housings eliminates custom brackets and adapter plates. Reduces installation time by 40% compared to universal aftermarket alternatives.

→ 12 VDC Low-Power Operation
Optimized for battery-powered mobile equipment and small gensets. Draws minimal standby current to preserve battery life during extended idle periods.

✓ Fast Response Dynamics
Sub-50ms actuation time ensures smooth load acceptance and rejection. Prevents black smoke during sudden throttle inputs and maintains stable RPM under varying loads.

✓ Wide Operating Temperature Range
-40°C to +85°C certification supports Arctic drilling rigs, desert construction sites, and tropical marine vessels without derating or auxiliary cooling.

✓ Field-Serviceable Design
Modular construction allows on-site replacement of wear components. Reduces total cost of ownership through extended service intervals and simplified maintenance procedures.

Application Scenarios

Emergency Power Generation
Hospitals, data centers, and telecom facilities rely on instant genset startup during grid failures. The DC70025-003-112 ensures first-crank fuel delivery and stable frequency regulation under step-loaded conditions—critical for sensitive IT equipment and life-support systems.

Agricultural Machinery
Combine harvesters and irrigation pumps operate in dusty, high-vibration environments where mechanical governors wear prematurely. This sealed actuator maintains consistent engine speed during variable PTO loads, improving harvest efficiency and reducing fuel waste.

Marine Propulsion & Auxiliary Systems
Fishing vessels and workboats demand reliable fuel control in corrosive saltwater atmospheres. The actuator's sealed design prevents galvanic corrosion while delivering precise throttle response for maneuvering in tight harbors and maintaining cruising speed in rough seas.

Construction & Material Handling
Excavators, loaders, and forklifts require smooth power delivery during repetitive lift cycles. Electronic governor control eliminates the hunting and surging common with worn mechanical linkages—improving operator comfort and reducing hydraulic system stress.

Rental Fleet & Backup Power
Equipment rental companies need plug-and-play reliability across diverse customer applications. Standardizing on Woodward actuators simplifies inventory management, technician training, and field service logistics.

Technical Parameters & Selection Guide

Selection Criteria: Verify your injection pump model against Stanadyne D-Series compatibility. Confirm 12 VDC electrical system availability—24V applications require model DC70025-003-124. For engines above 150 HP or dual-pump configurations, consult our technical team for actuator sizing and controller pairing recommendations.

Extended Functions

IoT Integration Capability
When paired with Woodward's easYgen or LS-5 controllers, the actuator supports remote monitoring via Modbus RTU or CANbus protocols. Track fuel position, diagnostic fault codes, and runtime hours through SCADA systems or cloud-based fleet management platforms.

Dual-Fuel Conversion Support
The actuator's proportional control enables diesel-pilot operation in natural gas or propane bi-fuel conversions. Maintains precise pilot fuel metering for reliable ignition across varying gas qualities and ambient conditions.

Customization Options
OEM integrators can specify custom connector types, cable lengths, and calibration curves for volume orders. Contact our engineering team for application-specific modifications and private-label packaging.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from our regional distribution centers. Custom configurations require 4-6 weeks for engineering validation and production scheduling.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty plans available for critical infrastructure applications.

Technical Support: Our application engineers provide pre-sale sizing assistance, installation guidance, and troubleshooting support via phone, email, and remote diagnostics. Average response time: <4 hours during business days.

Documentation Package: Each actuator includes installation manual, wiring diagrams, calibration procedures, and dimensional drawings. CAD models available in STEP and IGES formats for system integrators.

Frequently Asked Questions

What controller models are compatible with this 12V diesel actuator?
The DC70025-003-112 works with Woodward 2301A, GAP, and ProAct controllers, as well as third-party ECMs supporting 0-5V or PWM input signals. Verify controller output specifications match actuator input requirements before ordering.

Can I replace a mechanical governor with this electronic actuator on existing engines?
Yes, retrofit kits are available for most Stanadyne-equipped engines. You'll need a compatible speed controller, wiring harness, and magnetic pickup for RPM sensing. Our technical team provides application-specific retrofit guidance and parts lists.

How does the sealed design improve reliability in marine environments?
IP67-rated enclosure prevents saltwater intrusion that causes corrosion and electrical shorts in unsealed actuators. Conformal-coated PCBs and stainless fasteners further enhance corrosion resistance—typical marine service life exceeds 8,000 operating hours.

What maintenance intervals are recommended for optimal performance?
Inspect electrical connections every 500 hours for corrosion or looseness. Verify actuator stroke calibration annually or after any fuel system service. No internal lubrication required—sealed bearings are lifetime-rated.

Does this actuator support remote monitoring and diagnostics?
When integrated with compatible controllers, yes. Monitor fuel position, fault codes, and actuator health via Modbus, CANbus, or Ethernet protocols. Enables predictive maintenance and reduces unplanned downtime.

What are the power requirements and wiring specifications?
Requires 12 VDC ±10% supply with minimum 5A circuit protection. Use 14 AWG wire for runs under 6 meters, 12 AWG for longer distances. Twisted-pair shielded cable recommended for signal wires to minimize EMI interference.

Take the Next Step

Ready to upgrade your diesel fuel control system? Add the DC70025-003-112 to your cart for fast shipping, or contact our technical sales team at sale@ninermas.com or +0086 187 5021 5667 for application-specific guidance, volume pricing, and integration support. Our engineers are standing by to ensure you select the right actuator configuration for your exact requirements.
