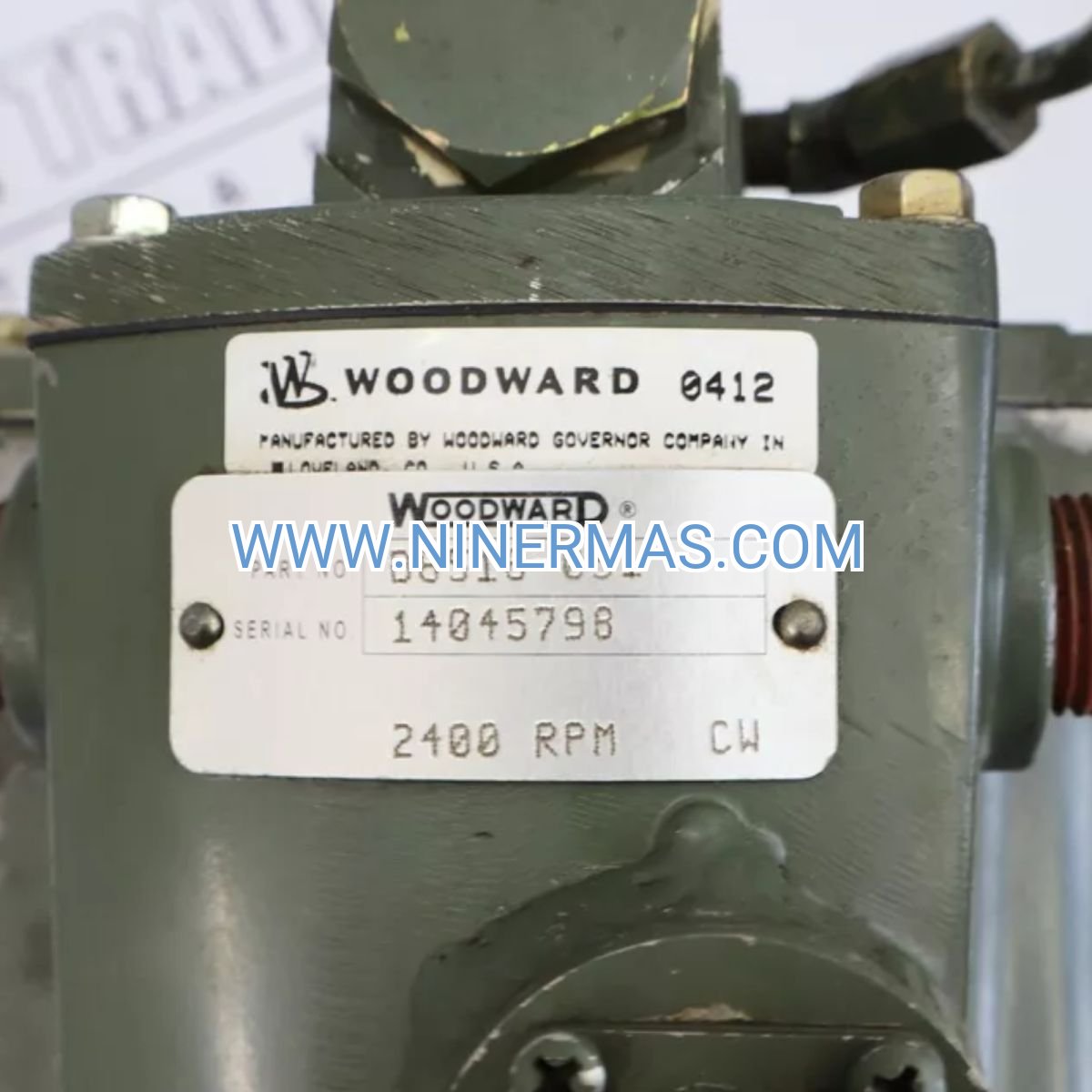

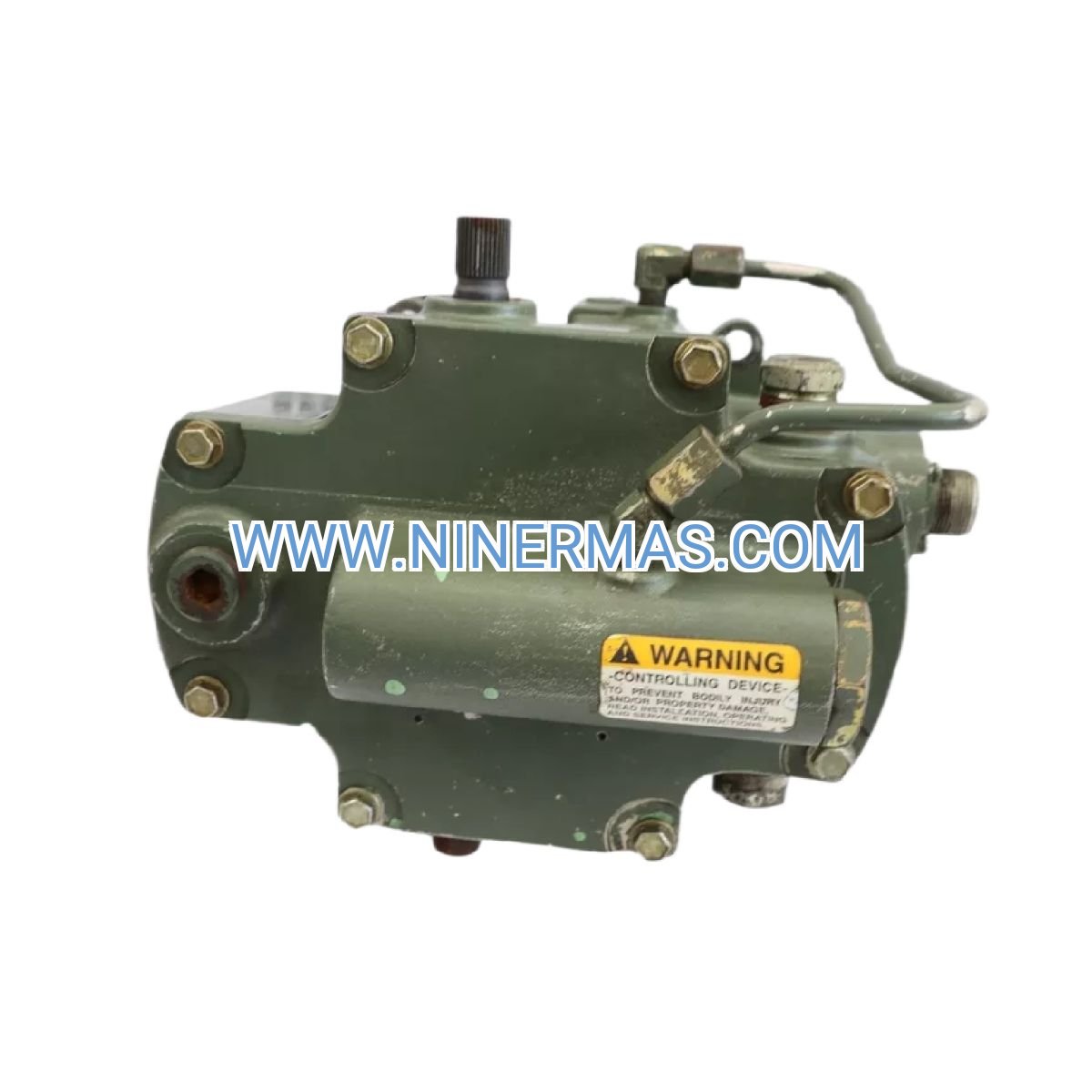

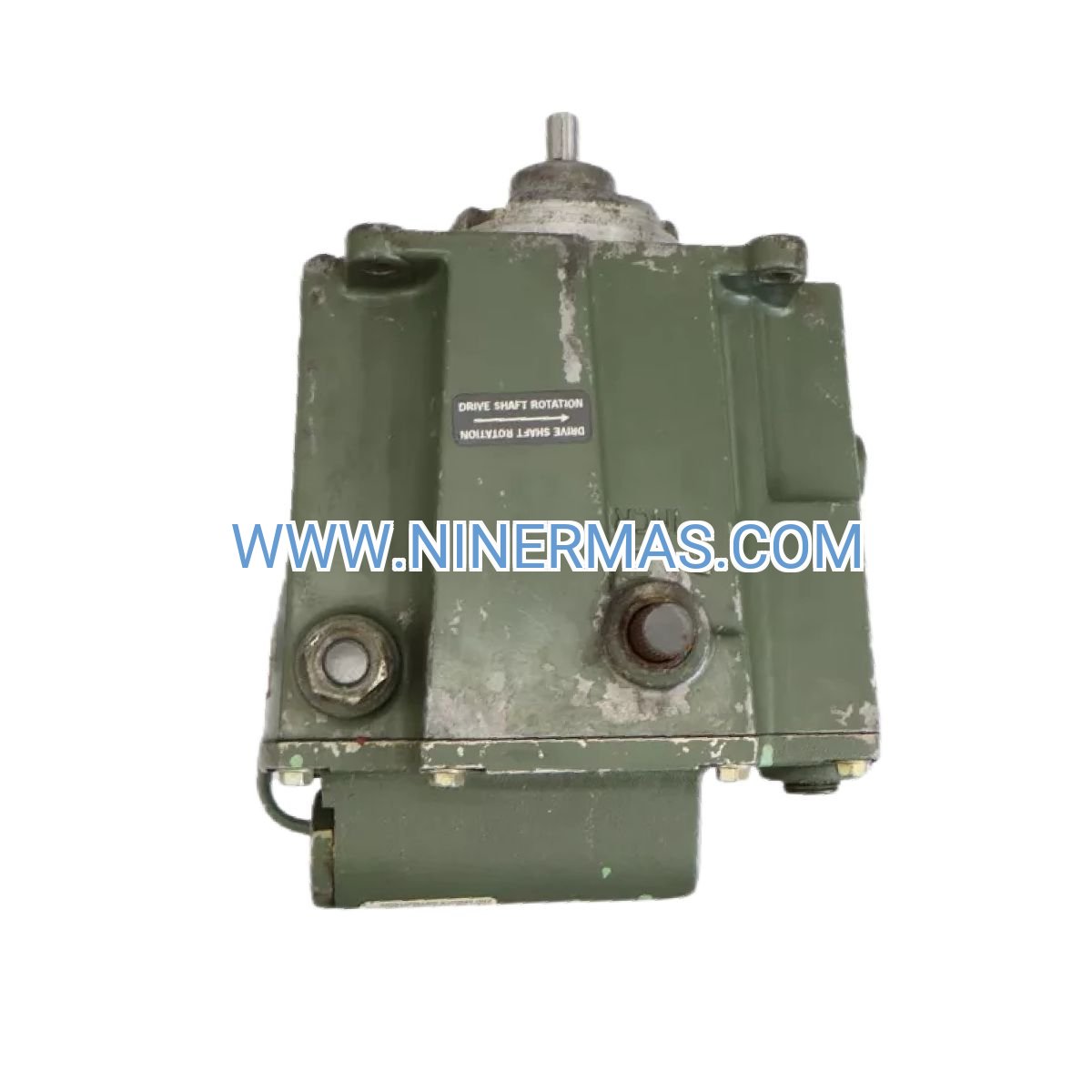

D8516-051 TG-13 Mechanical-Hydraulic Governor (Industrial-Grade Speed Control)

The D8516-051 represents Woodward's proven approach to steam turbine speed regulation, combining mechanical-hydraulic architecture with ATEX-certified safety standards. Designed for API 611-compliant installations, this governor delivers proportional droop control across 3000-8000 RPM operating ranges without reliance on electronic components. Whether you're managing centrifugal pump drives, emergency generator sets, or process compressor turbines, the TG-13 platform ensures consistent speed stability under variable load conditions while meeting hazardous area classification requirements.

Industrial operators face critical challenges: maintaining precise turbine speed during load transients, preventing catastrophic overspeed events, and ensuring parallel operation of multiple units. The D8516-051 addresses these demands through field-proven droop control mechanics that automatically modulate steam valve positioning in response to shaft speed deviations. With adjustable droop settings from 0-6%, the system accommodates both isochronous single-unit operation and proportional load-sharing configurations across multi-turbine installations.

Key advantages include ATEX Zone 2 certification for explosive atmosphere deployment, compact 12.7 kg footprint for retrofit compatibility, and mechanical simplicity that eliminates electronic failure modes common in digital control systems. The governor integrates seamlessly with standard actuator interfaces, accepts 150-300 PSI hydraulic supply from existing lubrication systems, and operates reliably across -20°C to +65°C ambient temperature extremes—making it the preferred choice for refineries, petrochemical facilities, and power generation plants requiring uncompromising turbine protection.

Core Capabilities & Technical Value

→ ATEX-Certified Hazardous Area Operation
Meets stringent European explosive atmosphere standards (ATEX Directive 2014/34/EU) for Zone 2 gas environments, enabling safe deployment in refineries, offshore platforms, and chemical processing facilities where flammable vapor concentrations may occur during abnormal conditions. Intrinsically safe mechanical design eliminates ignition sources.

✓ Mechanical-Hydraulic Reliability Architecture
Zero electronic components mean immunity to electromagnetic interference, voltage transients, and digital system failures. Purely mechanical feedback loops and hydraulic actuation deliver inherent fail-safe behavior—if oil pressure drops, the governor defaults to turbine shutdown, preventing runaway overspeed scenarios.

→ Adjustable Droop Control (0-6% Range)
Field-configurable speed droop enables flexible operation modes: set to 0% for isochronous single-turbine applications requiring constant speed regardless of load, or configure 3-6% droop for parallel operation where multiple turbines proportionally share electrical or mechanical loads based on their capacity ratings.

✓ API 611 Compliance for Critical Services
Engineered to meet American Petroleum Institute Standard 611 requirements for general-purpose steam turbines in petroleum, chemical, and gas industry services. Ensures compatibility with industry-standard turbine designs, actuator interfaces, and performance expectations for continuous-duty applications.

→ Wide Speed Range Adaptability (3000-8000 RPM)
Adjustable speed reference accommodates diverse turbine configurations from low-speed pump drivers (3000-4500 RPM) to high-speed compressor and generator applications (6000-8000 RPM). Single governor model covers multiple equipment types, reducing spare parts inventory complexity.

✓ Compact Retrofit-Friendly Design
At just 12.7 kg with standardized mounting dimensions, the D8516-051 directly replaces legacy TG-13 governors on existing turbine installations without structural modifications. Backward-compatible linkage geometry and hydraulic connections minimize downtime during upgrade projects, typically completing installation within a single maintenance outage window.

Industrial Application Scenarios

Refinery Process Unit Steam Turbines
In crude distillation, fluid catalytic cracking (FCC), and hydroprocessing units, steam turbines drive critical pumps and compressors that cannot tolerate speed variations exceeding ±2%. The D8516-051 maintains setpoint accuracy within ±0.5% during feed rate changes, product transitions, and steam header pressure fluctuations—preventing process upsets that could trigger unit shutdowns costing $500K+ per day in lost production.

Emergency Generator Black-Start Systems
Power generation facilities and industrial complexes rely on steam turbine-driven emergency generators for grid-independent startup capability. The TG-13 governor ensures rapid frequency stabilization during black-start sequences, bringing generators from zero to rated 50/60 Hz output within 30 seconds while maintaining voltage stability for critical auxiliary loads like control systems, fire pumps, and emergency lighting.

Petrochemical Compressor Trains
Ethylene plants, ammonia synthesis facilities, and LNG liquefaction units employ multi-stage centrifugal compressors driven by steam turbines operating at 8000+ RPM. Precise speed control prevents compressor surge conditions that damage impellers and seals. The D8516-051's droop control enables load-sharing across parallel compressor trains, optimizing energy efficiency while maintaining process pressure requirements.

Cogeneration & Combined Heat-Power (CHP) Plants
Industrial cogeneration systems simultaneously produce electricity and process steam, requiring turbine-generators to synchronize with utility grids or operate in island mode. Adjustable droop settings allow seamless transition between grid-parallel operation (4-5% droop for load sharing) and standalone mode (0% droop for frequency regulation), maximizing operational flexibility and revenue from power sales.

Offshore Platform Utility Systems
Oil and gas production platforms in harsh marine environments demand explosion-proof equipment with minimal maintenance requirements. The D8516-051's ATEX certification, corrosion-resistant construction, and mechanical simplicity make it ideal for driving seawater injection pumps, gas compression, and emergency power generation in Zone 2 classified areas where electronic governors would require costly explosion-proof enclosures.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the D8516-051 when your application requires mechanical reliability over electronic sophistication, operates in hazardous classified areas, or involves retrofit replacement of existing TG-13 governors. For applications demanding remote monitoring, digital communication protocols, or advanced control algorithms, consider Woodward's electronic governor alternatives such as the 505E or ProTech-GII series. Consult factory application engineers when turbine speed exceeds 8000 RPM, hydraulic supply pressure falls outside 150-300 PSI range, or ambient temperatures approach specification limits.

Advanced Integration & Customization Options

Overspeed Protection Integration: The D8516-051 interfaces with independent overspeed trip systems (mechanical or electronic) via auxiliary linkages that monitor governor output position. When configured with Woodward ProTech or similar overspeed detection devices, the system provides redundant protection layers—the governor maintains normal speed control while the trip system executes emergency shutdown if speed exceeds 110% of rated value.

Remote Speed Adjustment Capability: Optional pneumatic or hydraulic speed-setting actuators can be field-installed to enable control room adjustment of turbine speed setpoint without manual intervention at the governor. This configuration suits applications requiring frequent speed changes for process optimization or load following, while maintaining the mechanical governor's inherent reliability for primary speed control.

Load Limiter & Extraction Pressure Control: For steam turbines with extraction ports supplying process steam, the TG-13 can integrate with external load limiters or extraction pressure controllers. These auxiliary devices modulate the governor's speed reference signal to maintain constant extraction pressure or limit turbine power output, protecting equipment from overload while optimizing steam utilization efficiency.

Parallel Operation Synchronization: Multi-turbine installations benefit from factory-matched droop calibration services, where multiple D8516-051 governors are precision-adjusted to identical droop characteristics (typically ±0.1% tolerance). This ensures proportional load sharing accuracy within 2-3% of ideal distribution, preventing one turbine from carrying disproportionate load that could lead to premature wear or reduced efficiency.

Delivery, Warranty & Technical Support

Standard Lead Time: 4-6 weeks for new units from authorized distribution stock; 8-12 weeks for factory-direct orders requiring custom calibration or special certifications. Expedited 2-week delivery available for critical outage support at premium pricing. All units ship with factory calibration certificates, installation manuals, and spare parts recommendations.

Warranty Coverage: Comprehensive 12-month warranty from installation date (maximum 18 months from shipment) covers manufacturing defects, material failures, and calibration drift exceeding ±1% of setpoint. Warranty includes replacement parts, technical support for troubleshooting, and field service assistance if required. Extended warranty programs available for up to 36 months with annual inspection requirements.

Technical Documentation Package: Each governor ships with complete installation drawings (mounting dimensions, piping schematics, linkage geometry), commissioning procedures (speed calibration, droop adjustment, stability tuning), maintenance schedules (inspection intervals, wear part replacement criteria), and troubleshooting guides (common failure modes, diagnostic procedures). Digital documentation portal provides access to updated manuals, service bulletins, and application notes.

Application Engineering Support: Pre-sales consultation services include turbine-governor compatibility verification, actuator sizing calculations, hydraulic system adequacy assessment, and control stability analysis. Post-installation support covers commissioning assistance (on-site or remote), performance optimization (droop tuning, response adjustment), and troubleshooting guidance (vibration issues, hunting behavior, inadequate speed regulation).

Frequently Asked Questions

What hydraulic oil viscosity range does the D8516-051 TG-13 governor require for optimal performance?
The governor operates effectively with ISO VG 32 to VG 68 turbine oils at operating temperature (40-60°C typical). Viscosity outside this range may affect response time and control stability—thicker oils (VG 100+) slow response, while thinner oils (VG 22) can cause hunting oscillations. Most turbine lubrication systems using ISO VG 46 or VG 68 oils provide ideal governor performance without modification.

Can the D8516-051 control turbines with variable extraction steam demands?
Yes, but with limitations. The basic TG-13 governor maintains constant speed regardless of extraction flow variations, which may cause admission steam flow and power output to fluctuate. For applications requiring constant power output or extraction pressure control, integrate the governor with external load limiters or extraction pressure controllers that modulate the speed reference signal to compensate for extraction variations.

How does mechanical-hydraulic droop control compare to electronic isochronous governors for load-sharing accuracy?
Mechanical droop governors typically achieve load-sharing accuracy within 5-10% of ideal distribution due to manufacturing tolerances and linkage friction, whereas electronic isochronous governors with load-sharing algorithms can achieve 1-2% accuracy. However, droop control provides inherent stability without tuning complexity and eliminates single-point electronic failures—making it preferred for critical applications where reliability outweighs precision load distribution.

What maintenance intervals does Woodward recommend for the TG-13 governor in continuous-duty applications?
Quarterly inspections should verify linkage freedom of movement, check for oil leaks at seals and fittings, and confirm hydraulic supply pressure stability. Annual maintenance includes disassembly for wear inspection of pilot valve components, speeder spring condition assessment, and recalibration verification (speed setpoint and droop accuracy). Overhaul intervals of 3-5 years involve complete component replacement of wear parts including seals, bearings, and springs.

Is the D8516-051 compatible with synthetic turbine oils or fire-resistant hydraulic fluids?
The governor is compatible with petroleum-based turbine oils (ISO VG 32-68) and most synthetic hydrocarbon fluids (PAO-based synthetics). Fire-resistant fluids require case-by-case evaluation—phosphate ester fluids (Type IV) typically require seal material upgrades, while water-glycol fluids (Type V) are generally incompatible due to corrosion and lubricity concerns. Consult factory application engineering before using non-petroleum fluids.

Can the TG-13 governor prevent turbine overspeed during sudden load rejection events?
The D8516-051 provides primary speed control that responds to load rejection by closing the steam admission valve, typically limiting overspeed to 105-108% of rated speed depending on turbine inertia and steam system dynamics. However, API 611 standards require independent overspeed trip protection (mechanical or electronic) that shuts down the turbine if speed exceeds 110%. The governor and trip system work together—the governor handles normal control, while the trip provides emergency backup protection.
