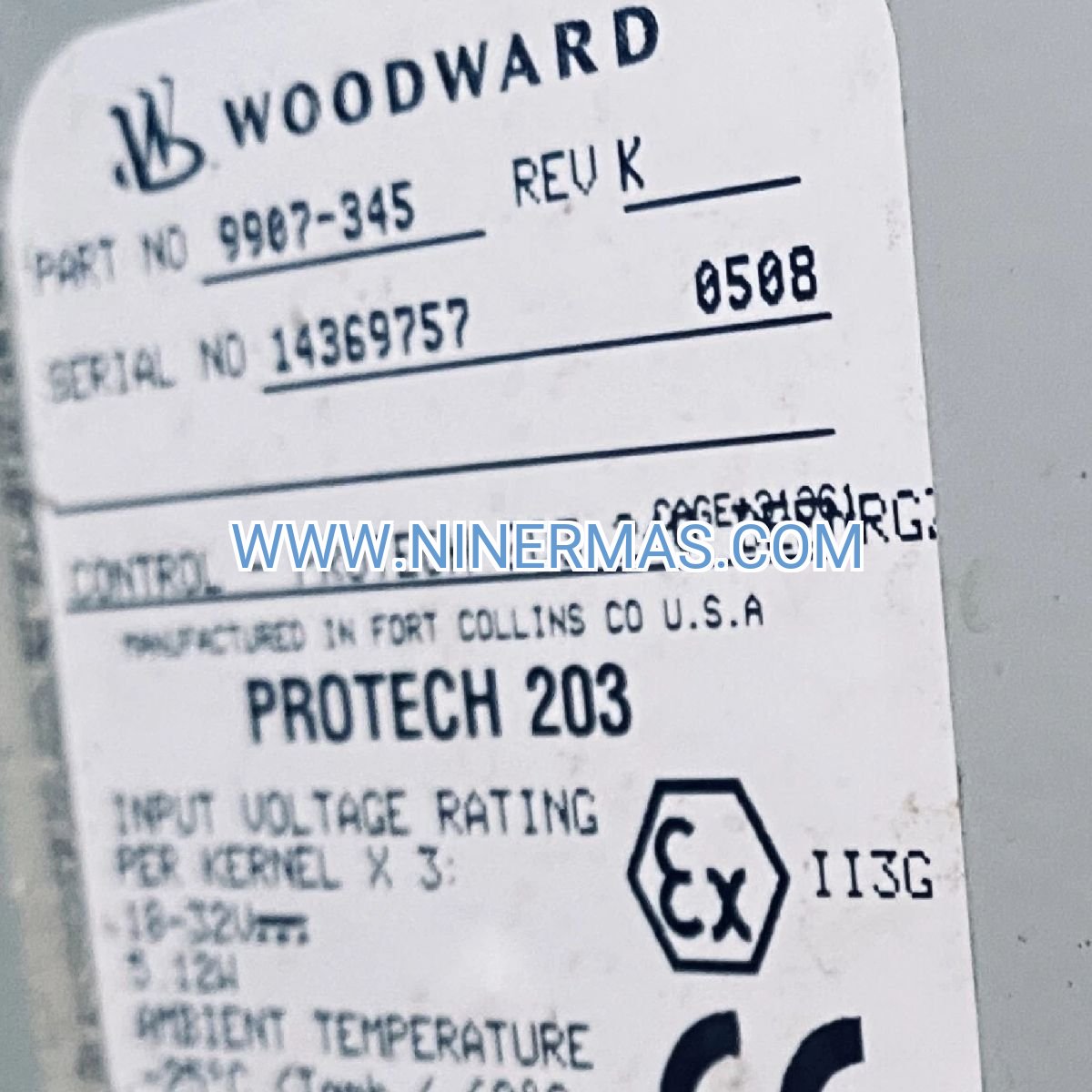

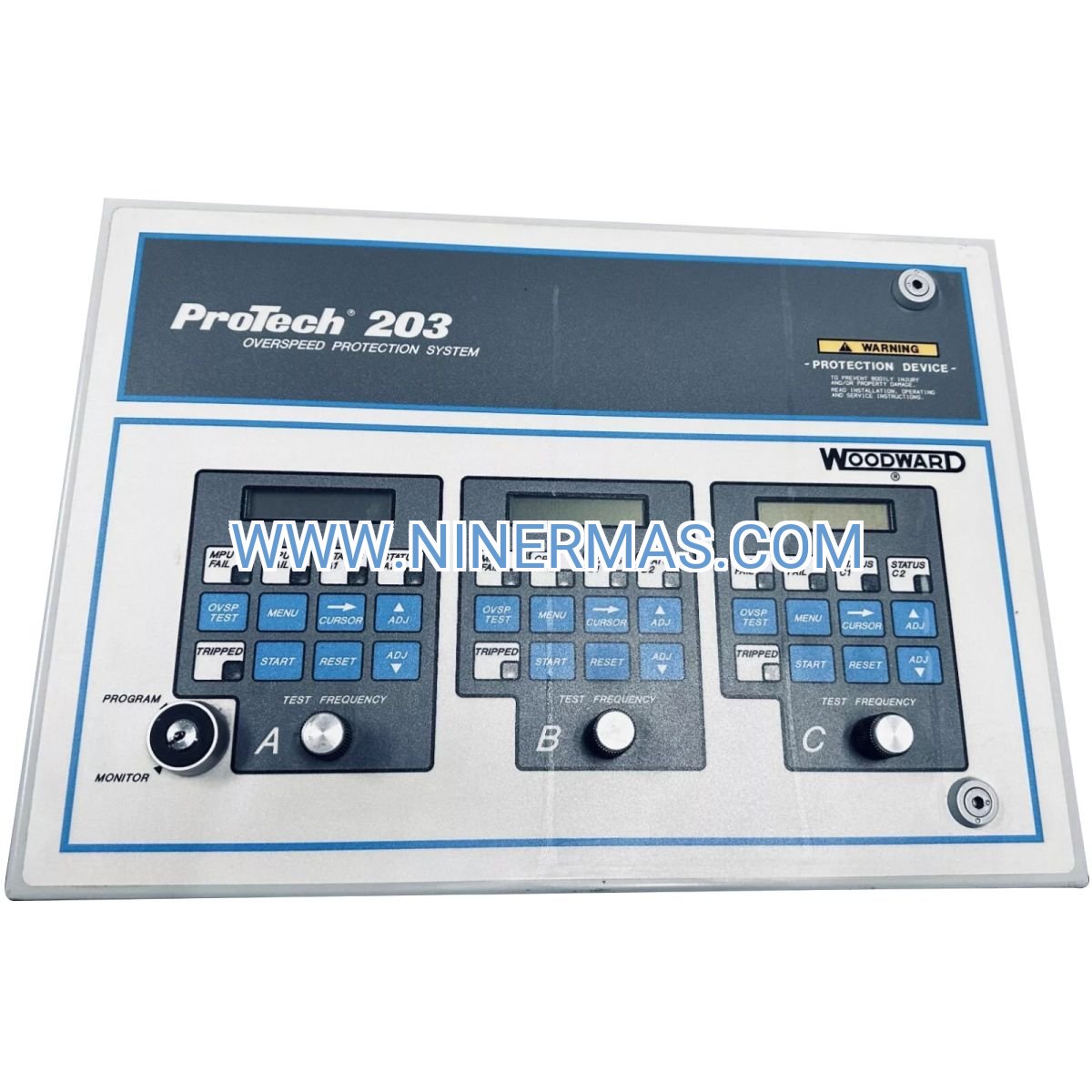

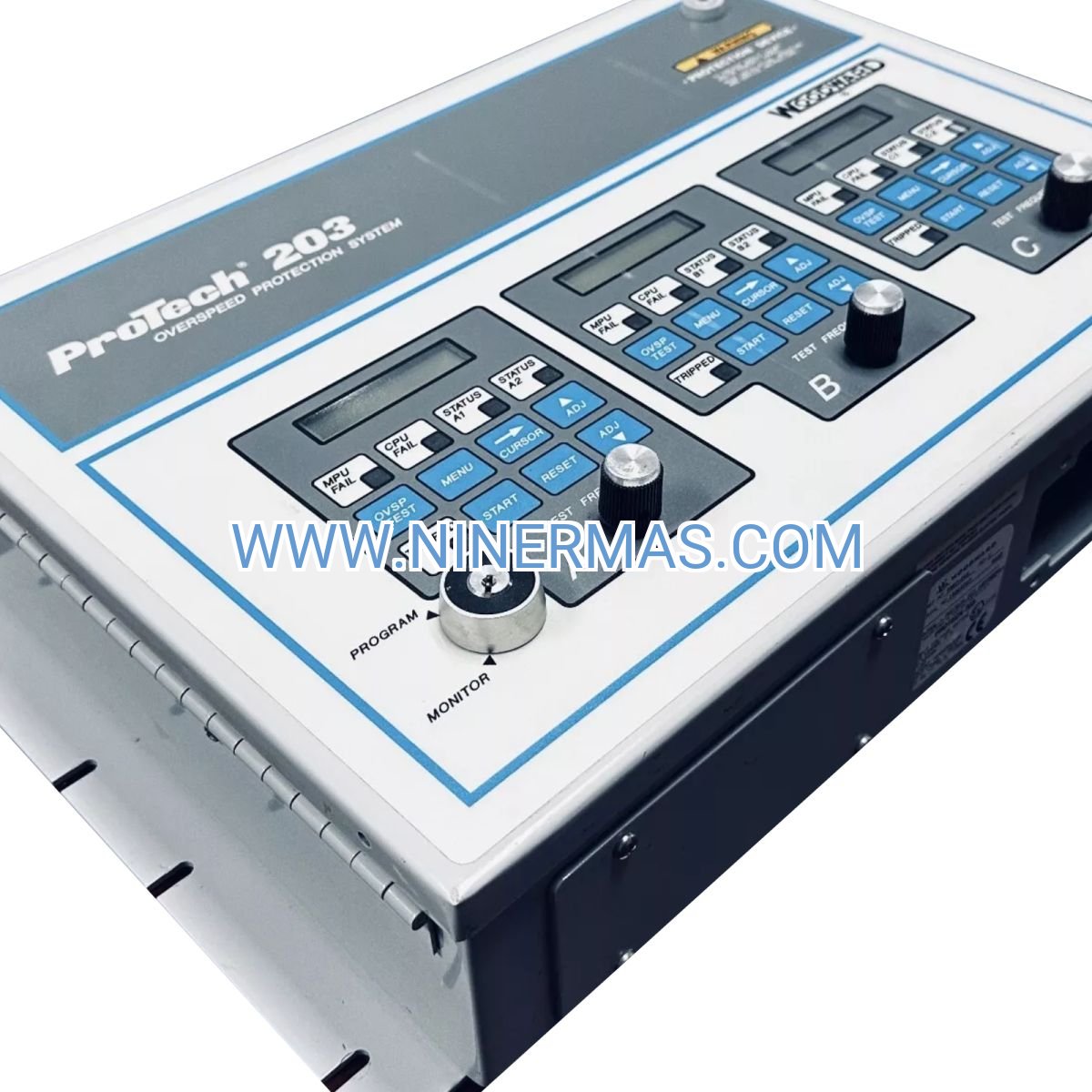

Woodward 9907-345 ProTech 203 (Industrial-Grade Overspeed Detection System)

The Woodward 9907-345 delivers mission-critical overspeed detection for rotating machinery in power generation, marine propulsion, and oil & gas facilities. Built on triple-modular redundant architecture, this ProTech 203 system prevents catastrophic equipment failures through intelligent 2-out-of-3 voting logic—ensuring your turbines, compressors, and engines never exceed safe operational speeds. When milliseconds matter, the 9907-345 provides the fail-safe protection that keeps personnel safe and production running.

Designed for environments where downtime equals revenue loss, this system combines hot-swappable modules with continuous self-diagnostics to maintain 24/7 protection coverage. Whether you're safeguarding a 50 MW gas turbine or a critical marine propulsion engine, the 9907-345 stands as your last line of defense against overspeed-induced mechanical destruction.

Engineering Advantages & Business Value

→ Triple-Layer Redundancy Eliminates Single Points of Failure
Three independent speed-sensing modules (A, B, C) operate simultaneously with 2-out-of-3 voting logic. If any single module fails, the system continues protecting your machinery while alerting maintenance teams—no emergency shutdowns, no production interruptions.

✓ De-Energize-to-Trip Architecture Guarantees Safe Shutdown
Power loss or system fault automatically triggers protective relay action. This fail-safe philosophy meets the highest safety standards for hazardous area installations (Class 1 Div. 2 certified), ensuring machinery protection even during electrical emergencies.

✓ Hot-Swappable Modules Reduce Maintenance Downtime by 85%
Replace faulty modules during operation without disabling the protection system. Maintenance windows shrink from hours to minutes, keeping critical assets online and revenue-generating equipment in service.

✓ Universal MPU Compatibility Simplifies Retrofits
Accepts standard magnetic pickup signals (1–60 Vrms, 100 Hz–32 kHz) from virtually any manufacturer. Upgrade legacy overspeed systems without replacing existing sensors or rewiring control panels—reducing project costs by 40–60%.

✓ Built-In Diagnostics Predict Failures Before They Occur
Continuous self-testing monitors MPU health, CPU integrity, and relay functionality. LCD displays show real-time error codes, enabling predictive maintenance strategies that prevent unplanned outages.

✓ Remote Reset Capability Accelerates Post-Trip Recovery
Operators can clear trip conditions from the control room, eliminating the need for field personnel to physically access the protection panel. Average restart time drops from 15 minutes to under 2 minutes.

Typical Application Scenarios

Power Generation – Steam & Gas Turbine Protection
Challenge: Utility-scale turbines operating at 3,600 rpm face catastrophic blade failure if overspeed events exceed 110% rated speed.
Solution: The 9907-345 monitors turbine speed via three independent MPUs mounted on the shaft coupling. When 2 of 3 modules detect overspeed, emergency trip valves close within 8 milliseconds, preventing $2M+ turbine damage.
Value: Insurance-compliant safety system reduces annual risk exposure by $5–10M per turbine.

Marine Propulsion – Main Engine Overspeed Safeguarding
Challenge: Vessel main engines must comply with classification society rules (ABS, DNV, Lloyd's) requiring independent overspeed protection separate from the governor system.
Solution: ProTech 203 provides the required independent safety layer, monitoring engine speed from flywheel gear teeth. De-energize-to-trip design meets SOLAS safety regulations for passenger and cargo vessels.
Value: Achieves class certification while protecting $8–15M propulsion investments from runaway engine events.

Oil & Gas – Compressor Station Safety Systems
Challenge: Pipeline compressor stations operate unmanned in remote locations where overspeed events can trigger fires or explosions in hazardous atmospheres.
Solution: NEMA 4/4X enclosure withstands harsh outdoor environments while Class 1 Div. 2 certification permits installation in Zone 2 hazardous areas. Triple redundancy ensures protection even if lightning strikes damage one module.
Value: Prevents catastrophic failures that could result in $20M+ environmental cleanup costs and regulatory penalties.

Industrial Manufacturing – Critical Process Machinery
Challenge: Chemical plants and refineries require SIL-rated safety systems for turbine-driven pumps and compressors handling flammable or toxic materials.
Solution: The 9907-345's triple-modular redundant design supports SIL 2 safety integrity level requirements when properly configured and maintained per IEC 61508 standards.
Value: Meets process safety management (PSM) regulations while reducing insurance premiums by 15–25%.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 9907-345 when you need:

• SIL 2-capable overspeed protection for safety-instrumented systems
• Hazardous area certification (Class 1 Div. 2 or ATEX Zone 2)
• Hot-swappable modules for high-availability applications
• Compatibility with existing magnetic pickup infrastructure
• De-energize-to-trip fail-safe operation per API 670 standards

Consider alternative models if:

• You require SIL 3 certification → Evaluate Woodward ProTech GII systems
• You need proximity probe inputs → Consider 9907-838 variant
• Budget constraints exist → Assess single-channel 8444-series devices

Extended Functions

SCADA Integration via Modbus RTU
Optional communication modules enable real-time speed monitoring and alarm status reporting to distributed control systems (DCS) or supervisory control platforms. Integrate overspeed data into plant-wide condition monitoring dashboards for predictive analytics.

Configurable Alarm Thresholds
Program up to 3 independent speed setpoints per module: pre-alarm (95% overspeed), trip (110% overspeed), and emergency trip (115% overspeed). Multi-stage alarming provides operators with early warning before critical shutdowns occur.

Event Data Logging
Internal memory stores the last 50 overspeed events with timestamps, peak speed values, and module status. Download logs via front-panel interface for root cause analysis and regulatory compliance documentation.

Custom Enclosure Options
Factory-configured NEMA 7 explosion-proof housings available for Class 1 Division 1 installations. Stainless steel 316L enclosures withstand corrosive offshore and chemical processing environments.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3–5 business days. Custom-configured systems (special enclosures, extended temperature ratings, or ATEX certification) require 4–6 weeks for factory programming and testing.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Extended 36-month warranty packages available for critical applications requiring maximum uptime assurance.

Technical Support: Unlimited phone and email support from Woodward-certified application engineers. Assistance includes system configuration, MPU selection, wiring diagrams, and troubleshooting guidance. Average response time: <4 hours during business hours.

Documentation Package: Every system includes installation manual (P/N 82510), quick-start guide, calibration certificates for all three modules, and AutoCAD panel cutout drawings. Modbus register maps and DCS integration examples provided upon request.

Frequently Asked Questions

How does the 2-out-of-3 voting logic prevent nuisance trips?
The system requires at least two modules to agree on an overspeed condition before initiating a trip. This eliminates false alarms caused by single-sensor failures, electrical noise, or transient signal glitches—reducing nuisance trips by 95% compared to single-channel systems.

Can I retrofit the 9907-345 into existing control panels designed for older overspeed devices?
Yes. The 19-inch rack-mount form factor matches industry-standard panel cutouts. Terminal block layouts are compatible with legacy Woodward 8200-series and 8400-series wiring, minimizing retrofit labor. Typical installation time: 4–6 hours including calibration.

What maintenance intervals are recommended for optimal reliability?
Perform functional testing every 6 months by simulating overspeed conditions via the test input terminals. Inspect MPU air gaps annually and verify relay contact resistance every 12 months. Module replacement is typically required after 10–15 years of continuous operation.

Does the system meet API 670 vibration monitoring standards?
While the 9907-345 is primarily an overspeed protection device, it complies with API 670 requirements for machinery protection systems when configured with appropriate MPU sensors. For comprehensive vibration monitoring, pair with Woodward MicroNet TMR systems.

What happens during power supply fluctuations or brownout conditions?
The system operates reliably across 24 VDC ±10% (21.6–26.4 VDC). If voltage drops below 21 VDC, the de-energize-to-trip design automatically initiates a safe shutdown, preventing unprotected operation. Built-in capacitors provide 50 ms ride-through for transient voltage dips.

Can the 9907-345 monitor variable-speed drives or turbines with frequent speed changes?
Absolutely. Programmable speed ranges and adjustable MPU fail timeouts accommodate variable-speed applications from 100 rpm to 25,000 rpm. The system tracks speed changes in real-time without requiring manual setpoint adjustments during normal operation.

Secure Your Critical Assets Today

Don't wait for an overspeed event to expose vulnerabilities in your machinery protection strategy. The Woodward 9907-345 ProTech 203 delivers proven triple-redundant safety technology trusted by Fortune 500 energy companies, major shipbuilders, and global petrochemical operators.

Request a quote now or contact our application engineers to discuss your specific overspeed protection requirements. We'll help you configure the optimal system for your turbines, compressors, or engines—ensuring compliance with safety standards while maximizing equipment uptime.
