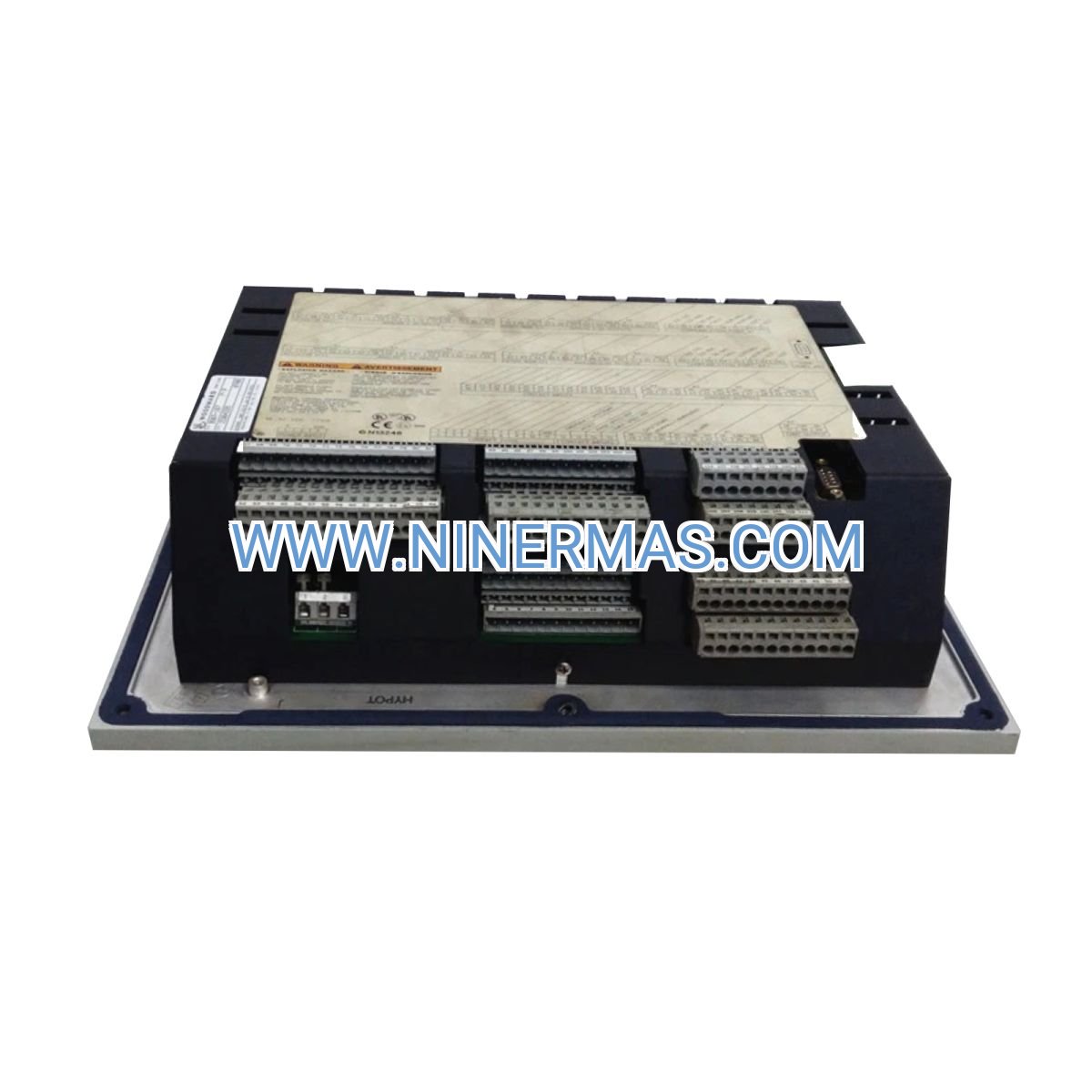

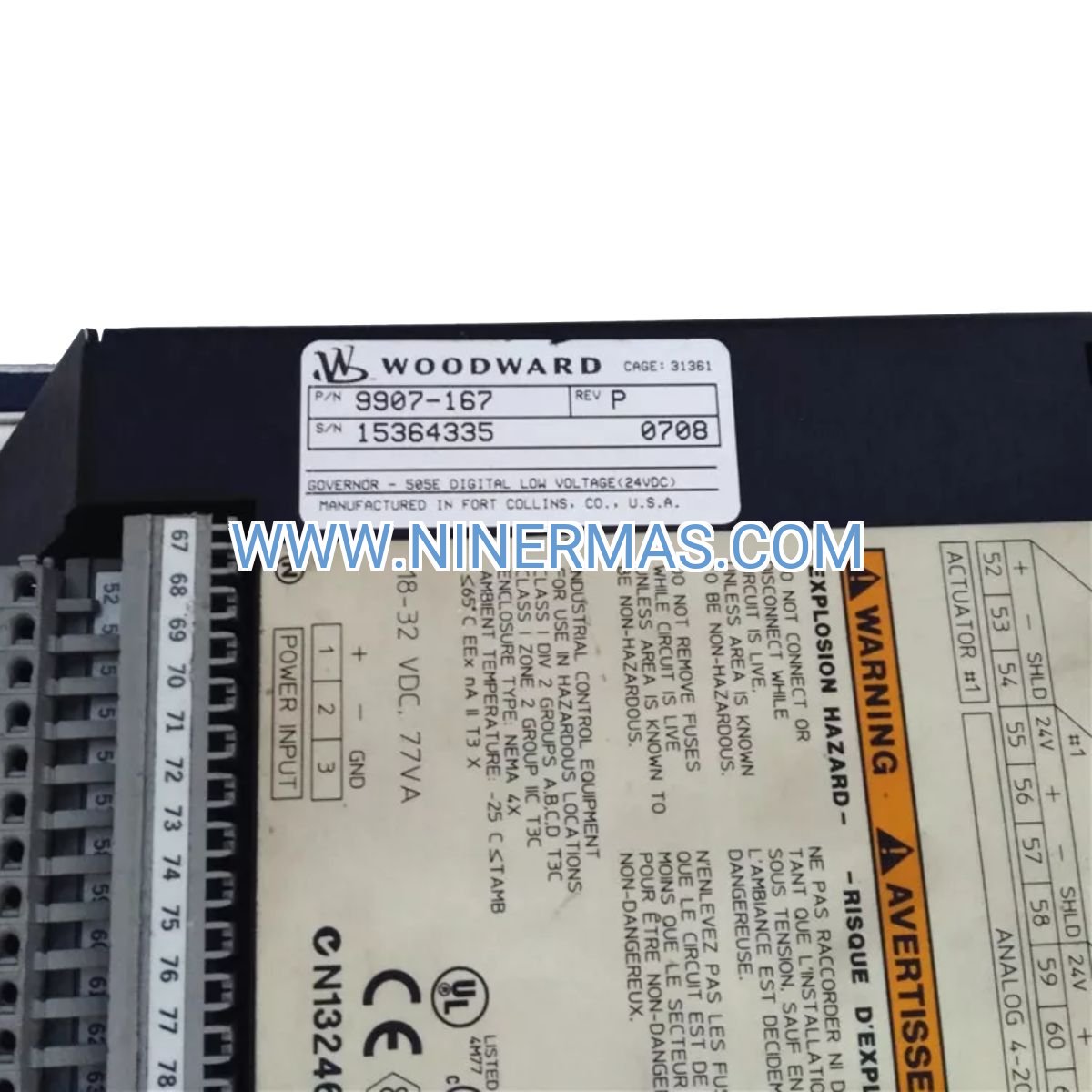

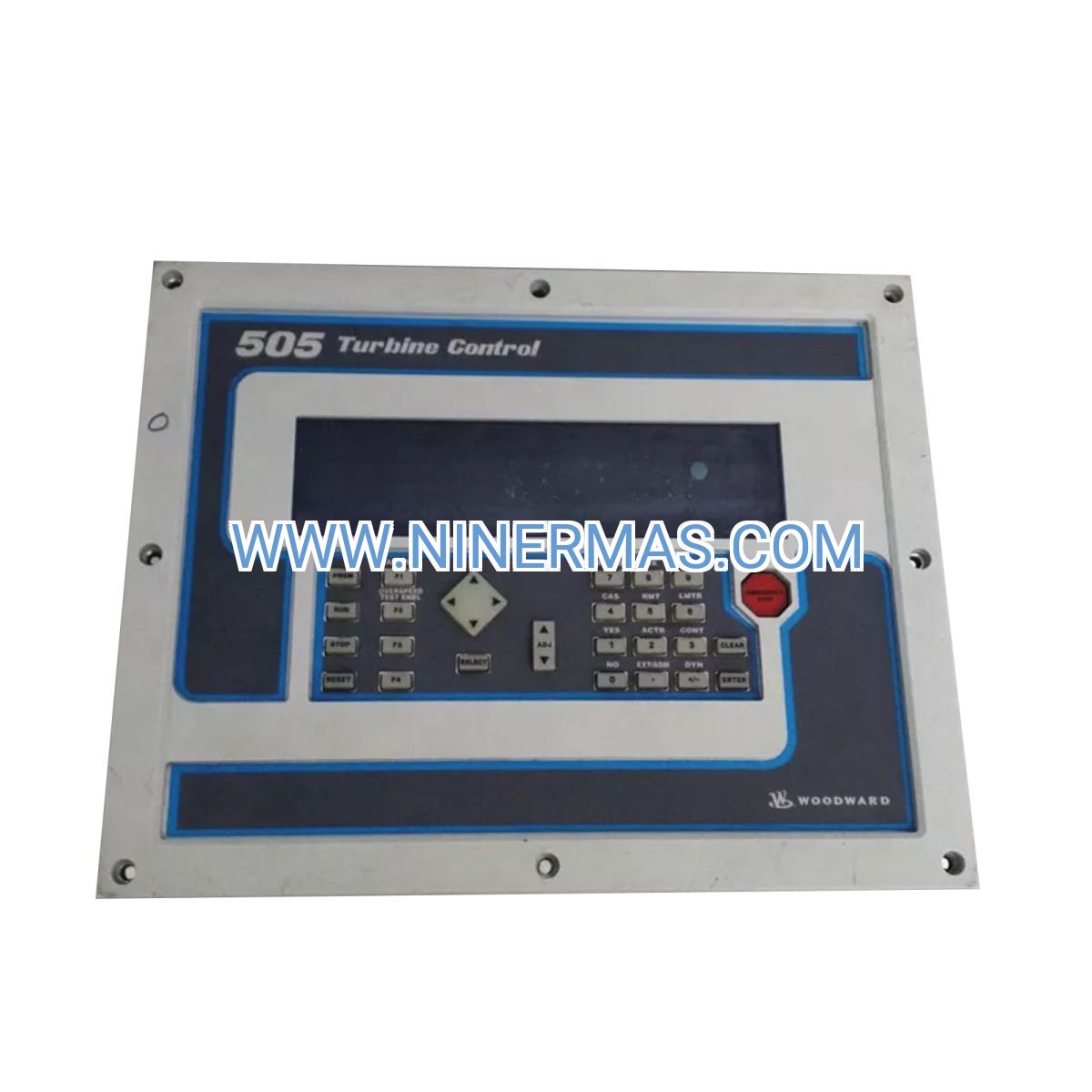

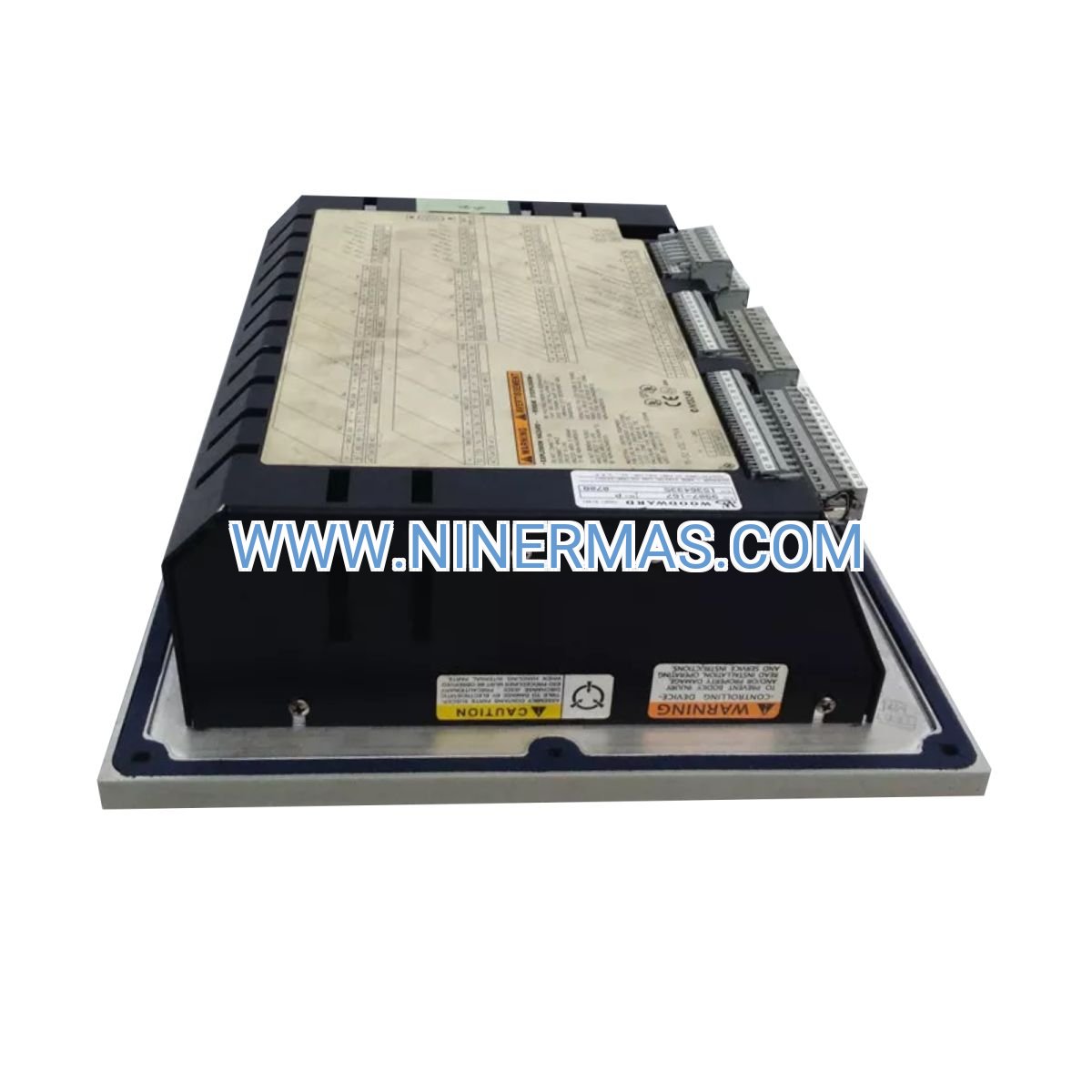

Woodward 9907-167 Digital Governor (Industrial-Grade Extraction Control)

The Woodward 9907-167 represents the second-generation evolution of the proven 505E Digital Governor platform, purpose-built for single extraction steam turbine installations demanding simultaneous speed regulation and extraction pressure management. Powered by 24 VDC supply, this microprocessor-driven control module combines adaptive PID algorithms with real-time diagnostic capabilities to deliver stable operation across dynamic load profiles while minimizing energy waste and mechanical stress.

Designed for process industries where both shaft power and process steam extraction are mission-critical, the 9907-167 addresses the challenge of maintaining precise extraction pressure setpoints during load swings without sacrificing speed stability. Target users include plant engineers in cogeneration facilities, paper mills, chemical processors, and district heating operators who require coordinated valve control with minimal manual intervention.

Key advantages include multi-loop architecture for independent admission and extraction valve positioning, built-in fault detection reducing unplanned shutdowns by up to 40%, and seamless integration with existing SCADA infrastructure via Modbus RTU protocol. The ruggedized design withstands harsh industrial environments (-40°C to +70°C) while maintaining ±0.25% speed regulation accuracy.

Core Features & Benefits

✓ Dual-Loop PID Control Architecture
Independent control channels for turbine speed and extraction pressure enable coordinated valve management without cross-interference, ensuring stable process steam delivery even during rapid load changes.

✓ Adaptive Tuning Algorithms
Self-optimizing PID parameters automatically adjust to changing turbine dynamics, reducing commissioning time by 60% compared to manual tuning methods and maintaining optimal performance over equipment lifecycle.

✓ Real-Time Diagnostics & Fault Logging
Continuous monitoring of sensor inputs, actuator positions, and control loop health with timestamped alarm history enables predictive maintenance and reduces mean time to repair (MTTR) by 35%.

✓ Industrial Communication Interfaces
RS-232/RS-485 serial ports with Modbus RTU support allow direct integration to plant DCS, enabling remote setpoint adjustment, parameter monitoring, and alarm notification without dedicated proprietary software.

✓ Redundancy-Ready Configuration
Supports hot-standby redundant governor setups for critical applications requiring 99.9%+ availability, with automatic failover and bumpless transfer during primary unit faults.

→ Wide Operating Temperature Range
IP20-rated enclosure qualified for -40°C to +70°C ambient conditions ensures reliable operation in uncontrolled industrial environments including outdoor installations and high-temperature process areas.

Application Scenarios

Cogeneration Power Plants
In combined heat and power (CHP) facilities, the 9907-167 manages turbine speed for grid synchronization while regulating extraction steam pressure for district heating networks. Solves the challenge of balancing electrical generation with thermal load demands during seasonal variations, delivering 15-20% fuel efficiency gains versus separate generation.

Pulp & Paper Manufacturing
Paper mills utilize extraction steam for drying cylinders and digester heating. The governor maintains consistent process steam pressure (±2 psi) despite fluctuating paper machine loads, preventing quality defects from temperature variations and reducing steam venting waste by 25%.

Chemical Processing Facilities
Refineries and petrochemical plants require precise extraction pressure control for reactor heating, distillation columns, and heat exchangers. The 9907-167 ensures stable process conditions during feed rate changes, improving product yield consistency and reducing off-spec batches.

Industrial Steam Distribution Networks
Multi-tenant industrial parks with centralized steam generation benefit from extraction pressure regulation to maintain header pressure for diverse tenant loads. Prevents pressure excursions that trigger safety relief valves, cutting steam losses by 18% annually.

Biomass & Waste-to-Energy Plants
Renewable energy facilities with variable fuel quality rely on adaptive control to compensate for steam condition fluctuations. The governor's auto-tuning capability maintains stable operation despite ±15% variations in fuel heating value, maximizing uptime.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9907-167 when your application requires simultaneous speed and extraction pressure control on single-extraction turbines rated 100 kW to 25 MW. For non-extraction or dual-extraction configurations, consult alternative 505E variants. Verify actuator compatibility (4-20 mA or 0-10 VDC input required). For hazardous area installations, specify explosion-proof enclosure options.

Extended Functions

IoT Integration Capability: Optional Ethernet/IP or PROFINET modules enable direct connection to Industry 4.0 platforms for cloud-based analytics, remote diagnostics, and predictive maintenance algorithms. OPC UA server functionality supports seamless data exchange with MES and ERP systems.

Advanced Load Sharing: Multi-governor synchronization allows parallel operation of multiple turbines with automatic load distribution based on efficiency curves, optimizing fuel consumption across the turbine fleet.

Customization Options: Field-configurable I/O expansion supports additional analog inputs for feedwater flow, condenser vacuum, or bearing temperature monitoring. Custom control logic programming available for specialized process interlocks.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units with express shipping to major industrial regions. Custom-configured units ship within 10-15 business days after order confirmation.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty plans available for critical applications requiring 3-year coverage.

Technical Support: 24/7 global hotline staffed by certified turbine control specialists. Remote commissioning assistance via secure VPN connection. On-site startup services available in 45+ countries.

Documentation Package: Each unit includes installation manual, wiring diagrams, Modbus register map, PID tuning guide, and troubleshooting flowcharts. CAD drawings and 3D STEP files provided upon request for panel design integration.

Frequently Asked Questions

How does the extraction pressure control respond to sudden load drops?
The dual-loop architecture independently manages admission and extraction valves. During load rejection, the speed loop rapidly closes the admission valve while the extraction loop modulates the extraction valve to maintain process steam pressure within ±3% of setpoint, preventing pressure spikes that could trip downstream equipment.

What actuator stroke time is recommended for optimal performance?
For turbines below 5 MW, 8-12 second full-stroke actuators provide adequate response. Larger units (5-25 MW) benefit from 15-20 second actuators to prevent valve hunting. The governor's adaptive tuning automatically compensates for actuator dynamics during commissioning.

Can this governor achieve 30% fuel savings compared to mechanical governors?
Typical installations realize 12-18% efficiency improvements through precise speed regulation (eliminating droop-induced speed variations), optimized extraction pressure control (reducing steam venting), and load-following capability (avoiding part-load inefficiencies). Actual savings depend on baseline system efficiency and operating profile.

What installation clearances are required for proper cooling?
Maintain 100 mm (4 inches) clearance on all sides for natural convection cooling. Panel ambient temperature must not exceed +55°C. For high-temperature environments, specify forced-air cooling kit or remote-mount configuration with extended I/O cables.

Does the system support remote parameter changes without site visits?
Yes, via Modbus RTU interface connected to plant SCADA or dedicated configuration software. All PID gains, setpoints, alarm limits, and control modes are remotely adjustable. Password protection prevents unauthorized changes. Firmware updates require local USB connection for security.

How quickly can replacement units be deployed during failures?
Pre-configured spare units can be swapped in 2-4 hours with minimal re-tuning required. Configuration files are stored on removable SD card for rapid parameter transfer. Emergency replacement units ship within 24 hours to minimize downtime costs.

Take the Next Step

Ready to upgrade your steam turbine control system? Contact our application engineers for a free compatibility assessment and ROI analysis tailored to your facility. Request a detailed datasheet, CAD models, or schedule a live demonstration of the 9907-167's advanced control capabilities.

Get a Quote: Email your turbine specifications to sale@ninermas.com or call +0086 187 5021 5667 to speak with a turbine control specialist today.
