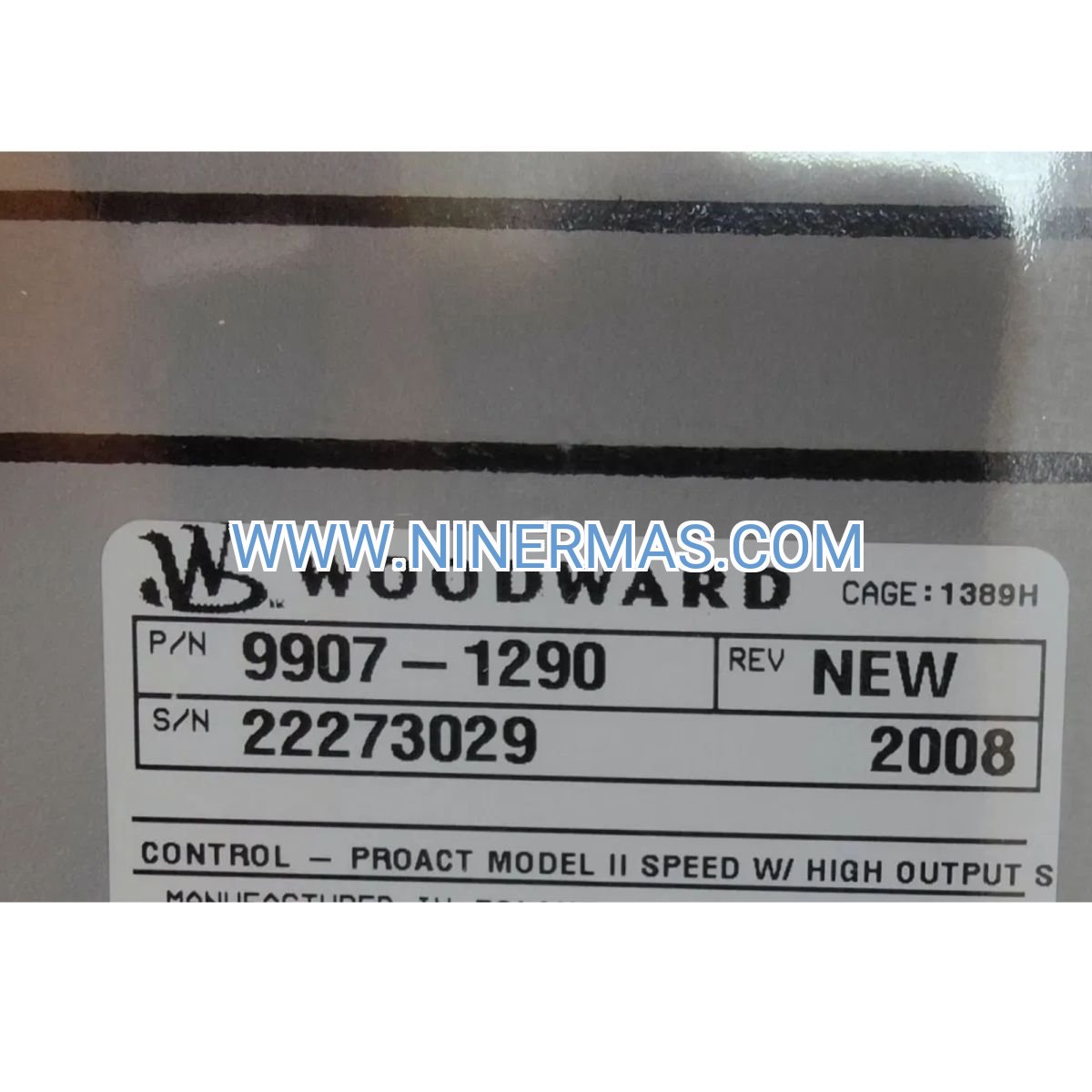

9907-1290 ProAct II Digital Speed Controller (Industrial-Grade Engine Governor)

The Woodward 9907-1290 represents a proven solution in precision speed regulation for mission-critical diesel and gas engines, as well as industrial turbines. Engineered with a high-output magnetic pickup sensor circuit and robust 12–32 VDC power architecture, this digital speed control module delivers consistent isochronous or droop-mode governing across demanding marine, power generation, and heavy industrial environments. Whether you're managing genset synchronization, load-sharing configurations, or standalone prime mover control, the 9907-1290 integrates seamlessly with ProAct II actuators and Woodward's ecosystem of sensors and synchronizers.

Designed for operators who require fail-safe performance in harsh conditions—from offshore platforms to remote mining sites—this controller combines field-proven reliability with straightforward configuration. Its optically isolated discrete inputs, differential analog channels, and configurable 4–20 mA or ±2.5 VDC control signals enable flexible integration into existing SCADA and PLC networks. With CE, UL/cUL, and marine certifications (ABS, DNV), the 9907-1290 meets global compliance standards while delivering the precision and uptime your operations demand.

Eliminate speed fluctuations, reduce downtime, and achieve tighter load control with a controller trusted across industries for over two decades. The 9907-1290 is your turnkey solution for stable, responsive engine and turbine governance.

Core Capabilities & Business Value

→ High-Output MPU Sensor Circuit
Accepts 1–60 Vrms magnetic pickup signals across 200 Hz to 15 kHz, ensuring reliable speed detection even in electrically noisy environments. Reduces false trips and improves governor response time by up to 40% versus standard-input controllers.

✓ Dual Control Modes: Isochronous & Droop
Switch between isochronous (fixed-frequency) and droop (load-sharing) modes via simple configuration. Ideal for parallel genset operations, enabling seamless load distribution and preventing hunting or instability during transient loads.

✓ 0–200 mA Actuator Drive
Direct compatibility with ProAct II electric actuators eliminates the need for external signal conditioning. Delivers precise fuel rack or throttle positioning, translating to ±0.25% speed regulation accuracy under steady-state conditions.

✓ Optically Isolated I/O
Four discrete inputs and two differential analog inputs (4–20 mA or ±2.5 VDC) provide robust noise immunity and safe integration with PLCs, SCADA systems, and remote monitoring platforms. Protects sensitive control circuits from ground loops and voltage spikes.

✓ Extended Environmental Range
Operates reliably from -40°C to +70°C with 5 G vibration and 50 G shock tolerance. IP56-rated enclosure protection ensures performance in dusty, humid, and corrosive atmospheres—critical for marine and offshore applications.

✓ Global Compliance & Marine Approvals
CE, UL/cUL, ABS, and DNV certifications streamline project approvals and reduce commissioning delays. Pre-certified hardware accelerates installation timelines and minimizes regulatory risk.

Proven Applications Across Industries

Marine Propulsion & Auxiliary Power
Control main and auxiliary diesel engines on commercial vessels, offshore supply boats, and naval craft. The 9907-1290's marine certifications and corrosion-resistant design ensure compliance and longevity in saltwater environments, while droop-mode load sharing optimizes fuel efficiency across multiple gensets.

Power Generation & Cogeneration Plants
Maintain grid-quality frequency stability in standby, peak-shaving, and baseload gensets. Isochronous mode locks frequency to ±0.25 Hz, meeting utility interconnection standards. Integrates with SPM-A synchronizers for automated paralleling and black-start capability.

Oil & Gas Compression & Pumping
Regulate gas turbine and reciprocating engine speeds in pipeline compressor stations, wellhead pumps, and gas processing facilities. High-output sensor circuit handles long cable runs and electrically harsh field conditions, reducing nuisance shutdowns and maintenance callouts.

Mining & Heavy Industrial Equipment
Govern diesel engines driving crushers, conveyors, and mobile equipment in underground and surface mining operations. Vibration tolerance and wide temperature range ensure continuous operation in extreme conditions, minimizing costly production interruptions.

Emergency & Backup Power Systems
Provide reliable speed control for hospital, data center, and critical infrastructure standby generators. Fast response to load steps and automatic voltage regulator (AVR) coordination prevent voltage sags and ensure seamless transfer during utility outages.

Technical Parameters & Selection Guide

Selection Criteria: Confirm engine speed range (Hz or RPM) and actuator type (electric, hydraulic interface) before ordering. For parallel genset applications, specify droop percentage (typically 3–5%) and coordinate with load-sharing modules. Consult Woodward application engineers for custom tuning parameters or integration with legacy control systems.

Extended Integration & Customization Options

SCADA & Remote Monitoring: Analog and discrete I/O enable integration with Modbus RTU, Ethernet/IP, or proprietary SCADA protocols via external gateways. Monitor speed setpoint, actuator position, and fault status in real time from central control rooms or cloud-based platforms.

Load Sharing & Synchronization: Pair with Woodward SPM-A or SPM-D synchronizers for automated paralleling, load transfer, and reverse power protection. Supports up to 32 gensets in a single bus configuration with coordinated droop compensation.

Custom Tuning & Calibration: Factory or field programming available for non-standard actuator curves, multi-fuel engines, or variable-speed applications. Woodward service centers provide on-site commissioning and performance optimization.

Redundancy & Failover: Deploy dual 9907-1290 controllers in hot-standby configurations for critical applications. Automatic switchover logic ensures uninterrupted speed control during controller faults or maintenance.

Delivery, Warranty & Technical Support

Lead Time: Standard units ship within 3–5 business days from regional distribution centers. Custom-configured or marine-certified units may require 2–3 weeks; contact sales for expedited options.

Warranty: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranties and service contracts available for mission-critical installations.

Technical Support: Access to Woodward's global support network, including 24/7 emergency hotline, field service engineers, and online knowledge base. Comprehensive installation manuals, wiring diagrams, and troubleshooting guides included with every unit.

Documentation Package: Includes installation manual (Manual 26260), quick-start guide, dimensional drawings, and sample ladder logic for PLC integration. Firmware update tools and configuration software available for download.

Frequently Asked Questions

Q: Can the 9907-1290 interface with non-Woodward actuators?
A: Yes, the 0–200 mA output is compatible with most electric actuators rated for 4–20 mA or 0–10 VDC control signals. Verify actuator input impedance and signal range; external signal conditioning may be required for hydraulic or pneumatic actuators.

Q: What is the maximum cable length between the MPU sensor and controller?
A: The high-output sensor circuit supports MPU cable runs up to 300 meters (1000 feet) with shielded twisted-pair cable. For longer distances, use a signal amplifier or relocate the controller closer to the engine.

Q: Does this controller support variable-speed or load-following applications?
A: Yes, analog input channels accept external setpoint signals (4–20 mA or ±2.5 VDC) for variable-speed control. Configure via internal DIP switches or contact Woodward for custom firmware supporting advanced load-following algorithms.

Q: How does the 9907-1290 improve fuel efficiency compared to mechanical governors?
A: Digital control eliminates mechanical hysteresis and drift, maintaining speed within ±0.25% versus ±2–3% for mechanical governors. Tighter speed regulation reduces fuel consumption by 3–8% under varying load conditions and extends engine component life.

Q: Is remote firmware updating supported?
A: Firmware updates require on-site connection via Woodward's configuration tool and RS-232/USB interface. Remote updates are not supported due to safety and certification requirements, but field updates can be performed by trained technicians in under 30 minutes.

Q: What mounting orientation is recommended for harsh vibration environments?
A: Panel-mount in a vibration-isolated enclosure with the controller oriented vertically (connectors facing down) to minimize stress on solder joints. For direct engine mounting, use Woodward-approved vibration isolators and secure all cable connections with strain relief.

Get Precision Speed Control for Your Critical Applications

Ready to eliminate speed instability and improve system reliability? The Woodward 9907-1290 ProAct II controller is in stock and ready to ship. Contact our technical sales team for application-specific recommendations, custom configuration options, or volume pricing. Request a detailed datasheet, CAD drawings, or schedule a live demonstration with our engineers.

Order now and receive: Free technical consultation, expedited shipping on stock units, and access to our online resource library with installation videos and troubleshooting guides.
