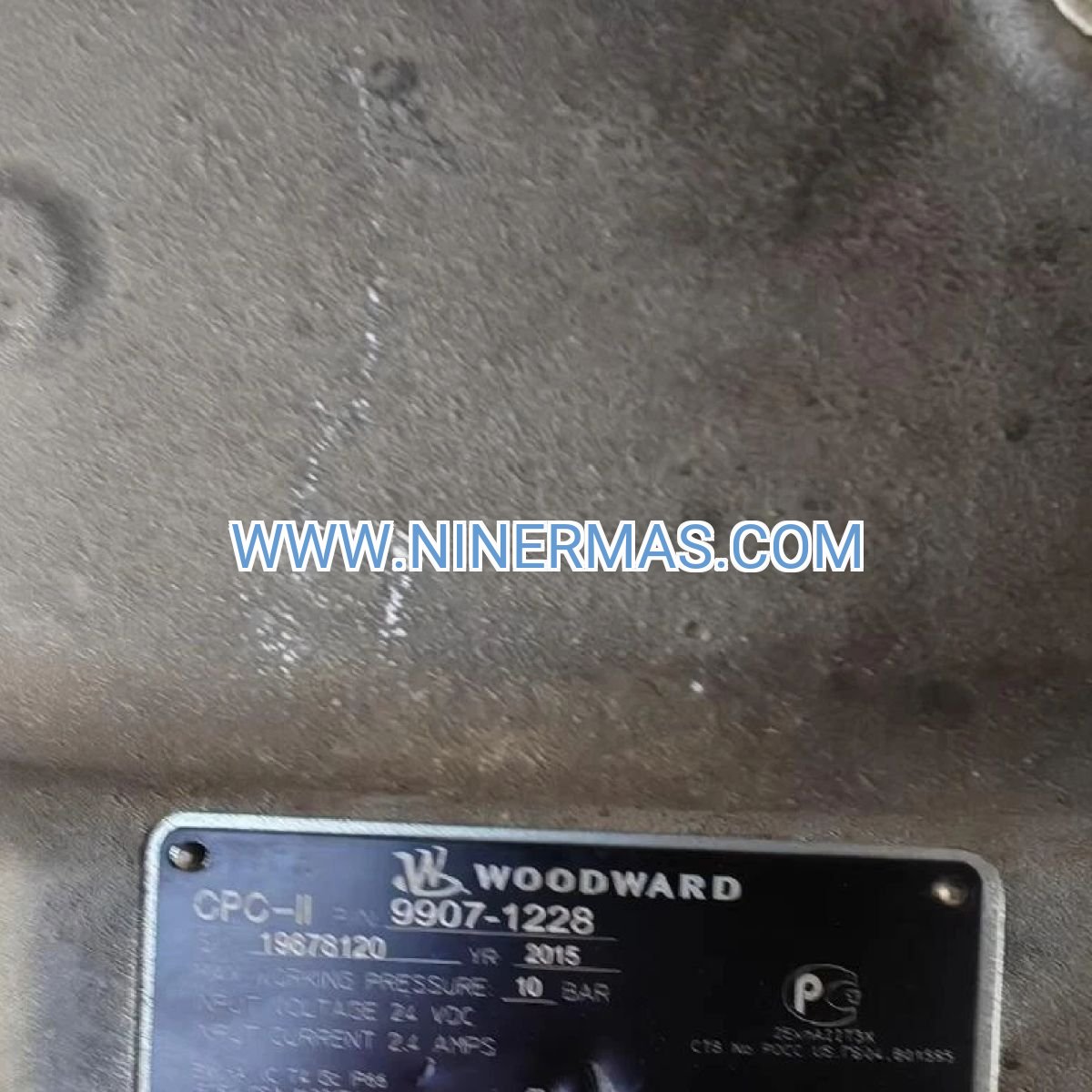

9907-1228 ProTech-SX Triple-Modular Redundant Overspeed Protection System (Industrial-Grade Turbine Safety)

The Woodward 9907-1228 ProTech-SX delivers fail-safe overspeed detection through triple-modular redundant architecture, engineered specifically for mission-critical turbomachinery in power generation and mechanical drive applications. This microprocessor-controlled safety system employs 2-out-of-3 voting logic to eliminate single-point failures while maintaining continuous protection during online diagnostics and sensor validation.

Designed for operators managing steam turbines, gas turbines, and combined-cycle units where overspeed events threaten equipment integrity and personnel safety, the ProTech-SX addresses the fundamental challenge of balancing high-availability operation with uncompromising safety standards. Unlike legacy single-channel devices, this TMR platform enables proof testing without turbine shutdown, reducing compliance costs while meeting IEC 61508 SIL 3 requirements.

Key differentiators include sub-10-millisecond trip response, field-proven reliability across 15,000+ global installations, and seamless integration with modern DCS/SCADA infrastructure through Modbus and analog I/O protocols. The system's self-diagnostic capabilities detect sensor degradation, wiring faults, and internal anomalies before they compromise protection margins, delivering measurable risk reduction in high-consequence applications.

Core Features & Benefits

→ Triple-Modular Redundancy with 2oo3 Voting
Three independent processing channels continuously cross-verify speed measurements, automatically isolating faulty channels while maintaining full protection. Business value: Eliminates unplanned shutdowns from spurious trips, achieving 99.9%+ availability in critical service.

→ SIL 3 Certified Safety Integrity
TÜV-approved per IEC 61508 with documented probability of failure on demand (PFD) <1×10⁻³. Business value: Satisfies insurance requirements and regulatory compliance for high-hazard installations without costly redundant backup systems.

✓ Sub-10ms Emergency Response Time
Digital signal processing detects overspeed conditions and initiates trip relay closure in under 10 milliseconds from threshold breach. Business value: Prevents catastrophic turbine disintegration by arresting acceleration before mechanical stress limits are exceeded.

✓ Online Testing Without Shutdown
Individual channel bypass allows periodic proof testing while two active channels maintain protection. Business value: Reduces annual maintenance downtime by 40-60 hours compared to systems requiring full turbine outages for safety validation.

• Wide Speed Range Configurability (100-20,000 RPM)
Software-programmable setpoints accommodate diverse turbine types from industrial drives to high-speed generators. Business value: Single platform standardization across mixed turbine fleets reduces spare parts inventory and training requirements.

• Harsh Environment Durability (NEMA 4X/IP66)
Sealed enclosure withstands -40°C to +70°C operation with resistance to moisture, dust, and corrosive atmospheres. Business value: Extends service life in offshore platforms, desert installations, and chemical processing environments where environmental stress accelerates equipment degradation.

Application Scenarios

Utility-Scale Steam Turbine Protection
Scenario: 500 MW coal-fired power plant requires overspeed protection for reheat steam turbine operating at 3,600 RPM nominal speed.
Pain point addressed: Load rejection events can cause turbine acceleration to 4,000+ RPM within seconds, risking blade failure and generator damage exceeding $50M in losses.
Value delivered: ProTech-SX detects overspeed at 3,780 RPM (105% setpoint) and trips emergency stop valves in 8ms, limiting peak speed to 3,850 RPM—well below the 4,200 RPM mechanical failure threshold.

Gas Turbine Emergency Shutdown Coordination
Scenario: Combined-cycle plant with Frame 7EA gas turbine driving 150 MW generator requires coordinated overspeed and flame-out protection.
Pain point addressed: Governor failures during rapid load changes can result in fuel-rich combustion and thermal runaway if not detected within milliseconds.
Value delivered: Integrates with fuel control system via hardwired trip relays and Modbus communication, executing coordinated shutdown of fuel valves, IGVs, and generator breaker to prevent compressor surge and hot gas path damage.

Mechanical Drive Compressor Safety
Scenario: Natural gas pipeline compressor station uses 12 MW gas turbine to drive centrifugal compressor at 8,500 RPM.
Pain point addressed: Compressor anti-surge valve failures can cause turbine overspeed during recycle mode, threatening $8M turbine replacement costs and 30+ day outage.
Value delivered: Monitors turbine speed independently of primary control system, providing diverse protection layer that trips turbine fuel supply when speed exceeds 9,000 RPM, preventing mechanical overstress.

Offshore Platform Turbine Monitoring
Scenario: FPSO vessel operates twin 25 MW gas turbines for power generation in North Sea environment with salt spray and temperature extremes.
Pain point addressed: Corrosion-induced sensor failures in marine environments create false trip risks that disrupt production and cost $500K+ per unplanned shutdown.
Value delivered: TMR architecture with sensor voting logic distinguishes genuine overspeed events from single-sensor failures, reducing nuisance trips by 90% while maintaining SIL 3 protection integrity.

Legacy System Modernization
Scenario: 1980s-era power plant needs to replace obsolete mechanical overspeed trip devices with modern safety-rated system.
Pain point addressed: Mechanical centrifugal trip mechanisms suffer from calibration drift, require annual turbine disassembly for testing, and lack diagnostic feedback.
Value delivered: Drop-in replacement using existing magnetic pickup sensors, eliminating mechanical linkage maintenance while adding remote monitoring, event logging, and predictive diagnostics that reduce safety system lifecycle costs by 60%.

Technical Parameters & Selection Guide

Selection Guidance: Choose the 9907-1228 ProTech-SX when your application demands SIL 3 safety integrity, online testability, or operates in harsh environments. For smaller turbines <5 MW with lower safety requirements, consider dual-channel ProTech 203 alternatives. Confirm magnetic pickup sensor compatibility (minimum 1.0 Vrms output at lowest operating speed) and verify that existing turbine trip valve solenoids are compatible with 5A relay contact ratings. Applications requiring active sensor inputs (proximity probes, Hall effect) may need signal conditioning modules.

Extended Functions

Advanced Diagnostics & Predictive Monitoring
Continuous self-testing monitors internal processor health, power supply voltage, relay coil resistance, and sensor signal quality. Diagnostic alarms provide early warning of degrading components before they impact protection capability, enabling condition-based maintenance scheduling.

Remote Configuration & Data Logging
Woodward ToolKit software enables setpoint programming, event log retrieval, and waveform capture via RS-232/RS-485 interface. Password-protected access prevents unauthorized changes while maintaining audit trail compliance for safety-critical modifications.

DCS/SCADA Integration
Modbus RTU and Modbus TCP protocols provide real-time speed indication, alarm status, and diagnostic data to plant control systems. Analog 4-20 mA outputs deliver speed signals to chart recorders and annunciator panels for legacy system compatibility.

Customization Options
Factory configuration services available for application-specific setpoints, relay logic (normally energized vs. de-energized trip), and communication parameters. Custom enclosures and hazardous area certifications (ATEX, IECEx) available for specialized installations.

Delivery & Service Assurance

Lead Time: Standard 9907-1228 units ship within 4-6 weeks from order confirmation. Expedited delivery available for emergency replacements (consult factory for 1-2 week options). Custom-configured units require 8-10 weeks for factory programming and testing.

Warranty Coverage: Comprehensive 12-month warranty covers materials, workmanship, and factory calibration. Warranty includes free firmware updates and technical support during coverage period. Extended warranty programs available for up to 5 years on critical installations.

Technical Support: Global service network provides 24/7 emergency support, application engineering consultation, and on-site commissioning assistance. Regional service centers stock replacement modules for <24-hour delivery to minimize downtime.

Documentation Package: Each system includes installation manual, wiring diagrams, ToolKit configuration software, IEC 61508 safety manual, and TÜV certification documents. CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

How does the ProTech-SX 9907-1228 handle sensor failures without causing false trips?
The 2-out-of-3 voting logic requires at least two channels to agree on an overspeed condition before initiating a trip. If one sensor fails, the system continues operating on the remaining two channels while generating a diagnostic alarm. This architecture prevents single-sensor failures from causing production interruptions while maintaining full safety protection.

What magnetic pickup sensors are compatible with this overspeed protection system?
The 9907-1228 accepts standard passive magnetic pickups (MPU) that generate AC voltage signals proportional to shaft speed. Sensors must produce minimum 1.0 Vrms at the lowest monitored speed. Compatible models include Woodward 80064, Metrix MX2033, and Bently Nevada 330500 series. Active sensors require external signal conditioning.

Can I retrofit the ProTech-SX into an existing turbine control panel?
Yes, the 9907-1228 is designed for retrofit installations. The system mounts in standard 19-inch racks or NEMA enclosures and interfaces with existing magnetic pickups and trip solenoid valves. Wiring terminals accommodate 12-22 AWG conductors. Panel cutout dimensions and mounting templates are provided in the installation manual.

What is the recommended proof test interval for SIL 3 compliance?
IEC 61511 requires periodic proof testing to verify safety function integrity. For the ProTech-SX, annual testing is recommended, consisting of individual channel bypass tests, relay contact verification, and setpoint validation. The online testing capability allows these checks without turbine shutdown, typically completed in 2-4 hours per system.

Does the system require recalibration over its service life?
No field recalibration is required. The ProTech-SX uses digital signal processing with factory-calibrated accuracy maintained throughout its operational life. Annual functional testing verifies sensor integrity and relay operation, but internal calibration drift is negligible. Factory recertification is available every 5-10 years for applications with stringent documentation requirements.

How do I configure overspeed setpoints and alarm thresholds?
Setpoints are programmed using the front-panel keypad or Woodward ToolKit software via RS-232/RS-485 connection. Password protection prevents unauthorized changes. Typical configurations include primary overspeed trip (105-110% rated speed), pre-alarm warning (102-105%), and test mode setpoints. All changes are logged in non-volatile memory with timestamp and user ID.

Ready to Upgrade Your Turbine Safety System?

Contact our application engineering team to discuss your specific turbine protection requirements. We'll help you determine the optimal configuration, sensor selection, and integration approach for your installation. Request a detailed quotation or schedule a technical consultation today.
