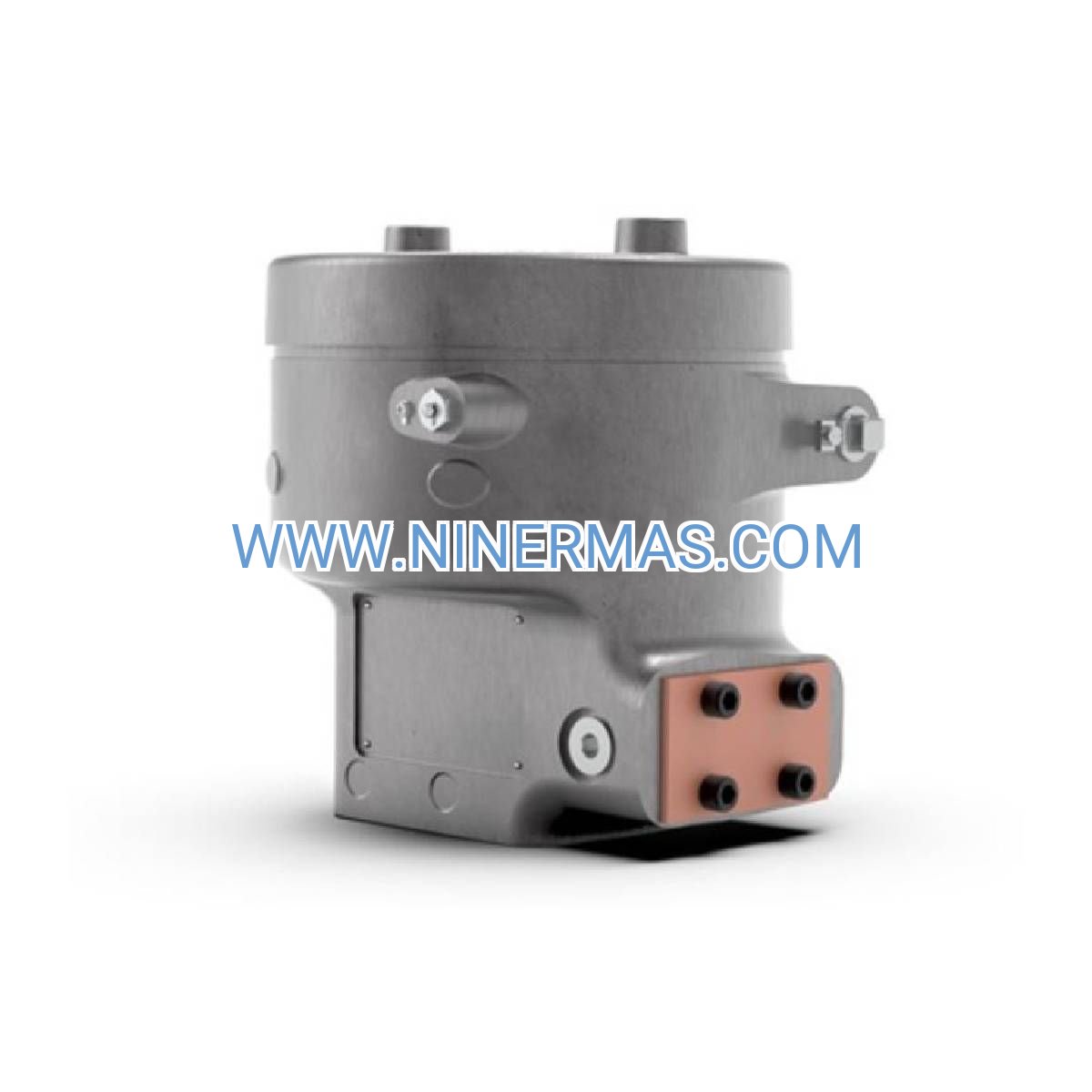

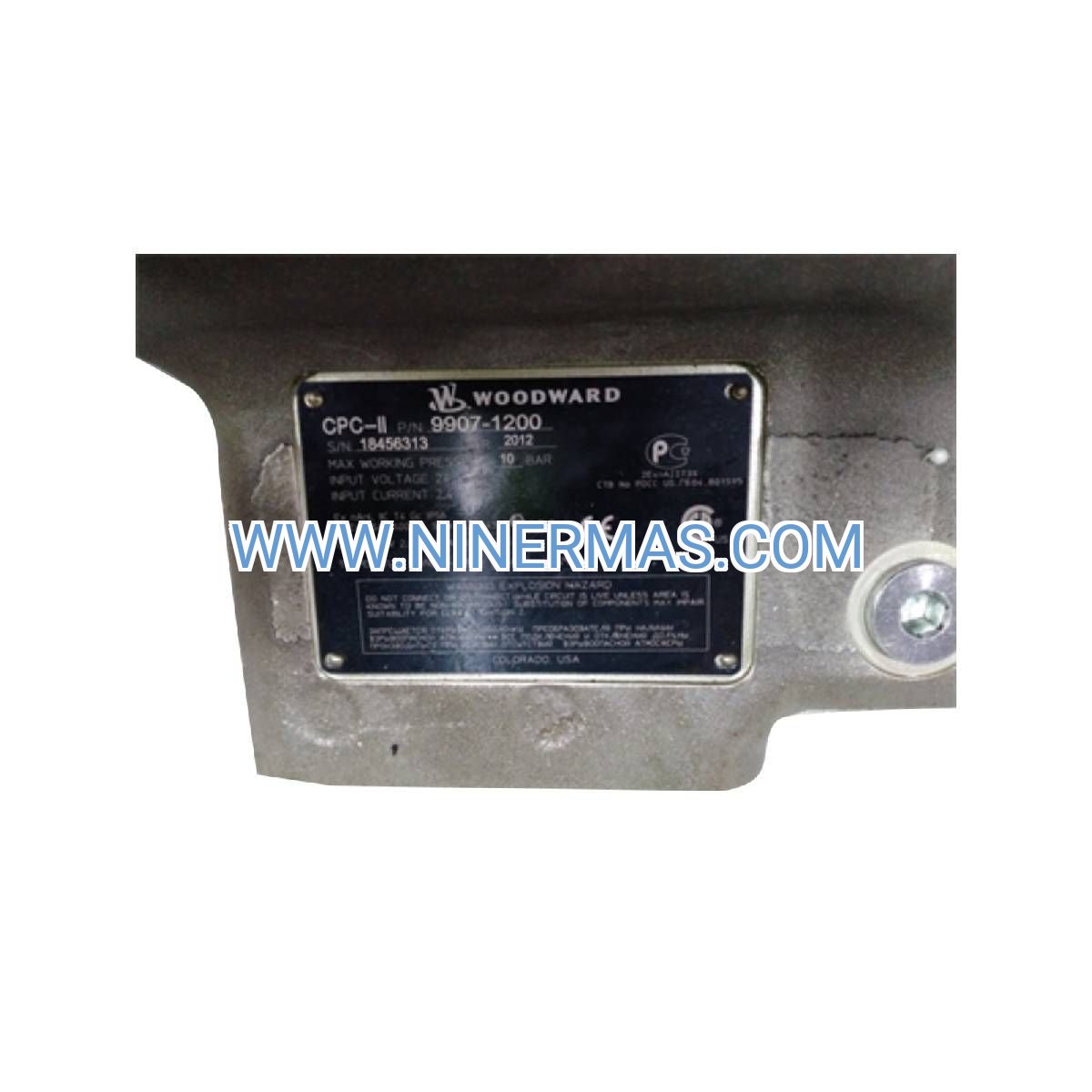

Woodward 9907-1200 Electro-Pneumatic Transducer (Industrial-Grade I/P Converter)

The Woodward 9907-1200 represents a field-proven solution for converting electrical control signals into precise pneumatic outputs in steam turbine and industrial process applications. Engineered for continuous operation in demanding environments, this Current-to-Pressure Converter (CPC-II) transforms standard 4-20 mA DC input into proportional 3-15 psi pneumatic pressure with exceptional linearity and repeatability.

Designed specifically for turbine governor systems, valve actuator control, and critical process automation, the 9907-1200 addresses the challenge of interfacing modern electronic controllers with legacy pneumatic actuation systems. Power generation facilities, petrochemical refineries, and industrial plants rely on this converter to maintain precise control over steam flow, fuel delivery, and process variables where millisecond-level response and long-term stability are non-negotiable.

With corrosion-resistant construction, NEMA 4X environmental protection, and compatibility with all major control platforms, the 9907-1200 delivers reliable electro-pneumatic conversion backed by Woodward's decades of turbine control expertise.

Core Capabilities & Technical Advantages

→ Precision Signal Conversion
Achieves ±0.5% full-span accuracy across the entire 4-20 mA input range, ensuring valve positioning errors remain within acceptable tolerances for critical load control and speed regulation applications.

→ Rapid Dynamic Response
Reaches 90% of commanded output in under 1 second following step changes, enabling stable turbine operation during load transients and preventing overshoot conditions that could trigger protective shutdowns.

→ Environmental Resilience
NEMA 4X / IP66-rated enclosure withstands moisture, dust, and corrosive atmospheres from -40°F to 185°F (-40°C to 85°C), making it suitable for outdoor installations and harsh industrial environments.

✓ Universal Control Integration
Accepts industry-standard 4-20 mA signals from any manufacturer's control system—Woodward 505/723 governors, DCS platforms, PLCs, or standalone analog controllers—eliminating vendor lock-in concerns.

✓ Low Air Consumption Design
Consumes only 0.5 SCFM at mid-range output, reducing compressed air system load and operating costs compared to conventional pneumatic amplifiers.

✓ Field-Serviceable Construction
Modular internal components allow on-site calibration adjustments and maintenance without specialized factory tooling, minimizing downtime during scheduled outages.

Industrial Application Scenarios

Steam Turbine Governor Systems
In power generation and cogeneration facilities, the 9907-1200 converts governor output signals into pneumatic pressure that positions steam admission valves. This application demands sub-second response to maintain grid frequency stability and prevent turbine overspeed trips during sudden load rejections.

Petrochemical Process Control
Refineries and chemical plants deploy this converter to control pneumatic valve actuators in distillation columns, reactor feed systems, and pressure letdown stations where electronic signals must interface with explosion-proof pneumatic final control elements.

Marine Propulsion Systems
Shipboard turbine installations utilize the 9907-1200 to translate bridge control commands into precise fuel valve positioning, accommodating the vibration, temperature extremes, and salt-air exposure inherent to maritime environments.

Legacy System Retrofits
Plants upgrading from analog to digital control retain existing pneumatic actuators by installing the 9907-1200 as an interface device, avoiding costly actuator replacement while gaining modern control capabilities.

Backup Control Architectures
Critical installations implement redundant 9907-1200 units in parallel configurations, ensuring continued operation if primary electronic controls fail—a common requirement in nuclear auxiliary systems and emergency power generation.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify that your control system provides a stable 4-20 mA output with sufficient loop power. Ensure instrument air supply meets ISA-S7.0.01 quality standards (dew point -40°F, particulate <40 microns). For applications requiring faster response (<0.5 sec), consider the high-speed variant. Consult factory for hazardous area certifications if installing in Class I Division 2 locations.

Extended Functionality & Integration Options

Calibration Adjustability: Zero and span potentiometers allow field technicians to fine-tune the input-output relationship without external test equipment, accommodating slight variations in actuator spring rates or control system scaling.

Diagnostic Test Points: Internal test points enable verification of input current and output pressure during commissioning and troubleshooting, reducing diagnostic time during plant outages.

Redundancy Configurations: Multiple 9907-1200 units can be installed in parallel with check valves to create fault-tolerant control architectures, automatically switching to backup converters if primary units fail.

Remote Monitoring Compatibility: When paired with pressure transmitters on the output line, operators can monitor converter performance from DCS systems, enabling predictive maintenance based on drift trends.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-3 business days via express courier. Custom configurations or bulk orders typically require 2-4 weeks for factory preparation.

Warranty Coverage: All 9907-1200 converters include a comprehensive 12-month manufacturer warranty against defects in materials and workmanship, with optional extended coverage available.

Technical Support: Our applications engineers provide pre-sale sizing assistance, installation guidance, and post-delivery troubleshooting support via phone, email, and remote diagnostics.

Documentation Package: Each unit ships with installation manual, calibration procedures, dimensional drawings, and recommended spare parts list in PDF format.

Frequently Asked Questions

What control systems are compatible with the 9907-1200 I/P converter?
The converter accepts standard 4-20 mA signals from any source—Woodward digital governors (505, 723, microNet), Honeywell DCS, Siemens PLCs, Emerson DeltaV, or standalone analog controllers. No proprietary protocols or special wiring required.

How much supply air pressure and flow capacity is needed?
Supply air must be regulated to 20-30 psi (1.4-2.1 bar) with minimum flow capacity of 1 SCFM to handle transient demands. Air quality should meet ISA-S7.0.01 standards—install a 40-micron coalescing filter and refrigerated dryer upstream.

Can this converter operate in outdoor or high-humidity environments?
Yes, the NEMA 4X / IP66 enclosure is designed for outdoor installation and withstands direct water spray, dust ingress, and corrosive atmospheres. Operating temperature range of -40°F to +185°F covers most industrial climates.

What maintenance intervals are recommended for optimal performance?
Inspect and clean the air filter element quarterly. Verify calibration accuracy annually or per plant procedures using a precision current source and pressure gauge. No routine lubrication or internal adjustments required.

Is the 9907-1200 suitable for hazardous area installations?
The standard unit is rated for general industrial use (non-hazardous). For Class I Division 2 or ATEX Zone 2 applications, consult factory for explosion-proof housing options and certification documentation.

How does response time compare to direct-acting pneumatic controllers?
The <1 second response to 90% of step change matches or exceeds most pneumatic-only systems while providing the precision and flexibility of electronic control. For ultra-fast applications (<0.5 sec), high-speed variants are available.

Get Expert Assistance Today

Our turbine control specialists are ready to help you select the right electro-pneumatic converter for your application. Contact us for technical datasheets, compatibility verification, or custom configuration quotes. We support installations worldwide with fast shipping and multilingual technical support.
