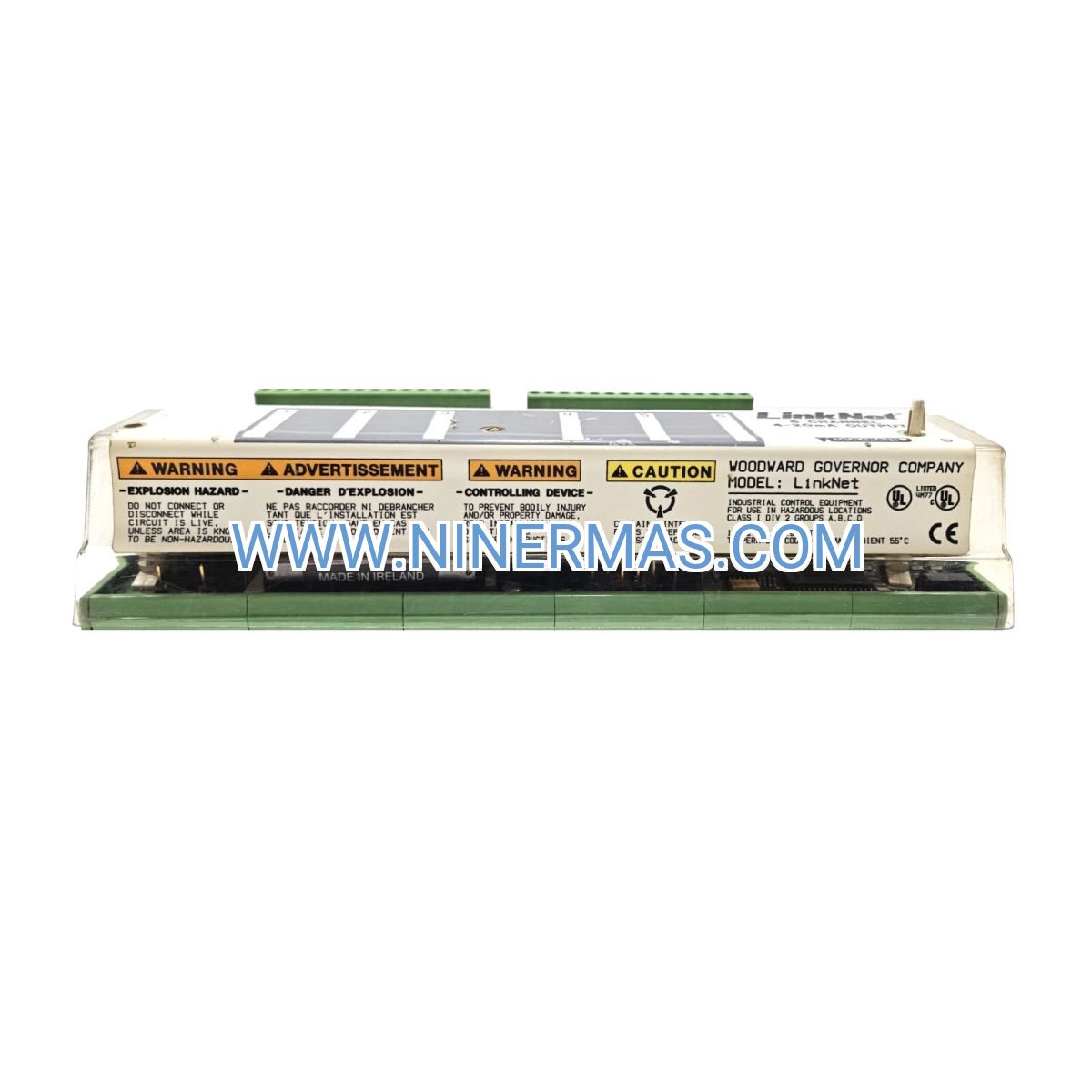

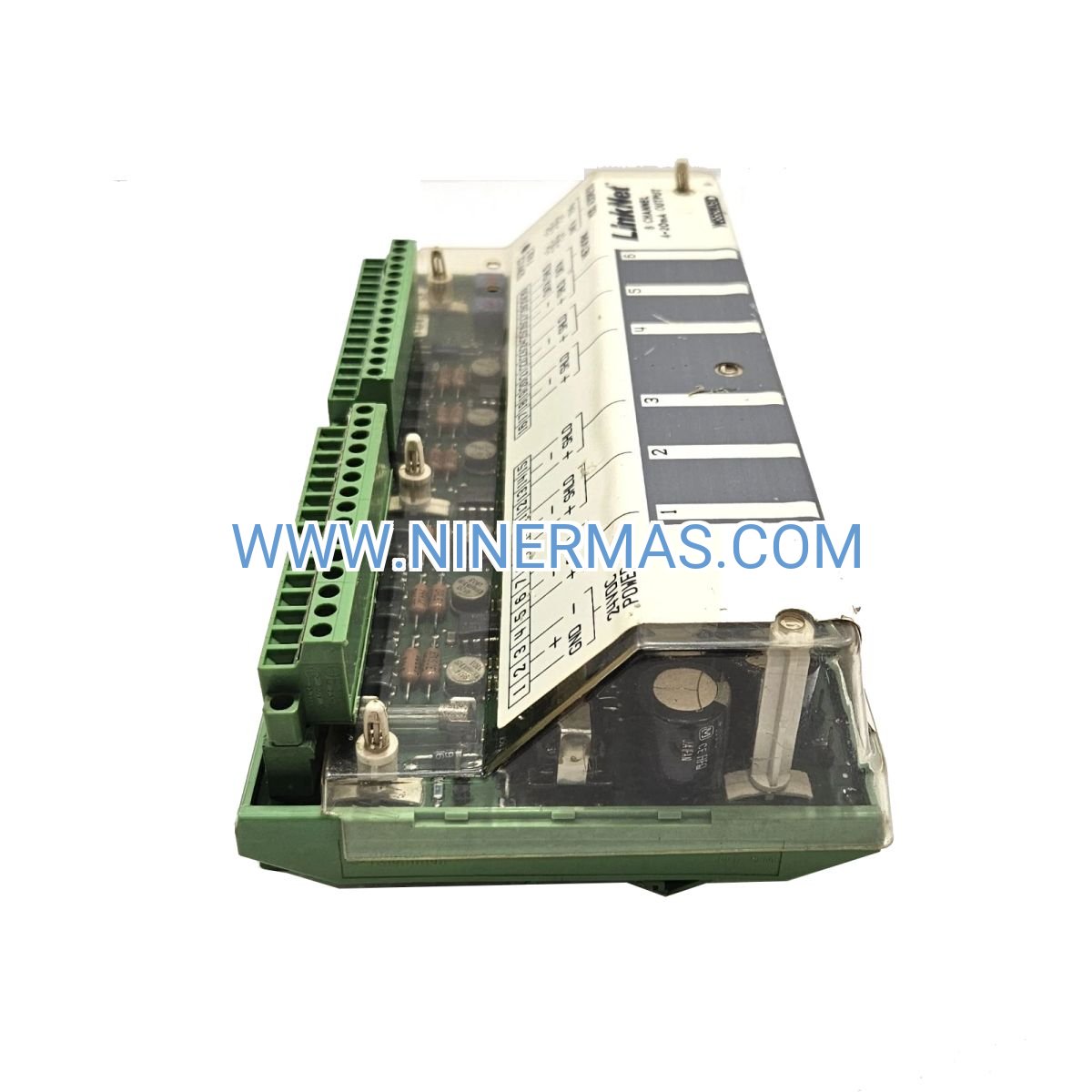

Woodward 9905-972 Analog Input Module (Industrial-Grade 6-Channel LINKnet Interface)

The Woodward 9905-972 represents a field-proven analog input solution engineered for demanding distributed control environments. Designed specifically for LINKnet network integration, this 6-channel module transforms 4-20 mA current loop signals into high-resolution digital data streams, enabling real-time process monitoring across NetCon and MicroNet control platforms.

Industrial facilities requiring multi-point sensor integration face challenges with signal integrity, installation complexity, and system scalability. The 9905-972 addresses these pain points through channel-isolated architecture, plug-and-play LINKnet connectivity, and DIN-rail mounting simplicity. Process engineers, automation technicians, and system integrators rely on this module for turbine control, power generation monitoring, and critical process applications where measurement accuracy directly impacts operational safety and efficiency.

Key advantages include 12-bit resolution for precise signal conversion, -40°C to +70°C operating range for harsh environments, and auto-configuration capabilities that reduce commissioning time by up to 60%. When paired with Woodward's distributed control ecosystem, the 9905-972 delivers enterprise-grade reliability with minimal wiring overhead and simplified troubleshooting workflows.

Core Features & Technical Advantages

→ Six Independent Analog Input Channels
Each channel processes 4-20 mA current loop signals with ±0.1% full-scale accuracy, supporting temperature transmitters, pressure sensors, flow meters, and level instruments. Channel-to-channel isolation prevents ground loop interference and cross-talk in multi-sensor installations.

→ Native LINKnet Protocol Integration
Seamless communication with NetCon and MicroNet controllers eliminates the need for protocol converters or gateways. Auto-discovery functionality enables plug-and-play deployment, reducing configuration errors and startup delays by 40-50% compared to traditional hardwired I/O.

✓ Extended Temperature Performance
Operates reliably across -40°C to +70°C ambient conditions without derating, making it suitable for outdoor enclosures, engine rooms, and process areas with extreme thermal cycling. Conformal coating protects circuitry from moisture, dust, and chemical exposure.

✓ 12-Bit A/D Conversion Resolution
High-resolution analog-to-digital conversion captures subtle process variations, enabling tighter control loops and early fault detection. This translates to improved product quality in batch processes and reduced unplanned downtime in continuous operations.

✓ Hot-Swappable Design (System-Dependent)
On compatible NetCon configurations, modules can be replaced during operation without system shutdown, minimizing production interruptions. Terminal blocks remain in place during module exchange, preserving field wiring integrity.

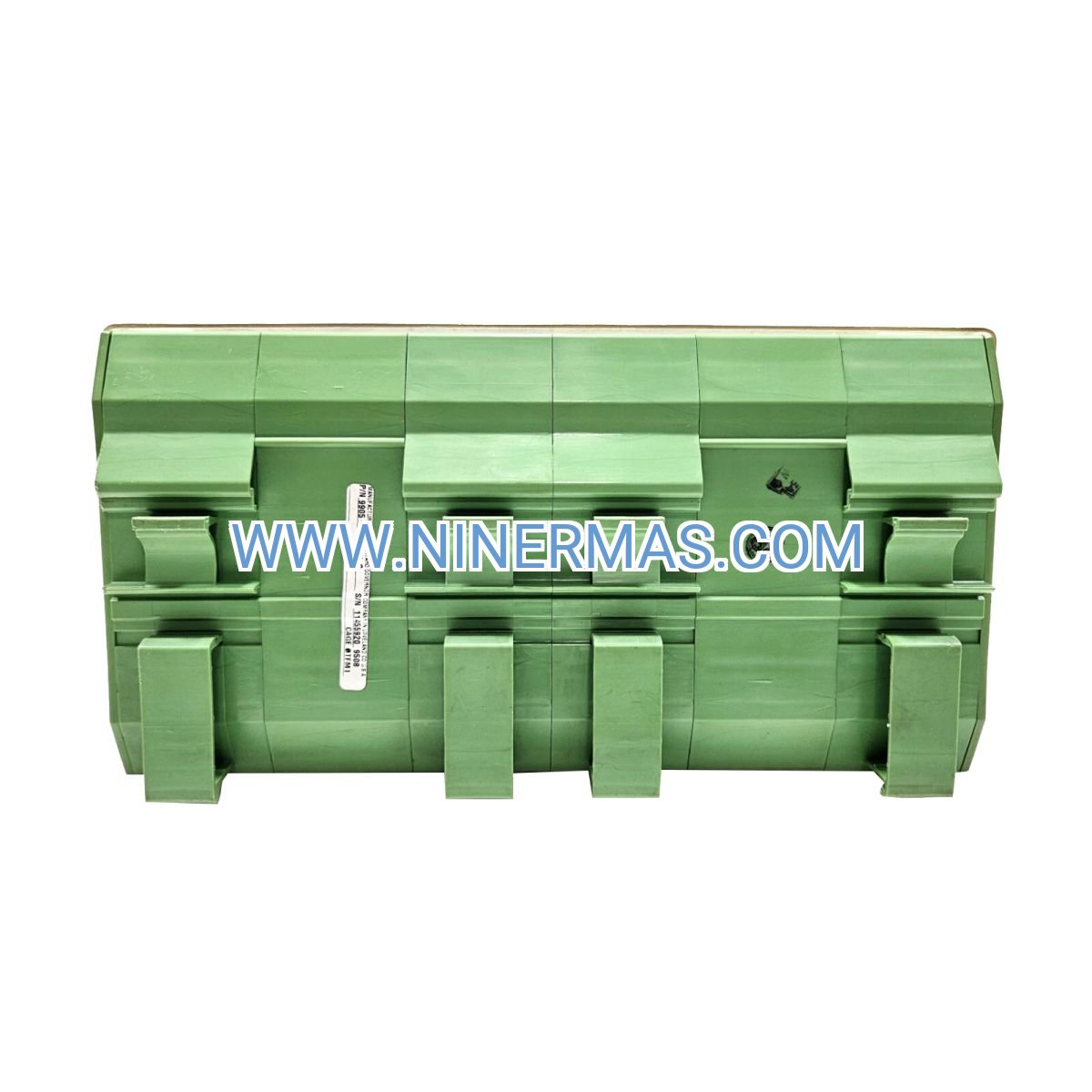

✓ Compact DIN-Rail Form Factor
Space-efficient design allows high-density I/O configurations in standard control cabinets. Removable terminal blocks accelerate installation and simplify maintenance procedures, reducing mean time to repair (MTTR) by 30-40%.

Industrial Application Scenarios

Turbine Control & Monitoring Systems
Gas and steam turbine installations utilize the 9905-972 to acquire critical parameters including bearing temperatures, lube oil pressure, vibration levels, and fuel flow rates. The module's high accuracy ensures compliance with API 670 machinery protection standards while supporting predictive maintenance strategies through continuous trend analysis.

Power Generation Facilities
Utility-scale power plants deploy these modules for boiler feedwater monitoring, condenser vacuum measurement, and auxiliary system supervision. Multi-point temperature profiling across heat exchangers enables optimization of thermal efficiency, directly reducing fuel consumption and emissions per megawatt-hour generated.

Oil & Gas Production Platforms
Offshore and onshore production facilities leverage the 9905-972's environmental resilience for wellhead pressure monitoring, separator level control, and compressor station automation. The module's isolation features protect control systems from electrical noise generated by variable frequency drives and high-power switching equipment.

Marine Propulsion & Power Management
Vessel engine control rooms integrate these modules for main engine parameter acquisition, auxiliary generator monitoring, and fuel management systems. Compliance with marine classification society requirements (ABS, DNV, Lloyd's) ensures reliable operation in high-vibration, salt-fog environments.

Industrial Process Control Expansion
Chemical processing, food & beverage, and pharmaceutical manufacturing operations use the 9905-972 to expand existing Woodward control systems without major infrastructure changes. Distributed I/O architecture reduces control cabinet footprint while improving system modularity and future scalability.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 9905-972 when your application requires 4-20 mA signal acquisition within a Woodward LINKnet architecture. For voltage input requirements (0-10V, ±10V), consider alternative Woodward analog input modules. If your system uses Modbus RTU or Ethernet/IP protocols, evaluate third-party I/O solutions with appropriate communication interfaces. Maximum recommended cable run from sensor to module is 500 meters using shielded twisted-pair wiring (up to 1000m possible with proper cable selection and grounding practices).

Advanced Integration Capabilities

Distributed Control System Expansion
The 9905-972 enables cost-effective I/O expansion without centralized marshalling cabinets. Deploy modules near sensor clusters to minimize wiring costs and improve signal quality. LINKnet's deterministic communication ensures consistent scan times across distributed nodes, maintaining control loop performance even with extended network topologies.

Redundancy & Fault Tolerance
When configured with redundant LINKnet controllers, the module supports automatic failover without loss of process data. Diagnostic LEDs and network status reporting enable rapid fault identification, reducing troubleshooting time from hours to minutes in complex installations.

Custom Scaling & Alarm Configuration
Each input channel supports independent engineering unit scaling, offset adjustment, and multi-level alarm thresholds programmed through the host controller interface. This flexibility accommodates diverse sensor types and process requirements without hardware modifications.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier services. International shipments typically arrive within 5-7 business days depending on customs clearance procedures.

Warranty Coverage: Every Woodward 9905-972 module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty options available upon request.

Technical Support: Our application engineers provide pre-sales consultation, configuration assistance, and post-installation troubleshooting support. Access to Woodward technical documentation, wiring diagrams, and configuration software included with purchase.

Documentation Package: Each module ships with installation quick-start guide, terminal wiring diagrams, and LINKnet network configuration instructions. Complete technical manuals available for download from our support portal.

Frequently Asked Questions

What control systems are compatible with the 9905-972 analog input module?
This module operates exclusively within Woodward LINKnet ecosystems, specifically NetCon and MicroNet distributed control platforms. It cannot interface directly with PLCs, SCADA systems, or third-party DCS platforms without a LINKnet-to-standard protocol gateway.

Can I use this module with voltage output sensors instead of current loop transmitters?
No, the 9905-972 is designed specifically for 4-20 mA current loop signals. Voltage input sensors (0-10V, ±10V) require different analog input modules with appropriate signal conditioning circuitry. Contact our technical team to identify suitable alternatives for voltage-based applications.

What is the maximum distance between the module and field sensors?
Current loop technology supports cable runs up to 1000 meters with proper shielded twisted-pair wiring and grounding practices. For optimal noise immunity and signal integrity, we recommend limiting runs to 500 meters in electrically noisy environments with VFDs, welding equipment, or high-power switching devices.

Does the module support hot-swapping during system operation?
Hot-swap capability depends on your specific NetCon controller configuration and system programming. While the hardware supports hot-insertion on certain platforms, we recommend consulting your system integrator or Woodward technical documentation. For critical processes, plan module replacements during scheduled maintenance windows to prevent potential data loss or control disruptions.

Are factory calibration certificates included with the module?
All modules ship with factory calibration to published accuracy specifications. Traceable calibration certificates with NIST-referenced standards are available upon request at time of order for an additional fee. Recalibration services can be arranged through authorized Woodward service centers.

How do I troubleshoot communication errors on the LINKnet network?
Start by verifying network termination resistors, checking cable shield grounding at one end only, and confirming module address settings don't conflict with other network devices. The module's diagnostic LEDs indicate power status, communication activity, and fault conditions. Consult the LINKnet troubleshooting section of your controller manual for systematic diagnostic procedures.

Ready to Enhance Your Control System?

The Woodward 9905-972 analog input module delivers the reliability and precision your critical processes demand. Whether you're expanding an existing LINKnet installation or designing a new distributed control architecture, our team provides expert guidance from specification through commissioning.

Contact our automation specialists today: Share your application requirements, sensor specifications, and system architecture details to receive personalized recommendations and competitive pricing. We maintain extensive inventory of Woodward control components to support your project timelines.
