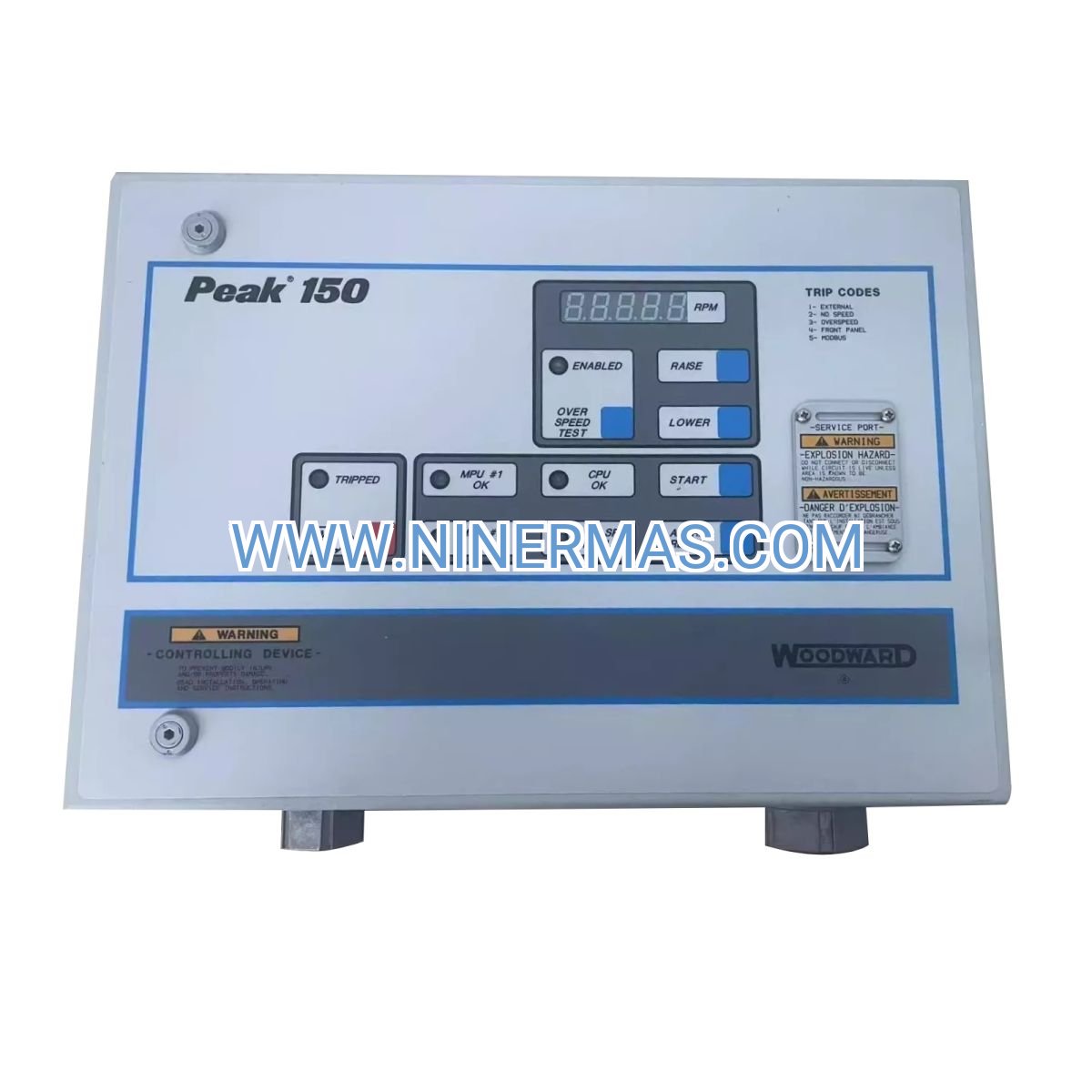

Woodward 9905-860 Peak 150 Digital Governor (API611-Certified Steam Turbine Control)

The Woodward 9905-860 Peak 150 is a microprocessor-based digital control platform engineered for API611-compliant steam turbine installations across power generation, petrochemical, and offshore applications. This industrial-grade governor delivers precision speed regulation (±0.25% accuracy), dual-channel overspeed protection, and seamless DCS/SCADA integration through Modbus RTU/ASCII protocols.

Designed for mission-critical turbomachinery environments, the 9905-860 addresses common operational challenges including speed instability during load transients, inadequate overspeed response in legacy analog systems, and integration complexity with modern distributed control architectures. Ideal for plant engineers, turbine OEMs, and maintenance teams requiring API611 compliance with proven field reliability.

Key differentiators include NEMA 4/IP65 environmental protection for harsh industrial settings, configurable I/O architecture supporting diverse actuator types, and comprehensive event logging for predictive maintenance strategies. The Peak 150 platform reduces commissioning time through field-proven compatibility with industry-standard sensors and actuators while maintaining fail-safe operation under extreme temperature conditions (-40°C to +70°C).

Core Features & Industrial Benefits

✓ Precision Speed Regulation: ±0.25% steady-state accuracy eliminates process variability and optimizes turbine efficiency across load ranges, reducing fuel consumption by up to 3-5% compared to analog governors.

✓ Dual-Channel Overspeed Protection: Independent detection circuits with <50ms response time meet API611 safety requirements, preventing catastrophic turbine failures and minimizing insurance liability exposure.

✓ Universal Actuator Compatibility: Configurable 4-20mA and voltage outputs interface with Woodward, Moog, and third-party electro-hydraulic actuators, enabling cost-effective retrofits without proprietary lock-in.

→ Modbus RTU/ASCII Integration: Native serial communication protocol connects seamlessly to ABB, Siemens, Honeywell, and Emerson DCS platforms, reducing engineering hours during system commissioning by 40-60%.

→ NEMA 4/IP65 Environmental Rating: Sealed enclosure withstands corrosive atmospheres, high-vibration environments, and temperature extremes typical of refinery and offshore installations, extending MTBF beyond 100,000 hours.

→ Advanced Diagnostics & Event Logging: Real-time fault detection and historical data capture enable condition-based maintenance strategies, reducing unplanned downtime by 25-35% versus reactive maintenance approaches.

Typical Application Scenarios

Refinery Steam Turbine Drives: Controls mechanical drive turbines for compressors, pumps, and blowers in crude distillation and catalytic cracking units. Solves the challenge of maintaining stable speed during process upsets while meeting API611 overspeed protection mandates. Delivers consistent process throughput and reduces turbine maintenance intervals through precise load control.

Petrochemical Compressor Applications: Governs steam turbines driving ethylene, propylene, and ammonia synthesis compressors. Addresses the pain point of speed hunting during anti-surge valve operation and load step changes. Provides smooth load transitions that extend compressor seal life and minimize product quality variations.

Power Plant Auxiliary Systems: Manages boiler feed pump turbines, condensate pumps, and forced draft fan drives in coal, gas, and combined-cycle facilities. Eliminates manual speed adjustments during boiler load swings and startup/shutdown sequences. Enhances plant availability through automated control and reduces operator workload by 70%.

Offshore Platform Generator Sets: Controls steam turbine generators on FPSO vessels and fixed platforms where space, weight, and environmental protection are critical. Overcomes the limitation of analog governors in high-vibration marine environments and salt-fog exposure. Ensures reliable power generation for safety-critical systems with minimal maintenance access requirements.

Industrial Cogeneration Plants: Regulates extraction/condensing turbines in paper mills, chemical plants, and district heating facilities requiring both power and process steam. Resolves the complexity of coordinating electrical load and steam extraction pressure control. Optimizes energy efficiency by maintaining design steam conditions across varying thermal and electrical demands.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9905-860 for steam turbine applications requiring API611 compliance, Modbus DCS integration, and NEMA 4 environmental protection. For gas turbine applications or enhanced I/O requirements, consider the Woodward 505E platform. Verify actuator compatibility (4-20mA or voltage control) and confirm DCS communication protocol (Modbus RTU vs. ASCII) before ordering. Consult factory application engineering for custom I/O configurations or hazardous area certifications (ATEX/IECEx).

Extended Functions & Integration Capabilities

IoT & Remote Monitoring Integration: The 9905-860 supports integration with Woodward's VibeNet wireless monitoring system and third-party condition monitoring platforms via Modbus data mapping. Real-time speed, load, and diagnostic parameters can be streamed to cloud-based analytics platforms for fleet-wide performance benchmarking and anomaly detection.

Advanced Control Algorithms: Field-configurable PID tuning parameters, load limiting functions, and anti-surge coordination logic enable optimization for specific turbine characteristics and process requirements. Custom control strategies can be implemented through Modbus register mapping without firmware modifications.

Customization Options: Factory-configured I/O packages available for specific OEM turbine models (GE, Siemens, Elliott, Dresser-Rand). Custom panel integration services include pre-wired terminal blocks, DIN-rail mounting kits, and integrated HMI touchscreens for standalone operation. Consult application engineering for hazardous area certifications (Class I Div 2, ATEX Zone 2) and extended temperature ratings.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units with factory calibration certificates. Express shipping available for critical outage situations (24-48 hour delivery to major industrial hubs).

Custom Configuration Lead Time: 10-15 business days for factory-programmed I/O configurations, custom firmware loads, or special environmental certifications. Expedited engineering services available upon request.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and calibration drift. Extended warranty programs available for up to 36 months with annual factory recalibration services.

Technical Support: Unlimited phone and email support from Woodward-certified application engineers. On-site commissioning assistance and troubleshooting services available through our global service network. Average response time: <4 hours for critical operational issues.

Documentation Package: Each unit includes installation manual, wiring diagrams, Modbus register map, calibration certificate, and configuration software (Peak 150 Toolbox). Online training modules and video tutorials available through customer portal.

Frequently Asked Questions

What actuator types are compatible with the Woodward 9905-860 digital governor?
The 9905-860 supports industry-standard 4-20mA current loop and 0-10 VDC voltage outputs, ensuring compatibility with Woodward electro-hydraulic actuators (EG-3P, EG-M series), Moog servo valves, and most third-party proportional control valves. Output signal type is field-configurable through DIP switches or software settings.

How does the overspeed protection system meet API611 safety requirements?

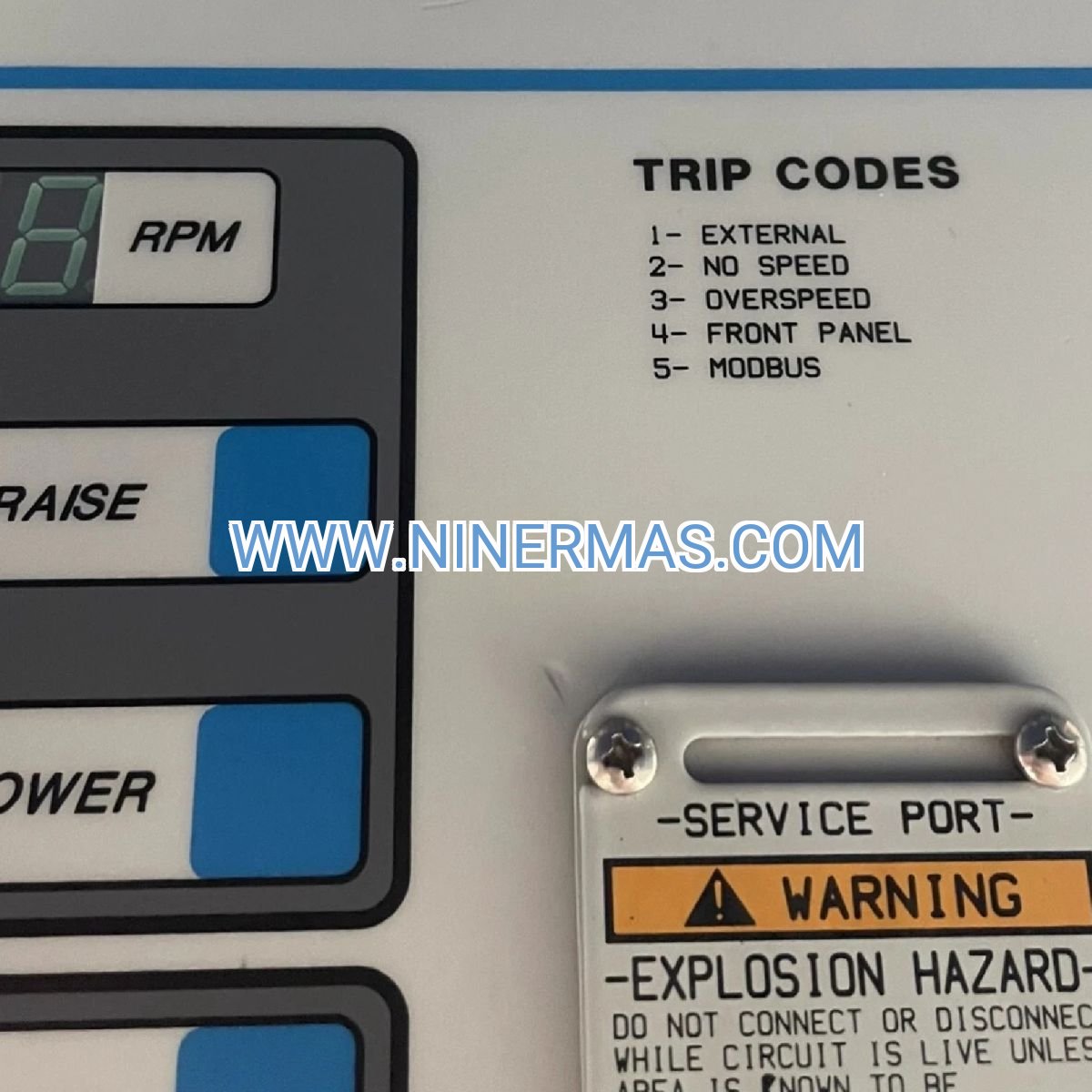

Dual independent overspeed detection channels monitor turbine speed through separate magnetic pickup inputs. Each channel drives dedicated relay outputs with <50ms trip response time. Self-diagnostic testing verifies circuit integrity on every startup, and configurable setpoints (typically 110% rated speed) ensure compliance with API611 emergency shutdown mandates.

Can I retrofit the Peak 150 controller into existing analog governor panels?
Yes, the 9905-860 is designed for direct replacement of legacy Woodward PG, PGG, and TG governors. Standard panel cutout dimensions and terminal block layouts minimize modification requirements. Existing speed sensors, actuators, and wiring can typically be reused, reducing retrofit costs by 50-70% compared to complete panel replacements.

What Modbus registers are available for DCS integration and remote monitoring?
The 9905-860 exposes 100+ Modbus holding registers including speed setpoint, actual speed, load demand, alarm status, and diagnostic counters. Standard register mapping follows Woodward's published protocol documentation. Custom register assignments available for OEM integrations requiring specific data structures or polling sequences.

Does the controller support redundant operation for high-availability applications?
While the 9905-860 is a simplex controller, redundant configurations can be implemented using dual units with external voting logic or by pairing with Woodward's 505E platform in a primary/backup architecture. Consult application engineering for redundancy strategies meeting SIL-rated safety requirements.

What training resources are available for commissioning and troubleshooting?
Woodward offers online training modules covering Peak 150 installation, configuration, and diagnostics. On-site training sessions available for plant maintenance teams (1-2 day programs). Comprehensive technical manuals, video tutorials, and application notes accessible through the customer support portal at no additional cost.
