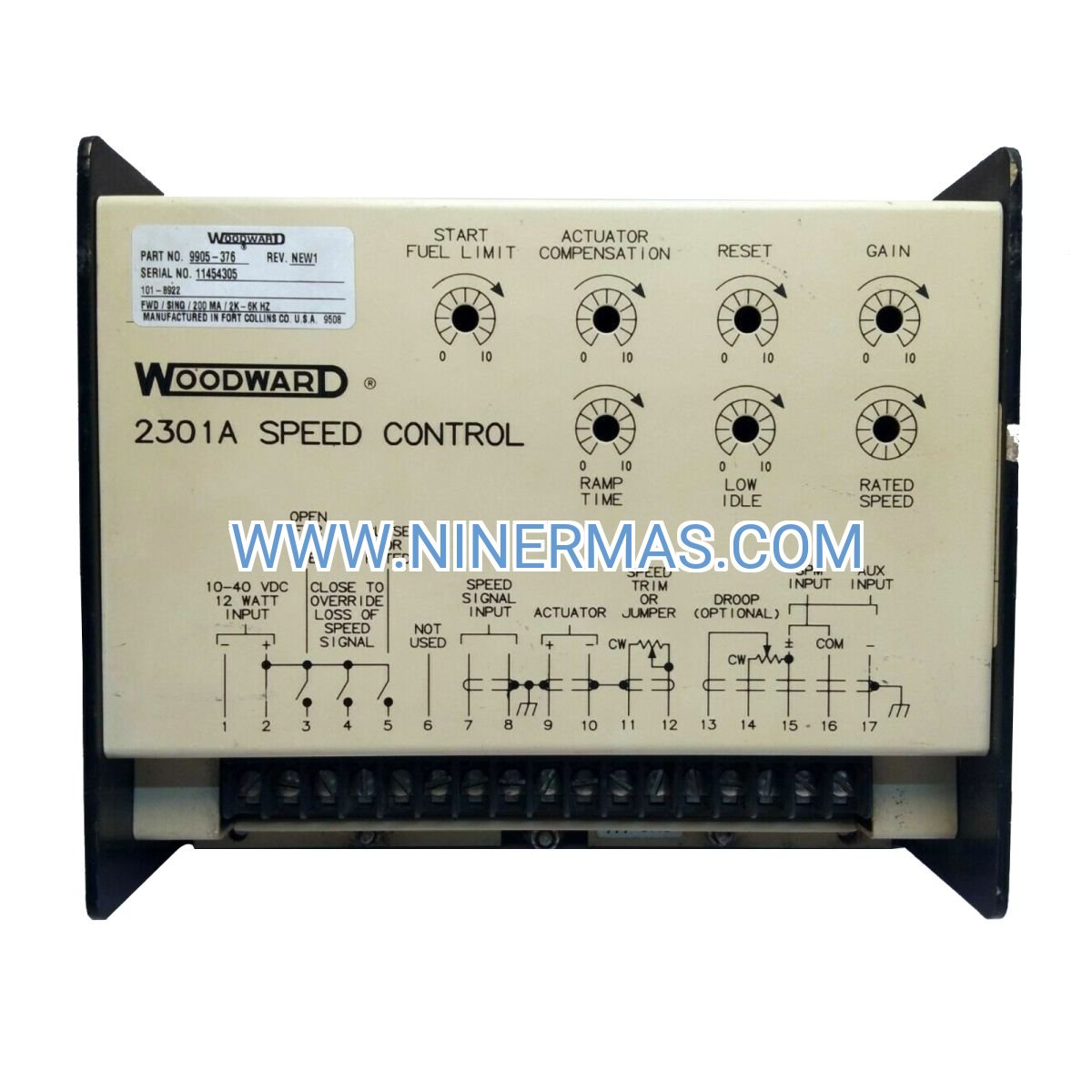

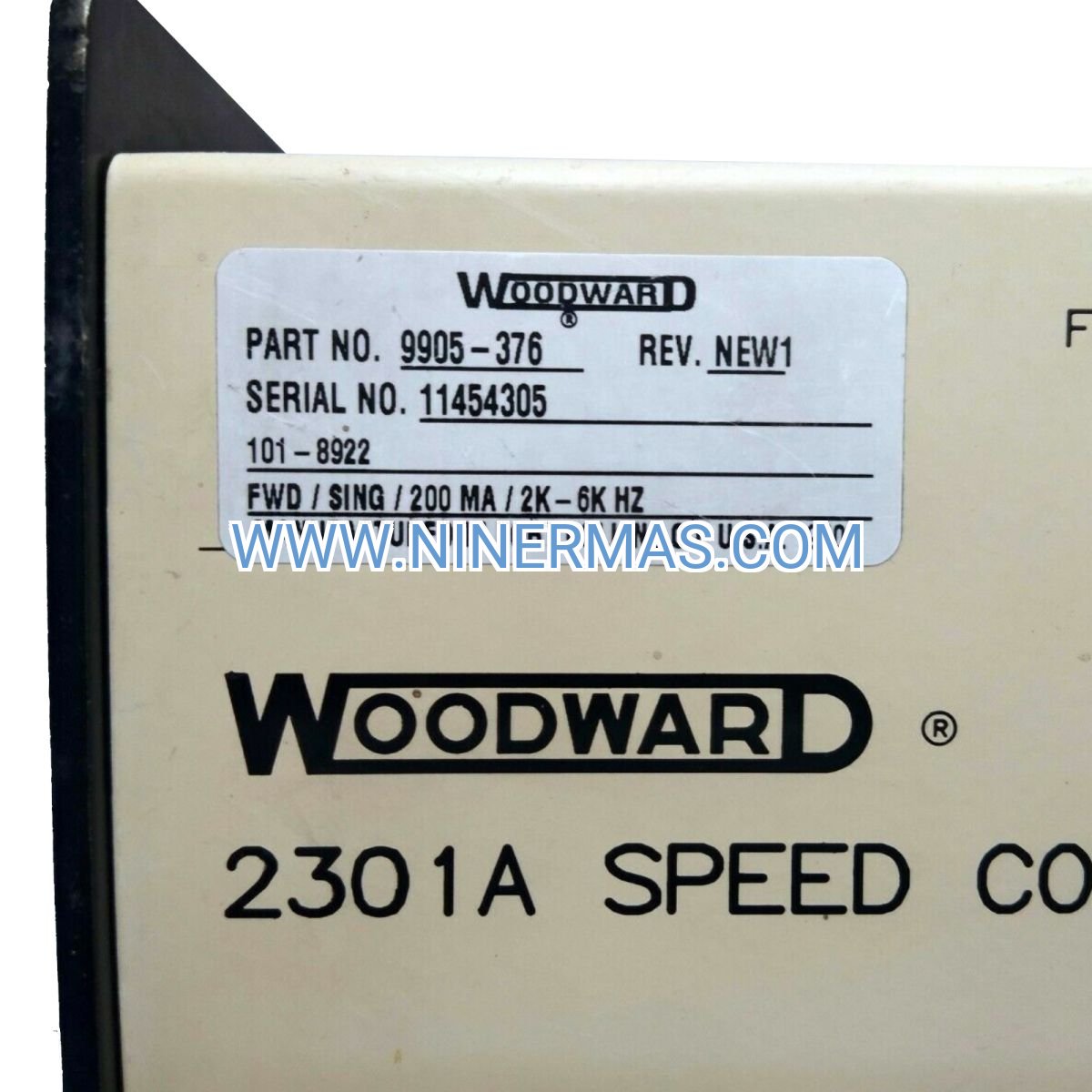

Woodward 9905-376 (Industrial-Grade Multi-Generator Synchronization Controller)

The Woodward 9905-376 represents a field-proven solution for operators managing parallel generator configurations in mission-critical facilities. Engineered around the 2301A platform, this controller delivers precise speed governance and proportional load distribution across 2 to 32 generating units, ensuring stable power delivery during dynamic load events and seamless transitions between operating modes.

Designed for environments where downtime translates to operational risk—hospitals, data centers, offshore platforms, and industrial plants—this module addresses the core challenge of maintaining frequency stability while balancing electrical load across multiple prime movers. Its analog control architecture provides deterministic response times and immunity to digital communication failures that can compromise less robust systems.

With ±0.25% speed regulation accuracy and ±2% load sharing precision, the 9905-376 ensures your generator fleet operates as a unified power source rather than competing individual units, reducing mechanical stress, fuel consumption, and maintenance intervals while maximizing system reliability.

Core Capabilities & Business Value

→ Precision Speed Regulation: Maintains ±0.25% frequency control across load ranges from 0-110%, protecting sensitive electronic equipment from voltage/frequency excursions that cause data corruption or equipment damage.

→ Automatic Load Distribution: Proportional load sharing algorithm balances kW output within ±2% across all paralleled units, preventing single-unit overload and extending engine service life by 15-30% compared to unbalanced operation.

→ Dual-Mode Operation: Switchable droop and isochronous control modes adapt to grid-tied or islanded configurations, enabling flexible deployment in utility parallel, peak shaving, or standalone applications.

✓ Wide Environmental Range: -40°C to +70°C operational rating with conformal coating protection ensures reliable performance in Arctic installations, desert climates, and high-humidity marine environments without derating.

✓ Analog Signal Integrity: 4-20mA current loop and 0-10VDC interfaces eliminate susceptibility to electromagnetic interference common in high-power switchgear environments, maintaining control accuracy where digital protocols fail.

✓ Rapid Response Dynamics: Sub-100ms actuator command updates enable fast load acceptance and rejection without frequency overshoot, critical for UPS bypass transfers and sudden industrial load changes.

Industry-Specific Applications

Healthcare & Critical Infrastructure: Hospitals and emergency response centers deploy the 9905-376 to maintain NFPA 110 Level 1 compliance, where 10-second transfer times and zero frequency deviation protect life-safety systems during utility failures.

Data Center & Telecom: Tier III/IV facilities leverage precise load sharing to maximize N+1 redundancy efficiency, allowing planned maintenance on individual gensets without compromising total system capacity or triggering UPS battery discharge.

Marine & Offshore: Ship propulsion systems and oil platform power generation utilize the controller's vibration-resistant design and salt-fog rating to maintain stable electrical frequency despite engine speed variations from wave motion and dynamic positioning loads.

Manufacturing & Process Industries: Chemical plants and semiconductor fabs require uninterrupted power quality for process control systems—the 9905-376's isochronous mode eliminates frequency droop that causes PLC timing errors and batch quality issues.

Renewable Hybrid Systems: Microgrids combining diesel gensets with solar/wind sources use the controller's fast response to compensate for renewable intermittency, maintaining grid stability as renewable contribution fluctuates from 0-80% of total load.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 9905-376 when your application requires analog control reliability over digital complexity, when operating in electrically noisy environments (welding, VFD-heavy facilities), or when integrating with legacy governor systems lacking digital communication. For applications requiring SCADA integration or remote diagnostics, consider pairing with optional Modbus RTU gateway modules.

Extended Integration Capabilities

SCADA Connectivity: While the base 9905-376 operates on proven analog signals, optional communication modules enable Modbus RTU integration for remote monitoring of speed setpoint, load percentage, and alarm conditions without compromising core control loop integrity.

Actuator Compatibility: Direct interface with Woodward electronic actuators (EG-3P, ProAct series) and third-party proportional actuators from Heinzmann, GAC, and Hägglunds ensures drop-in replacement capability across diverse engine platforms from Caterpillar, Cummins, MTU, and Wärtsilä.

Custom Calibration: Factory or field-programmable gain and bias adjustments accommodate non-standard speed sensing (magnetic pickup, Hall effect, optical encoders) and actuator stroke ranges, supporting retrofit applications in aging generator fleets.

Delivery Timeline & Service Assurance

Standard Lead Time: In-stock units ship within 1-3 business days via expedited carrier. Custom-configured or tested assemblies require 5-7 business days for quality verification and documentation preparation.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure deployments requiring 3-5 year coverage.

Technical Support: Application engineering assistance provided for system design review, actuator selection, and troubleshooting. Phone and email support available during business hours with 4-hour response commitment for critical down situations.

Documentation Package: Each unit includes installation manual, wiring diagrams, calibration procedures, and dimensional drawings. Replacement parts cross-reference and recommended spare parts list provided for maintenance planning.

Frequently Asked Questions

What governor actuator types work with the 9905-376 controller?
The controller outputs industry-standard 4-20mA or 0-10VDC signals compatible with any proportional electronic actuator. Verified compatibility includes Woodward EG-3P, ProAct, GAC ESD5500 series, and Heinzmann PRI/PRO actuators. Mechanical-hydraulic governors require conversion to electronic actuation.

How many generator sets can be paralleled using this load sharing module?
The 2301A architecture supports 2 to 32 generating units in a single paralleled bus. Each unit requires its own 9905-376 controller with interconnected load sharing lines. Systems beyond 8 units typically benefit from dedicated synchronizing equipment for initial paralleling.

Does the module require external programming tools for configuration?
No external software is required for basic operation. All adjustments (gain, bias, droop rate, load sharing trim) are performed via onboard potentiometers accessible through the front panel. This ensures field serviceability without laptop dependency in remote locations.

Can this controller operate in both grid-parallel and island mode?
Yes. The droop mode setting enables stable grid-parallel operation where utility dictates frequency, while isochronous mode provides tight frequency control for islanded microgrids. Mode selection is typically hardwired based on installation requirements, though some integrators implement automatic switching via external relay logic.

What protection features prevent generator damage during load sharing failures?
The controller includes reverse power detection, over-speed shutdown interface, and loss-of-speed-signal failsafe. If load sharing communication fails, the unit automatically reverts to droop mode to prevent motoring or overload conditions. External protective relays (overcurrent, reverse power, differential) provide additional layers per IEEE and NFPA standards.

Is the 9905-376 suitable for marine classification society requirements?
The module meets environmental specifications for marine installations and is commonly deployed on ABS, DNV, Lloyd's Register, and BV-certified vessels. Specific type approval certification should be verified with classification society requirements for your vessel class, as some applications may require additional documentation or testing.

Take the Next Step

Ready to enhance your generator paralleling system reliability? Contact our application engineering team for system design consultation, actuator compatibility verification, or to request a detailed technical datasheet. For immediate procurement, add to cart or reach out for volume pricing on multi-unit installations.

Our specialists can assist with retrofit planning, spare parts identification for existing Woodward systems, and integration guidance for hybrid renewable-diesel configurations.
