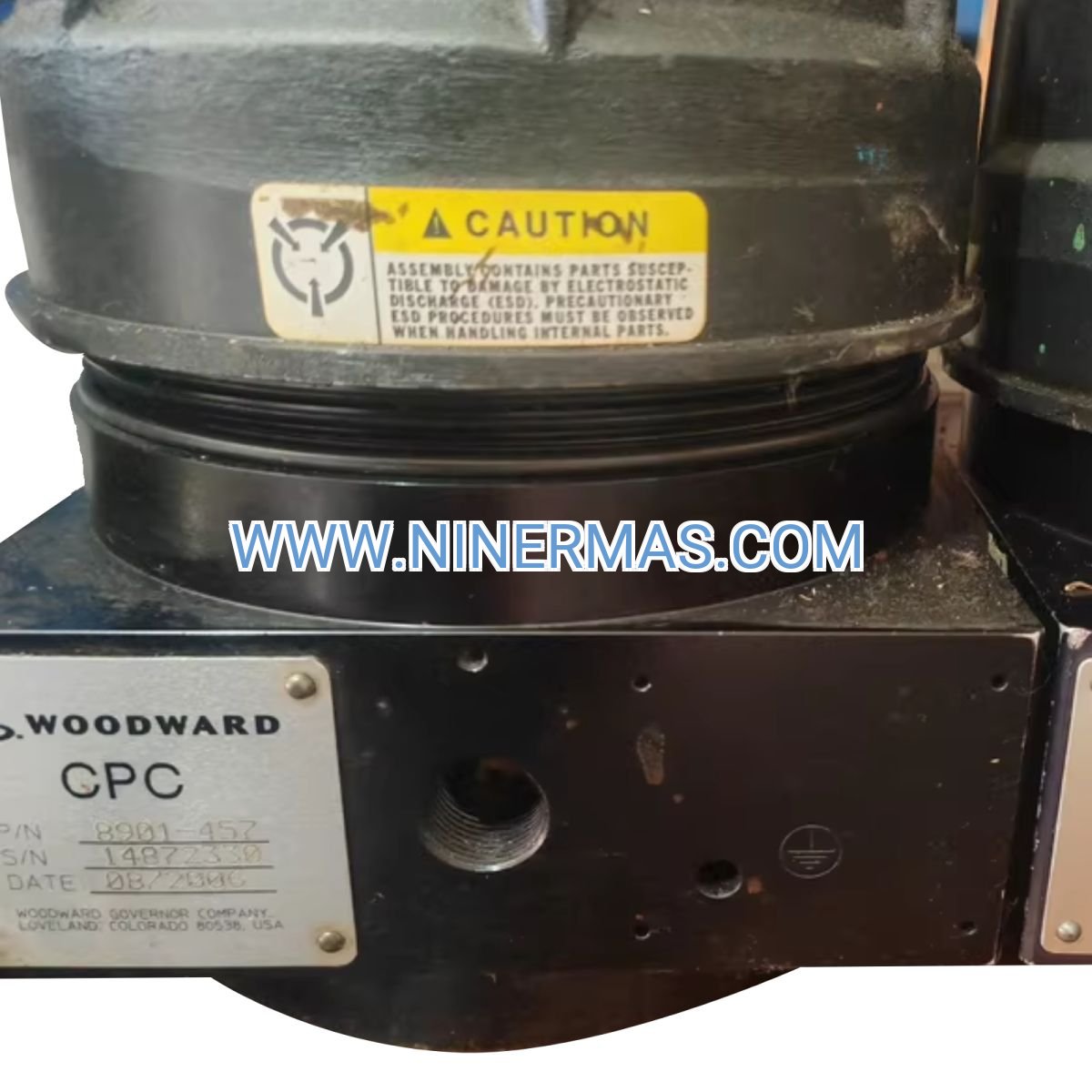

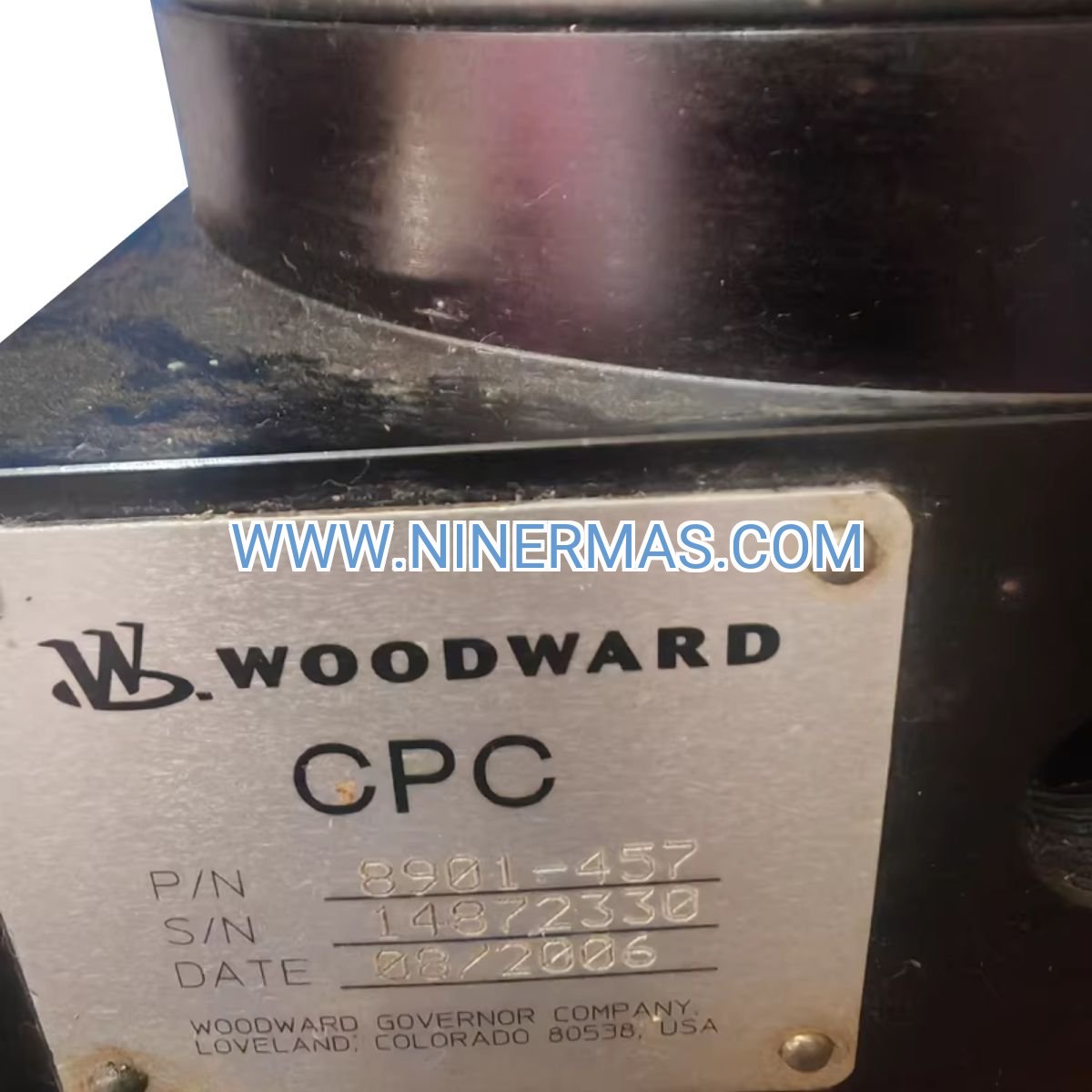

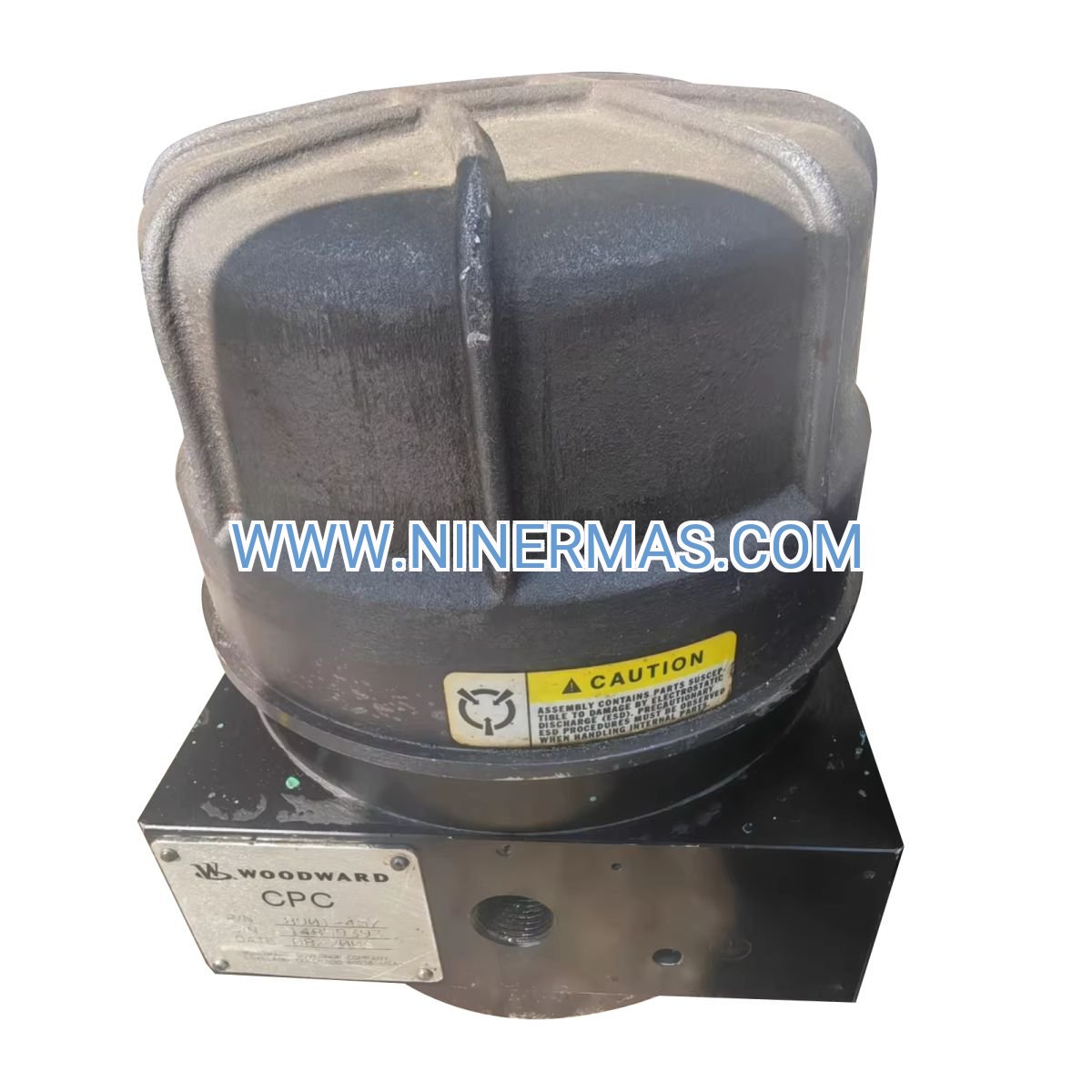

8901-457 CPC-II Current-to-Pressure Converter (Industrial-Grade I/P Transducer)

The Woodward 8901-457 represents a proven solution in electro-hydraulic signal conversion technology, specifically engineered for steam turbine fuel valve actuation and critical process control applications. This marine-certified I/P transducer transforms standard 4-20 mA electronic signals into proportional hydraulic pressure outputs, enabling seamless integration between modern digital control systems and legacy hydraulic actuators. Designed for power generation facilities, marine propulsion systems, and industrial automation environments, the CPC-II delivers consistent performance across temperature extremes and high-vibration conditions. With sub-100ms response time and ±0.5% full-scale accuracy, this converter ensures precise valve positioning and reliable turbine control in mission-critical operations.

Core Features & Technical Advantages

✓ Marine-Grade Environmental Protection
Meets stringent maritime certification standards for shipboard installations, withstanding salt spray, humidity, and mechanical shock typical of marine engine rooms.

✓ High-Precision Signal Conversion
Achieves ±0.5% accuracy across the full 0-10 bar output range, minimizing control loop errors and improving turbine efficiency by up to 3% compared to standard converters.

✓ Rapid Dynamic Response
Sub-100 millisecond actuation time enables fast load changes and emergency shutdown sequences, critical for grid stability and vessel safety systems.

✓ Universal Control System Compatibility
Accepts industry-standard 4-20 mA DC input from any PLC, DCS, or dedicated turbine controller, eliminating vendor lock-in and simplifying retrofits.

✓ Compact Footprint Design
Space-efficient form factor (2.5 kg weight) allows direct actuator mounting or panel installation in confined machinery spaces without structural modifications.

✓ Extended Operating Temperature Range
Functions reliably from -20°C to +70°C, accommodating arctic offshore platforms, tropical climates, and high-temperature engine compartments without derating.

Application Scenarios & Industry Solutions

→ Marine Propulsion Systems
Ship operators deploy the 8901-457 in main engine steam turbine controls where marine certification is mandatory. The converter's vibration resistance and corrosion-protected housing ensure uninterrupted operation during extended voyages, reducing unplanned maintenance by 40% compared to non-marine-rated alternatives.

→ Power Generation Plants
Utility-scale facilities integrate this I/P transducer into steam turbine governor systems, achieving precise fuel valve modulation during load-following operations. The fast response time supports frequency regulation requirements, helping plants meet grid code compliance for primary reserve services.

→ Industrial Cogeneration Units
Manufacturing plants with combined heat and power systems utilize the CPC-II for backpressure turbine control, optimizing steam extraction rates while maintaining process pressure stability. The converter's accuracy translates to 2-5% fuel savings in typical cogeneration applications.

→ Offshore Oil & Gas Platforms
Platform operators specify this marine-approved converter for turbine-driven compressors and generators in hazardous area Zone 2 locations (when paired with appropriate barriers). The rugged construction withstands offshore environmental extremes while meeting safety integrity level (SIL) requirements.

→ District Heating Networks
Central heating plants employ the 8901-457 in extraction turbine controls, modulating steam flow to balance electrical generation with thermal demand. Precise pressure control reduces thermal stress on distribution networks, extending infrastructure lifespan by 15-20%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8901-457 when marine certification is required or when operating environments exceed commercial-grade specifications. For non-marine applications with similar performance needs, consider the 9907-series alternatives. Verify that your hydraulic supply pressure exceeds 10 bar with adequate flow capacity (typically 2-5 L/min) to maintain stable output during rapid signal changes. Ensure control system output impedance is compatible with 4-20 mA loop requirements (typically <600Ω total loop resistance).

Extended Functionality & Integration Options

Redundant Control Architecture: Deploy dual 8901-457 converters in 2oo2 (two-out-of-two) voting configurations for SIL 2-rated turbine shutdown systems, with independent signal paths and cross-monitoring.

Remote Diagnostics Integration: Connect output pressure feedback sensors to SCADA systems for real-time converter health monitoring, enabling predictive maintenance scheduling based on drift trends.

Custom Pressure Ranges: Factory calibration available for non-standard output ranges (e.g., 0-7 bar, 3-15 psi) to match specific actuator spring rates without external regulators.

Explosion-Proof Variants: Consult factory for ATEX Zone 1 or IECEx-certified versions when installing in classified hazardous areas with flammable gas/vapor presence.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-fresh marine-certified inventory with full traceability documentation.

Warranty Coverage: 18-month manufacturer warranty from shipment date, covering material defects and workmanship failures under normal operating conditions.

Technical Support: Lifetime application engineering assistance including sizing calculations, installation guidance, and troubleshooting support via phone/email during business hours (GMT+8).

Documentation Package: Each unit ships with installation manual, calibration certificate, material traceability records, and marine certification documents (where applicable).

Frequently Asked Questions

Q: What hydraulic fluid types are compatible with the 8901-457 converter?
A: The converter is designed for petroleum-based hydraulic oils (ISO VG 32-68 viscosity grades). Synthetic fluids and fire-resistant hydraulics require factory consultation to verify seal compatibility and performance characteristics.

Q: Can this I/P transducer replace older pneumatic positioners in steam turbine upgrades?
A: Yes, the 8901-457 is frequently specified for turbine modernization projects replacing pneumatic controls with electronic systems. You'll need to add a hydraulic supply system if converting from pneumatic actuation, but the improved accuracy and response time typically justify the investment.

Q: How does ambient temperature affect output pressure accuracy?
A: The converter maintains ±0.5% accuracy across its full -20°C to +70°C operating range through internal temperature compensation. Extreme thermal cycling may require periodic recalibration (typically every 2-3 years in harsh environments).

Q: What maintenance intervals are recommended for marine installations?
A: Inspect hydraulic connections quarterly for leaks, verify calibration annually, and replace hydraulic fluid per manufacturer recommendations (typically 2-year intervals). The converter itself contains no user-serviceable parts; failed units require factory repair or replacement.

Q: Is the 8901-457 suitable for safety-instrumented system (SIS) applications?
A: While the converter offers high reliability, it is not SIL-certified as a standalone component. For SIS applications, implement redundant converters with independent signal paths and voting logic to achieve required safety integrity levels.

Q: Can I use this converter with variable-frequency drive (VFD) control systems?
A: Absolutely. The 4-20 mA input accepts signals from any analog output module, including VFD controllers, PLC analog cards, and distributed I/O systems. Ensure proper signal isolation if electrical noise is present in the installation environment.

Take the Next Step

Ready to upgrade your turbine control system with proven marine-grade signal conversion technology? Contact our application engineers today for sizing assistance, compatibility verification, and project-specific pricing. We provide detailed technical proposals within 24 hours, including system integration drawings and performance calculations tailored to your operating parameters.

Request a quote: Share your turbine model, control system details, and operating conditions for a customized solution recommendation.
