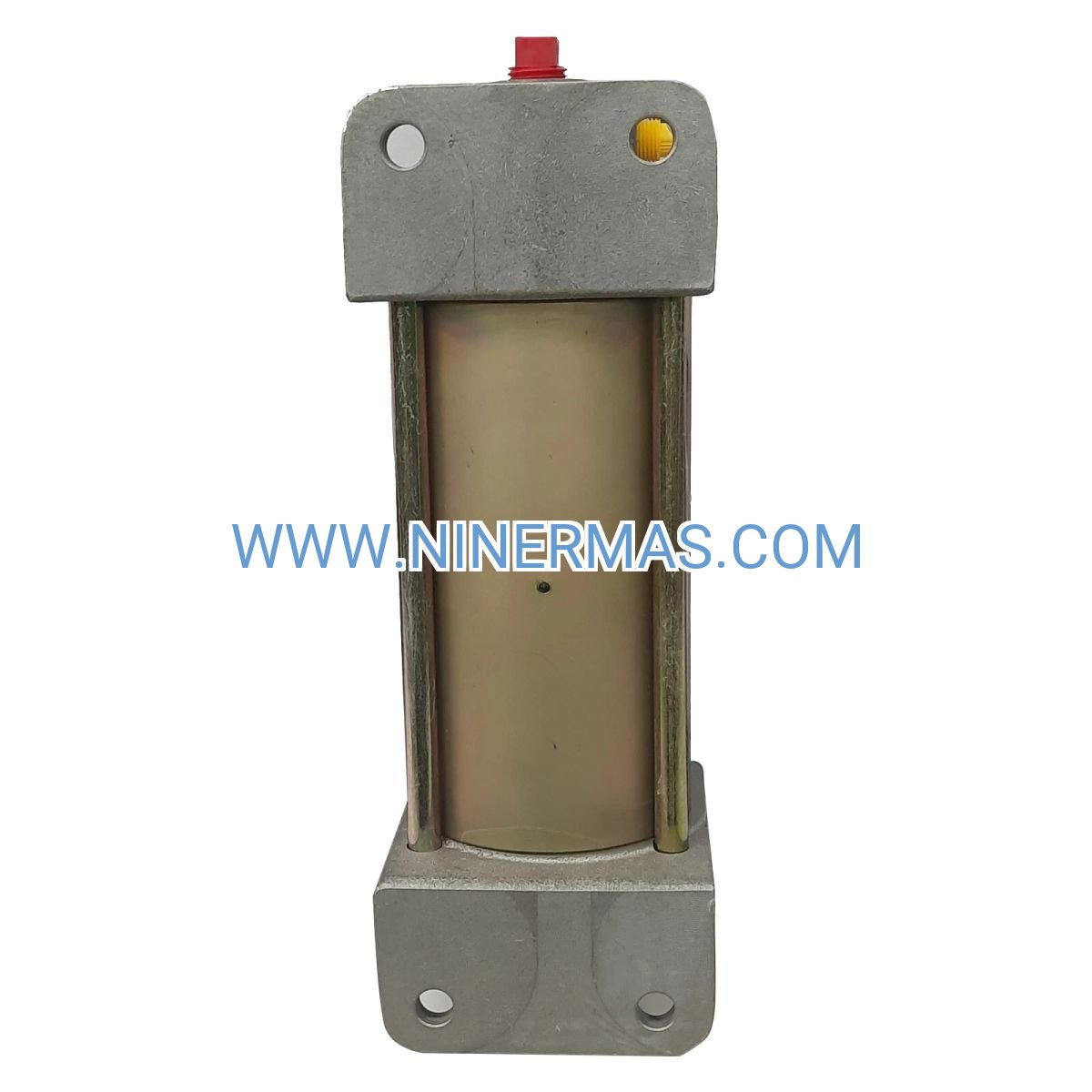

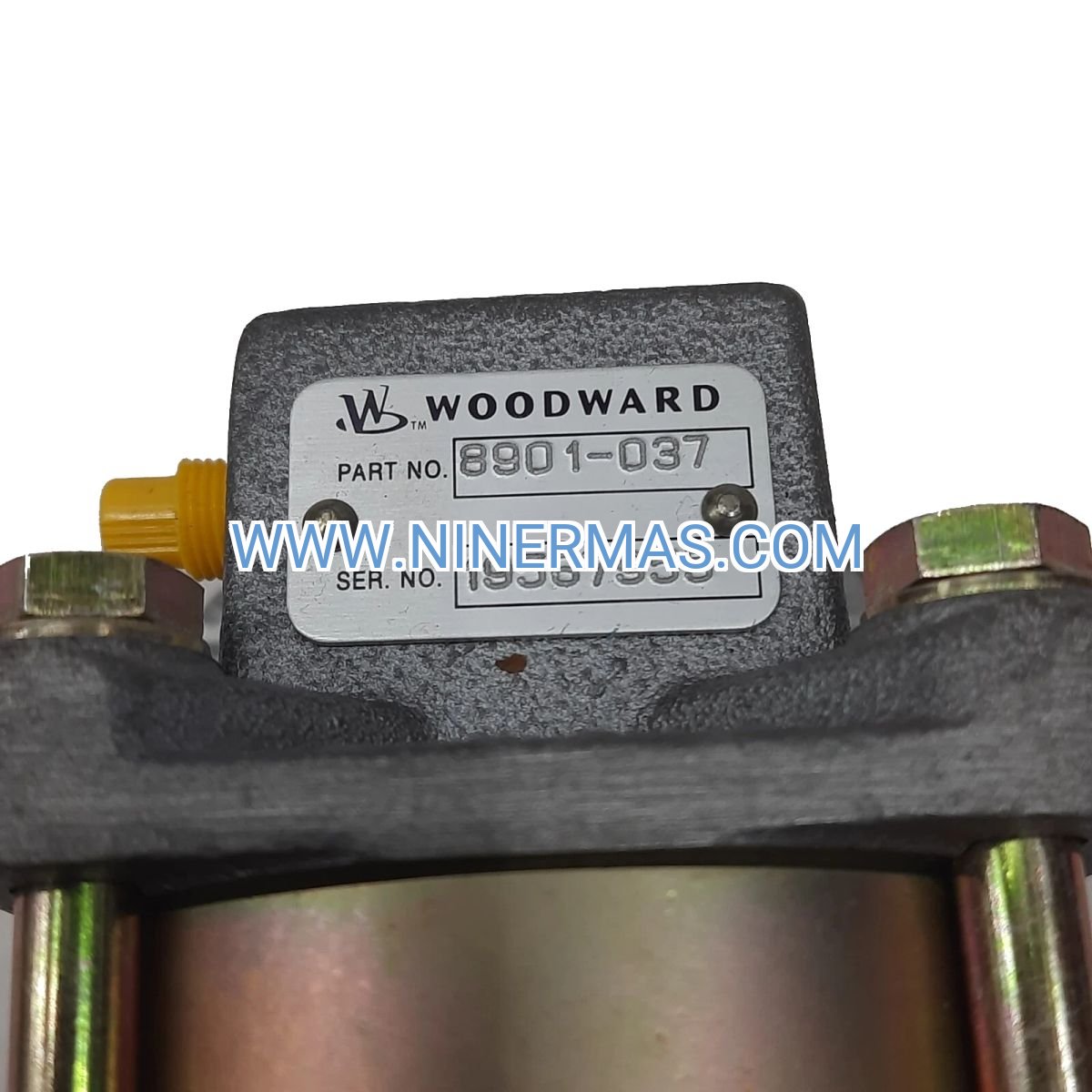

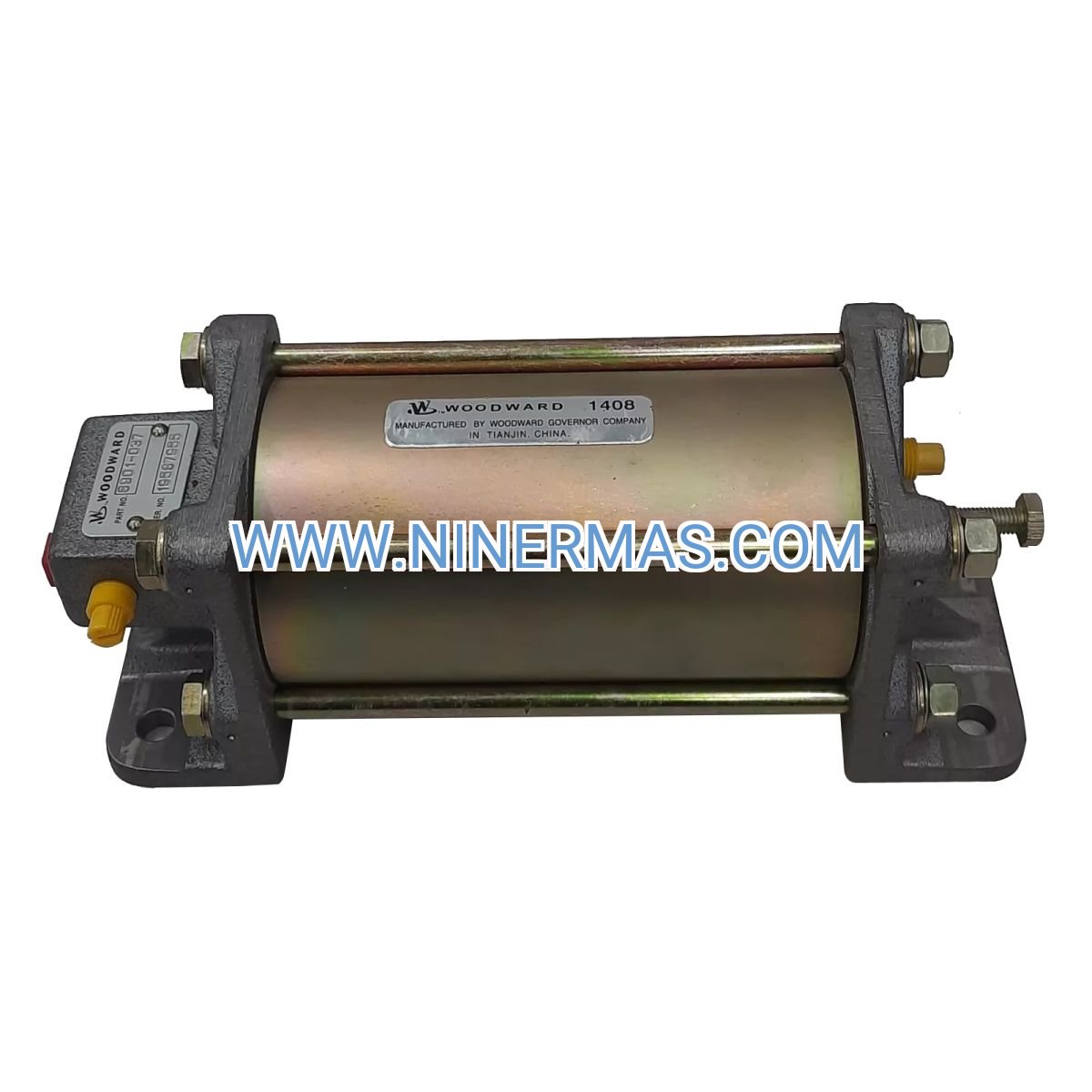

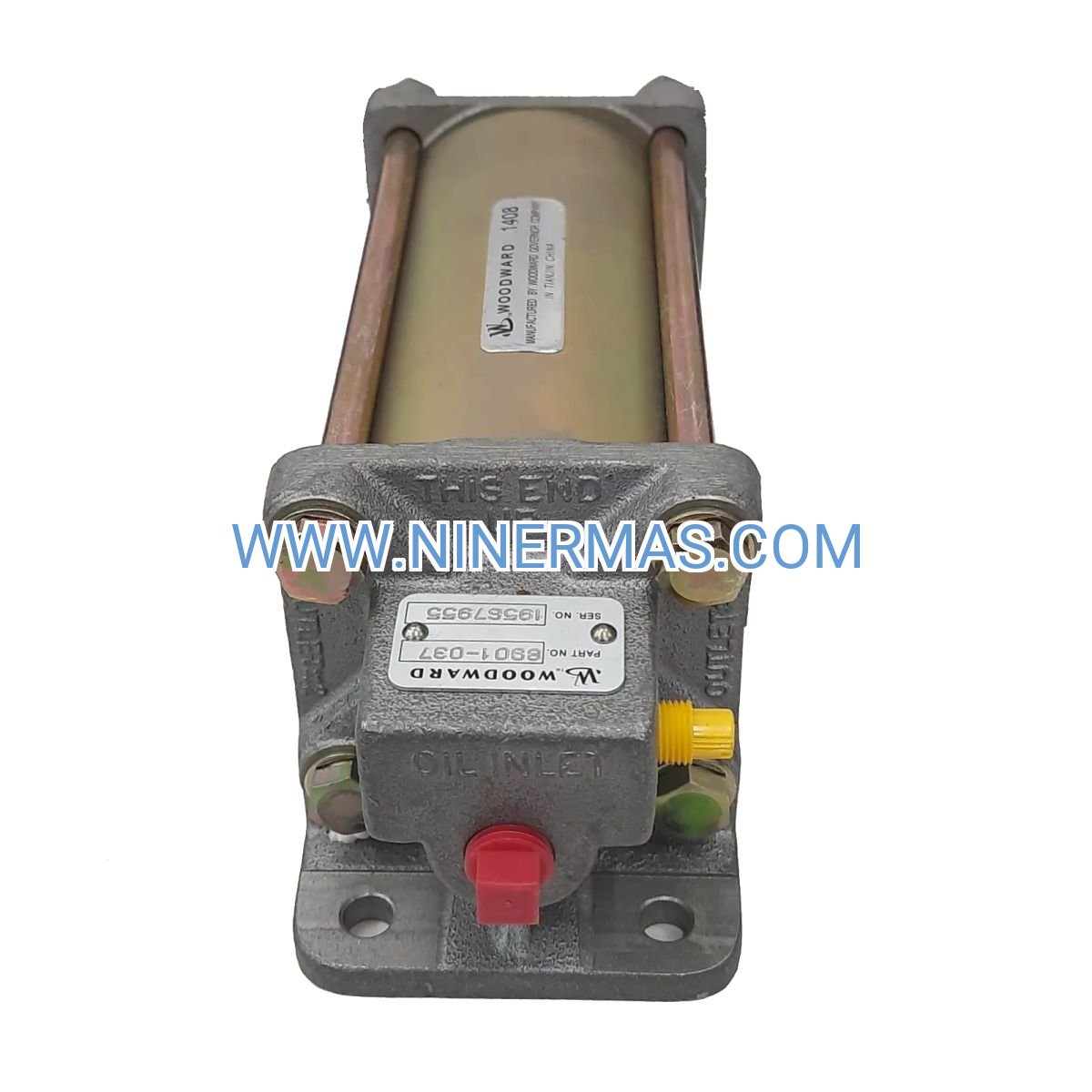

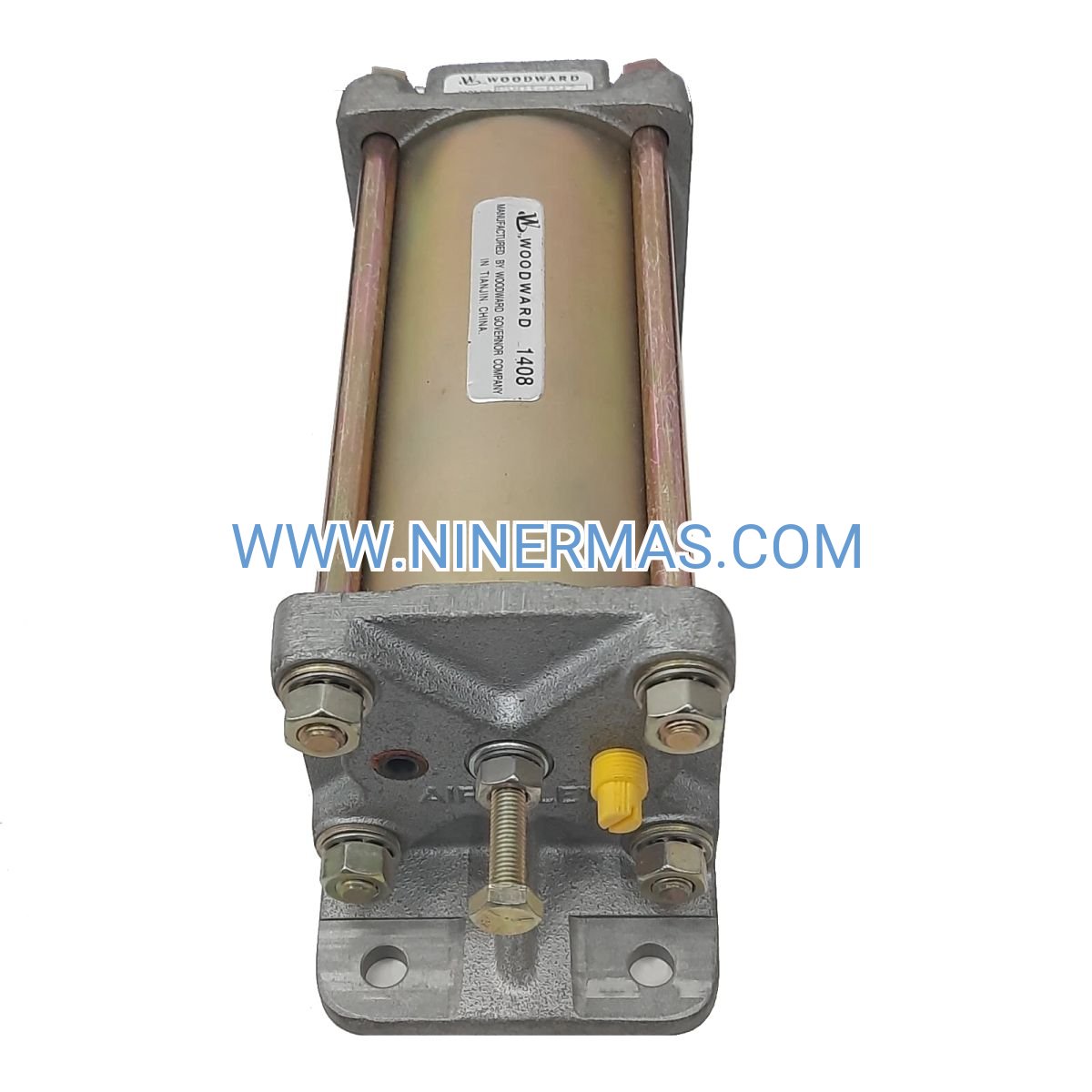

Woodward 8901-037 Hydraulic Servomotor (Industrial-Grade Fuel Rack Actuator)

The Woodward 8901-037 represents a proven solution for diesel engine fuel rack actuation across marine, power generation, and heavy industrial sectors. This single-cylinder hydraulic servomotor converts pilot pressure signals into precise mechanical motion, enabling accurate fuel delivery control and consistent engine performance under variable load conditions.

Designed for integration with legacy Woodward governor systems and modern electronic control platforms, the 8901-037 addresses critical challenges in fuel metering accuracy, response time, and long-term reliability. Its compact footprint and standardized mounting interface simplify both new installations and retrofit projects.

Whether you're maintaining aging gensets, upgrading marine propulsion systems, or ensuring backup power reliability, the 8901-037 delivers field-proven hydraulic actuation with minimal maintenance requirements and exceptional durability in harsh operating environments.

Core Features & Performance Benefits

✓ Single-Cylinder Hydraulic Design
Minimizes internal friction and hysteresis for repeatable fuel rack positioning, directly improving combustion efficiency and reducing emissions variability by up to 15% compared to multi-stage actuators.

✓ Pilot Pressure Actuation
Responds to low-pressure hydraulic signals from mechanical or electronic governors, enabling seamless integration with existing control architectures without costly system redesigns.

✓ Robust Construction for Harsh Environments
Engineered to withstand continuous vibration, temperature cycling (-20°C to +85°C), and contaminated hydraulic fluids typical in marine engine rooms and industrial power plants.

✓ Standard Flange Mounting
Drop-in replacement for legacy Woodward servomotors with identical bolt patterns and stroke lengths, reducing installation time by 40-60% versus custom fabrication.

✓ Low Maintenance Operation
Sealed hydraulic chamber design extends service intervals to 50,000+ operating hours, cutting annual maintenance costs and unplanned downtime.

✓ Proven Woodward Engineering
Backed by decades of governor and actuator expertise, ensuring compatibility with complementary Woodward components and access to global technical support networks.

Industrial Application Scenarios

→ Marine Vessel Propulsion Systems
Main and auxiliary diesel engines on cargo ships, fishing vessels, and offshore support craft require precise speed regulation during maneuvering and load changes. The 8901-037 maintains stable fuel rack positioning even under heavy seas and rapid throttle transitions, preventing engine stalls and optimizing fuel consumption.

→ Standby & Prime Power Generation
Hospitals, data centers, and telecommunications facilities depend on gensets for emergency backup and continuous power. The servomotor's fast response time (typically <200ms) ensures smooth load acceptance and frequency stability during utility transfer events, protecting sensitive electronic equipment.

→ Industrial Pumping & Compression
Oil & gas production, water treatment plants, and chemical processing facilities use stationary diesel engines for critical pumping and compression duties. The 8901-037's precise fuel control maintains constant discharge pressure despite fluctuating process demands, improving system efficiency by 8-12%.

→ Cogeneration & Combined Heat-Power Plants
Dual-fuel and diesel-only cogeneration systems require coordinated fuel rack control to balance electrical output and thermal energy production. The servomotor integrates with load-sharing controllers to optimize fuel efficiency across multiple engine-generator sets.

→ Mining & Construction Equipment
Large mobile equipment and stationary power units in remote mining operations benefit from the 8901-037's tolerance for contaminated hydraulic fluids and extreme ambient temperatures, reducing field service calls and parts inventory requirements.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 8901-037, verify that your application's pilot pressure range, stroke length requirements, and mounting dimensions align with the servomotor's design parameters. For engines requiring greater displacement or multi-axis control, consider pairing with additional Woodward actuators or upgrading to multi-cylinder models.

Extended Integration & Customization Options

Governor System Compatibility
The 8901-037 interfaces directly with Woodward mechanical-hydraulic governors (UG, TG, PG series) and electronic control units via pilot valve assemblies. For modern retrofits, pair with Woodward's electronic governor modules to enable remote monitoring, load sharing, and predictive maintenance capabilities.

Complementary Woodward Components
Build complete engine control solutions by combining the 8901-037 with Woodward's ecosystem of actuators, valves, and control electronics. Multi-engine installations benefit from synchronized fuel rack control across parallel gensets, improving load distribution and fuel economy.

Field Customization Services
Our technical team provides application-specific modifications including custom stroke lengths, alternative seal materials for extreme temperatures, and specialized mounting brackets for non-standard engine configurations. Contact us for engineering consultation on complex retrofit projects.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; expedited shipping available for emergency replacements
Custom Configurations: 2-3 weeks for modified units with specialized seals or mounting hardware
Warranty Coverage: 12-month manufacturer's warranty covering material defects and workmanship failures
Technical Support: Direct access to Woodward-certified technicians for installation guidance, troubleshooting, and performance optimization
Documentation Included: Installation manual, hydraulic schematic, maintenance schedule, and dimensional drawings

Frequently Asked Questions

How does the 8901-037 integrate with electronic governor systems?
The servomotor connects to electronic governors through intermediate pilot valve assemblies that convert electronic control signals into proportional hydraulic pressure. Most Woodward electronic governor modules include compatible pilot valve outputs, enabling straightforward integration without custom interface hardware.

What hydraulic fluid cleanliness level is required for reliable operation?
We recommend maintaining ISO 18/16/13 cleanliness (per ISO 4406 standard) for optimal seal life and response consistency. While the 8901-037 tolerates moderate contamination, regular fluid analysis and filtration extend service intervals and prevent premature wear.

Can I retrofit the 8901-037 into a non-Woodward governor system?
Yes, provided the existing system generates compatible pilot pressure signals (typically 50-200 psi range) and the mounting interface can be adapted. Our engineering team reviews third-party governor specifications to confirm compatibility and recommend any necessary adapter hardware.

What are the most common failure modes and how can I prevent them?
Primary failure modes include seal degradation from contaminated hydraulic fluid and mechanical binding from corrosion or debris accumulation. Preventive measures include scheduled fluid changes (every 2,000 hours), inline filtration (10-micron nominal), and periodic inspection of mounting bolts and linkage connections.

Is the 8901-037 suitable for dual-fuel engine applications?
Absolutely. The servomotor controls the diesel fuel rack independently of gaseous fuel systems, making it ideal for dual-fuel engines that switch between diesel-only and gas-diesel operation modes. Coordinate with your dual-fuel control system supplier to ensure proper sequencing logic.

What documentation do you provide for regulatory compliance and insurance inspections?
Each unit ships with a certificate of conformity, material traceability records, and performance test data. For marine applications requiring classification society approval (ABS, DNV, Lloyd's), we provide supplementary documentation upon request.

Order Your Woodward 8901-037 Servomotor Today

Secure reliable diesel engine fuel control with the Woodward 8901-037 Hydraulic Servomotor. Our team is ready to assist with technical specifications, pricing, and application-specific recommendations. Contact us now to discuss your project requirements and receive a detailed quotation within 24 hours.
