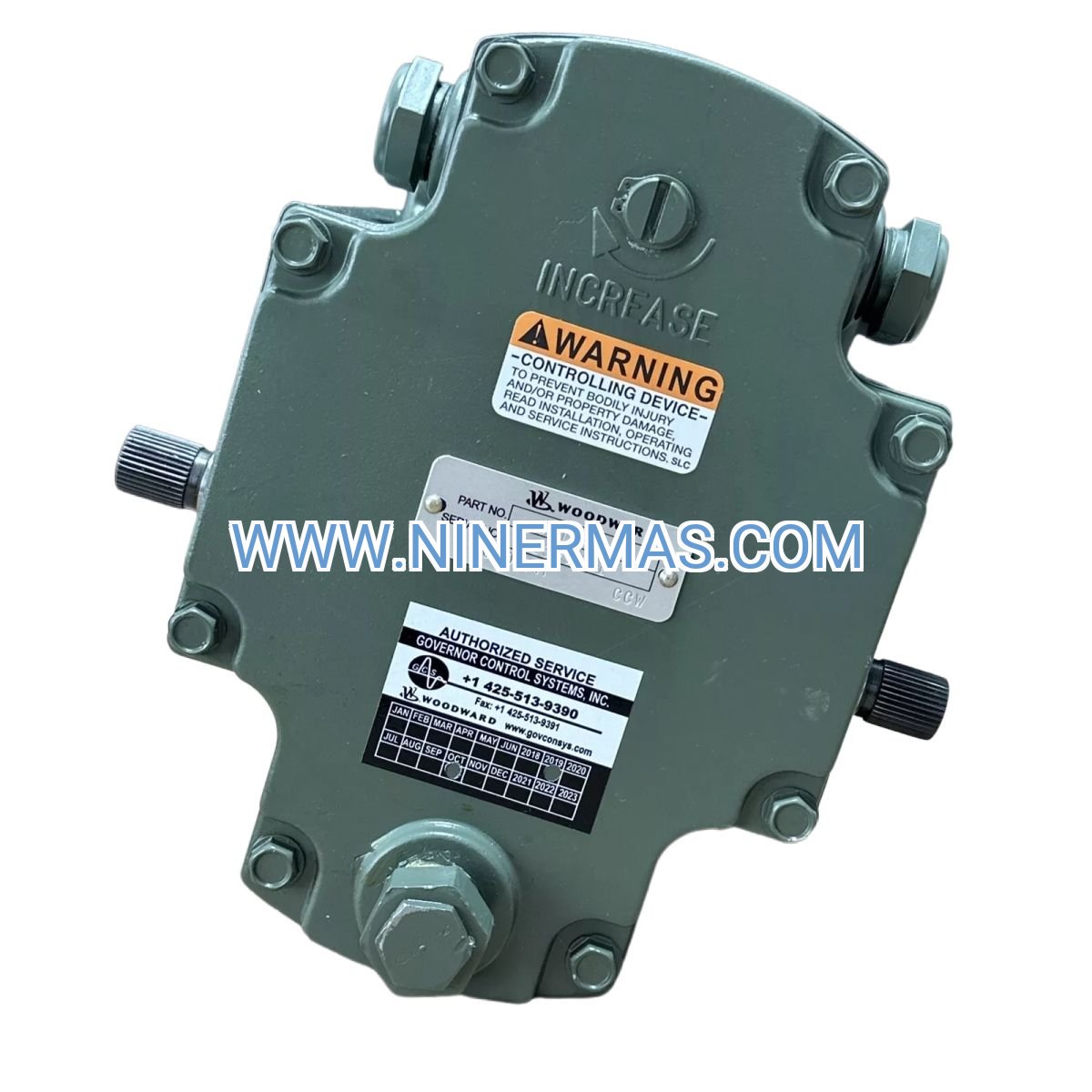

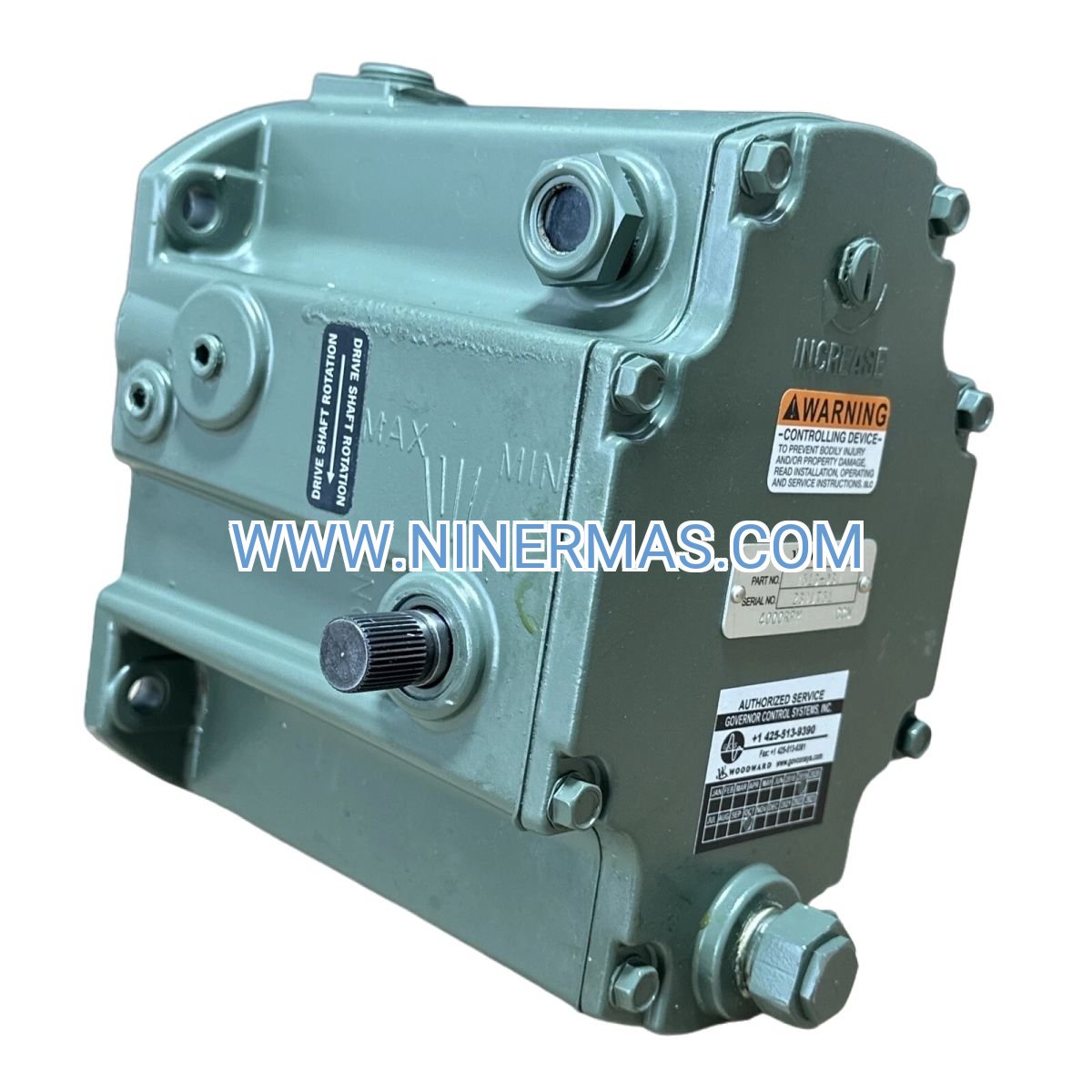

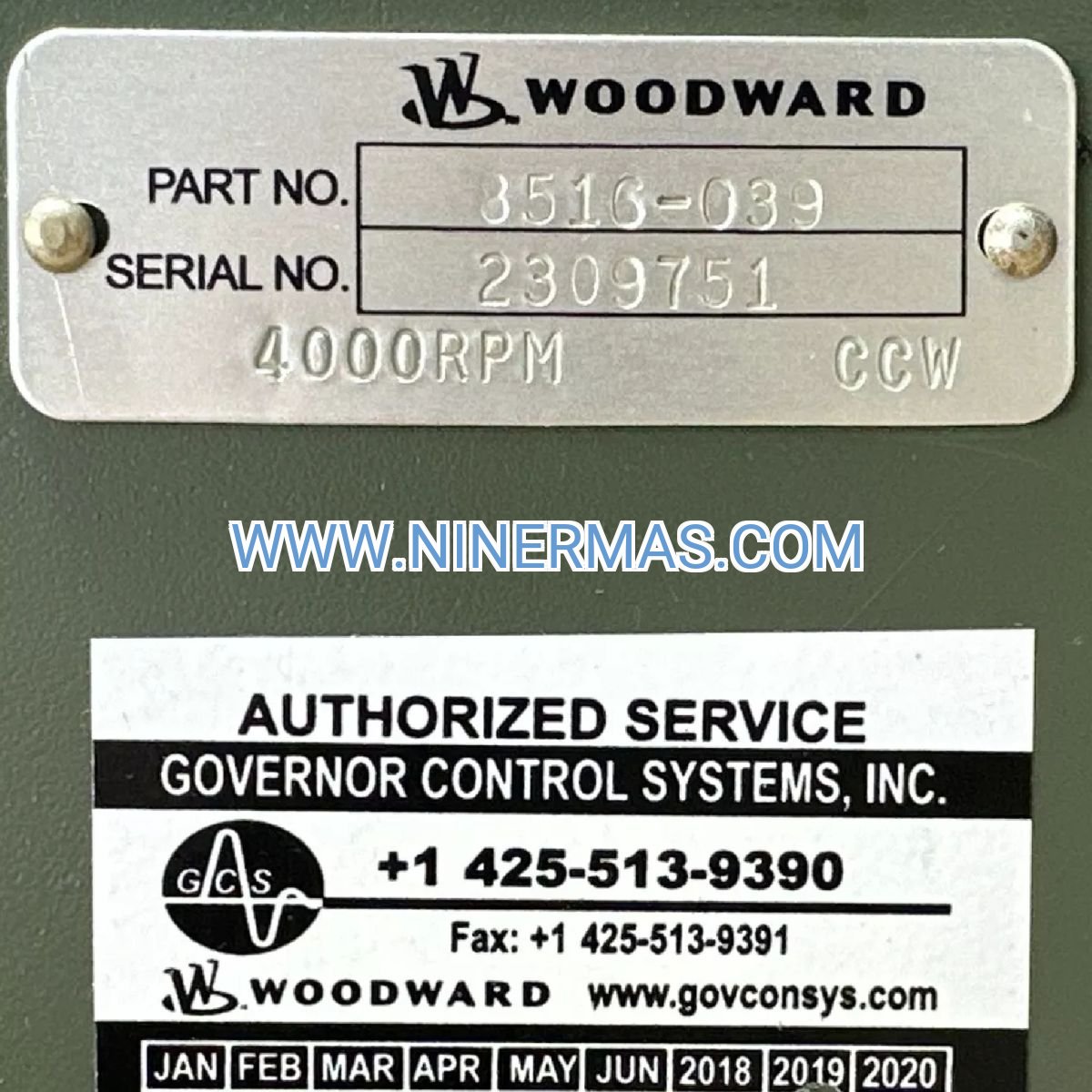

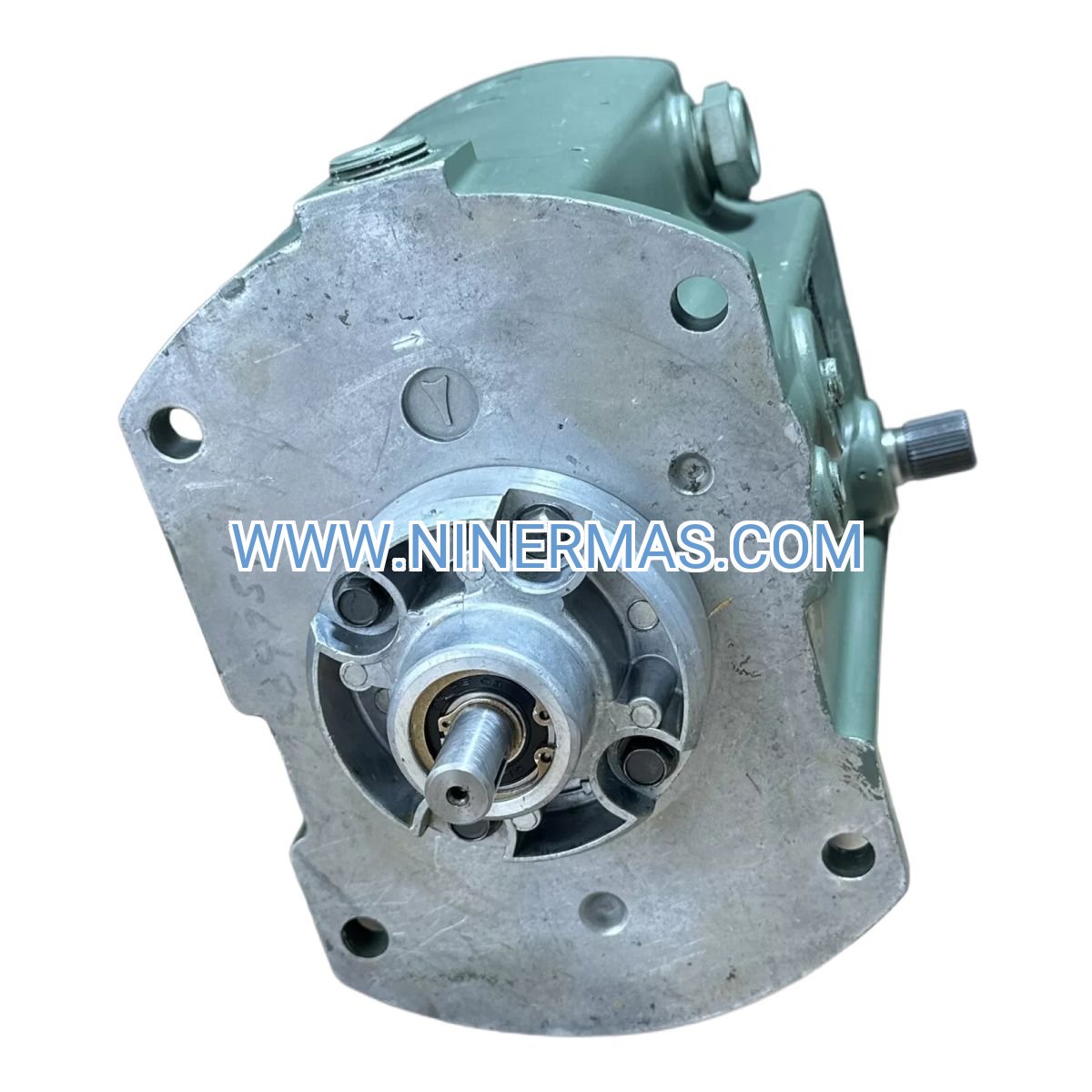

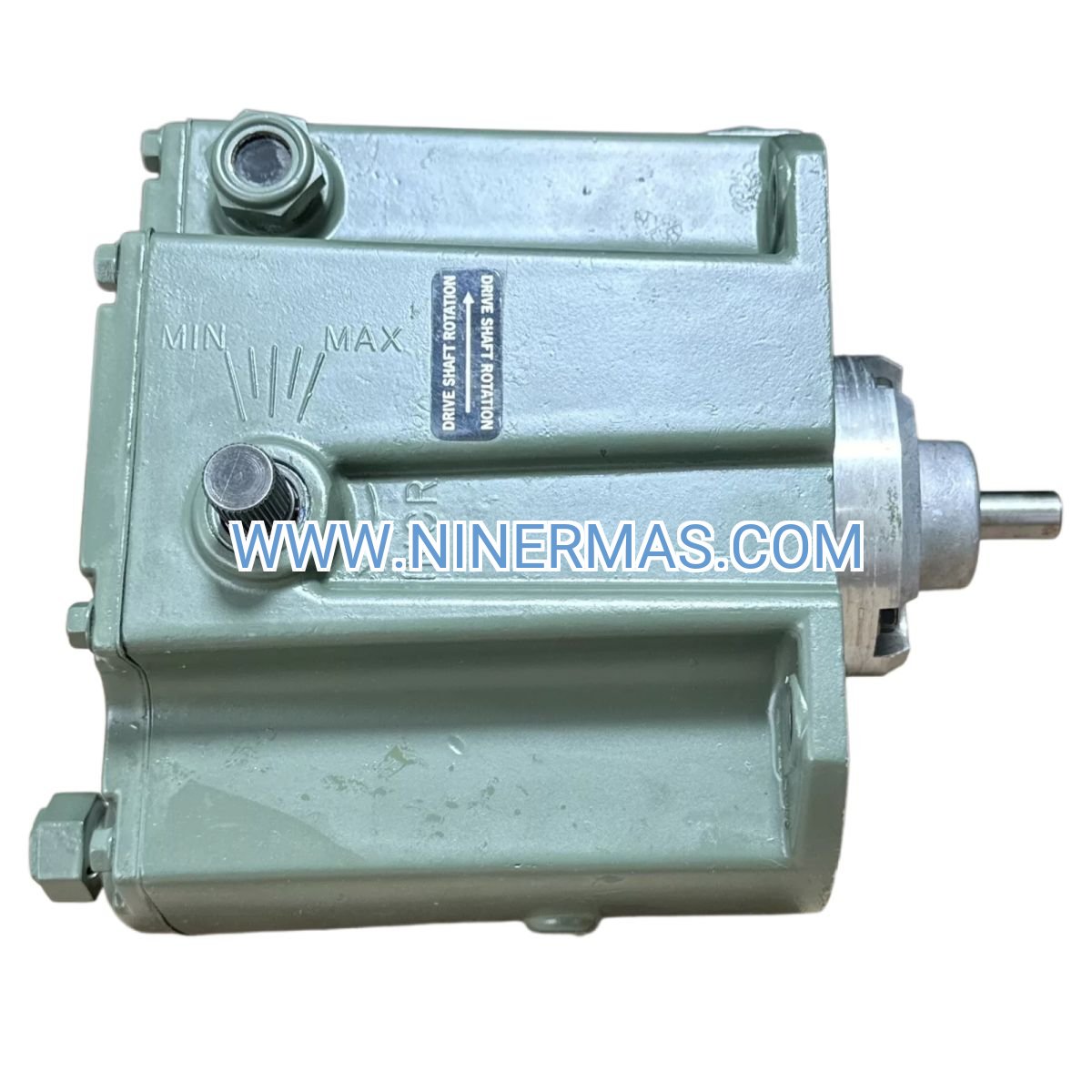

8516-039 TG-13 Mechanical-Hydraulic Governor (Industrial-Grade Speed Control)

The 8516-039 TG-13 governor delivers autonomous speed regulation for API Standard 611 steam turbines through proven mechanical-hydraulic architecture. Engineered for process industries demanding fail-safe operation without electronic dependencies, this governor combines centrifugal flyweight sensing with hydraulic servo amplification to maintain precise turbine speed across variable load conditions.

Designed for refineries, petrochemical facilities, and power generation plants, the TG-13 operates independently of electrical power—making it the preferred choice for emergency backup systems, hazardous area installations, and environments where electromagnetic interference compromises electronic controls. Field-adjustable speed setpoints and droop characteristics enable rapid commissioning and on-site optimization without specialized calibration equipment.

With over four decades of proven service in critical applications worldwide, the 8516-039 represents Woodward's commitment to mechanical reliability, delivering ±0.25% speed regulation accuracy while withstanding temperatures from -40°F to +185°F and hydraulic pressures up to 300 psi.

Core Features & Benefits

→ Autonomous Mechanical Operation
Eliminates dependency on electrical power, control panels, or digital processors. The purely mechanical-hydraulic design ensures continuous operation during power outages and provides intrinsic safety in hazardous area classifications (Class I, Division 2 environments).

→ API611 Compliance & Precision
Meets stringent API Standard 611 requirements for general-purpose steam turbines. Maintains ±0.25% speed droop accuracy under steady-state conditions, with adjustable droop range (2-6%) for load-sharing in parallel turbine configurations.

✓ High-Torque Hydraulic Servo Output
Delivers 12 ft-lb (16.3 N·m) maximum output torque through hydraulic amplification, providing sufficient force to actuate steam valves on turbines up to 1500 HP without external boosters or positioners.

✓ Wide Speed Range Adaptability
Adjustable speed control from 2400 to 4000 RPM accommodates diverse turbine applications—from small auxiliary drives to medium-capacity process turbines—through simple mechanical adjustment of the flyweight spring assembly.

✓ Extreme Environment Durability
Corrosion-resistant materials and sealed bearing assemblies enable reliable operation in marine, offshore, and high-humidity environments. Temperature rating of -40°F to +185°F (-40°C to +85°C) supports arctic and tropical installations.

✓ Field-Serviceable Design
Modular construction allows in-situ replacement of wear components (flyweights, pilot valve, servo piston) without removing the governor from the turbine shaft, reducing maintenance downtime by 60% compared to integrated designs.

Application Scenarios

Refinery & Petrochemical Process Units
In catalytic cracking units, hydroprocessing facilities, and ethylene plants, the 8516-039 controls steam turbine-driven compressors and pumps where process upsets, temperature extremes, and vibration challenge electronic governors. The mechanical design withstands corrosive atmospheres and provides fail-safe speed limiting during emergency shutdowns.

Emergency Power Generation Systems
Black-start steam turbine-generator sets in hospitals, data centers, and critical infrastructure rely on the TG-13's electrical independence. During grid failures, the governor maintains generator frequency without battery backup or UPS systems, ensuring uninterrupted power delivery.

Marine & Offshore Propulsion
Auxiliary steam turbines on LNG carriers, offshore platforms, and naval vessels operate in salt-spray environments with constant vibration. The 8516-039's corrosion-resistant construction and vibration tolerance (per MIL-STD-167) ensure reliable speed control throughout 20+ year service intervals.

Cogeneration & District Heating
Combined heat and power (CHP) facilities use the TG-13 to regulate back-pressure steam turbines driving generators or mechanical equipment. Adjustable droop settings enable seamless load sharing between multiple turbines, optimizing steam balance across seasonal demand variations.

Industrial Manufacturing Processes
Paper mills, chemical plants, and food processing facilities deploy the 8516-039 on process steam turbines where continuous operation is critical. The governor's mechanical simplicity reduces spare parts inventory costs and eliminates obsolescence concerns associated with electronic control platforms.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 8516-039 TG-13 when your application requires: (1) Turbine speed within 2400-4000 RPM range, (2) Hydraulic supply pressure between 150-300 psi available from turbine lube oil system, (3) Steam valve actuation force ≤12 ft-lb, (4) Electrical independence for safety or reliability, (5) API611 compliance for general-purpose steam turbines. For speeds below 2400 RPM or above 4000 RPM, consult factory for alternative TG-13 configurations or consider electronic governor solutions.

Extended Functions

Remote Speed Adjustment Interface
Optional pneumatic or hydraulic speed-setting actuators can be integrated with the TG-13's speed adjustment mechanism, enabling remote setpoint control from distributed control systems (DCS) while maintaining the governor's mechanical fail-safe characteristics.

Overspeed Protection Integration
The 8516-039 can be paired with Woodward mechanical overspeed trip devices (e.g., 8200 series) to provide independent overspeed shutdown protection, meeting NFPA 85 and API611 requirements for dual-redundant turbine protection systems.

Load Limiting & Anti-Surge Control
When coupled with external load-sensing hydraulic circuits, the TG-13 can implement load limiting functions to prevent turbine overload or compressor surge conditions, extending equipment life and improving process stability.

Retrofit Adaptation Kits
Woodward offers application-specific mounting adapters and linkage kits for retrofitting the 8516-039 to legacy steam turbines from manufacturers including Elliott, Dresser-Rand, GE, and Siemens, preserving existing turbine investments while upgrading control reliability.

Delivery & Service Assurance

Lead Time: Standard configuration units ship within 3-5 business days from our regional distribution centers. Custom-configured governors with special speed ranges or mounting adaptations require 2-3 weeks for factory preparation and testing.

Warranty Coverage: All 8516-039 TG-13 governors include a comprehensive 12-month warranty covering manufacturing defects, material failures, and workmanship issues. Extended warranty programs (24-36 months) are available for critical service applications.

Technical Support: Our application engineering team provides pre-sale sizing assistance, installation guidance, commissioning support, and troubleshooting consultation. On-site startup services and operator training programs are available upon request.

Documentation Package: Each governor ships with complete technical documentation including installation manual, maintenance procedures, spare parts catalog, and calibration data sheets. CAD drawings (DWG/STEP formats) and P&ID symbols are available for download.

Frequently Asked Questions

What hydraulic oil viscosity is optimal for the 8516-039 TG-13 governor?
Woodward recommends ISO VG 32 turbine oil for ambient temperatures above 50°F (10°C) and ISO VG 46 for colder environments. Maintain oil cleanliness to ISO 18/16/13 or better to prevent pilot valve contamination. Synthetic turbine oils meeting Woodward specification 02000-1103 provide extended service intervals in high-temperature applications.

Can the TG-13 governor control turbines operating in parallel configuration?
Yes, the adjustable speed droop feature (2-6% range) enables proportional load sharing between multiple turbines connected to a common steam header or electrical bus. Set each governor to identical droop percentage and verify speed setpoints are within ±0.5% to achieve balanced load distribution. Consult Woodward Application Note 01300 for parallel operation tuning procedures.

How frequently should the 8516-039 undergo calibration verification?
Inspect hydraulic oil quality and flyweight mechanism every 12 months during scheduled turbine maintenance outages. Perform full speed calibration verification every 24-36 months or following any turbine overspeed event. High-vibration or continuous-duty applications may require more frequent inspection intervals—monitor speed stability trends to establish optimal maintenance schedules.

Is the TG-13 governor suitable for hazardous area installations?
The purely mechanical-hydraulic design contains no electrical components, making it inherently suitable for Class I, Division 2 hazardous locations without special enclosures or certifications. For Class I, Division 1 areas, ensure hydraulic supply and drain lines incorporate appropriate flame arrestors and pressure relief devices per NFPA 37 requirements.

What are common causes of speed hunting or instability with the 8516-039?
Speed oscillations typically result from: (1) Contaminated hydraulic oil causing pilot valve stiction, (2) Excessive droop setting creating insufficient restoring force, (3) Steam valve linkage binding or excessive friction, (4) Hydraulic supply pressure fluctuations, (5) Worn flyweight bearings introducing mechanical hysteresis. Systematic troubleshooting procedures are detailed in Woodward Manual 82510.

Can I retrofit the 8516-039 to replace an existing electronic governor?
Retrofit feasibility depends on turbine shaft configuration, available hydraulic supply, and steam valve actuation requirements. The TG-13 requires a shaft-driven mounting (typically via turbine shaft extension) and 150-300 psi hydraulic supply. Woodward offers retrofit engineering services to assess compatibility and design custom mounting solutions for most turbine manufacturers' equipment.

Ready to Optimize Your Steam Turbine Control?

Contact our turbine control specialists to discuss your specific application requirements, verify compatibility with your existing equipment, and receive a detailed technical proposal. Our team can provide sizing calculations, installation drawings, and commissioning support to ensure successful integration of the 8516-039 TG-13 governor into your facility.

Request a Quote: Email sale@ninermas.com with your turbine specifications (speed range, horsepower, steam conditions) or call +0086 187 5021 5667 to speak with an application engineer.
