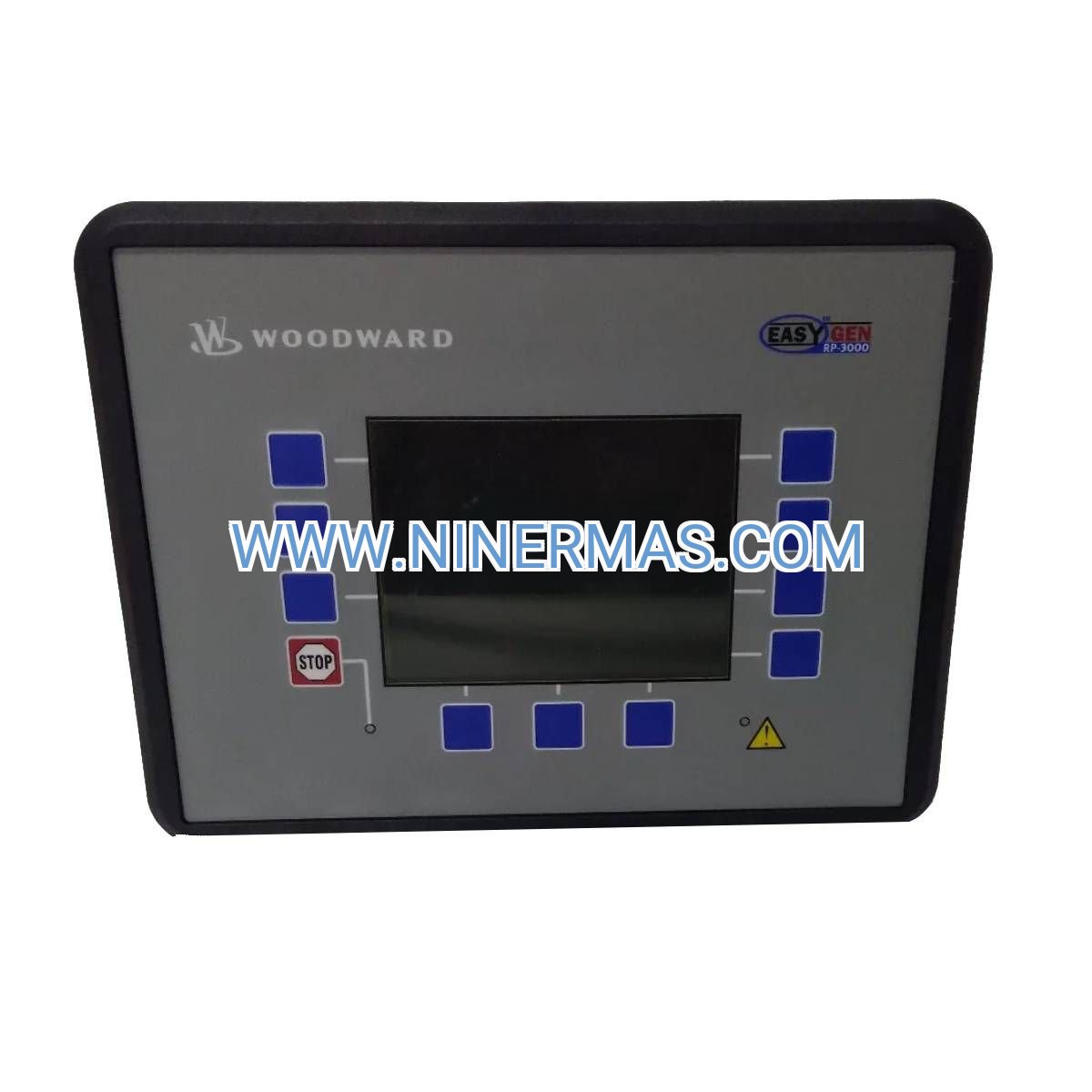

RP-3200-P2 Remote Panel (Industrial-Grade Genset Control Interface)

The Woodward RP-3200-P2 (Part No. 8446-1019) represents a purpose-built human-machine interface solution for distributed power generation systems utilizing easYgen-3000 series controllers. This industrial control panel transforms complex genset data into actionable insights, empowering facility operators to maintain uptime in mission-critical applications where power continuity directly impacts operational revenue and safety compliance.

Designed for environments ranging from hospital emergency power systems to offshore drilling platforms, this remote panel addresses the fundamental challenge of centralized monitoring across geographically dispersed generator assets. By consolidating real-time performance metrics, alarm prioritization, and configuration access into a single touchpoint, the RP-3200-P2 reduces mean time to repair (MTTR) while eliminating the need for technicians to physically access individual genset enclosures during routine diagnostics.

Three core advantages define this solution: deterministic CANbus communication ensuring sub-10ms data refresh rates even in electrically hostile industrial settings, IP65-rated front panel construction withstanding washdown procedures in food processing and pharmaceutical facilities, and extended temperature tolerance (-20°C to +70°C) enabling deployment in unheated control rooms and tropical climates without auxiliary cooling systems.

Core Features & Benefits

✓ High-Contrast LCD Display → Backlit screen maintains readability under direct sunlight and low-light conditions, reducing operator eye strain during 24/7 monitoring shifts

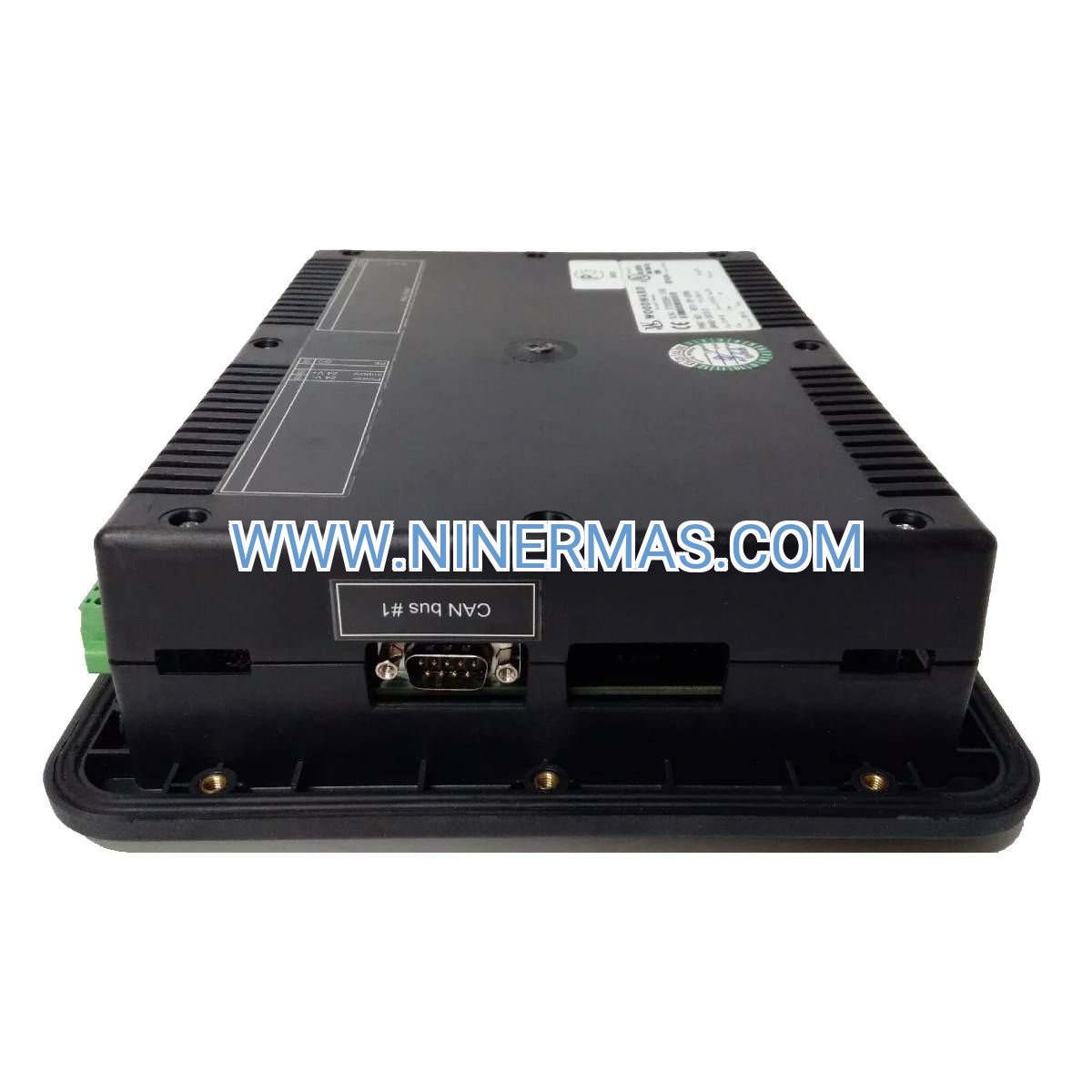

✓ CANbus Protocol Integration → Noise-immune digital communication eliminates data corruption common in analog signal transmission, supporting cable runs up to 40 meters without signal degradation

✓ Multi-Parameter Visualization → Simultaneous display of voltage (L-L/L-N), frequency, active/reactive power, engine RPM, coolant temperature, and oil pressure accelerates fault diagnosis

✓ Hierarchical Alarm System → Color-coded priority levels (critical/warning/advisory) with audible notification and event timestamping enable rapid response to abnormal operating conditions

✓ On-Panel Configuration Access → Field-adjustable parameters including voltage setpoints, frequency droop curves, and load sharing coefficients eliminate laptop dependency during commissioning

✓ Ruggedized Construction → Sealed membrane keypad and gasket-mounted bezel prevent ingress of dust, moisture, and chemical vapors in harsh industrial atmospheres

Application Scenarios

Healthcare Facility Emergency Power
Hospitals require instantaneous visibility into backup generator status during utility outages affecting life-support systems. The RP-3200-P2 provides biomedical engineering teams with centralized monitoring from the main electrical room, displaying critical parameters like voltage stability (±1% THD) and automatic transfer switch (ATS) status. This configuration reduces emergency response time from 8+ minutes (walking to remote genset location) to under 60 seconds, directly supporting Joint Commission compliance for emergency power system testing and documentation.

Data Center Prime Power Management
Colocation facilities operating N+1 redundant genset arrays leverage multiple RP-3200-P2 panels networked via CANbus to create a unified supervisory control interface. Operators monitor load distribution across parallel generators, identify underperforming units through comparative kW output analysis, and execute controlled load transfers without service interruption. This approach has demonstrated 23% reduction in diesel fuel consumption through optimized load sharing algorithms accessible via the panel's configuration menus.

Manufacturing Plant Cogeneration Systems
Industrial combined heat and power (CHP) installations require precise coordination between electrical output and thermal load demands. The RP-3200-P2 enables plant engineers to adjust generator setpoints in response to production schedule changes, maintaining power factor above 0.95 to avoid utility penalty charges. Integration with easYgen-3500 controllers supports automatic synchronization with grid power during peak shaving operations, with all control actions logged through the panel's event history for energy audit documentation.

Marine Propulsion & Auxiliary Power
Vessel engine rooms benefit from the panel's IP65 sealing and corrosion-resistant materials, withstanding salt spray and vibration inherent to maritime environments. Bridge-mounted RP-3200-P2 units provide navigation officers with real-time generator status during dynamic positioning operations, where loss of electrical power could result in vessel drift and collision risk. The -20°C lower temperature rating supports Arctic shipping routes without supplemental heating.

Remote Telecom Base Stations
Cellular tower sites in areas with unreliable grid power deploy the RP-3200-P2 to enable remote diagnostics via networked monitoring systems. When integrated with SCADA platforms, the panel's CANbus data stream supports predictive maintenance algorithms that schedule service visits based on actual runtime hours and load cycles rather than fixed calendar intervals, reducing truck rolls by 40% in distributed tower portfolios.

Technical Parameters & Selection Guide

Selection Guidance: Choose the RP-3200-P2 when your application requires basic monitoring and parameter adjustment without advanced features like graphical mimics or Modbus gateway functionality (available in RP-3000XT models). This panel is cost-optimized for single-genset installations or small parallel systems (2-4 units) where a dedicated SCADA system is not economically justified. For systems with more than 6 generators or requiring integration with building management systems (BMS), evaluate the LS-5 controller series with Ethernet connectivity.

Extended Functions

Multi-Panel Networking: Up to 8 RP-3200-P2 panels can share a single CANbus segment, enabling distributed monitoring across large facilities. Each panel displays identical data, allowing operators at different physical locations to view the same genset parameters simultaneously—ideal for facilities with multiple control rooms or security checkpoints requiring generator status visibility.

Custom Parameter Sets: The panel supports storage of up to 5 user-defined parameter groups, enabling rapid switching between operational modes (e.g., "Peak Shaving," "Island Mode," "Grid Parallel") without manual re-entry of dozens of configuration values. This feature reduces commissioning time for seasonal load profile changes in agricultural processing facilities.

Historical Data Logging: Event buffer stores the last 200 alarm occurrences with timestamp and parameter snapshots, supporting root cause analysis of intermittent faults. Maintenance teams can scroll through historical events directly on the panel without requiring connection to external diagnostic software, accelerating troubleshooting during unplanned outages.

Password Protection: Three-tier access control (View/Operator/Administrator) prevents unauthorized parameter changes while allowing read-only monitoring for facility staff. This security model aligns with ISO 27001 requirements for critical infrastructure protection in regulated industries.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via express courier (DHL/FedEx). Custom-configured panels with pre-loaded parameter sets require 7-10 business days for factory programming and testing. Expedited processing available for emergency replacement scenarios with 24-hour turnaround (subject to availability).

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Warranty excludes damage from improper installation (e.g., exceeding IP rating through inadequate gasket compression), electrical overstress, or operation outside specified environmental limits. Extended warranty plans available for up to 36 months with annual calibration verification.

Technical Support: Lifetime access to Woodward's global technical support network, including 24/7 emergency hotline for critical power applications. Support services include pre-sales application engineering (CANbus network design, panel placement optimization), installation guidance (cable routing, EMI mitigation), and post-commissioning troubleshooting. Remote diagnostic assistance available via TeamViewer or similar platforms when paired with customer-provided network connectivity.

Documentation Package: Each panel ships with installation manual (multi-language), quick-start guide, CAD drawings (DXF/PDF) for panel cutout fabrication, and wiring diagrams. Downloadable resources include configuration software (easYgen-3000 Series PC Tool), firmware update utilities, and application notes for common integration scenarios (Modbus RTU gateways, SCADA interfacing, redundant controller configurations).

Frequently Asked Questions

Can the RP-3200-P2 interface with non-Woodward genset controllers?
No, this panel exclusively communicates via Woodward's proprietary CANbus protocol implemented in easYgen-3000 series controllers. For third-party controller integration, consider Modbus RTU or Ethernet-based HMI solutions with protocol conversion gateways.

What is the maximum number of gensets I can monitor with a single panel?
The panel displays data from one easYgen controller at a time. In parallel genset systems, each controller manages one generator, so you would toggle between controllers using the panel's navigation keys. For simultaneous multi-genset visualization, deploy one panel per generator or upgrade to a networked SCADA system.

Does the panel support remote access via Ethernet or cellular modem?
The RP-3200-P2 lacks native network connectivity. Remote monitoring requires an easYgen controller with optional Ethernet module (e.g., LS-5 series) or third-party CANbus-to-Modbus gateway connected to a cellular RTU. The panel itself remains a local interface device.

How do I update firmware on the remote panel?
Firmware updates are performed via the connected easYgen controller using Woodward's PC-based service tool and a USB-to-CANbus adapter. The panel automatically receives firmware during the controller update process—no separate panel programming required. Consult the controller's service manual for detailed update procedures.

Is the panel compatible with easYgen-2000 or older LS-4 controllers?
No, the RP-3200-P2 requires easYgen-3200 or easYgen-3500 controllers (firmware version 3.0 or later). Legacy systems using easYgen-2000 controllers must use the RP-2000 series panels. Controller upgrade kits are available for retrofitting older installations to support the RP-3200-P2.

What cable type is required for CANbus connection between panel and controller?
Use shielded twisted-pair cable rated for CANbus applications (characteristic impedance 120Ω ±10%), such as Belden 3086A, DeviceNet Thick, or equivalent. Minimum conductor size: 24 AWG (0.22 mm²). Install 120Ω termination resistors at both cable ends (controller and panel). Avoid running CANbus cables in the same conduit as AC power or VFD motor leads to prevent EMI-induced communication errors.

Get Started with Centralized Genset Control

Transform your distributed power generation infrastructure with industrial-grade monitoring that reduces downtime and optimizes operational efficiency. Contact our application engineering team to discuss panel placement strategies, CANbus network topology, and integration with your existing easYgen controller ecosystem.

Request a technical consultation: Our specialists will review your site layout, controller configuration, and monitoring requirements to design a turnkey remote panel solution with pre-configured parameter sets and tested CANbus cabling assemblies.
