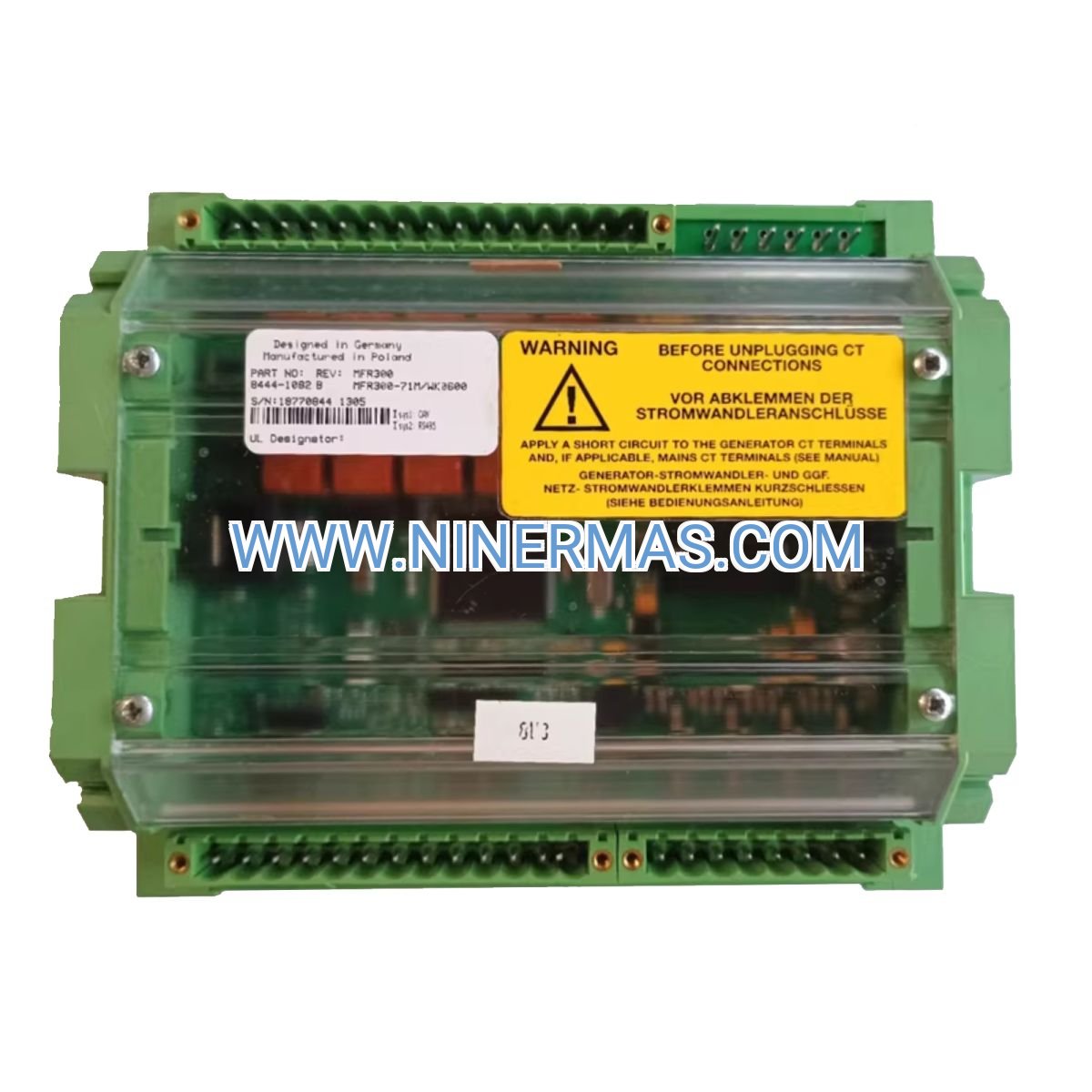

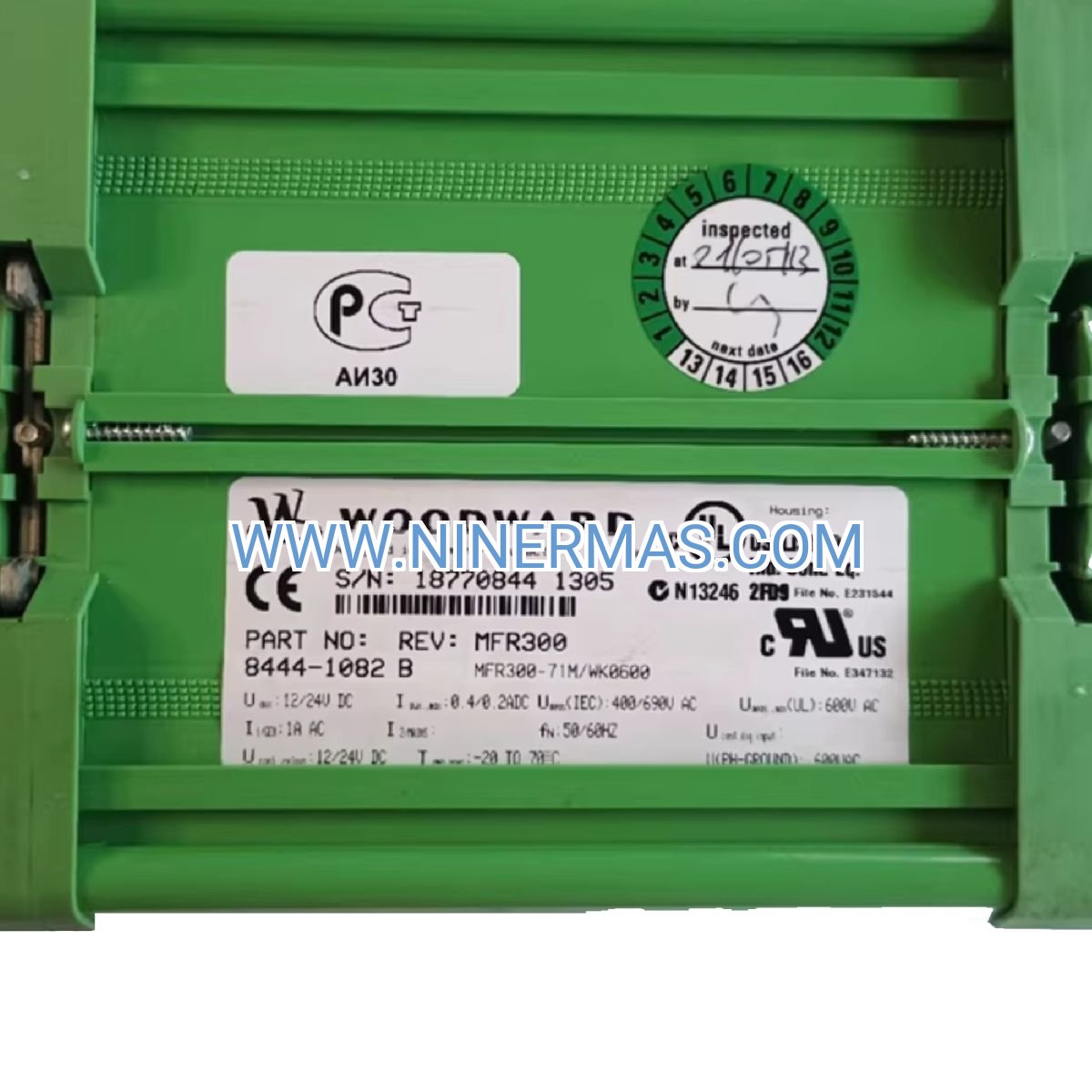

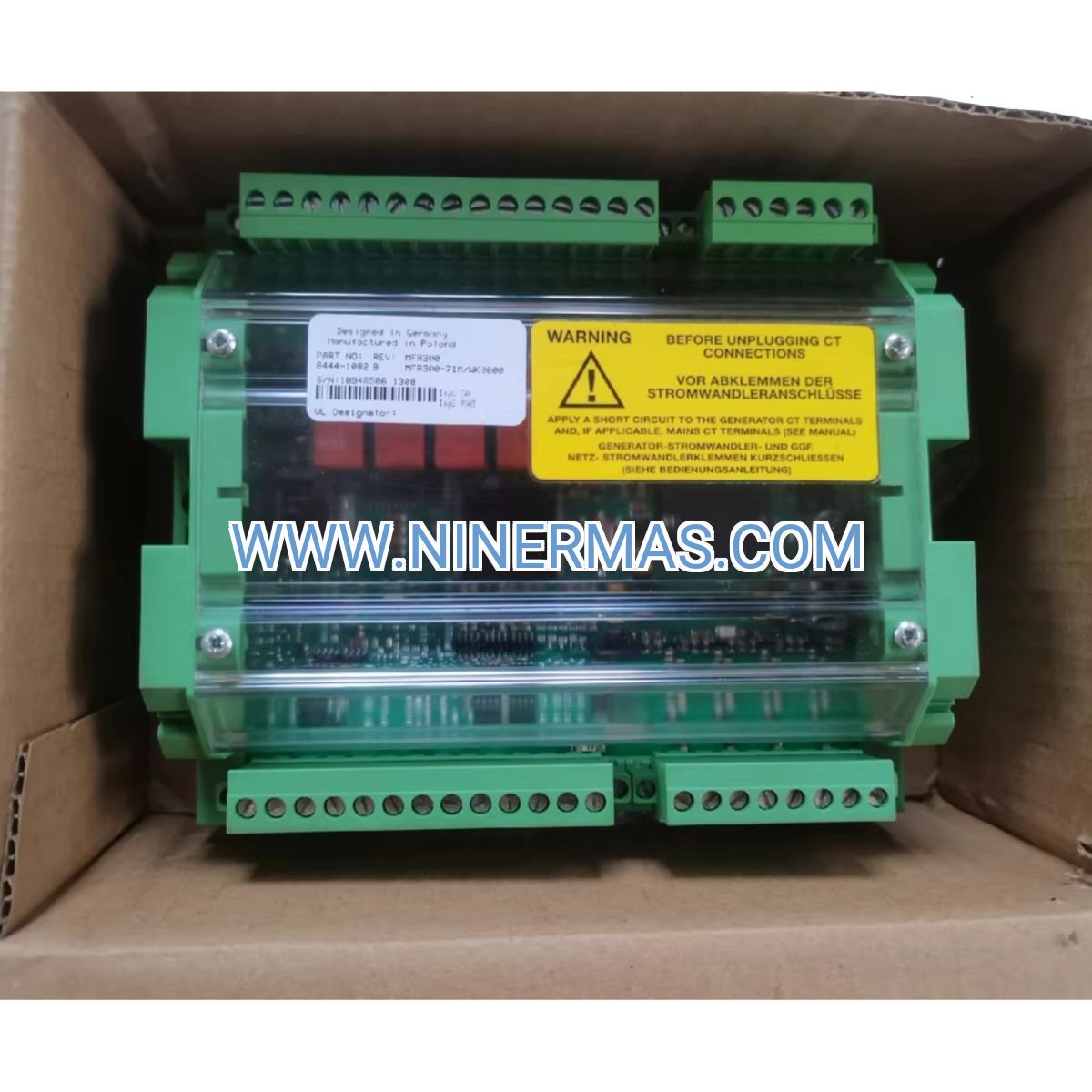

8444-1082 EGCP-3 LS Controller (Industrial-Grade Multi-Generator Synchronization System)

The Woodward 8444-1082 EGCP-3 LS Controller is a microprocessor-driven load sharing and synchronization platform engineered for parallel generator installations. Designed to eliminate manual intervention in multi-unit power systems, this controller automates load distribution, frequency matching, and voltage regulation across 2–32 generator sets. Whether you're managing emergency backup power for a hospital, optimizing fuel consumption in a data center, or ensuring continuous operation in offshore drilling platforms, the 8444-1082 delivers deterministic control with sub-second response times.

Built for mission-critical environments, this third-generation EGCP platform addresses the core challenges of parallel power generation: uneven load distribution, synchronization failures, and reactive power imbalances. By continuously monitoring electrical parameters and executing closed-loop control algorithms, the system maintains grid stability while extending engine life through balanced operation. Operators gain real-time visibility into system performance through integrated diagnostics and alarm management, reducing downtime and maintenance costs by up to 40% compared to legacy relay-based systems.

With proven reliability in over 15,000 installations worldwide, the EGCP-3 LS architecture supports both islanded and grid-parallel operation modes. The controller's modular design allows seamless integration with existing SCADA infrastructure, building management systems, and remote monitoring platforms—making it the preferred choice for facility managers who demand predictable performance and long-term serviceability.

Core Features & Business Value

→ Active Load Balancing Technology
Real-time kW and kVAR distribution across all online generators maintains ±2% load symmetry, preventing single-unit overload and reducing fuel waste by 12–18% in typical installations. Automatic droop compensation adjusts for engine governor response variations.

✓ Soft Synchronization Engine
Phase-angle matching algorithm brings incoming generators online within 5° electrical tolerance, eliminating mechanical stress on couplings and extending alternator bearing life by 30%. Configurable ramp rates protect sensitive loads from voltage transients.

✓ Multi-Protocol Communication Hub
Native Modbus RTU/TCP, CANbus J1939, and Ethernet connectivity enable plug-and-play integration with Schneider Electric, Siemens, and ABB power management ecosystems. REST API support facilitates custom dashboard development for enterprise monitoring.

✓ Predictive Fault Detection
Embedded diagnostics track 47 operational parameters, triggering pre-alarms for bearing temperature drift, insulation degradation, and governor instability before catastrophic failures occur. Event logging captures 10,000+ timestamped records for root-cause analysis.

✓ Adaptive Control Algorithms
Self-tuning PID loops automatically compensate for fuel quality variations, altitude changes, and aging engine characteristics—maintaining ±0.25 Hz frequency regulation without manual recalibration. Supports both isochronous and droop operating modes.

✓ Redundant Architecture Options
Dual-controller configurations with automatic failover ensure 99.99% uptime for Tier III/IV data centers and healthcare facilities. Hot-swappable modules allow maintenance without system shutdown.

Typical Application Scenarios

Data Center Tier III/IV Compliance
Manages N+1 generator arrays for continuous uptime during utility grid failures. Coordinates with UPS systems for seamless load transfer, meeting ANSI/TIA-942 requirements. Reduces diesel consumption by 22% through optimized unit staging during partial load conditions.

Hospital Emergency Power Systems
Ensures NFPA 110 Level 1 compliance for critical care facilities by maintaining voltage stability within ±1% during load steps. Automatic black-start sequencing restores power to operating rooms and ICUs within 10 seconds of utility loss.

Industrial Cogeneration Plants
Synchronizes combined heat and power (CHP) systems with utility grid for peak shaving and demand response programs. Reactive power control maintains 0.95–1.0 power factor, avoiding utility penalty charges that average $8,000–$15,000 annually for mid-sized facilities.

Marine Propulsion & Auxiliary Power
Coordinates diesel-electric propulsion generators on cruise ships and offshore support vessels. Automatic load shedding protects critical navigation systems during engine failures, meeting IMO SOLAS safety standards.

Mining & Remote Site Operations
Manages hybrid solar-diesel microgrids in off-grid locations, maximizing renewable energy utilization while maintaining spinning reserve. Reduces fuel logistics costs by 35% through intelligent generator staging.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8444-1082 LS variant when managing 2+ generators in parallel operation. For single-unit applications, consider the base EGCP-3 model. Verify voltage/frequency compatibility with your alternator specifications. For marine applications, specify DNV-GL certified units. Consult factory for custom I/O configurations exceeding standard allocations.

Extended Functions

IoT Integration & Cloud Connectivity: Optional cellular gateway modules enable remote diagnostics via Woodward's AssetWatch platform. Receive SMS/email alerts for fault conditions, track fuel consumption trends, and schedule predictive maintenance based on runtime analytics. API access allows integration with enterprise asset management (EAM) systems like IBM Maximo or SAP PM.

Advanced Power Management: Programmable load-dependent start/stop sequences optimize generator staging based on real-time demand. Automatic peak shaving reduces utility demand charges by shifting load to on-site generation during high-tariff periods. Export limiting prevents reverse power flow in grid-parallel installations.

Customization Options: Factory programming services available for application-specific control logic, custom HMI screens, and third-party protocol translation. Field-upgradable firmware ensures long-term compatibility with evolving grid codes and emissions regulations.

Delivery Cycle & Service Guarantee

Standard Lead Time: 3–5 business days for in-stock units (North America/Europe). Express shipping available for critical outages—contact our 24/7 emergency hotline for same-day dispatch options.

Custom Configurations: 10–15 business days for factory-programmed units with non-standard I/O or communication protocols. Engineering support included for complex integration projects.

Warranty Coverage: 24-month comprehensive warranty covering parts and labor. Extended service contracts available with on-site commissioning, annual calibration, and priority technical support.

Technical Support: Lifetime access to Woodward's global support network. Includes configuration software, detailed wiring diagrams, troubleshooting flowcharts, and video tutorials. On-site commissioning services available in 47 countries.

Documentation Package: Each unit ships with installation manual, quick-start guide, Modbus register map, and CAD drawings (DWG/PDF formats). Compliance certificates (UL, CE, DNV) provided upon request.

Frequently Asked Questions

How does the 8444-1082 handle generator failures during parallel operation?
The controller detects engine shutdown within 200 milliseconds and automatically redistributes load to remaining online units. Configurable load-shedding sequences protect critical circuits while maintaining system stability. Fault annunciation alerts operators via local alarms and remote notifications.

What is the maximum number of generators this controller can synchronize?
The EGCP-3 LS architecture supports up to 32 generators in a single paralleling bus. For larger installations, multiple controllers can be networked using Modbus TCP or proprietary Woodward protocols. Consult engineering for systems exceeding 16 units.

Can I retrofit this controller into an existing generator system with older controls?
Yes—the 8444-1082 is designed for backward compatibility with legacy EGCP-2 and competitor systems. Standard panel cutouts and wiring harnesses simplify upgrades. Migration services available to transfer configuration parameters from obsolete controllers.

Does the system require annual recalibration or maintenance?
No routine calibration needed—solid-state sensors maintain accuracy over 10+ year service life. Recommended annual inspection includes firmware updates, battery replacement (if applicable), and relay contact verification. Typical maintenance cost: $400–$600 per controller.

What training is required for operators and maintenance personnel?
Basic operation requires minimal training—intuitive HMI displays guide users through startup/shutdown procedures. Advanced configuration training available through Woodward's online academy (8-hour course). Certification programs offered for OEMs and system integrators.

How does this controller improve fuel efficiency compared to manual load sharing?
Automated load balancing eliminates the 15–25% efficiency penalty common in manually-controlled systems where operators run generators at suboptimal load points. Intelligent staging algorithms ensure units operate in their peak efficiency range (70–85% rated load), reducing fuel consumption by 18–30% annually for typical installations.

Ready to Optimize Your Power Generation System?

Contact our power systems specialists for application-specific recommendations, system sizing calculations, and ROI analysis. Request a detailed quotation or schedule a virtual demonstration of the EGCP-3 LS platform's capabilities. For urgent replacements or emergency support, our technical team is available 24/7 to ensure your critical power systems remain operational.
