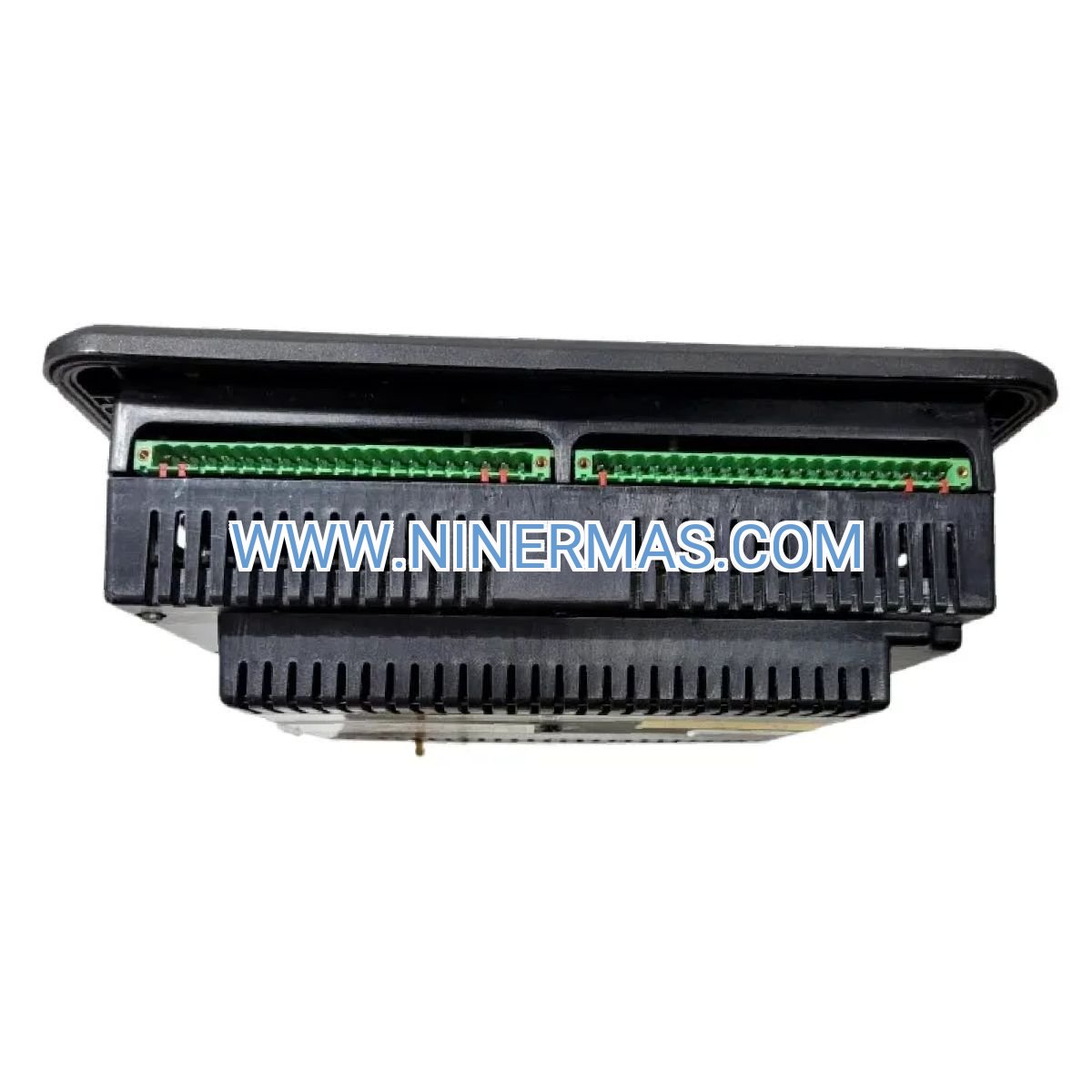

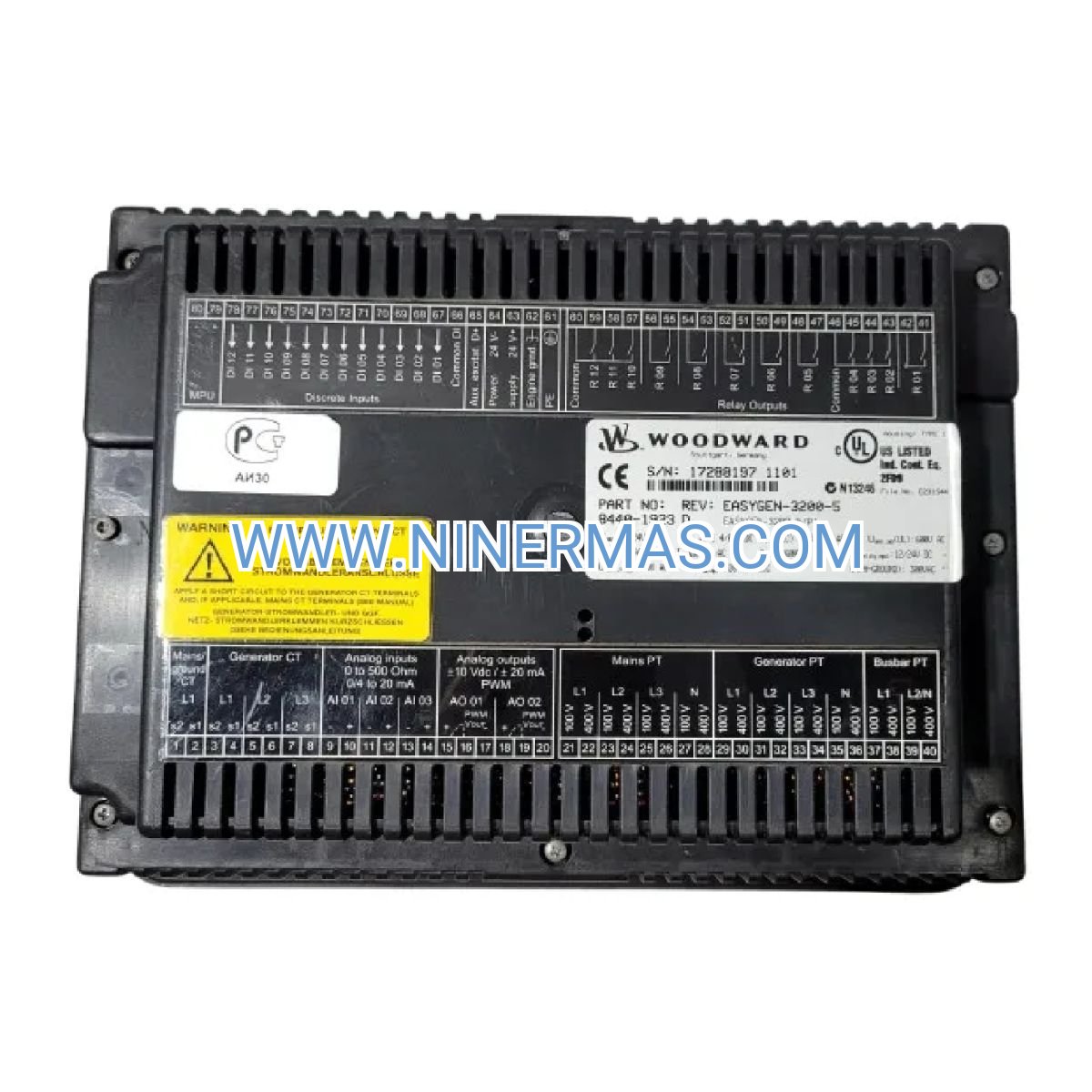

8440-1923D easYgen-3200-5 Controller (Industrial-Grade Genset Management)

The 8440-1923D represents Woodward's proven solution for intelligent generator set control and monitoring. Engineered for diesel and gas engine applications, this microprocessor-based platform combines engine protection, load management, and multi-unit synchronization in a compact DIN-panel format. Whether managing standalone emergency power or coordinating multiple gensets in parallel, the easYgen-3200-5 delivers reliable automation for critical power infrastructure.

Power system operators face mounting pressure to maximize uptime while minimizing manual intervention. This controller addresses those challenges through integrated protection algorithms, real-time diagnostics, and flexible communication interfaces. From hospital backup systems to industrial co-generation plants, the 8440-1923D adapts to diverse operational requirements without sacrificing performance or safety margins.

Key differentiators include native support for up to 32 parallel generators, programmable logic for custom sequencing, and multi-protocol connectivity (Modbus RTU, CANbus J1939, Ethernet). The graphical LCD interface simplifies commissioning and troubleshooting, while configurable alarms ensure rapid response to fault conditions. Backed by Woodward's global service network and a 12-month warranty, this controller provides long-term value for mission-critical installations.

Core Capabilities & Technical Advantages

→ Multi-Unit Paralleling Logic: Synchronizes up to 32 gensets with automatic load sharing, reverse power protection, and seamless load transfer. Eliminates manual coordination and reduces operator workload during peak demand periods.

✓ Comprehensive Engine Protection: Monitors 40+ parameters including oil pressure, coolant temperature, overspeed, and electrical faults. Configurable shutdown sequences prevent catastrophic damage and extend engine service life by 15-25%.

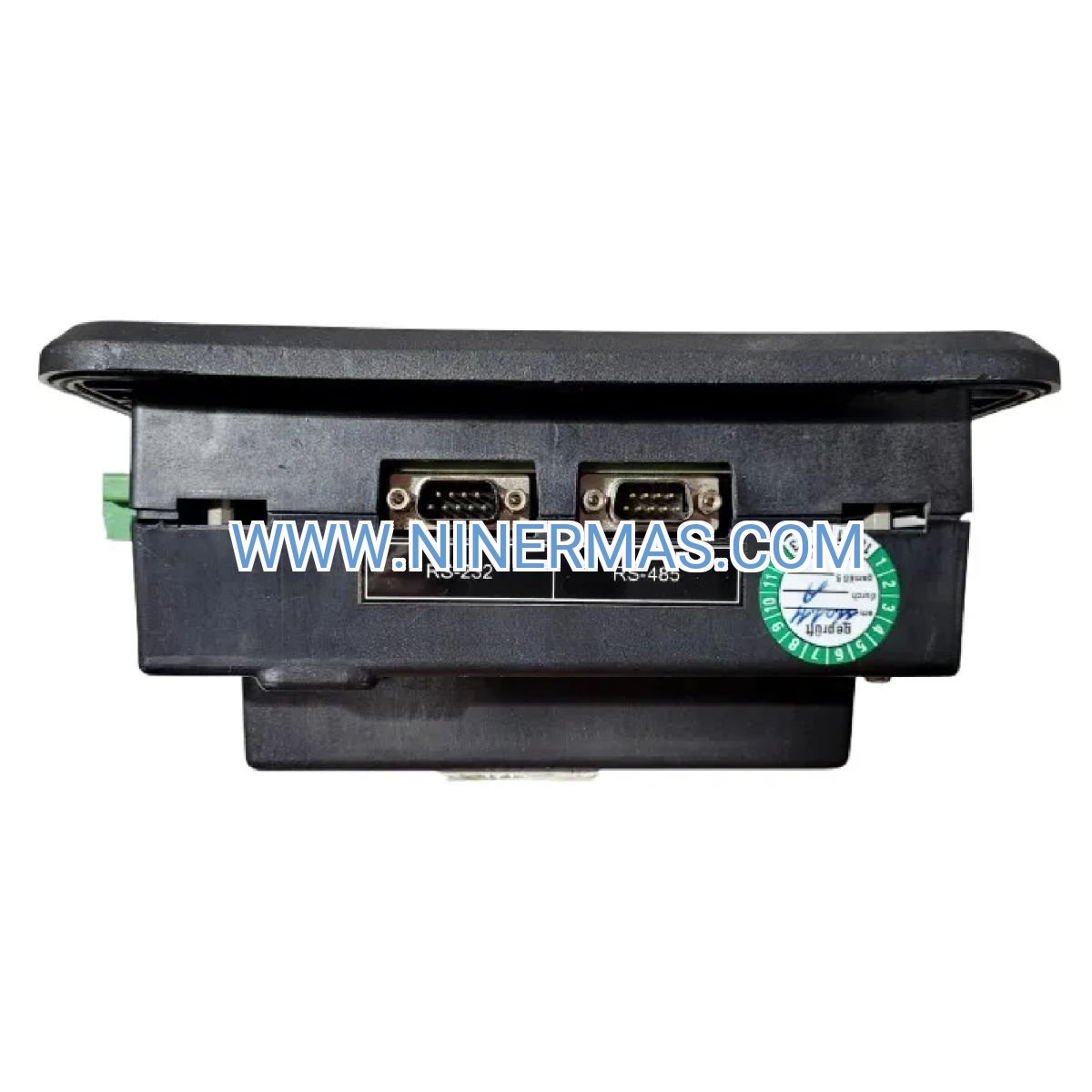

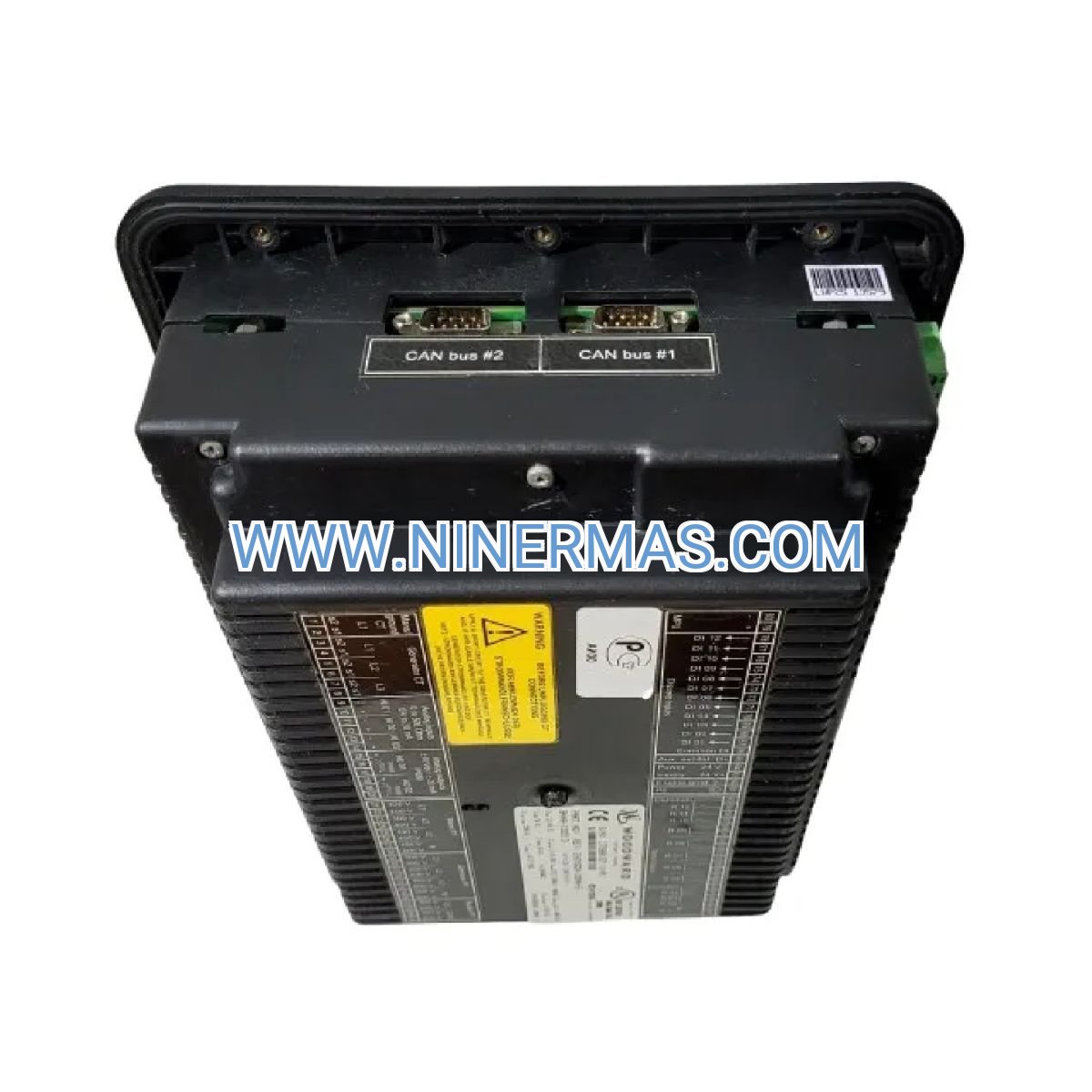

→ Dual Communication Protocols: Native Modbus RTU (RS-485) and CANbus J1939 interfaces enable integration with SCADA systems, building management platforms, and remote monitoring services. Ethernet option available for TCP/IP networks.

✓ Programmable Control Functions: Built-in logic engine supports custom start/stop sequences, load-dependent staging, and priority-based generator selection. Eliminates need for external PLCs in most applications.

→ Wide Operating Range: Functions reliably from -30°C to +70°C ambient temperature with IP54-rated front panel. Suitable for outdoor enclosures, marine environments, and harsh industrial settings.

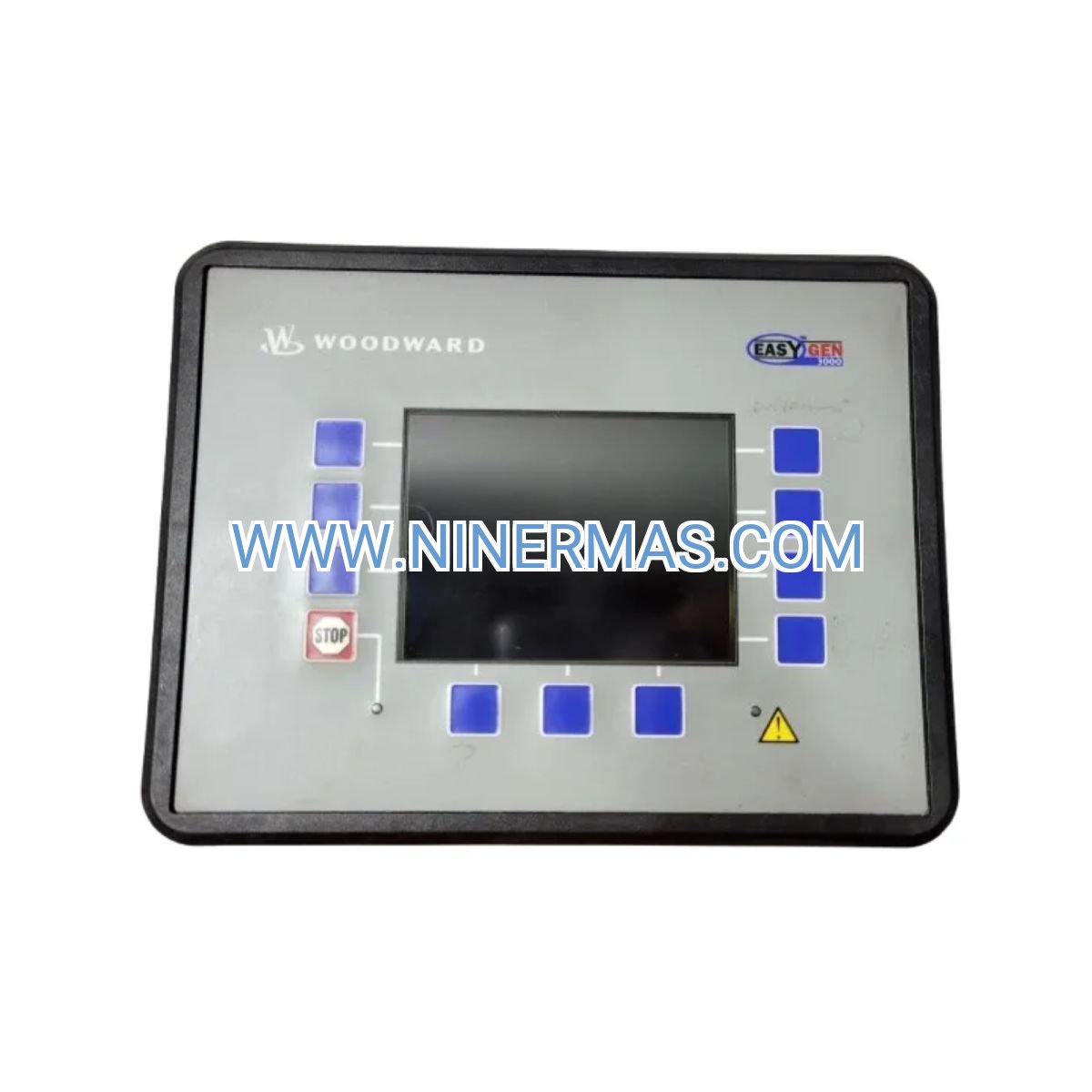

✓ High-Resolution Display: Graphical LCD with multi-language support provides real-time status, alarm history, and trending data. Intuitive menu structure reduces training time for maintenance personnel.

Industry Applications & Use Cases

Data Center Backup Power: Hospitals, telecom facilities, and cloud computing centers deploy the 8440-1923D for N+1 redundancy configurations. The controller's fast synchronization (typically <5 seconds) and precise load sharing ensure uninterrupted IT operations during utility outages or maintenance windows.

Industrial Co-Generation Systems: Manufacturing plants use paralleled gensets to reduce energy costs and improve power quality. The controller's demand-based staging automatically brings units online as electrical or thermal loads increase, optimizing fuel consumption and minimizing wear on standby generators.

Marine Propulsion & Hotel Loads: Commercial vessels, offshore platforms, and cruise ships rely on the 8440-1923D for main and auxiliary power distribution. Its vibration-resistant design and salt-fog tolerance meet stringent maritime classification requirements (ABS, DNV-GL, Lloyd's Register).

Utility Peak Shaving: Distributed generation facilities leverage the controller's grid-synchronization capabilities to export power during high-demand periods. Reverse power protection and frequency/voltage regulation ensure compliance with utility interconnection standards (IEEE 1547, G99).

Remote Site Power: Mining operations, telecom towers, and agricultural facilities in off-grid locations benefit from the controller's autonomous operation and satellite communication compatibility. Low-power sleep modes extend battery life during standby periods.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 8440-1923D for applications requiring paralleling of 2-32 gensets with 5A current transformers. For single-unit installations or systems with 1A CTs, consider the 8440-1884M variant. Marine applications should specify conformal coating option for enhanced corrosion resistance. Verify compatibility with your engine's governor interface (analog, PWM, or CANbus) before ordering.

Advanced Integration Options

The 8440-1923D serves as the central node in comprehensive power management architectures. When paired with Woodward electronic governors (e.g., easYgen-1000 series actuators), the system achieves closed-loop speed and load control with ±0.25% regulation accuracy. This precision is critical for sensitive loads such as medical imaging equipment or semiconductor manufacturing processes.

For remote monitoring deployments, the optional Ethernet module enables direct connection to cloud-based analytics platforms. Operators can track fuel consumption trends, predict maintenance intervals based on runtime hours, and receive SMS/email alerts for critical alarms. Integration with automatic transfer switches (ATS) allows fully automated utility-to-generator transitions without human intervention.

Custom I/O expansion is available through Modbus RTU slave devices, supporting applications that require additional temperature sensors, flow meters, or valve actuators. The controller's programmable logic can execute complex decision trees based on these external inputs, such as prioritizing renewable energy sources or implementing demand-response strategies during peak pricing periods.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock units shipped from our regional distribution centers. Express shipping available for urgent replacements.

Custom Configuration: Factory-programmed controllers with application-specific settings ship within 7-10 business days. Includes pre-loaded alarm setpoints, communication parameters, and I/O mapping per customer specifications.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended warranty plans available for up to 36 months.

Technical Support: Unlimited phone and email assistance during warranty period. Access to Woodward's global service network for on-site commissioning, troubleshooting, and software updates.

Documentation Package: Each controller ships with installation manual, wiring diagrams, Modbus register map, and configuration software (LS-5 Toolbox). Video tutorials and application notes available through online customer portal.

Frequently Asked Questions

What is the maximum number of generators this controller can parallel?
The 8440-1923D supports up to 32 generator sets in a single paralleling bus. Each unit requires its own controller, with one designated as the master for load sharing calculations. Systems exceeding 16 units typically employ redundant communication links for enhanced reliability.

Can I retrofit this controller into an existing genset with mechanical governors?
Yes, but you'll need to upgrade to an electronic governor (e.g., Woodward 2301A or ProAct actuator) for speed control. The 8440-1923D provides the governor setpoint via analog output or CANbus, replacing the manual speed adjustment potentiometer. Consult factory for retrofit kits specific to your engine model.

How does the controller handle utility grid synchronization?
The integrated sync-check relay monitors voltage magnitude, frequency, and phase angle between the generator and utility supply. Synchronization occurs automatically when all three parameters fall within adjustable deadbands (typically ±5% voltage, ±0.2 Hz frequency, ±10° phase). Breaker closure is inhibited if conditions are not met, preventing equipment damage.

What communication speed does the Modbus interface support?
The RS-485 port operates at selectable baud rates from 9600 to 115200 bps. Default configuration is 19200 bps, 8 data bits, no parity, 1 stop bit. The controller can function as a Modbus slave (responding to master queries) or master (polling external devices such as power meters or temperature transmitters).

Is the controller compatible with renewable energy sources like solar or wind?
While primarily designed for engine-driven generators, the 8440-1923D can coordinate with renewable sources through external power management systems. The controller's programmable logic can receive signals from solar inverters or wind turbine controllers to adjust genset loading based on available renewable capacity. Direct integration requires custom configuration.

What cybersecurity features are included for networked installations?
The Ethernet module supports password-protected access, MAC address filtering, and VLAN segmentation. For critical infrastructure applications, we recommend deploying the controller on isolated networks with firewall protection. Firmware updates are digitally signed to prevent unauthorized modifications.

Get Started with Your Power Solution

Ready to enhance your generator control system? Our application engineers are available to discuss your specific requirements, recommend optimal configurations, and provide budget pricing for multi-unit projects. Contact us today to request technical datasheets, CAD drawings, or arrange a live demonstration of the easYgen-3200-5 platform.

For immediate assistance, reach out via email at sale@ninermas.com or call +0086 187 5021 5667 to speak with a power systems specialist. Volume discounts available for OEM integrators and multi-site deployments.
