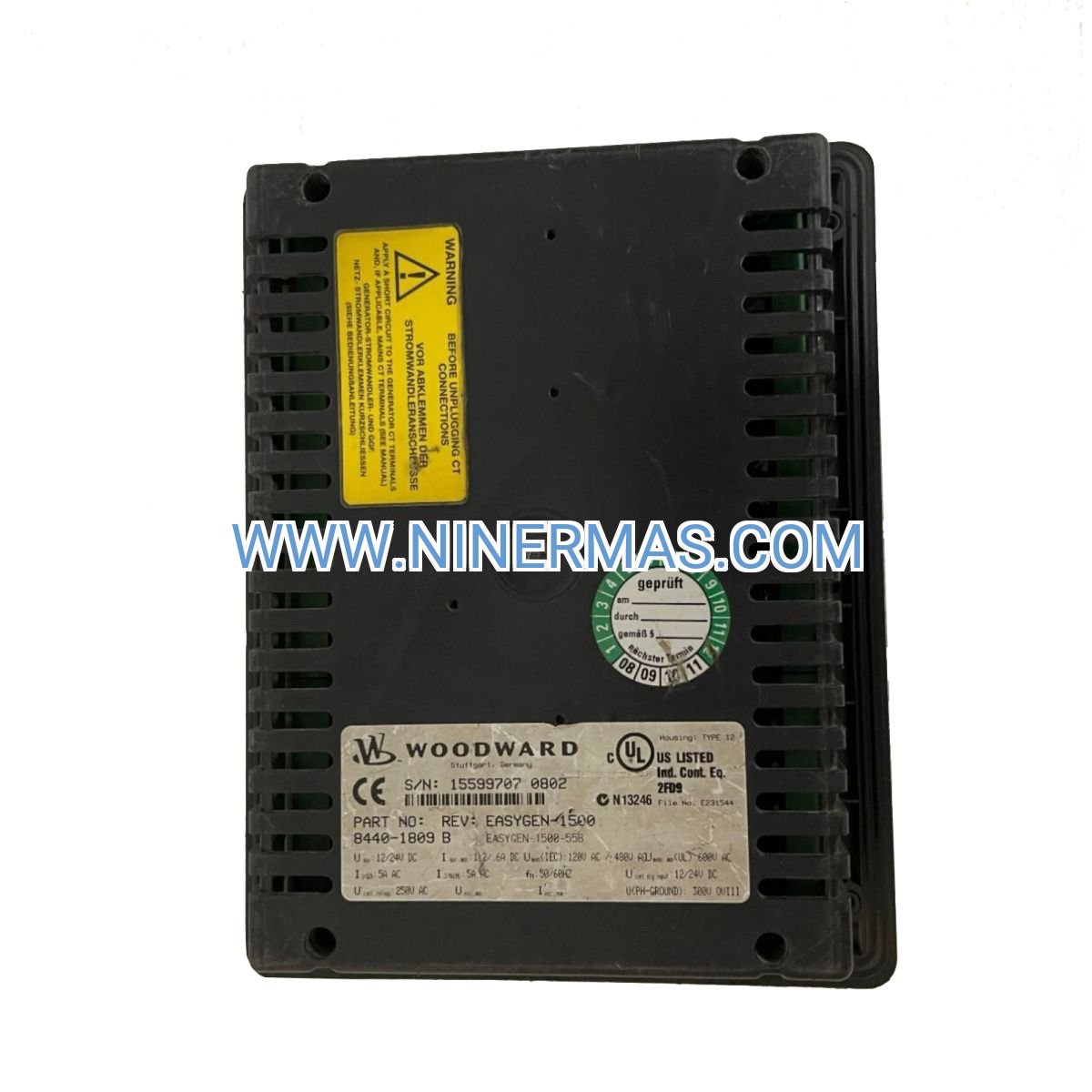

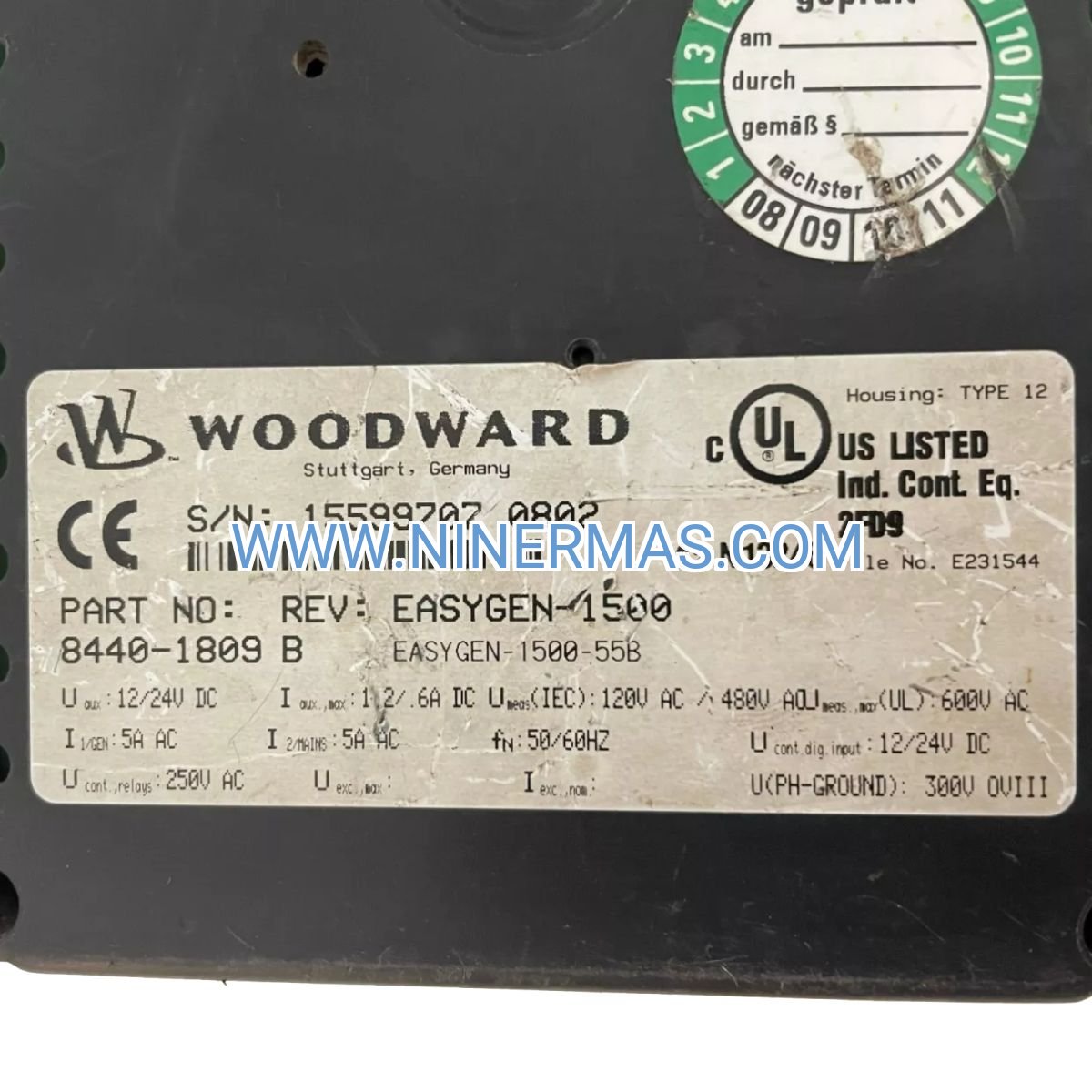

8440-1809 easYgen-1500 Genset Controller (Industrial-Grade Power Management Platform)

The Woodward 8440-1809 easYgen-1500 represents a proven solution for automated genset control in mission-critical environments. This industrial controller combines real-time engine monitoring, fault protection, and communication capabilities into a compact, field-proven package designed for mobile generators and emergency backup installations.

Built for operators managing distributed power assets, the easYgen-1500 addresses the challenge of reliable unattended operation through programmable logic, multi-protocol connectivity, and comprehensive diagnostics. Whether deployed in construction fleets, healthcare facilities, or telecom sites, this controller delivers consistent performance across -30°C to +70°C operating ranges.

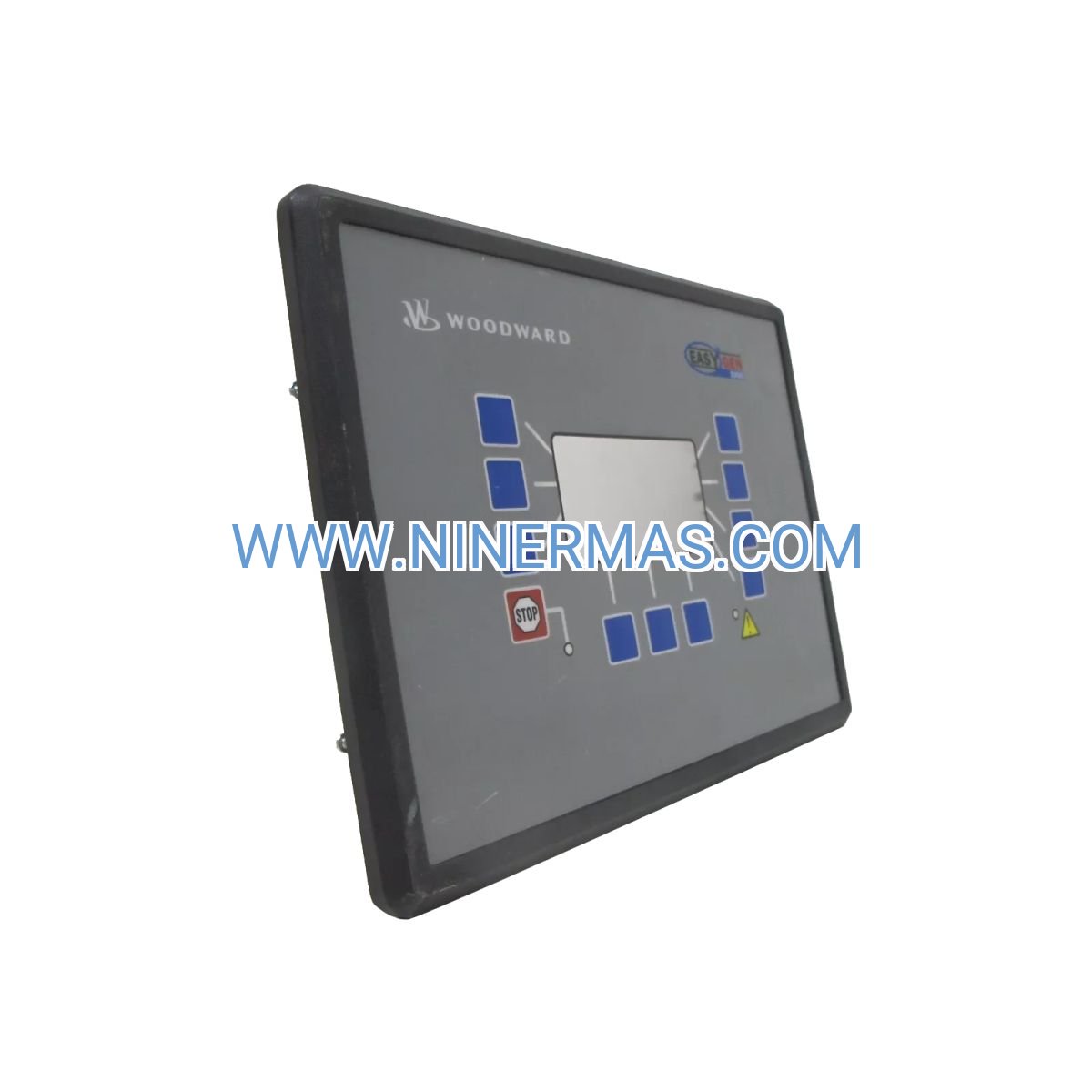

Key advantages include rapid auto-start response (typically under 10 seconds from mains failure detection), IP54-rated front panel protection for harsh environments, and native support for both diesel and natural gas engines. The backlit LCD interface simplifies commissioning while Modbus RTU and CANbus J1939 protocols enable integration with existing SCADA infrastructure.

Core Features & Benefits

→ Multi-Engine Compatibility
Configurable parameters support diesel, gas, and dual-fuel gensets from 10 kW to 3,000 kW. Pre-loaded engine maps reduce setup time while custom scaling accommodates specialized applications.

→ Comprehensive Protection Suite
Built-in safeguards monitor 15+ critical parameters including overspeed, low oil pressure, high coolant temperature, overcurrent, and battery voltage. Programmable shutdown sequences prevent catastrophic failures and extend equipment lifespan by 20-30%.

→ Dual Communication Protocols
Simultaneous Modbus RTU (RS-485) and CANbus J1939 connectivity allows parallel integration with building management systems and OEM engine ECUs. Supports up to 32 devices on a single network segment.

✓ Configurable I/O Architecture
Standard configuration provides 8 digital inputs, 6 relay outputs, and 4 analog inputs (0-10V/4-20mA). Expansion modules increase capacity to 24 I/O points for complex installations requiring pump control, fuel management, or HVAC interlocks.

✓ Real-Time Event Logging
500-event history buffer with timestamp accuracy to 1 second. Downloadable logs via USB port facilitate root cause analysis and compliance reporting for ISO 9001 or Joint Commission audits.

✓ Load Sharing & Paralleling Ready
Droop and isochronous load sharing modes support 2-8 genset configurations. Automatic synchronization with utility mains or other generators maintains power quality during transitions (THD <5%).

Typical Application Scenarios

Healthcare Facilities – Life Safety Compliance
Hospitals and surgical centers require NFPA 110 Level 1 emergency power systems with <10-second transfer times. The 8440-1809 meets these requirements through dedicated emergency start inputs, automatic weekly exercise scheduling, and fail-safe shutdown logic that prioritizes patient safety over equipment protection.

Data Centers – Tier III/IV Uptime Requirements
Colocation providers and enterprise IT operations deploy the easYgen-1500 in N+1 redundant configurations where 99.982% availability is contractual. The controller's load-dependent start/stop algorithms reduce fuel consumption by 15-25% during partial load conditions while maintaining hot standby readiness.

Construction & Rental Fleets – Mobile Power Reliability
Equipment rental companies value the controller's vibration resistance (IEC 60068-2-6 compliant) and simplified operator interface. Technicians can clone configurations across 50+ identical units via USB, reducing commissioning time from 2 hours to 15 minutes per genset.

Telecommunications – Remote Site Autonomy
Cell tower operators in regions with unstable grid power utilize the 8440-1809's fuel management features and remote alarm notification. Integration with solar/battery hybrid systems extends runtime while SMS alerts via third-party gateways reduce site visit frequency by 40%.

Manufacturing – Process Continuity Protection
Chemical plants and food processing facilities cannot tolerate unexpected shutdowns. The controller's adjustable voltage/frequency pickup settings (±5% to ±20%) prevent nuisance trips during grid sags while maintaining UL 2200 compliance for stationary engine installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8440-1809 for single-genset applications up to 3 MW where basic monitoring and auto-start functionality are required. For multi-unit paralleling, mains synchronization, or advanced load management, consider the easYgen-3000 series. Installations requiring touchscreen interfaces or Ethernet connectivity should evaluate the 8440-1843 model.

Extended Functions

IoT Integration Capabilities
Third-party gateways (Modbus-to-MQTT converters) enable cloud connectivity for predictive maintenance platforms. API access to runtime hours, fuel consumption, and alarm history supports fleet optimization algorithms that reduce total cost of ownership by 12-18%.

Advanced Scheduling Features
Programmable exercise timers with adjustable load banks prevent wet stacking in diesel engines. Calendar-based scheduling accommodates utility demand response programs where gensets provide peak shaving during high-cost periods (typically 2-6 PM weekdays).

Customization Options
OEM partners can request custom firmware with branded startup screens, locked parameter sets, and application-specific logic (e.g., pump sequencing for fire suppression systems). Minimum order quantities apply for factory customization services.

Delivery & Service Assurance

Lead Times
• Stock Units: 3-5 business days (North America/Europe)
• Standard Configuration: 7-10 business days (Asia-Pacific)
• Custom Programming: 15-20 business days (global)

Warranty Coverage
18-month comprehensive warranty from ship date covering manufacturing defects, component failures, and firmware issues. Extended 36-month plans available for critical infrastructure deployments. Warranty excludes damage from improper installation, overvoltage events, or unauthorized modifications.

Technical Support
Direct access to application engineers via email/phone (8 AM - 6 PM EST, Mon-Fri). Average response time: 4 hours for critical issues, 24 hours for configuration questions. Remote diagnostics via TeamViewer or AnyDesk upon request.

Documentation Package
Each controller ships with installation manual (50+ pages), quick-start guide, Modbus register map, CAD drawings (DXF/PDF), and ToolKit PC software (Windows 7/10/11 compatible). Firmware update files and application notes available via customer portal.

Frequently Asked Questions

Q: Can this controller manage both prime power and standby genset applications?
A: Yes, the 8440-1809 supports both operating modes through configurable run-time limiters and maintenance interval tracking. Prime power mode includes load-dependent start/stop logic, while standby mode prioritizes rapid response to utility failures.

Q: What is the maximum genset capacity this controller can handle?
A: The easYgen-1500 is rated for generators up to 3,000 kW (3 MVA) when paired with appropriate current transformers (CTs) and voltage sensing inputs. Larger installations require the easYgen-3000 series with enhanced metering accuracy.

Q: Does the unit include built-in battery charger monitoring?
A: The controller monitors battery voltage (8-35 VDC range) and provides low/high voltage alarms, but does not include an integrated charger. External battery maintainers with temperature compensation are recommended for long-term float applications.

Q: How do I update firmware without a Windows PC?
A: Current firmware versions (v3.x and later) support USB flash drive updates directly through the front panel. Copy the .hex file to the root directory of a FAT32-formatted drive, insert into the controller's USB port, and follow on-screen prompts.

Q: Is remote monitoring possible without purchasing additional hardware?
A: The controller's Modbus RTU port can connect to existing PLCs, RTUs, or industrial gateways already deployed on-site. For standalone installations, third-party Modbus-to-cellular gateways (e.g., Sierra Wireless, Digi International) provide cost-effective remote access starting at $300-500 per site.

Q: What training resources are available for commissioning technicians?
A: Woodward offers online training modules (2-4 hours, self-paced) covering installation, parameter configuration, and troubleshooting. On-site training packages (8-hour sessions for up to 6 participants) can be arranged through authorized distributors for $1,500-2,000 per session.

Take the Next Step

Ready to enhance your genset reliability? Contact our technical sales team for application-specific recommendations, volume pricing, or to request a demo unit for evaluation. We support global deployments with localized documentation in 12+ languages and regional service partnerships across 40+ countries.

Request a Quote: Email your genset specifications (kW rating, voltage, engine make/model) to receive a detailed proposal within 24 hours.
Technical Consultation: Schedule a 30-minute call with our application engineers to discuss integration requirements, I/O mapping, and communication protocols.
Sample Program: Qualified OEMs and system integrators can request evaluation units with 30-day return privileges (subject to approval).
