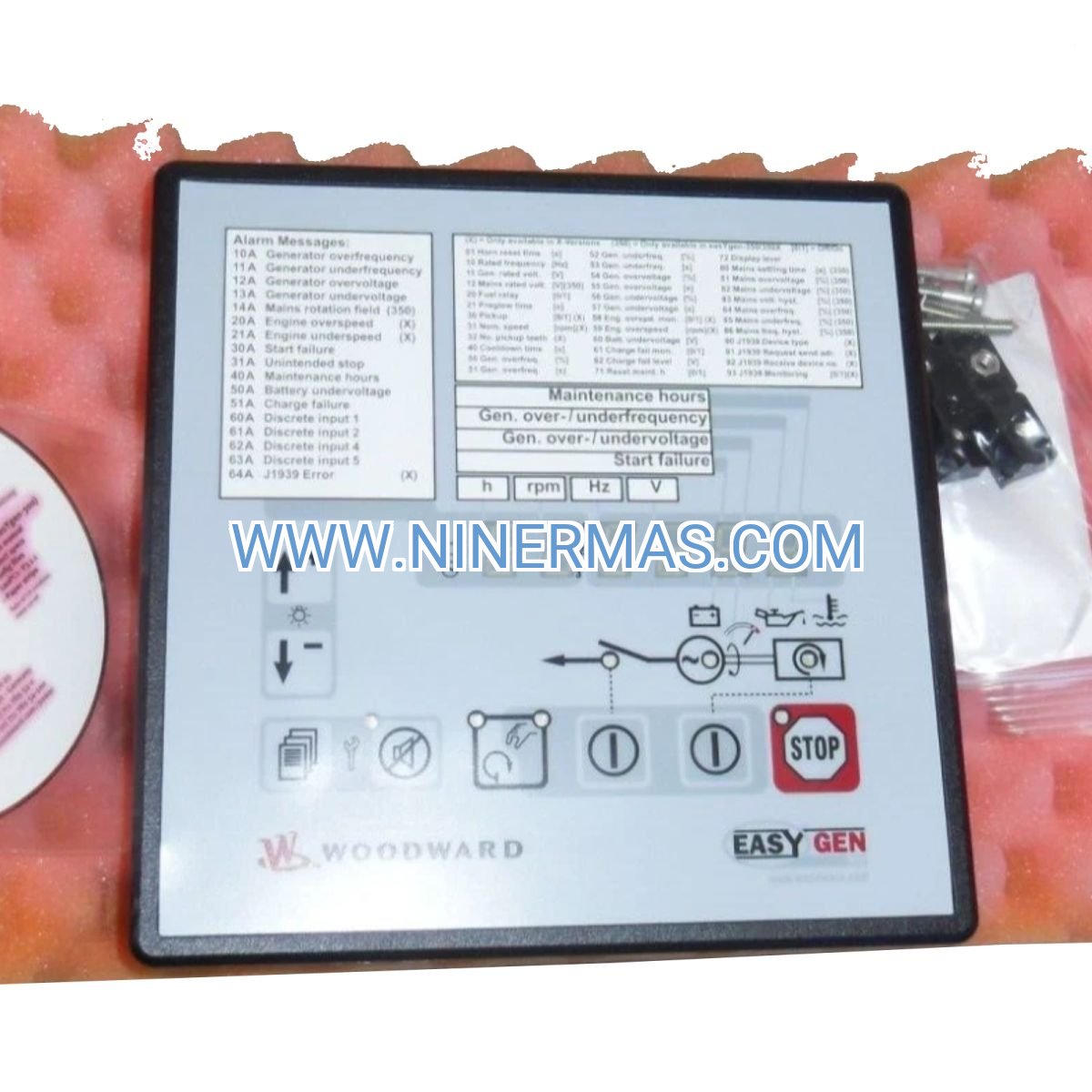

8440-1800 easYgen-320 Genset Controller (Industrial-Grade Power Automation)

The 8440-1800 represents Woodward's proven approach to single-unit generator set control, combining precision engine management with comprehensive protection logic in a compact, field-proven platform. Designed for diesel and gas-fueled gensets operating in isolated mode, this controller delivers the monitoring depth and response speed required for critical infrastructure, industrial continuity, and remote power installations where downtime carries significant operational or financial consequences.

Facilities managers, power system integrators, and OEM partners rely on the easYgen-320 architecture to bridge legacy control systems with modern communication standards. Whether safeguarding hospital emergency power, maintaining uptime in manufacturing environments, or managing off-grid energy systems, the 8440-1800 provides the configurability and reliability that mission-critical applications demand.

With multi-language support, password-protected access tiers, and dual-protocol connectivity (Modbus RTU + CANbus J1939), this controller adapts to diverse operational requirements while maintaining intuitive local control through its high-resolution graphical interface. The result: reduced commissioning time, simplified troubleshooting, and long-term system scalability.

Core Functions & Business Value

→ Real-Time Multi-Parameter Monitoring
Simultaneous display of voltage (L-L, L-N), current per phase, frequency, active/reactive power, engine RPM, oil pressure, coolant temperature, and runtime hours. Operators gain instant visibility into system health without toggling between screens, accelerating fault diagnosis and reducing mean time to resolution.

→ Configurable Protection Matrix
Pre-programmed and customizable alarm thresholds for overspeed, overcurrent, overvoltage, undervoltage, overtemperature, low oil pressure, and loss of speed signal. Each protection function includes adjustable delay timers and shutdown/warning escalation paths, minimizing nuisance trips while ensuring equipment safety.

→ Automated Start/Stop Sequencing
Programmable cranking cycles, warm-up delays, cooldown periods, and load acceptance ramps eliminate manual intervention during power transitions. Reduces operator workload by 60-80% in facilities with frequent start/stop cycles, while extending engine service life through controlled thermal management.

✓ Dual-Protocol Communication
Native Modbus RTU (RS-485) and CANbus J1939 interfaces enable seamless integration with SCADA platforms, building management systems, and fleet monitoring solutions. Single-cable connectivity to remote HMIs or cloud gateways supports predictive maintenance programs and centralized asset management.

✓ Event Logging & Diagnostics
Non-volatile memory stores up to 500 timestamped events including alarms, starts, stops, and parameter excursions. Historical data supports root cause analysis, warranty claims, and compliance reporting for regulated industries (healthcare, telecom, water treatment).

✓ Load Management Intelligence
Active and reactive power control with adjustable droop settings, power factor correction logic, and load-dependent start/stop thresholds. Optimizes fuel consumption in variable-load applications while maintaining grid code compliance for utility-interactive installations.

Typical Application Scenarios

Emergency Backup Power – Healthcare & Data Centers
Hospitals and colocation facilities require sub-10-second transfer times and unattended operation during utility outages. The 8440-1800's automatic start sequencing, pre-programmed load acceptance curves, and fail-safe shutdown logic ensure code-compliant emergency power without on-site intervention. Integrated alarm outputs trigger remote notifications, enabling 24/7 monitoring from centralized NOCs.

Continuous Industrial Operations – Manufacturing & Processing
Chemical plants, food processing lines, and semiconductor fabs cannot tolerate voltage sags or frequency deviations. This controller's fast-acting voltage regulation (±0.5% steady-state) and frequency stability (±0.25% at constant load) protect sensitive process equipment while maintaining production quality. Modbus integration with plant DCS systems enables coordinated load shedding during peak demand periods.

Commercial Building Infrastructure – Offices & Retail
Class A office towers and regional shopping centers deploy the easYgen-320 for weekly exercise cycles and storm-season readiness. Password-protected configuration prevents unauthorized changes, while the multi-language interface accommodates diverse facility teams. Remote monitoring via building automation systems reduces the need for dedicated generator technicians, lowering operational overhead by 30-40%.

Off-Grid & Remote Installations – Mining, Construction, Telecom
Mine sites, pipeline compressor stations, and cellular base stations operate in harsh environments with limited technical support. The 8440-1800's -40°C to +70°C operating range, IP54-rated front panel, and 8-33 VDC input tolerance withstand temperature extremes, dust ingress, and voltage transients common in mobile or containerized genset packages. CANbus connectivity to engine ECUs enables advanced diagnostics without proprietary scan tools.

Marine & Mobile Power – Vessels, RVs, Emergency Response
Yacht auxiliary systems, mobile command centers, and disaster relief trailers benefit from the controller's compact 144mm x 144mm footprint and vibration-resistant design. Automatic synchronization with shore power (when paired with external sync modules) and load-dependent start/stop reduce fuel consumption during extended deployments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8440-1800 for single-genset installations requiring comprehensive monitoring and dual-protocol connectivity. For multi-unit paralleling or mains-parallel operation, consider the easYgen-3500 series. For basic start/stop control without communication requirements, the easYgen-1500 offers a cost-optimized alternative. Verify engine compatibility (governor type, sensor inputs) with Woodward's LS-5 configuration software prior to ordering.

Extended Functions

IoT & Cloud Integration: When paired with Modbus-to-Ethernet gateways or cellular RTUs, the 8440-1800 enables cloud-based fleet management. Monitor fuel consumption trends, track maintenance intervals, and receive SMS/email alerts for critical alarms across distributed genset populations. Compatible with third-party platforms including AWS IoT, Azure IoT Hub, and industrial SCADA packages (Ignition, Wonderware, iFIX).

Advanced Configuration Options: The LS-5 software unlocks custom alarm logic, load-dependent start/stop thresholds, and user-defined analog/digital I/O mapping. Create site-specific operating modes (e.g., peak shaving, base load, standby-only) and store multiple configuration profiles for seasonal or application-specific requirements.

Customization & OEM Support: Woodward offers private-label firmware, custom splash screens, and pre-configured parameter sets for OEM partners integrating the easYgen-320 into packaged genset solutions. Bulk pricing and technical co-development available for annual volumes exceeding 50 units.

Delivery Cycle & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units (North America, Europe, Asia-Pacific warehouses). Express shipping available for critical outages or project deadlines.

Custom Configuration: 7-10 business days for factory-programmed units with customer-specific parameter sets, alarm labels, or communication settings.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans (24/36 months) available at time of purchase.

Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting, and firmware updates. Phone/email support during business hours (8 AM - 6 PM CST, Monday-Friday). Emergency after-hours support for critical infrastructure customers.

Documentation Package: Each controller ships with installation manual, quick-start guide, wiring diagrams, Modbus register map, and LS-5 software license. CAD drawings (DXF/STEP) and 3D panel cutout templates available for download.

Frequently Asked Questions

What engine types are compatible with the 8440-1800 easYgen-320 controller?
The controller supports diesel engines with mechanical or electronic governors, as well as natural gas and LPG engines equipped with compatible speed sensors (magnetic pickup, Hall effect, or CANbus ECU). Verify sensor compatibility using the LS-5 configuration tool prior to installation.

Can I monitor genset performance remotely without a dedicated SCADA system?
Yes. The Modbus RTU interface connects to low-cost Ethernet gateways (e.g., Moxa, Red Lion) or cellular modems (e.g., Sierra Wireless, Digi) for remote access via VPN or cloud platforms. Many customers use open-source tools like Node-RED or Grafana for custom dashboards.

How does the controller handle voltage and frequency regulation?
The 8440-1800 monitors generator output and provides analog control signals to the engine's governor (speed) and AVR (voltage). It does not directly regulate voltage/frequency but coordinates with these subsystems to maintain setpoints within ±0.5% (voltage) and ±0.25% (frequency) under steady-state conditions.

What configuration software is required, and is it included?
Woodward's LS-5 software (Windows-based) is required for advanced parameter changes beyond the front-panel interface. A single-user license is included with each controller. The software connects via USB-to-RS232 adapter (not included) or through the Modbus port using a protocol converter.

Does the easYgen-320 support automatic transfer switch (ATS) integration?
Yes. Configurable digital inputs accept ATS status signals (utility available, load connected), and programmable outputs can command ATS operation. Typical integration includes utility failure detection, genset ready signal, and load transfer confirmation.

What is the expected service life of the controller in continuous-duty applications?
Woodward designs the easYgen-320 for 10+ years of continuous operation in controlled environments (indoor enclosures, climate-controlled rooms). In harsh outdoor or high-vibration installations, expect 5-7 years before component wear (relay contacts, display backlight) may require service. Conformal coating and extended-temperature components are available for extreme environments.

Ready to Optimize Your Genset Performance?

Contact our power systems specialists to discuss your application requirements, verify engine compatibility, and receive a detailed quotation. We provide pre-sales technical consultation, configuration assistance, and post-installation support to ensure seamless integration with your existing infrastructure.

Request a Quote: Email your genset specifications (engine model, rated power, voltage/frequency, communication requirements) to our team for same-day response.

Technical Consultation: Schedule a 30-minute call with our application engineers to review wiring diagrams, I/O mapping, and SCADA integration strategies.

Bulk & OEM Inquiries: Volume discounts available for orders of 10+ units. OEM partners receive dedicated account management and co-development support.
