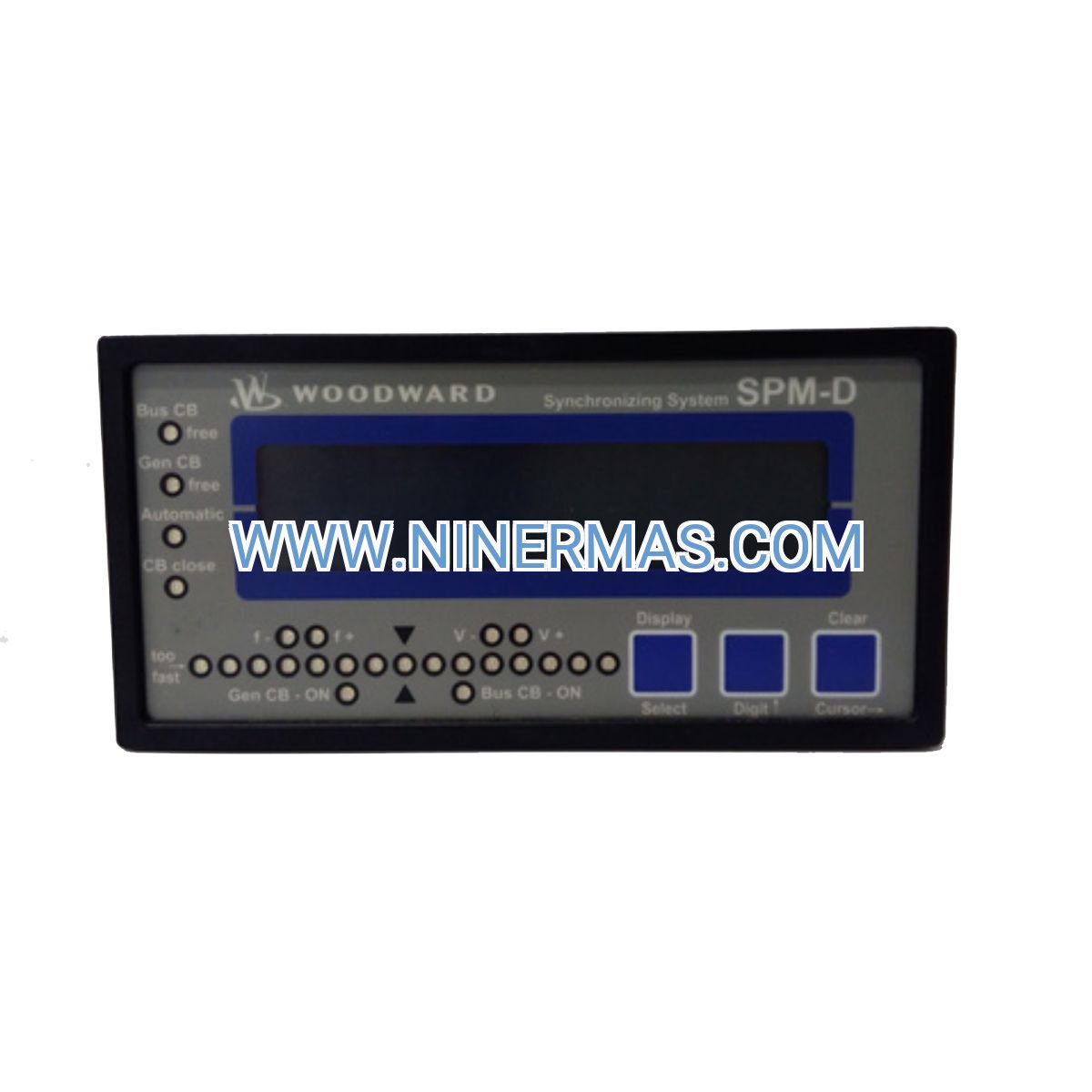

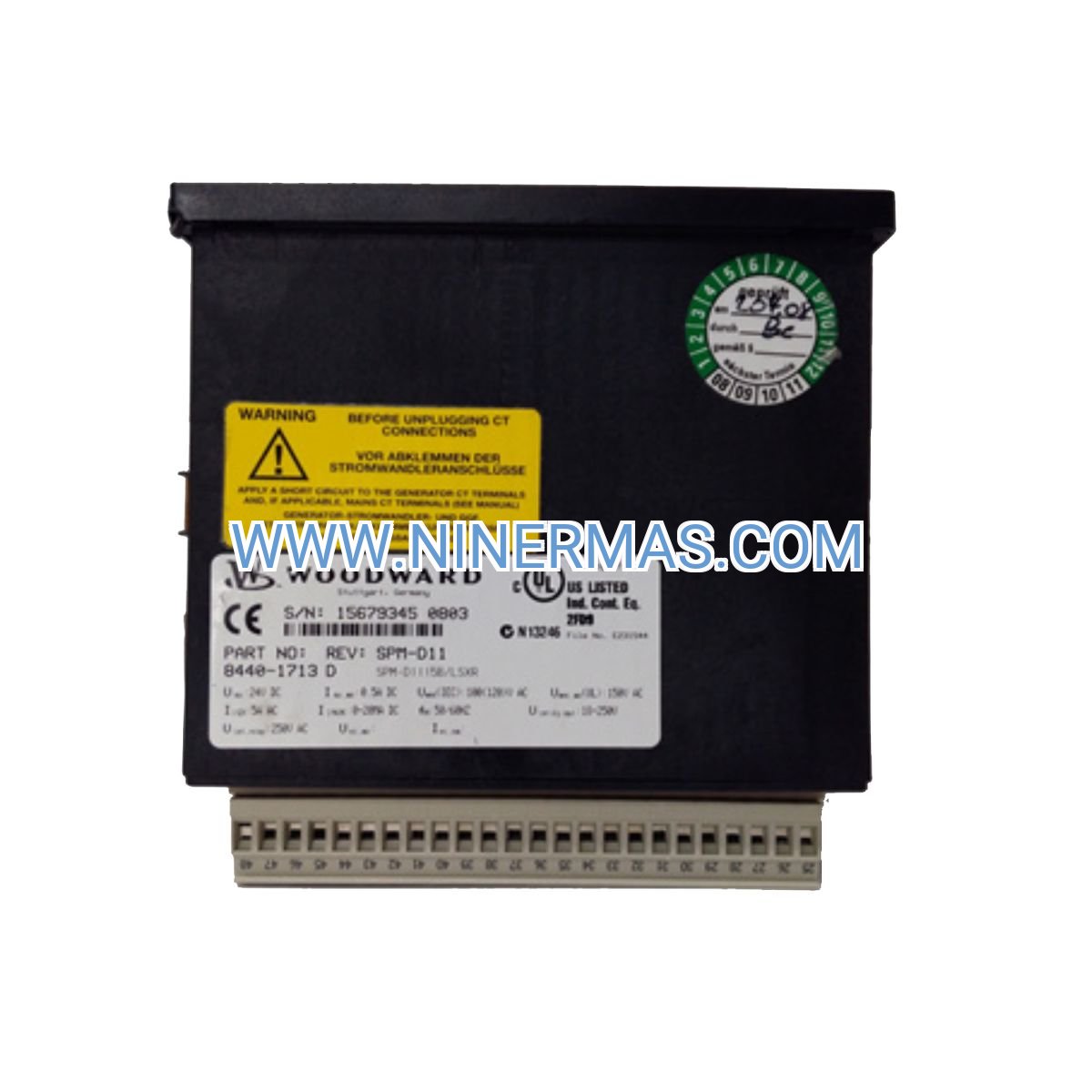

Woodward 8440-1713 SPM-D11 Synchronizer (Industrial-Grade Generator Paralleling Control)

The Woodward 8440-1713 represents a microprocessor-driven synchronization solution engineered for mission-critical AC generator paralleling operations. This SPM-D11 series module delivers automated voltage matching, frequency alignment, and phase-angle synchronization for utility grid integration and multi-generator bus systems. Designed for industrial facilities requiring uninterrupted power continuity, the 8440-1713 eliminates manual synchronization risks while reducing mechanical stress on rotating equipment.

Power system operators in manufacturing plants, marine vessels, data centers, and distributed energy installations rely on this synchronizer to coordinate multiple generation sources seamlessly. The module addresses the fundamental challenge of connecting asynchronous power sources—whether paralleling standby generators during peak demand or integrating renewable energy with conventional generation—by automating the complex timing and voltage regulation required for safe electrical connections.

Key advantages include microprocessor precision that surpasses legacy electromechanical designs, programmable match windows for diverse commissioning requirements, and integrated bias control for smooth load transitions. The compact panel-mount architecture enables straightforward retrofits into existing switchgear assemblies, while the -40°C to +70°C operating range ensures reliability across extreme industrial environments.

Core Features & Benefits

→ Microprocessor-Based Synchronization Engine
Digital signal processing algorithms continuously monitor voltage amplitude, frequency deviation, and phase angle differential between incoming generator and running bus. Automated closure commands execute only when all parameters fall within preset tolerance bands, preventing equipment damage from out-of-phase connections.

→ Integrated Governor Bias Output
Direct speed adjustment signals interface with Woodward governor controls to fine-tune generator frequency during synchronization sequences. This closed-loop coordination accelerates paralleling operations while maintaining grid stability during load transfer events.

→ Single-Phase Voltage Sensing Architecture
100 VAC nominal input configuration simplifies wiring in three-phase systems through phase-to-neutral or phase-to-phase connections. Compatible with potential transformers for high-voltage applications, supporting utility-scale installations up to transmission voltage levels.

✓ 5A Current Transformer Integration
Standard CT inputs enable real-time load monitoring and power factor measurement, supporting advanced load-sharing algorithms in multi-generator configurations. Facilitates proportional kW and kVAR distribution across paralleled units.

✓ Programmable Match Window Parameters
Adjustable voltage, frequency, and phase angle thresholds accommodate diverse generator characteristics and utility interconnection requirements. Field-configurable settings eliminate the need for hardware modifications during commissioning.

✓ Compact Panel-Mount Design

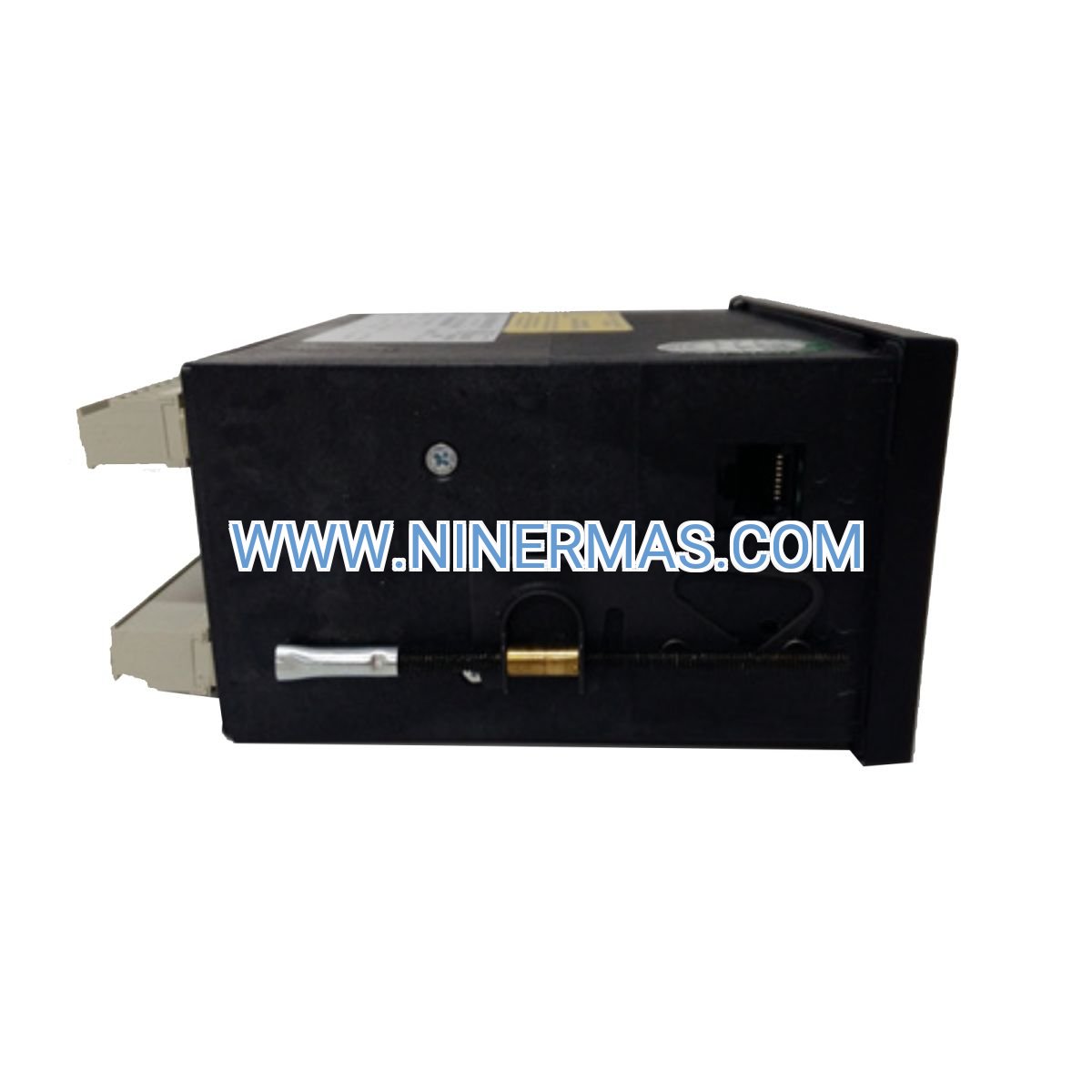

Space-efficient form factor integrates into standard 19-inch relay panels and generator control enclosures. IP20 protection rating suits indoor switchgear environments with controlled ambient conditions.

Typical Application Scenarios

Industrial Cogeneration & Combined Heat Power (CHP) Systems
Manufacturing facilities operating natural gas or diesel cogeneration units utilize the 8440-1713 to synchronize on-site generation with utility grid connections. The synchronizer manages daily startup sequences, peak-shaving operations, and emergency islanding transitions. Reduces demand charges by enabling seamless load transfers between utility and generator power sources.

Marine Propulsion & Offshore Platform Power Distribution
Shipboard electrical systems and offshore oil/gas platforms deploy multiple diesel generators in parallel configurations for redundancy and load optimization. The SPM-D11 coordinates generator paralleling during sea state changes, load variations, and maintenance rotations. Prevents blackship conditions through reliable automatic synchronization.

Data Center & Mission-Critical Facility Backup Power
Tier III/IV data centers and healthcare facilities require N+1 generator redundancy with automatic paralleling capabilities. The 8440-1713 enables multiple standby generators to share critical loads during utility outages, supporting maintenance bypass operations without service interruption. Meets stringent uptime requirements for financial trading floors and hospital operating rooms.

Renewable Energy Hybrid Systems
Solar-diesel and wind-diesel hybrid installations leverage the synchronizer to integrate conventional generators with inverter-based renewable sources. Manages frequency and voltage regulation during cloud transients or wind lulls, maintaining grid stability while maximizing renewable penetration. Supports microgrid islanding and utility reconnection sequences.

Utility Distributed Generation Interconnection
Distributed energy resources (DER) including reciprocating engines, microturbines, and fuel cells require IEEE 1547-compliant synchronization for utility grid connection. The SPM-D11 provides the precision voltage and phase matching necessary for anti-islanding protection and seamless utility transfer schemes.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8440-1713 for applications requiring single-generator-to-bus or generator-to-utility synchronization with 100 VAC sensing voltage. For multi-generator load-sharing installations, verify compatibility with existing Woodward governor and voltage regulator systems. Consult factory application engineering for systems exceeding 5 MW total capacity or requiring custom match window parameters.

Extended Functions

Load Sharing Coordination: When deployed in multi-generator configurations, the SPM-D11 interfaces with droop or isochronous governor modes to distribute kW loads proportionally across paralleled units. Supports both active and reactive power sharing through integrated CT monitoring.

Remote Monitoring Integration: Analog output signals provide real-time synchronization status for SCADA systems and building management platforms. Enables centralized monitoring of paralleling operations across distributed generation sites.

Customization Options: Factory programming services available for specialized utility interconnection requirements, including custom voltage/frequency match windows, extended time delays, and application-specific relay logic. Consult technical support for non-standard configurations.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-3 business days via expedited carriers. Custom-configured modules require 2-4 weeks factory lead time depending on specification complexity.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Application engineering assistance provided for system design, wiring diagrams, and commissioning procedures. Factory-trained technicians available for on-site startup services and troubleshooting support.

Documentation Package: Each unit includes installation manual, wiring schematics, parameter configuration guide, and dimensional drawings. Supplementary application notes available for complex paralleling architectures.

Frequently Asked Questions

How does the SPM-D11 synchronizer improve upon analog synchronization methods?
Microprocessor-based control eliminates the drift and calibration issues inherent in electromechanical synchronizers. Digital algorithms provide consistent performance across temperature extremes and maintain accuracy over the product lifecycle without periodic adjustments. The programmable architecture also supports field updates for changing application requirements.

What governor systems are compatible with the 8440-1713 bias output?
The bias signal interfaces with all Woodward electronic governors including 505E, 2301A, and ProAct series controllers. Third-party governors accepting 4-20mA or 0-10VDC speed trim signals can also integrate with appropriate signal conditioning. Consult wiring documentation for specific governor interface requirements.

Can this module synchronize generators operating at different voltage levels?
Yes, when used with appropriate potential transformers (PTs) to scale high voltages down to the 100 VAC input rating. Common applications include synchronizing 480V generators to 13.8kV utility distribution or paralleling 4160V medium-voltage generators. PT ratios must match on both incoming and running voltage sensing circuits.

What is the typical synchronization time from start command to breaker closure?
Synchronization duration varies based on initial frequency offset and governor response characteristics. Typical sequences complete within 5-15 seconds for generators within ±0.5 Hz of target frequency. Systems with slow governor response or large frequency deviations may require 30-60 seconds for safe paralleling.

Does the synchronizer support automatic load transfer and generator shutdown sequences?
The 8440-1713 provides synchronization control only. Complete automatic transfer and load management requires integration with generator control panels or programmable logic controllers (PLCs) that coordinate synchronizer outputs with breaker operations and load sequencing logic.

What certifications apply to this synchronization module for utility interconnection projects?
The SPM-D11 series meets UL 508 industrial control equipment standards and supports IEEE 1547 distributed generation interconnection requirements when properly integrated into compliant generator control systems. Specific utility jurisdictions may require additional protective relay functions beyond synchronization control.

Ready to Optimize Your Generator Paralleling System?

Contact our power systems specialists to discuss your synchronization requirements and receive application-specific recommendations. Whether you're upgrading legacy synchronizers, designing new multi-generator installations, or integrating distributed energy resources, our team provides expert guidance from initial specification through commissioning support.

Request a technical consultation: Share your system voltage, generator capacity, and paralleling configuration for customized product selection assistance.
