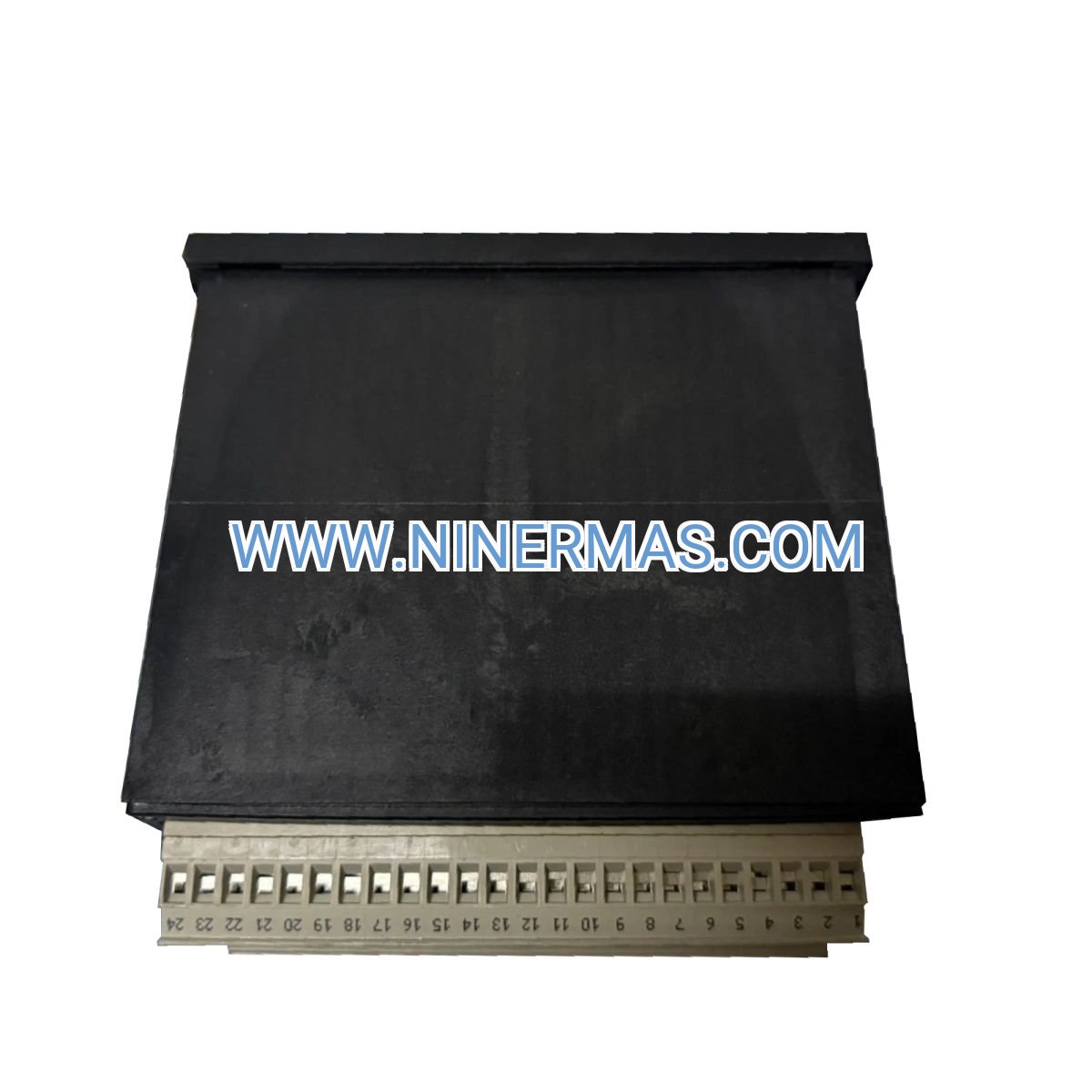

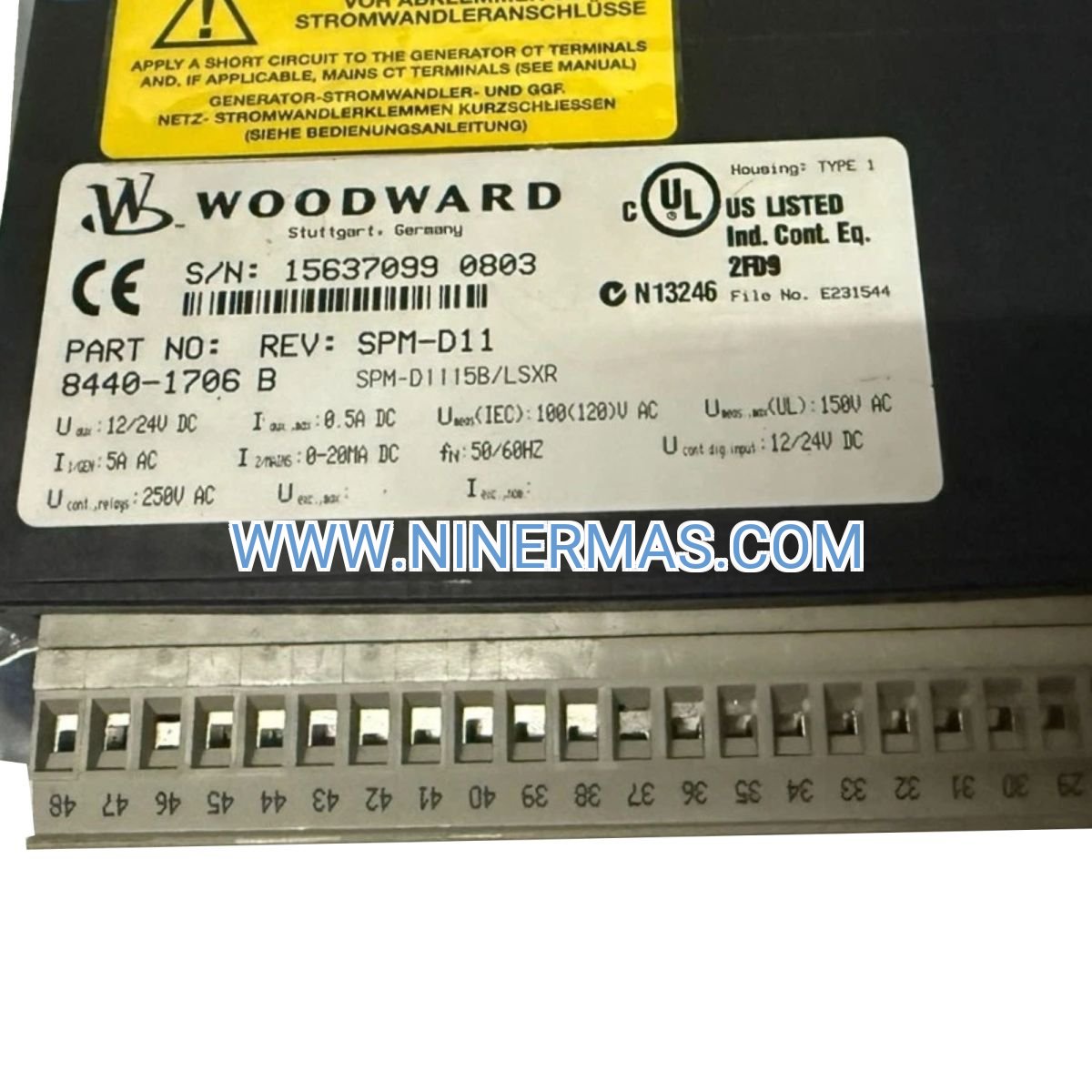

8440-1706 SPM-A Synchronizer (Industrial-Grade Generator Paralleling Controller)

The Woodward 8440-1706 represents a proven solution for automated generator synchronization in mission-critical power systems. This industrial-grade controller eliminates manual paralleling risks by continuously monitoring phase angle, voltage magnitude, and frequency differential between generator output and electrical bus systems. Designed for utility-scale generation, industrial cogeneration, and emergency backup installations, the SPM-A platform delivers repeatable synchronization accuracy within ±5 electrical degrees while protecting rotating equipment from damaging out-of-phase closure events.

Power system operators face mounting pressure to minimize grid connection time while maintaining strict safety protocols. The 8440-1706 addresses this challenge through intelligent slip frequency control and adaptive voltage matching algorithms that automatically adjust AVR and governor setpoints prior to breaker closure. Whether connecting diesel generators to utility grids, paralleling multiple gensets in island mode, or integrating backup power during utility transfer scenarios, this synchronizer provides the precision and reliability demanded by modern power infrastructure.

Built for harsh industrial environments with -40°C to +70°C operating range and panel/DIN-rail mounting flexibility, the 8440-1706 integrates seamlessly into new construction and retrofit projects. Discrete relay outputs interface directly with generator breakers and control systems, while configurable synchronization windows accommodate diverse application requirements from tight utility interconnection standards to flexible microgrid operations.

Core Capabilities & Technical Advantages

✓ Precision Phase Angle Control
Continuous monitoring of generator and bus waveforms with ±5° closure accuracy prevents mechanical shock and electrical transients that reduce equipment lifespan. Adaptive algorithms compensate for frequency drift and voltage fluctuations in real-time.

✓ Multi-Mode Synchronization Architecture
Supports utility parallel, generator-to-generator, bus transfer, and dead bus scenarios through configurable operating modes. Automatic mode selection based on detected system conditions reduces operator intervention and training requirements.

✓ Integrated Voltage & Frequency Regulation Interface
Direct control outputs for AVR and governor systems enable pre-synchronization conditioning, bringing generator output within acceptable limits before initiating paralleling sequence. Reduces sync time by 40-60% compared to manual adjustment methods.

→ Dead Bus Detection & Black Start Capability
Intelligent bus sensing algorithms identify no-voltage conditions and automatically reconfigure synchronization logic for black start operations, critical for emergency power restoration and islanded microgrid initialization.

→ Reverse Power & Load Sharing Coordination
Monitors power flow direction post-synchronization to prevent generator motoring conditions. Interfaces with droop control systems for proportional load distribution across paralleled units in multi-generator installations.

→ IEEE 1547 & Utility Interconnection Compliance
Configurable synchronization windows and protection setpoints meet North American utility interconnection requirements for distributed generation, ensuring regulatory approval for grid-tied installations.

Industrial Application Scenarios

1. Utility-Scale Power Generation Facilities
Challenge: Turbine generators must synchronize to transmission grids with minimal phase error to prevent equipment damage and grid disturbances.
Solution: The 8440-1706 automates phase matching with sub-5-degree accuracy, enabling safe connection of 10-500 MW generators while meeting utility SCADA integration requirements through discrete I/O interfaces.

2. Combined Heat & Power (CHP) Cogeneration Plants
Challenge: Industrial facilities require seamless paralleling between on-site generation and utility supply for load sharing, peak shaving, and export operations.
Solution: Automatic voltage and frequency matching enables rapid synchronization during utility transfer events, maintaining process continuity while optimizing energy costs through real-time load distribution.

3. Data Center & Mission-Critical Infrastructure
Challenge: Emergency generators must parallel with utility or UPS systems within seconds to prevent downtime during power quality events.
Solution: Pre-configured synchronization windows and fast-acting relay outputs reduce paralleling time to under 10 seconds, meeting Tier III/IV uptime requirements for financial, healthcare, and telecommunications facilities.

4. Marine & Offshore Platform Power Systems
Challenge: Shipboard and offshore generators operate in isolated electrical systems requiring frequent paralleling and load transfers in harsh environmental conditions.
Solution: Ruggedized construction with -40°C to +70°C operating range and vibration-resistant mounting ensures reliable synchronization in marine environments, supporting dynamic positioning and drilling operations.

5. Renewable Energy Hybrid Systems
Challenge: Diesel or natural gas generators must coordinate with solar/wind inverters in microgrid configurations, managing variable frequency and voltage conditions.
Solution: Adaptive slip frequency tracking accommodates ±2 Hz grid variations, enabling stable synchronization in weak grid scenarios common to remote mining, island communities, and agricultural operations.

Technical Parameters & Selection Criteria

Selection Guidance: Specify voltage sensing range based on generator output voltage (typically 480VAC for industrial, 13.8kV with PT for utility-scale). For applications requiring remote monitoring, consider Modbus-enabled variants. Installations with multiple generators should coordinate with load sharing controllers to ensure proportional kW/kVAR distribution post-synchronization.

Extended Functionality & System Integration

SCADA & Remote Monitoring Integration
Optional Modbus RTU communication enables integration with plant-level SCADA systems, providing remote visibility into synchronization status, fault conditions, and operational statistics. Discrete alarm outputs can trigger annunciator panels or automated shutdown sequences during abnormal conditions.

Custom Synchronization Profiles
Field-adjustable potentiometers and DIP switch configurations allow on-site tuning of slip frequency windows, voltage differential limits, and synchronization timeout periods without external programming tools, accommodating site-specific requirements and utility interconnection agreements.

Multi-Generator Coordination
When deployed in multi-unit installations, the 8440-1706 coordinates with droop-based load sharing controllers to ensure balanced kW and kVAR distribution across paralleled generators, preventing circulating currents and optimizing fuel efficiency in cogeneration applications.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-configured variants with custom voltage ranges or communication options.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Pre-sales application engineering assistance for system sizing and configuration. Post-installation support includes commissioning guidance, troubleshooting, and firmware updates through authorized Woodward service centers.

Documentation Package: Each unit ships with installation manual, wiring diagrams, configuration worksheets, and compliance certifications (UL/CE where applicable). Digital resources include CAD drawings and sample PLC integration code.

Frequently Asked Questions

How does the 8440-1706 handle synchronization to unstable or weak grid conditions?
The SPM-A platform incorporates adaptive slip frequency tracking that accommodates grid frequency variations within ±2 Hz, making it suitable for rural distribution systems, island grids, and microgrid applications where utility frequency stability may be compromised. The synchronizer continuously recalculates optimal closure point based on real-time frequency trends.

What installation requirements are necessary for proper voltage and frequency sensing?
Voltage sensing inputs require appropriately rated potential transformers (PTs) when monitoring medium-voltage systems above 690VAC. For low-voltage applications (480VAC and below), direct connection is acceptable with proper fusing. Frequency sensing derives from voltage waveform zero-crossings, requiring clean sinusoidal inputs free from harmonic distortion above 5% THD.

Can this synchronizer coordinate with automatic transfer switches (ATS) in backup power systems?
Yes, the 8440-1706 integrates with ATS controllers through discrete I/O interfaces. Typical sequence: ATS detects utility failure → signals generator start → synchronizer monitors generator voltage/frequency → initiates paralleling when conditions met → ATS transfers load. Coordination prevents dead-bus transfer and enables closed-transition switching for sensitive loads.

What happens if generator speed or voltage drifts during the synchronization window?
The synchronizer continuously monitors synchronization conditions up to the moment of breaker closure. If voltage differential or slip frequency exceeds configured limits during the final approach, the closure command is inhibited and the synchronization attempt resets. Configurable timeout periods (typically 30-120 seconds) trigger alarm outputs if repeated synchronization failures occur, indicating governor or AVR tuning issues.

Is the 8440-1706 compatible with inverter-based generation sources like solar or battery storage?
The SPM-A platform is optimized for synchronous and induction generator synchronization where mechanical inertia provides predictable phase angle progression. Grid-forming inverters with virtual synchronous machine (VSM) control may be compatible, but grid-following inverters typically manage their own synchronization through internal PLL algorithms. Consult Woodward's digital synchronizer product line for native inverter integration.

What maintenance intervals are recommended for long-term reliability?
The 8440-1706 is a solid-state controller with no moving parts, requiring minimal preventive maintenance. Annual inspection should verify relay contact integrity through continuity testing, confirm voltage sensing accuracy with calibrated test equipment, and validate configuration settings against site documentation. Relay contacts may require replacement after 100,000 operations or 10 years, whichever occurs first.

Take the Next Step

Ready to enhance your power generation system with proven synchronization technology? Contact our application engineering team for system-specific recommendations, configuration assistance, and competitive pricing. Whether you're designing a new cogeneration facility, upgrading legacy manual synchronization equipment, or expanding multi-generator installations, the Woodward 8440-1706 delivers the precision and reliability your operation demands.

Request a quote today: Provide your generator specifications, voltage levels, and application requirements for a tailored solution proposal within 24 hours.
