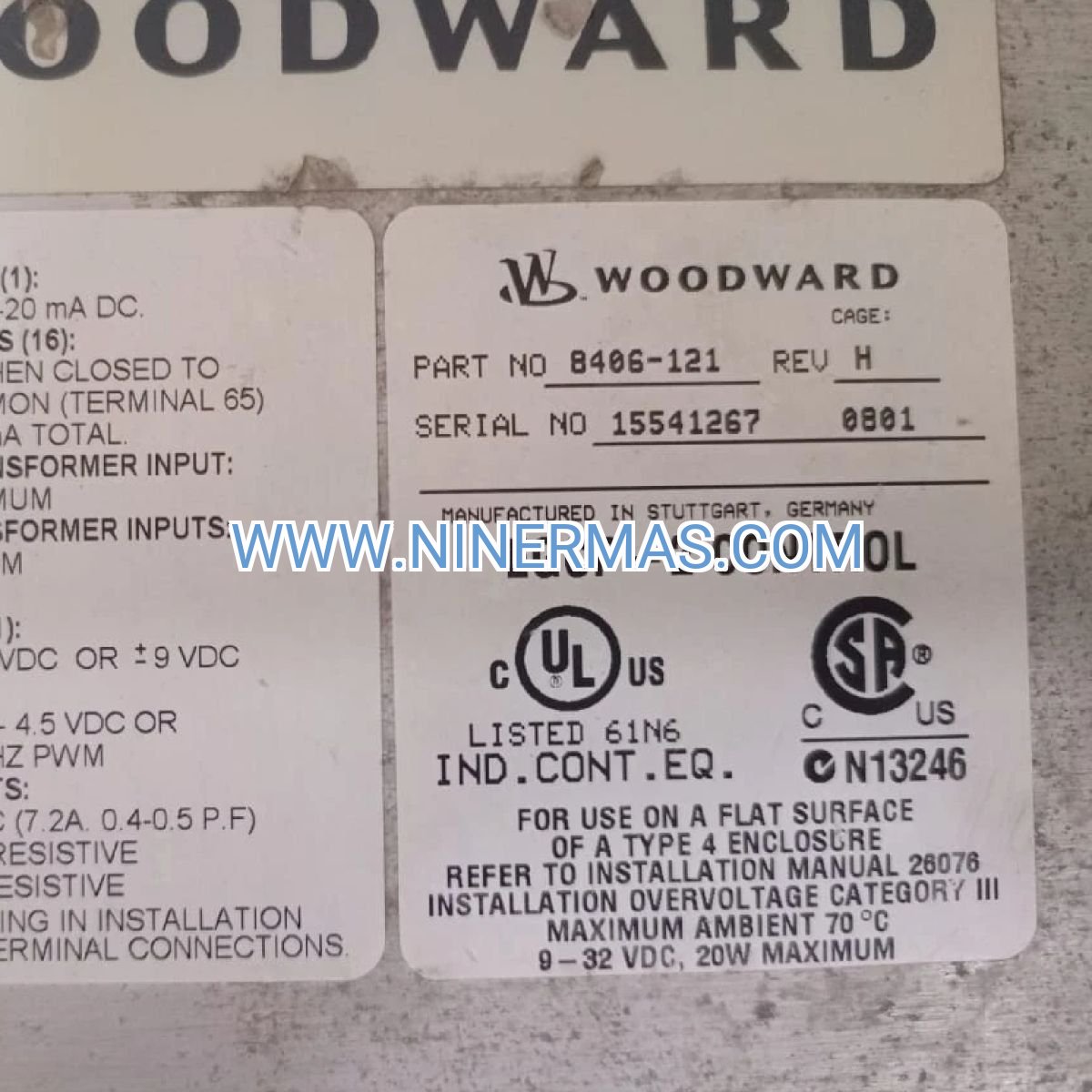

Woodward 8406-121 EGCP-2 REV.H (Industrial-Grade Genset Automation Platform)

The Woodward 8406-121 EGCP-2 REV.H delivers comprehensive engine-generator automation through a single microprocessor-based control platform. Engineered for diesel and gas-driven generator sets, this system integrates start/stop sequencing, multi-parameter monitoring, protective shutdown logic, and communication protocols into one ruggedized package. REV.H firmware introduces enhanced Modbus stability, expanded fault diagnostics, and refined alarm algorithms for mission-critical power applications.

Designed for standby, prime, and peak-shaving installations, the EGCP-2 addresses operational challenges in facilities where power reliability directly impacts safety, productivity, and revenue. From hospitals requiring seamless utility transfer to remote mining sites operating off-grid, this controller provides the intelligence and protection modern gensets demand.

With intuitive menu-driven configuration, expandable I/O architecture, and proven field reliability across thousands of installations, the 8406-121 REV.H represents a cost-effective solution for integrators and facility managers seeking to automate aging manual-start gensets or upgrade legacy control systems with limited diagnostic capability.

Core Features & Benefits

→ Integrated Engine Protection Matrix
Continuous monitoring of oil pressure, coolant temperature, overspeed, and battery voltage with programmable alarm/shutdown setpoints prevents catastrophic engine damage and extends service intervals by 20-30% compared to basic protection relays.

→ Automatic Start/Stop Sequencing
Configurable cranking cycles, warm-up delays, and cooldown timers eliminate manual intervention during utility failures, reducing response time from minutes to seconds for critical load transfer applications.

→ Generator Voltage & Frequency Regulation Interface
Direct integration with Woodward governors and AVRs enables closed-loop control of engine speed and generator output, maintaining ±0.25% frequency stability and ±1% voltage regulation under varying load conditions.

✓ Load Sharing & Synchronization Ready
Built-in paralleling capability supports multi-genset installations with droop or isochronous load distribution, maximizing fuel efficiency and providing N+1 redundancy for high-availability power systems.

✓ Event Logging & Fault History
Time-stamped recording of 100+ events with pre-fault parameter snapshots accelerates troubleshooting, reduces mean-time-to-repair (MTTR) by 40%, and provides audit trails for compliance documentation.

✓ Modbus RTU Communication Protocol
RS-232/RS-485 serial interfaces enable integration with SCADA platforms, building management systems (BMS), and cloud-based remote monitoring solutions for centralized fleet management.

Typical Application Scenarios

Emergency Standby Power – Healthcare & Data Centers
Hospitals, surgical centers, and colocation facilities deploy the EGCP-2 for automatic backup power during utility outages. The controller's sub-10-second start capability and comprehensive engine protection ensure life-safety systems and critical IT infrastructure remain operational without manual intervention, meeting NFPA 110 and Joint Commission requirements.

Prime Power Generation – Remote & Off-Grid Sites
Mining operations, telecommunications towers, and island communities rely on the 8406-121 as the primary power source. Continuous operation monitoring, predictive maintenance alerts based on runtime hours, and fuel-level tracking optimize logistics and prevent unplanned shutdowns in locations where service access is limited.

Peak Shaving & Demand Response – Industrial Facilities
Manufacturing plants and distribution centers use EGCP-2-controlled gensets to reduce utility demand charges during peak pricing periods. Programmable exerciser functions maintain engine readiness while Modbus integration allows coordination with energy management systems for automated dispatch based on real-time tariff signals.

Rental Fleet & Mobile Power – Temporary Installations
Event venues, construction sites, and disaster recovery operations benefit from the controller's rapid commissioning workflow and password-protected configuration, enabling rental companies to deploy pre-configured units with standardized operating parameters across diverse customer applications.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8406-121 EGCP-2 for single-genset installations requiring comprehensive engine protection and basic communication. For multi-unit paralleling with advanced load management, pair with LS-5 synchronizer modules. Facilities needing expanded I/O (>16 digital inputs) should specify the 8272-582 expansion module. Applications demanding color touchscreen HMI should consider upgrading to EGCP-3 platform while maintaining EGCP-2 for core control functions.

Extended Functions

IoT Integration & Cloud Connectivity
While the EGCP-2 natively supports Modbus RTU serial communication, integration with IoT gateways (such as Woodward's NetConnect or third-party protocol converters) enables cloud-based fleet monitoring, predictive analytics, and mobile app access. This architecture allows facility managers to monitor genset status, receive push notifications for alarm conditions, and analyze performance trends across geographically distributed assets.

Advanced Paralleling Configurations
When combined with Woodward LS-5 load sharing modules and synchronizers, the EGCP-2 supports complex paralleling topologies including utility grid synchronization, multi-bus configurations, and automatic load transfer schemes. The system can manage up to 32 gensets in a single paralleling bus with configurable load distribution algorithms.

Customization & OEM Integration
Woodward offers factory customization services for OEM genset manufacturers, including pre-configured alarm setpoints, branded startup screens, locked configuration parameters, and custom I/O mapping. This reduces commissioning time and ensures consistent operating parameters across production runs.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured units require 2-3 weeks for factory programming and testing. Expedited processing available for emergency replacement applications.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship from date of shipment. Extended warranty programs available for critical infrastructure applications requiring 3-5 year coverage.

Technical Support: Lifetime access to Woodward's global technical support network, including phone/email assistance, firmware update notifications, and access to online knowledge base with configuration guides, troubleshooting flowcharts, and application notes.

Documentation Package: Each unit includes installation manual (P/N 82510), operator's guide, quick-start configuration worksheet, Modbus register map, and dimensional drawings. CAD files and wiring diagrams available for download from Woodward's technical library.

Frequently Asked Questions

How does REV.H firmware improve upon earlier EGCP-2 revisions?
Revision H addresses Modbus communication timeout issues reported in high-noise electrical environments, expands event log capacity from 50 to 100 entries, and refines low-oil-pressure alarm logic to reduce nuisance trips during cold starts. Hardware remains backward-compatible for retrofit installations.

What sensor inputs are required for basic genset operation?
Minimum configuration requires oil pressure transducer (0-100 psi, 4-20mA or 0-5V), coolant temperature sensor (RTD or thermocouple), and magnetic pickup (MPU) for engine speed sensing. Optional inputs include fuel level, battery voltage, exhaust temperature, and generator current transformers (CTs) for load monitoring.

Can the EGCP-2 interface with non-Woodward governors and voltage regulators?
Yes, the controller provides discrete relay outputs and analog signals compatible with most third-party speed governors and automatic voltage regulators (AVRs). Configuration software includes templates for common aftermarket devices, though Woodward-to-Woodward integration offers tightest control loop performance.

Is remote firmware updating supported over Modbus connection?
No, firmware updates require direct connection via RS-232 port using Woodward's ServiceSuite software and a PC. This design prevents unauthorized or corrupted firmware from being loaded remotely, maintaining system integrity in critical applications.

What is the typical power consumption of the EGCP-2 controller?
The unit draws approximately 150mA at 24 VDC (3.6 watts) during normal operation, increasing to 200mA during LCD backlight activation and relay energization. This low power consumption allows operation from genset battery systems without significant parasitic drain.

How many gensets can be paralleled using EGCP-2 controllers?
With appropriate LS-5 load sharing modules, up to 32 gensets can be paralleled on a single bus. Each genset requires its own EGCP-2 controller, with one unit designated as the master for synchronization sequencing. Practical installations typically range from 2-8 units based on facility load requirements.
