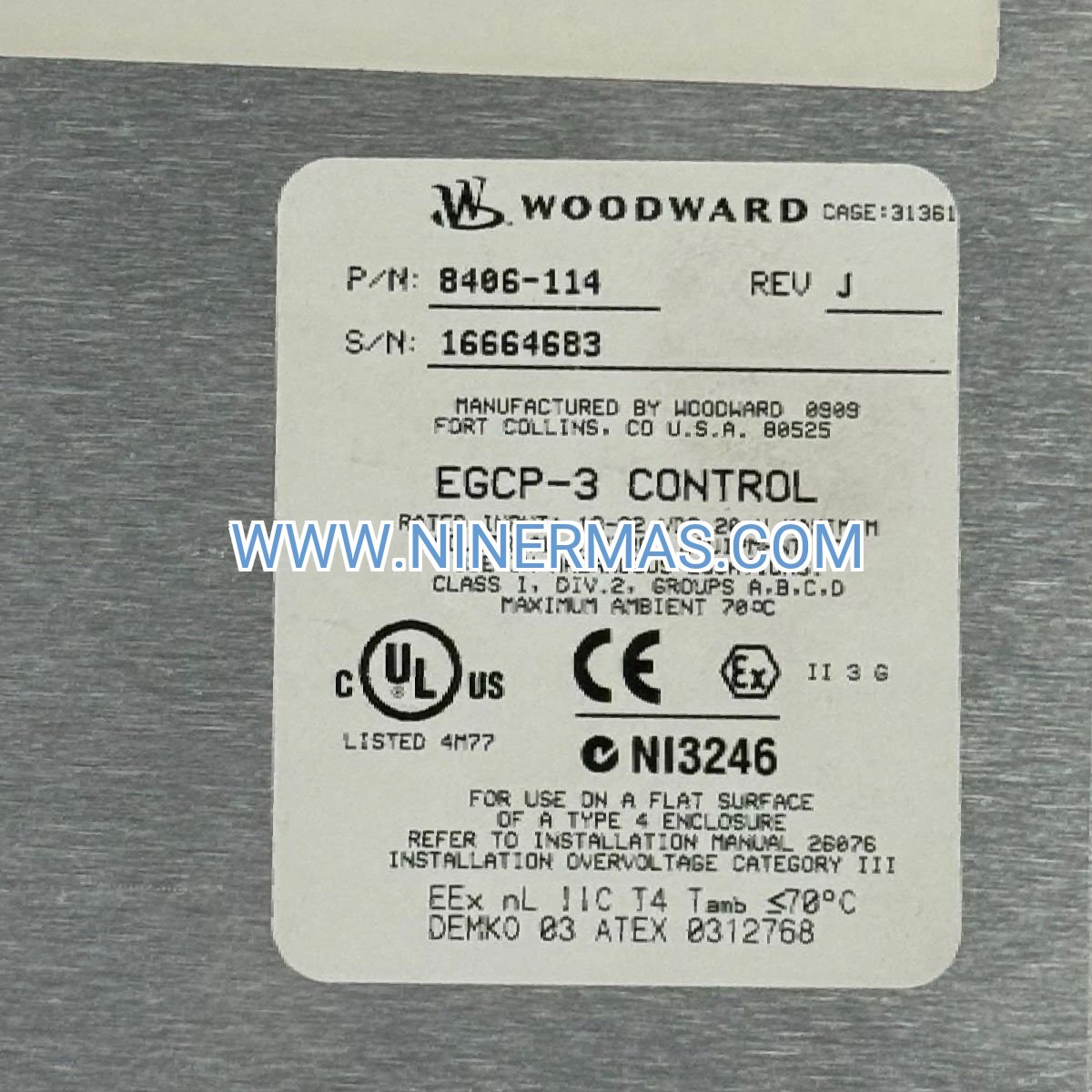

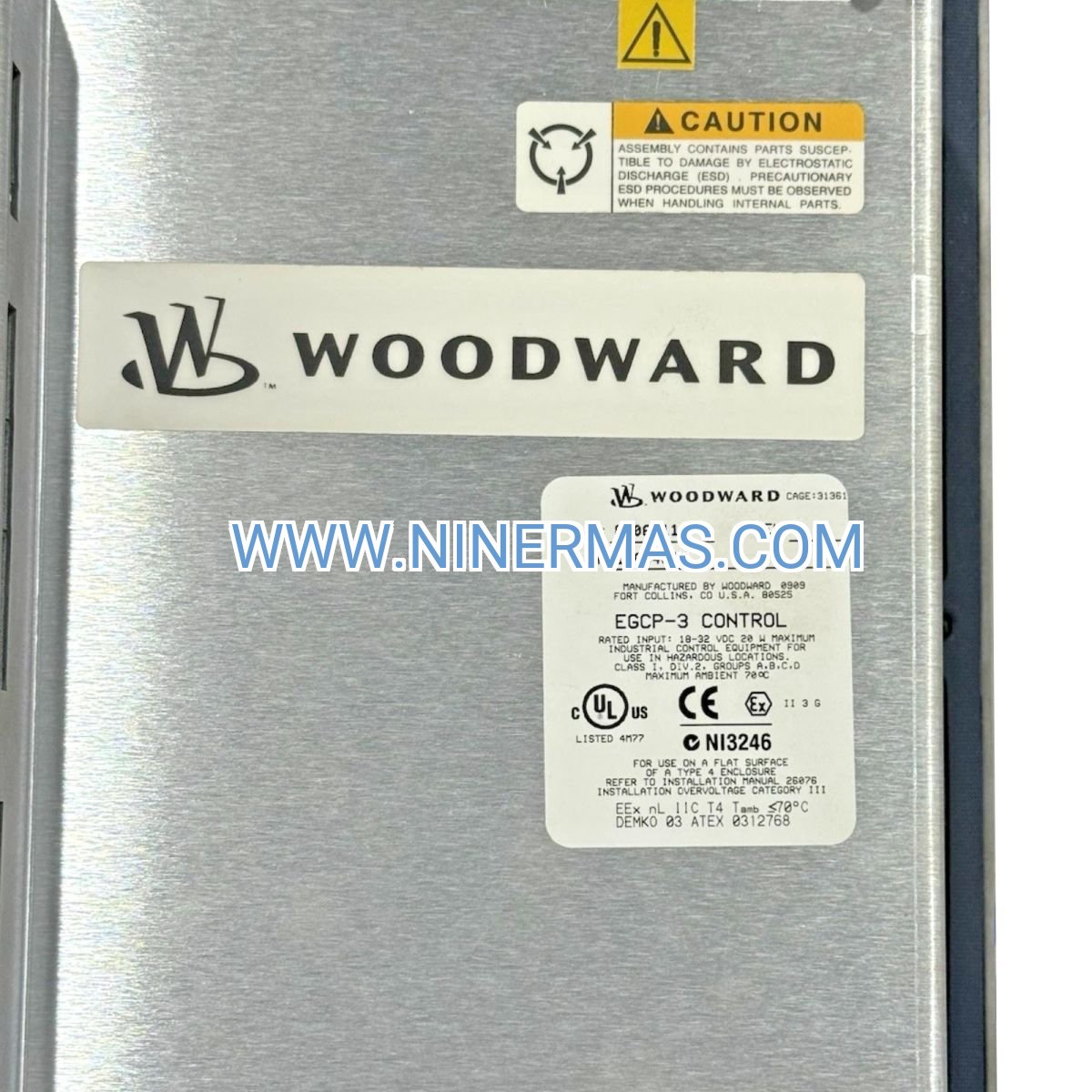

8406-114 EGCP-3 Master Control (Industrial-Grade Generator Paralleling System)

The 8406-114 represents Woodward's third-generation Engine Generator Control Package (EGCP-3) architecture, purpose-built for operators managing multi-unit generator installations where uptime, load distribution accuracy, and seamless grid synchronization are non-negotiable. This master control module orchestrates parallel operation of up to 32 generator sets while maintaining voltage stability within ±0.5% and frequency regulation to ±0.25 Hz across all operating conditions.

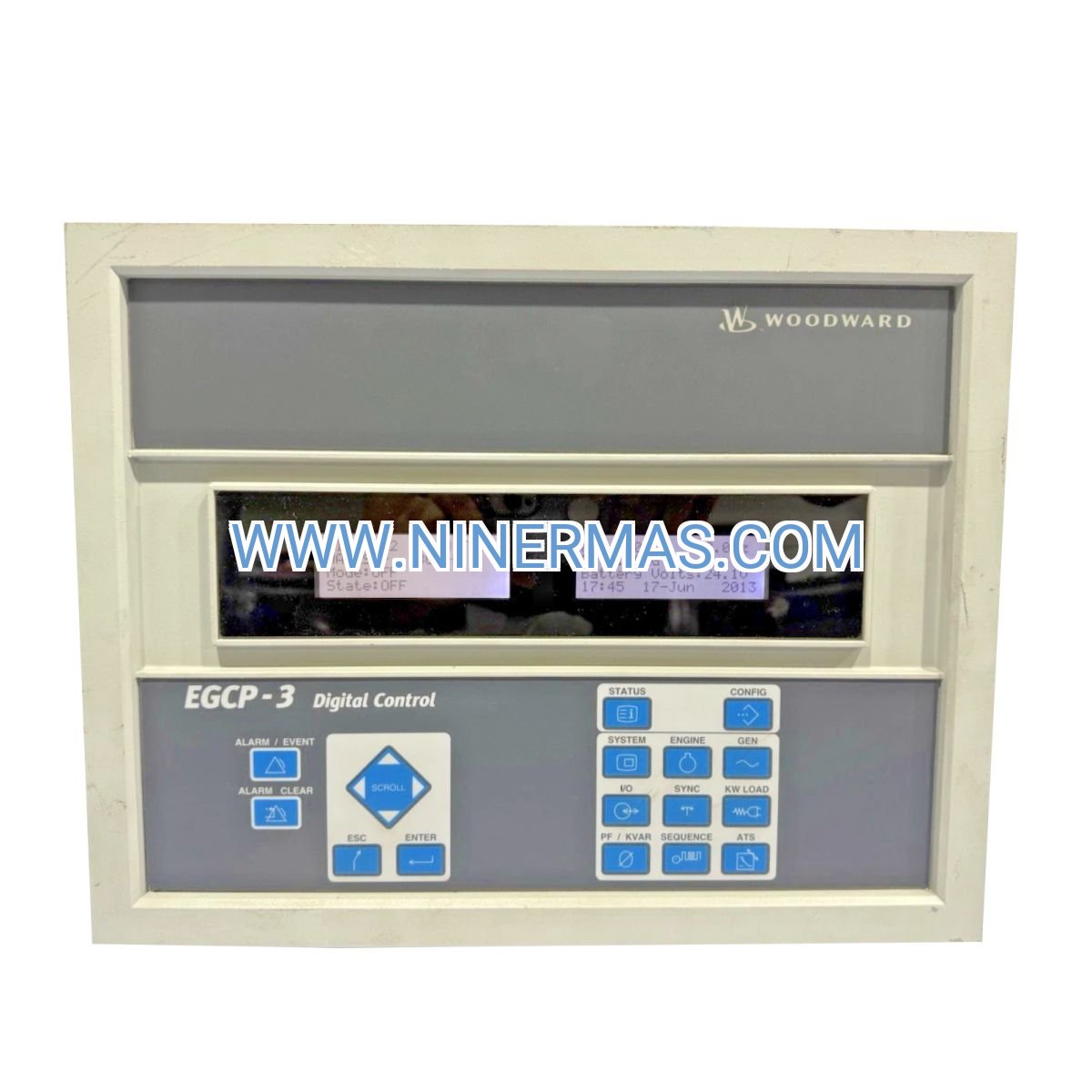

Designed for mission-critical facilities—data centers, hospitals, manufacturing plants, and marine vessels—the 8406-114 eliminates manual intervention in load transfer scenarios. When grid power fails or demand spikes occur, the system automatically sequences generator startup, synchronizes phase angles, and distributes kW/kVAR loads proportionally based on each unit's rated capacity. Facility managers gain centralized visibility through integrated LCD diagnostics and remote SCADA connectivity via Modbus RTU or CANbus protocols.

Unlike legacy relay-based paralleling systems, the 8406-114 employs digital signal processing for real-time waveform analysis, enabling sub-second synchronization decisions and adaptive droop compensation. This translates to reduced mechanical stress on generator components, lower fuel consumption through optimized load matching, and extended service intervals—critical factors for operations running 24/7/365 schedules.

Core Capabilities & Business Impact

→ Multi-Generator Orchestration
Coordinates 2-32 gensets in parallel configuration with automatic load sharing algorithms that balance active power (kW) and reactive power (kVAR) distribution. Prevents single-unit overload conditions while maximizing total system capacity utilization—essential for facilities with fluctuating demand profiles.

✓ Precision Synchronization Engine
Phase-matching accuracy within 5 electrical degrees ensures smooth paralleling to utility grid or islanded bus systems. Reduces mechanical shock loads on generator couplings by 40-60% compared to manual synchronization methods, directly extending drivetrain component lifespan.

• Adaptive Voltage/Frequency Regulation
Maintains bus voltage at setpoint ±0.5% and frequency at ±0.25 Hz under transient load steps up to 50% of rated capacity. Critical for sensitive electronic loads in IT infrastructure and precision manufacturing equipment that cannot tolerate voltage sags or frequency deviations.

→ Integrated Fault Management
Real-time monitoring of 48+ parameters including bearing temperature, oil pressure, coolant levels, and alternator winding resistance. Executes pre-programmed shutdown sequences to protect assets while automatically redistributing loads to healthy units—minimizing downtime impact.

✓ Modular Communication Architecture
Native Modbus RTU (RS-485) and CANbus J1939 interfaces enable plug-and-play integration with building management systems, SCADA platforms, and cloud-based analytics services. Supports remote parameter adjustment and firmware updates without site visits.

• Environmental Resilience
Operates reliably across -40°C to +70°C ambient temperature range with conformal-coated PCBs resistant to humidity, salt spray, and vibration. IP20-rated enclosure suitable for indoor electrical rooms; optional IP54 housing available for outdoor installations.

Industry Applications & Problem-Solving

Data Center Tier III/IV Compliance
Meets N+1 redundancy requirements for concurrent maintainability. The 8406-114 enables seamless transfer between utility and generator power without interrupting critical IT loads, while load-sharing algorithms prevent single-generator overload during maintenance windows. Facilities achieve 99.982%+ uptime targets mandated by Tier III standards.

Marine Propulsion & Hotel Loads
Manages parallel operation of main and auxiliary generators on vessels where space and weight constraints demand compact control solutions. Automatic load shedding prioritizes propulsion systems during emergency conditions, while dynamic positioning (DP) vessels benefit from sub-cycle synchronization for thruster power stability.

Industrial Cogeneration Plants
Coordinates combined heat and power (CHP) systems where generator output must track thermal demand curves. The controller's programmable logic accommodates custom load-following algorithms, enabling facilities to optimize fuel efficiency while meeting process steam requirements and electrical baseload commitments.

Peak Shaving & Demand Response
Utility customers facing demand charges deploy the 8406-114 to automatically start on-site generation when grid consumption approaches contracted limits. Real-time kW metering triggers generator paralleling within 10 seconds of threshold breach, capping monthly demand peaks and reducing electricity costs by 15-30%.

Emergency Backup for Healthcare Facilities
Hospitals and surgical centers require uninterrupted power for life-support systems and operating theaters. The master control's automatic mains failure (AMF) logic initiates generator startup within 10 seconds of utility loss, with closed-transition transfer preventing even momentary interruptions to critical care equipment.

Technical Parameters & Selection Criteria

Selection Guidelines: For installations with 2-8 generators, the 8406-114 provides cost-effective paralleling without requiring external synchronizers. Systems with 9+ units benefit from the controller's advanced load-sharing algorithms that prevent circulating currents between alternators. Marine applications should specify DNV-GL certified units with enhanced vibration resistance. Facilities requiring remote monitoring must budget for Ethernet gateway modules (sold separately) to enable TCP/IP connectivity.

Advanced Integration Options

SCADA & Cloud Connectivity
When paired with Woodward's Ethernet gateway module, the 8406-114 exposes 200+ data points via Modbus TCP for integration with Schneider Electric, Siemens, or Rockwell Automation SCADA platforms. Cloud-based analytics services can ingest operational data for predictive maintenance algorithms that forecast component failures 30-90 days in advance based on vibration signatures and thermal trends.

Custom Load Management Profiles
Programmable logic controller (PLC) functionality allows creation of site-specific operating modes. Examples include time-of-day scheduling for peak shaving, priority load shedding sequences for emergency scenarios, and export power limiting for grid-tied systems with net metering agreements.

Expansion I/O Modules
The master control's CANbus backbone supports addition of digital input/output cards for monitoring external sensors (fuel tank levels, ambient temperature) or controlling auxiliary equipment (transfer switches, cooling pumps). Modular architecture eliminates need for separate PLCs in many installations.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units shipping from our Shanghai distribution center. Express courier options available for urgent replacements.
Custom Configurations: 10-15 business days for units requiring pre-programmed logic or specialized I/O configurations.
Warranty Coverage: 18-month manufacturer warranty covering defects in materials and workmanship from date of shipment. Extended 36-month coverage available for critical infrastructure applications.
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and firmware updates. Remote commissioning support via TeamViewer or similar platforms included.
Documentation Package: Each unit ships with installation manual, wiring diagrams, Modbus register map, and sample SCADA integration code (Python/C++).

Frequently Asked Questions

Can the 8406-114 control generators from different manufacturers in the same paralleling system?
Yes, provided all gensets operate at the same voltage and frequency ratings. The controller interfaces with each generator's governor and AVR (automatic voltage regulator) via industry-standard 4-20mA analog signals or digital protocols, making it manufacturer-agnostic. Mixed-brand installations are common in retrofit scenarios where existing assets are integrated with new capacity additions.

What is the maximum cable distance between the master control and remote generator sets?
Modbus RTU communication supports up to 1,200 meters (4,000 feet) using shielded twisted-pair cable at 9,600 baud rate. For longer distances or electrically noisy environments, CANbus offers superior noise immunity and can extend to 1,000 meters at 50 kbps. Fiber optic converters enable multi-kilometer links in campus-style installations.

Does the system require annual recalibration or maintenance?
No field calibration is required under normal operating conditions. The controller's digital architecture eliminates drift associated with analog components. Recommended maintenance consists of visual inspection for loose connections and firmware updates every 24 months to incorporate feature enhancements. Battery backup for real-time clock should be replaced every 5 years.

How does load sharing accuracy compare between droop mode and isochronous mode?
In droop mode (typical for grid-parallel operation), load sharing accuracy is ±5% of rated kW across all units. Isochronous mode (used for islanded operation) achieves ±2% accuracy through active cross-communication between controllers. For applications demanding tighter load distribution, Woodward's LS-5 load-sharing module can be added to achieve ±1% accuracy.

Is the 8406-114 compatible with renewable energy sources like solar or wind?
The controller can coordinate with battery energy storage systems (BESS) and renewable inverters that present grid-forming characteristics. However, direct control of solar inverters or wind turbines requires additional interface modules. Hybrid microgrids typically deploy the 8406-114 for diesel/gas generator management while using separate controllers for renewable assets, with a supervisory PLC orchestrating overall energy management.

What cybersecurity features protect against unauthorized access to the control system?
Standard units support password-protected parameter access with three user privilege levels (operator/technician/administrator). For installations requiring enhanced security, optional Ethernet gateways include TLS encryption, MAC address filtering, and audit logging compliant with NERC CIP standards for critical infrastructure protection.

Get Started with Your Paralleling System

Our application engineers are available to review your site's electrical single-line diagram and recommend optimal controller configuration, I/O module selection, and communication architecture. Request a technical consultation by emailing your project specifications, including total generator capacity (kW), number of units, and existing SCADA platform details.

For immediate procurement of standard 8406-114 units, add to cart and proceed to checkout. Volume discounts available for orders of 5+ controllers. All shipments include pre-configured startup parameters based on your specified voltage/frequency ratings to minimize commissioning time.
