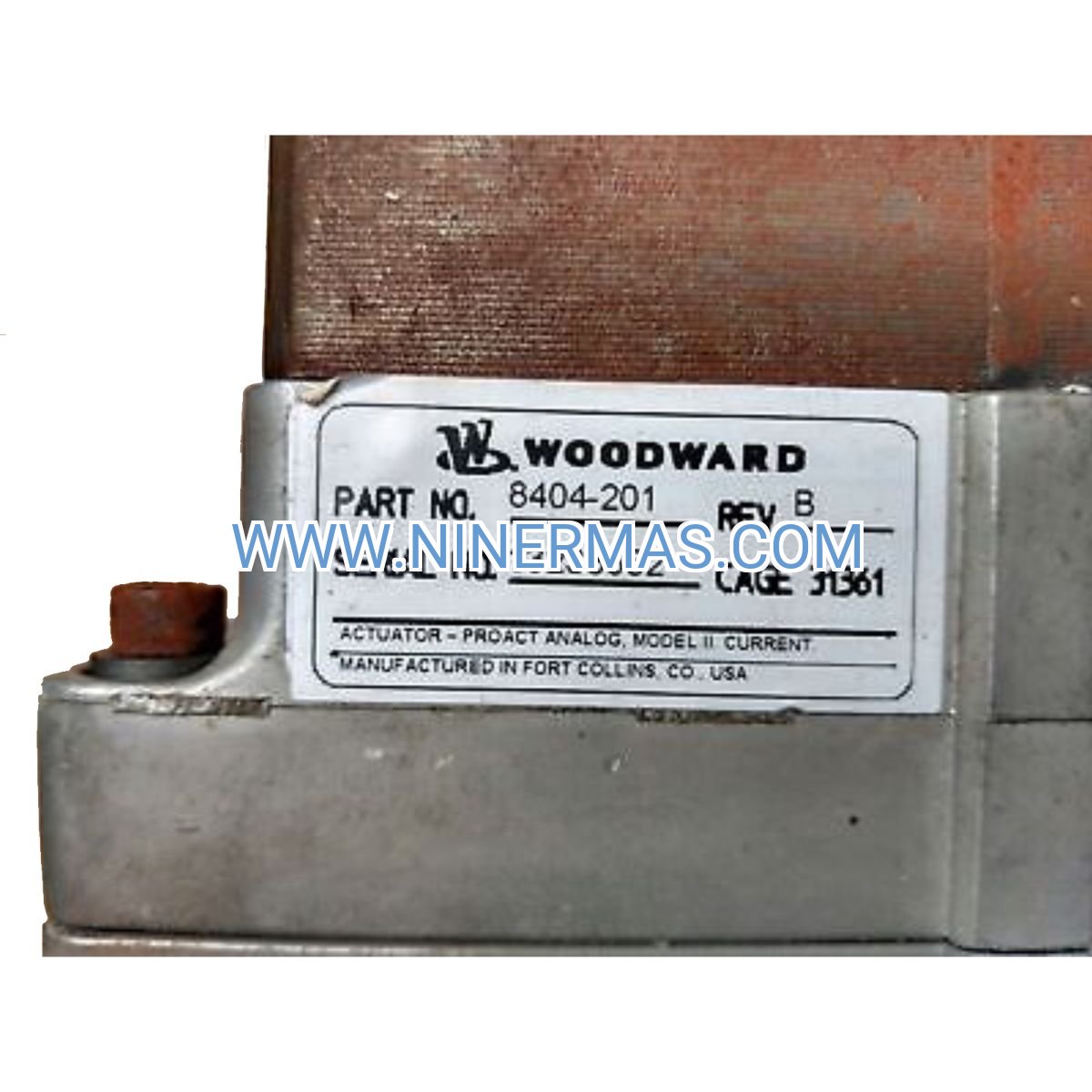

8404-201 Electro-Hydraulic Fuel Actuator (Industrial-Grade Precision Control)

The Woodward 8404-201 is an electro-hydraulic fuel actuator engineered for mission-critical speed and load regulation in diesel engines, gas turbines, and industrial prime movers. Combining rapid response dynamics with field-proven durability, this actuator solves fuel metering challenges in environments where millisecond-level precision directly impacts operational safety, emissions compliance, and energy efficiency.

Designed for integration with electronic governor systems, the 8404-201 translates analog control signals into precise mechanical positioning—enabling stable frequency regulation in generator sets, smooth throttle response in marine propulsion, and accurate fuel valve control in turbine-driven compressors. Its robust construction withstands vibration, temperature extremes, and contaminated fuel environments common in heavy industry.

Whether you're retrofitting legacy mechanical governors, upgrading standby power systems, or specifying components for new installations, the 8404-201 delivers the reliability and performance required for 24/7 industrial operation with minimal maintenance intervention.

Core Features & Benefits

→ Ultra-Fast Response Dynamics
Sub-50 millisecond full-stroke actuation enables tight speed regulation during load transients, reducing frequency deviation to ±0.25% in typical governor applications—critical for grid-parallel operation and sensitive electronic loads.

→ Wide Environmental Operating Range
Functional from -40°C to +85°C with IP65 ingress protection, the actuator maintains calibration accuracy across arctic cold starts, desert heat, and marine salt-spray conditions without performance degradation.

→ Universal Signal Compatibility
Accepts industry-standard 4-20 mA current loop or 0-10 VDC voltage inputs, ensuring seamless integration with Woodward 2301/505 controllers, third-party PLCs, and legacy analog governor systems without signal conditioning.

✓ Field-Serviceable Modular Design
Replaceable coil assemblies and linkage components allow on-site maintenance without complete actuator removal, reducing downtime from hours to minutes during scheduled service intervals.

✓ Corrosion-Resistant Construction
Anodized aluminum housing and stainless steel wetted components resist fuel additives, biodiesel blends (up to B20), and moisture ingress—extending service life beyond 50,000 operating hours in harsh industrial environments.

✓ Proven Cross-Industry Reliability
Deployed across millions of cumulative operating hours in power generation, marine propulsion, oil & gas compression, and emergency backup systems with documented MTBF exceeding industry benchmarks.

Typical Application Scenarios

Standby & Prime Power Generation
In hospital emergency generators and data center UPS systems, the 8404-201 ensures rapid load acceptance during utility outages. Its fast response prevents voltage sag during motor starting, while precise fuel metering maintains stable frequency under varying electrical loads—protecting sensitive IT equipment and medical devices from power quality disturbances.

Marine Main & Auxiliary Propulsion
Commercial vessels rely on the 8404-201 for smooth throttle control in main diesel engines and auxiliary generator sets. The actuator's vibration tolerance and salt-spray resistance ensure reliable operation during ocean crossings, while its linear stroke characteristics provide predictable speed response for maneuvering in confined waters.

Industrial Gas Turbine Control
Cogeneration plants and mechanical drive turbines use the 8404-201 for precise fuel valve positioning. By maintaining optimal air-fuel ratios across varying loads, the actuator helps operators achieve emissions compliance, maximize thermal efficiency, and extend turbine hot-section life through controlled temperature profiles.

Process Equipment Speed Regulation
Critical pumps and compressors in refineries, chemical plants, and water treatment facilities depend on consistent speed control. The 8404-201's tight positioning accuracy prevents process upsets caused by flow rate variations, while its fail-safe design enables controlled shutdown during emergency conditions.

Mechanical Governor Retrofit Projects
Upgrading aging mechanical governors to electronic control improves response time by 10-20x while eliminating wear-prone flyweight assemblies. The 8404-201's standard flange mounting simplifies installation on existing fuel racks, and its analog input compatibility preserves legacy control infrastructure during phased modernization.

Technical Parameters & Selection Guide

Selection Criteria: Match actuator stroke to fuel rack travel requirements. Verify control signal type (current vs. voltage) matches governor output. For marine applications, specify stainless hardware upgrade. Consult linkage geometry to ensure mechanical compatibility with existing fuel system components.

Extended Functions

Position Feedback Integration: Optional external LVDT or potentiometric position sensors can be mounted to the actuator shaft for closed-loop verification in safety-critical applications. This enables governor systems to detect actuator binding or mechanical failures before they impact engine operation.

Redundant Control Configurations: In dual-governor architectures, two 8404-201 actuators can be mechanically coupled with independent control inputs, providing fail-operational capability for applications where loss of speed control creates safety hazards (e.g., emergency fire pumps, nuclear plant auxiliaries).

Custom Stroke & Force Options: Factory-configurable variants offer extended stroke lengths (up to 50 mm) or increased output force for heavy fuel racks and high-pressure fuel systems. Contact engineering support with mechanical load specifications for custom actuator sizing.

Delivery & Service Assurance

Lead Time: Stock units ship within 2-3 business days. Custom configurations require 4-6 weeks for factory build and testing. Expedited processing available for emergency replacements with 24-hour turnaround on in-stock items.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for fleet installations and critical infrastructure applications.

Technical Support: Pre-sales application engineering assistance for system integration questions. Post-installation troubleshooting support via phone and email. Field service available for commissioning and calibration in select regions.

Documentation Package: Each actuator ships with installation manual, wiring diagrams, calibration procedures, and dimensional drawings. Replacement parts list and recommended spare parts inventory guidance included for maintenance planning.

Frequently Asked Questions

What fuel types are compatible with the 8404-201 actuator?
The actuator handles diesel fuel (ASTM D975), biodiesel blends up to B20 (ASTM D6751), marine diesel oil (ISO 8217), and light fuel oils. For heavy fuel oil or specialized applications, consult the fuel compatibility matrix in the technical manual to verify seal and component compatibility.

Can this actuator replace older Woodward mechanical governors?
Yes, the 8404-201 is frequently used in retrofit projects to upgrade PSG, UG-8, and similar mechanical governors to electronic control. You'll need a compatible electronic governor controller (such as Woodward 2301A or 505E) to provide the analog control signal. Mechanical interface adapters may be required depending on fuel rack configuration.

How do I calibrate the actuator stroke range?
Calibration involves adjusting mechanical linkage to align actuator endpoints with fuel rack idle and full-load positions, then verifying linearity across the stroke. The process typically takes 20-30 minutes using basic hand tools and a multimeter. Detailed step-by-step procedures are provided in Section 4 of the installation manual.

What causes hunting or oscillation in actuator-controlled engines?
Hunting usually results from excessive governor gain, mechanical backlash in linkages, or air in hydraulic systems. Start by reducing proportional gain in the governor controller. Inspect linkage connections for wear or loose fasteners. Bleed air from the actuator hydraulic circuit per maintenance procedures. If issues persist, verify fuel system response time matches actuator dynamics.

Is the 8404-201 suitable for hazardous area installations?
The standard 8404-201 is not intrinsically safe or explosion-proof certified. For Class I Division 2 or ATEX Zone 2 applications, use appropriate barriers or purged enclosures. Woodward offers certified variants for Zone 1/Division 1 environments—contact product selection for hazardous location requirements.

What is the recommended maintenance interval?
Inspect actuator mounting and linkage connections every 2,000 operating hours or annually. Replace hydraulic fluid and seals every 10,000 hours or 5 years. Full actuator overhaul recommended at 50,000 hours or when performance degradation is observed. Maintenance kits with seals, filters, and fluid are available for field service.

Ready to Optimize Your Fuel Control System?

Whether you're specifying components for a new installation, sourcing replacements for aging equipment, or upgrading to electronic governor control, our applications team can verify compatibility and recommend the optimal configuration for your specific engine or turbine platform.

Contact us today for technical datasheets, wiring diagrams, or personalized application support. We maintain stock inventory for immediate shipment and offer expedited delivery for critical downtime situations.
