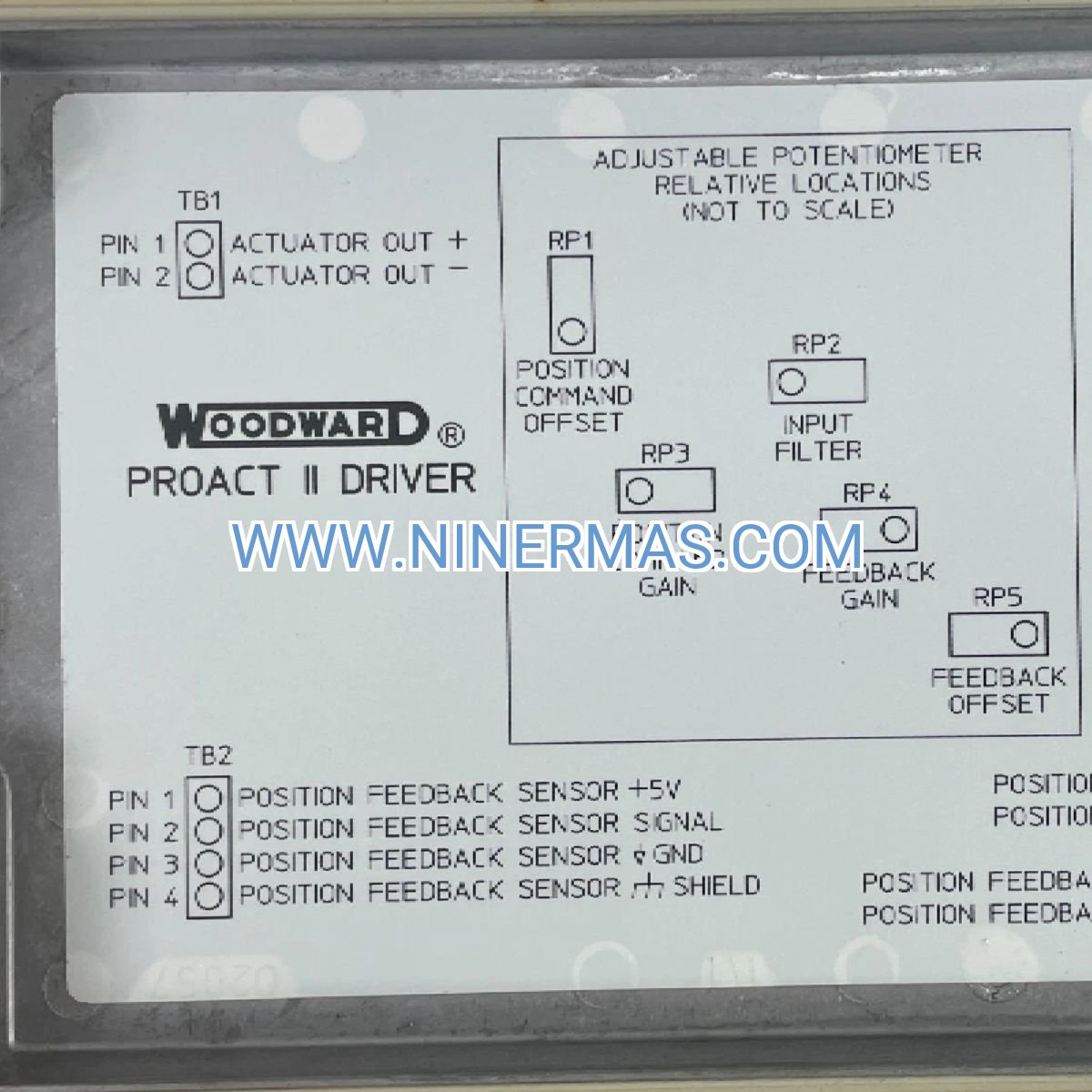

Woodward 8400-016 Electronic Governor Actuator (Industrial-Grade EPG System)

The Woodward 8400-016 represents a proven electronic positioning solution for diesel and gas engine speed regulation across critical industrial applications. This electrically powered governor (EPG) actuator combines 24 VDC operation with 30-degree rotational authority, delivering microsecond-level response for power generation plants, marine auxiliary systems, and mechanical drive packages where traditional mechanical governors fall short on precision and reliability.

Designed for OEMs and retrofit integrators, the 8400-016 addresses common challenges in legacy governor systems: mechanical wear, speed droop under load transients, and limited integration with modern digital control platforms. Target users include power plant engineers, marine system integrators, and industrial maintenance teams managing engine-driven equipment in oil & gas, mining, and distributed energy installations.

Key differentiators include SAE-standard mounting for drop-in replacement, integrated potentiometric feedback eliminating external sensors, and fail-safe spring return ensuring safe shutdown during electrical faults. When paired with Woodward digital controllers, the system enables advanced load sharing, remote monitoring, and predictive maintenance capabilities unavailable in purely mechanical solutions.

Core Features & Technical Advantages

→ Precision Electronic Positioning: 30° rotational travel with ±0.25% speed regulation accuracy maintains stable engine RPM under dynamic load conditions, reducing frequency deviation in generator applications and improving fuel efficiency by 3-8% versus mechanical governors.

→ Rapid Response Dynamics: Sub-100 millisecond full-stroke actuation enables fast load acceptance in standby power systems, critical for meeting NFPA 110 Level 1 requirements and preventing voltage sag during utility transfer events.

→ Industrial Environmental Protection: IP65-rated enclosure with conformal-coated electronics withstands saltwater spray, dust ingress, and temperature extremes from -40°C to +85°C, proven in offshore platform and desert mining installations.

✓ Universal Control Interface: Accepts 4-20 mA current loop, 0-10 VDC voltage, or PWM signals without external signal conditioning, simplifying integration with PLCs, SCADA systems, and legacy analog controllers.

✓ Integrated Position Feedback: Built-in 0-5 VDC potentiometric sensor provides real-time shaft angle data for closed-loop control, eliminating $200-400 in external LVDT or encoder costs per installation.

✓ Fail-Safe Mechanical Design: Spring-return mechanism drives actuator to minimum fuel position within 200 ms of power loss, preventing engine overspeed and meeting marine classification society safety requirements (ABS, DNV, Lloyd's).

Application Scenarios & Industry Solutions

Diesel Generator Speed Control (50 kW - 3 MW Range)
In standby and prime power installations, the 8400-016 maintains ±0.5 Hz frequency stability during load steps up to 50% rated capacity. Solves the problem of mechanical governor hunting and speed droop that causes paralleling failures in multi-genset systems. Delivers synchronized operation with utility grid or other generators through isochronous load sharing, reducing fuel consumption by 12-15% in variable-load applications versus droop-only control.

Marine Auxiliary Engine Regulation
Controls propulsion assist engines, emergency generators, and hydraulic power units on commercial vessels from tugboats to offshore supply vessels. Addresses SOLAS Chapter II-1 requirements for emergency generator starting and load acceptance within 45 seconds. Provides salt-fog resistance and vibration tolerance (MIL-STD-167) unavailable in standard industrial actuators, with proven MTBF exceeding 50,000 hours in continuous marine service.

Mechanical Drive Speed Matching
Regulates engine speed in direct-coupled pump drives, gas compressor packages, and irrigation systems where precise RPM control optimizes process efficiency. Eliminates the 2-5% speed variation inherent in mechanical governors that causes pump cavitation and compressor surge. Enables remote speed adjustment via 4-20 mA setpoint, allowing operators to match pump output to demand without manual throttle adjustment, saving 8-12 operator hours weekly in multi-pump installations.

Biogas & Landfill Gas Engine Control
Manages variable-BTU fuel challenges in renewable energy applications where fuel quality fluctuates ±15% throughout the day. The electronic actuator's fast response compensates for combustion variations that cause mechanical governors to oscillate, maintaining stable power output and preventing engine shutdown from lean/rich excursions.

Industrial CHP (Combined Heat & Power) Systems
Provides the speed regulation foundation for cogeneration plants from 100 kW to 2 MW, coordinating with heat recovery systems and electrical switchgear. Solves thermal load-following challenges by accepting external trim signals from building management systems, automatically adjusting engine output to match heating/cooling demand while maintaining electrical frequency within ±0.1 Hz.

Technical Parameters & Selection Guide

Selection Criteria: Verify engine fuel linkage geometry requires ≤30° rotation between idle and full-load positions. For applications demanding >30° travel, consider Woodward 8290-048 (45° model) or 8272-series (90° travel). Confirm 24 VDC power availability; for 12 VDC systems, specify voltage converter or alternative actuator model. Marine applications should verify classification society approval requirements and specify corrosion-resistant hardware kits when ordering.

Critical Sizing Factors: Calculate fuel linkage force requirements using engine manufacturer data; the 8400-016 provides 45 N·m (400 lb-in) output torque at stall. For high-force applications (turbocharged engines >500 HP), verify linkage mechanical advantage or consider pneumatic actuator alternatives. Ambient temperature above +70°C requires forced-air cooling or heat shielding to prevent thermal shutdown.

Extended Functions & Integration Capabilities

Digital Controller Integration: Seamlessly interfaces with Woodward 505E, easYgen-3000 series, and LS-5 load sharing modules via analog I/O. Enables advanced features including droop compensation (0-10% adjustable), load-dependent speed trim, and automatic synchronization with utility grid or other generators. Modbus RTU and CANopen gateways available for SCADA integration.

Redundant Control Architecture: Supports dual-channel control configurations where primary and backup controllers drive the same actuator through diode-isolated inputs, meeting SIL-2 safety requirements for critical power applications without requiring redundant actuators.

Remote Monitoring & Diagnostics: Position feedback signal enables real-time actuator health monitoring, detecting mechanical binding, linkage wear, and electrical faults before failure. Integrates with predictive maintenance platforms using 4-20 mA deviation analysis and stroke-time trending.

Custom Calibration Options: Factory or field-programmable dead-band adjustment (0.5-5% of span) eliminates hunting in sensitive applications. Gain and offset trimming accommodates non-linear fuel linkages without external signal conditioning, reducing installation complexity and cost.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for stock configurations (8400-016 base model). Express shipping available for critical outage situations with same-day dispatch on orders placed before 2:00 PM CST.

Custom Configuration: 10-15 business days for factory-modified units including special voltage ratings, extended temperature range, or marine-grade corrosion protection packages.

Warranty Coverage: 18-month manufacturer warranty from ship date, covering defects in materials, workmanship, and electronic components. Extended warranty programs available for marine and continuous-duty applications.

Technical Support: Unlimited phone and email support from Woodward-certified application engineers, including pre-sale sizing assistance, installation guidance, calibration procedures, and troubleshooting diagnostics. On-site commissioning services available for multi-unit installations.

Documentation Package: Each unit ships with installation manual (English/Chinese), wiring diagrams, calibration worksheets, dimensional drawings (DXF/PDF), and material certifications. Replacement parts list and recommended spare parts guidance included.

Frequently Asked Questions

Can the 8400-016 directly replace Woodward UG-8 mechanical governors on Cummins engines?
Yes, the SAE J609 mounting flange provides bolt-on compatibility with most Cummins B, C, and L-series engines originally equipped with UG-8, UG-40, or PSG governors. Verify fuel pump linkage geometry matches the 30° travel range; some high-pressure fuel systems may require custom linkage arms (available from Woodward or aftermarket suppliers). Electrical integration requires 24 VDC power source and 4-20 mA control signal from speed controller.

What is the maximum fuel linkage force this actuator can overcome?
The 8400-016 delivers 45 N·m (33 lb-ft or 400 lb-in) continuous output torque at the spline shaft. For engines with high fuel injection pressures or return spring forces exceeding this value, install a mechanical advantage linkage (2:1 or 3:1 ratio) or upgrade to the 8406-series actuator rated for 90 N·m. Stall current protection prevents motor damage if linkage binds.

How does the fail-safe mechanism work during power loss?
A compression spring internal to the actuator housing stores mechanical energy that drives the output shaft to the minimum fuel position (typically idle or shutdown) when electrical power is removed. Return time is 150-200 ms depending on linkage friction. This meets marine "dead man" safety requirements and prevents diesel engine runaway conditions. Spring force is factory-set and non-adjustable.

Is external position feedback required for closed-loop speed control?
No, the 8400-016 includes an integrated 10 kΩ potentiometric position sensor providing 0-5 VDC output proportional to shaft angle (0° = 0 VDC, 30° = 5 VDC). This feedback signal connects directly to the speed controller's position input, eliminating external LVDTs, encoders, or resolvers. Sensor accuracy is ±1% of full scale with <0.5% hysteresis.

What control signal types are compatible with this actuator?
Standard configuration accepts 4-20 mA current loop (most common in industrial applications) or 0-10 VDC voltage signal, selectable via internal jumper. Input impedance is 500Ω for current mode, 100 kΩ for voltage mode. PWM signals require external signal conditioning module (Woodward part 8200-226). For Modbus or CANopen digital control, use Woodward easYgen or 505E controllers with built-in D/A conversion.

Can this actuator operate in marine saltwater environments?
Yes, the IP65 environmental rating and conformal-coated circuit boards provide protection against salt spray, humidity, and corrosive atmospheres. For direct exposure to seawater or continuous high-humidity environments (engine rooms without climate control), specify marine hardware kit (stainless fasteners, Viton seals) at time of order. Actuator meets ABS, DNV-GL, and Lloyd's Register type approval requirements for marine auxiliary machinery.

Ready to Optimize Your Engine Control System?

Contact our application engineering team for technical consultation on integrating the Woodward 8400-016 into your power generation, marine, or industrial drive system. We provide sizing calculations, wiring diagrams, and controller compatibility verification at no charge. Request a quote today or speak with a specialist about volume pricing for multi-unit projects.
