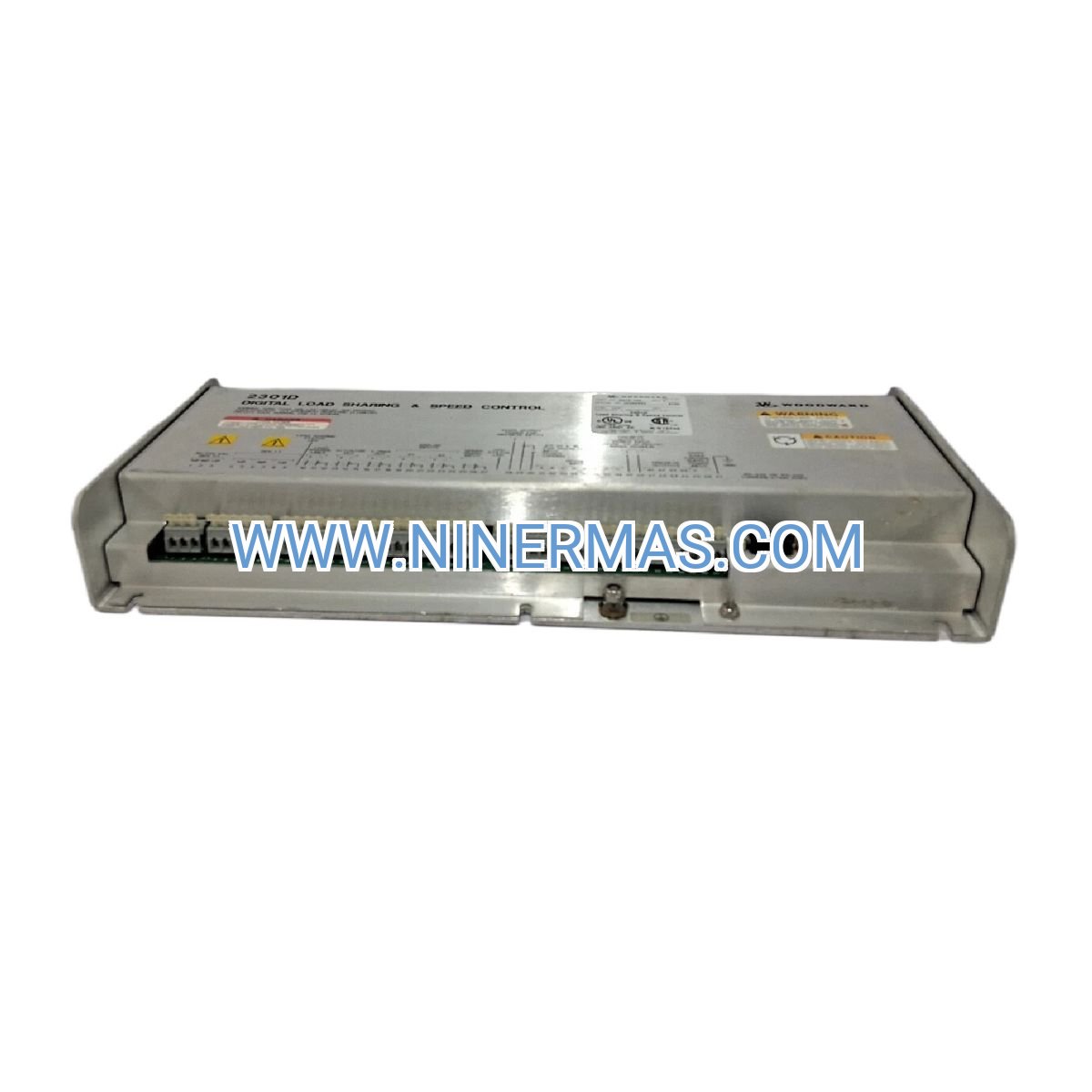

8273-126 Digital Load Sharing Governor (Industrial-Grade Engine Control)

The Woodward 8273-126 represents a field-proven solution for multi-engine coordination and speed stability in mission-critical power generation environments. Built on the 2301D digital platform, this governor module combines isochronous speed regulation with active load distribution algorithms, ensuring balanced operation across parallel gensets while maintaining tight frequency control under dynamic load conditions.

Designed for operators managing diesel, natural gas, or dual-fuel engine installations, the 8273-126 addresses the core challenge of maintaining grid-quality power output during load transitions, startup sequencing, and fault recovery scenarios. Its digital architecture eliminates the drift and calibration issues common in analog governors, delivering consistent performance across temperature extremes and extended runtime cycles.

Whether you're coordinating multiple generators in a data center, balancing propulsion loads on marine vessels, or managing island-mode microgrids, the 8273-126 provides the precision and reliability required for uninterrupted operation. With configurable droop curves, automatic synchronization support, and integrated diagnostics, this module reduces commissioning time while enhancing long-term system uptime.

Core Capabilities & Performance Advantages

✓ Precision Speed Regulation: Maintains ±0.25% isochronous accuracy across the full operating range (500-3000 RPM), ensuring stable frequency output for sensitive electrical loads and grid-parallel applications.

✓ Active Load Distribution: Achieves ±2% load sharing accuracy between parallel units, preventing overload conditions on individual engines while maximizing total system capacity and fuel efficiency.

✓ Dual-Mode Operation: Seamlessly switches between isochronous (grid-parallel) and droop (island) control modes, adapting to utility interconnection or standalone power scenarios without manual reconfiguration.

✓ Fast Transient Response: Digital signal processing delivers sub-100ms reaction to load steps, minimizing frequency deviation during motor starts, welding operations, or other high-inrush events.

✓ Wide Environmental Range: Operates reliably from -40°C to +70°C with 18-32 VDC input tolerance, suitable for outdoor enclosures, marine engine rooms, and remote site installations.

✓ Simplified Integration: Direct compatibility with Woodward actuators (EG-3P, ProAct, PSG) and magnetic pickups reduces wiring complexity and eliminates third-party interface modules.

Industry Applications & Use Cases

→ Multi-Engine Generator Sets: Coordinates 2-8 parallel gensets in hospitals, manufacturing facilities, and telecom sites, automatically balancing kW output while maintaining 60/50 Hz stability during utility outages or peak shaving operations.

→ Marine Propulsion Systems: Manages twin or triple diesel engines on workboats, ferries, and offshore support vessels, ensuring equal torque distribution across shafts while preventing single-engine overload during maneuvering or heavy-weather operations.

→ Cogeneration Facilities: Regulates engine speed in combined heat and power plants, synchronizing generator output with grid frequency while maintaining thermal load balance across heat recovery systems.

→ Island Microgrids: Provides primary frequency control for remote communities, mining operations, and island resorts, automatically adjusting generation to match real-time demand without utility grid support.

→ Emergency Backup Power: Ensures rapid load acceptance during utility failures at data centers and critical infrastructure, bringing standby generators online within 10 seconds while maintaining voltage and frequency within NFPA 110 specifications.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the 8273-126 when you need both speed governing and load sharing in a single module for 2-8 parallel engines. For standalone speed control without load sharing, consider the 2301A series. For larger systems (8+ units) or advanced communication requirements, evaluate the 2301D-ST20 with integrated Modbus RTU.

Extended Functionality & System Integration

Communication Options: While the base 8273-126 uses analog I/O for control and monitoring, it supports integration with Woodward's GAP (Generator Application Protocol) and Modbus RTU networks via the 8273-1643 communication module, enabling SCADA connectivity and remote parameter adjustment.

Synchronization Support: Built-in sync check inputs allow automatic paralleling with utility grids or other generators when paired with external synchronizers (Woodward DSLC or third-party units), reducing manual intervention during startup sequences.

Configurable Droop: Adjustable droop settings (0-10%) enable fine-tuning of load sharing behavior for engines with different power ratings or fuel types, accommodating mixed diesel/gas installations or staged capacity additions.

Diagnostic Outputs: Dedicated fault relay and analog status signals provide real-time indication of overspeed, underspeed, actuator faults, and sensor failures, integrating with plant alarm systems for proactive maintenance.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-fresh inventory with full traceability documentation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications.

Technical Support: Direct access to application engineers for configuration assistance, troubleshooting guidance, and integration planning via email and phone during business hours (GMT+8).

Documentation Package: Each unit ships with installation manual (85195), wiring diagrams, configuration worksheets, and dimensional drawings in PDF format.

Frequently Asked Questions

Q: How does the 8273-126 handle load sharing between engines with different power ratings?
A: The module supports configurable droop offsets and gain adjustments, allowing proportional load distribution based on each engine's rated capacity. For example, a 500 kW and 750 kW genset can share load at a 2:3 ratio.

Q: What type of speed sensor input does this governor require?
A: The 8273-126 accepts magnetic pickup (MPU) signals from engine flywheel ring gears or dedicated speed sensors. Minimum tooth count is 60 teeth; maximum input frequency is 20 kHz.

Q: Can I retrofit this module into an existing system with analog governors?
A: Yes, the 8273-126 is designed for drop-in replacement of older 2301A analog governors. Wiring harness adapters are available for common actuator types, and the digital calibration process typically takes 30-45 minutes per unit.

Q: Does the governor support remote start/stop control?
A: The module includes discrete inputs for remote enable/disable and speed reference selection, compatible with standard PLC or genset controller outputs (12-32 VDC logic levels).

Q: What is the typical power consumption of the 8273-126?
A: The module draws approximately 150 mA at 24 VDC (3.6 watts), allowing operation from standard engine battery systems without dedicated power supplies.

Q: How do I update configuration parameters after installation?
A: The 8273-126 uses potentiometer adjustments for speed, gain, and droop settings. For digital parameter changes, the optional 8273-1643 communication module enables PC-based configuration via Woodward's ToolKit software.

Ready to Optimize Your Engine Control System?

Contact our technical sales team to discuss your specific application requirements, receive sizing recommendations, and obtain a detailed quotation. We provide configuration support, wiring diagrams, and commissioning assistance to ensure successful integration of the 8273-126 into your power generation or propulsion system.
