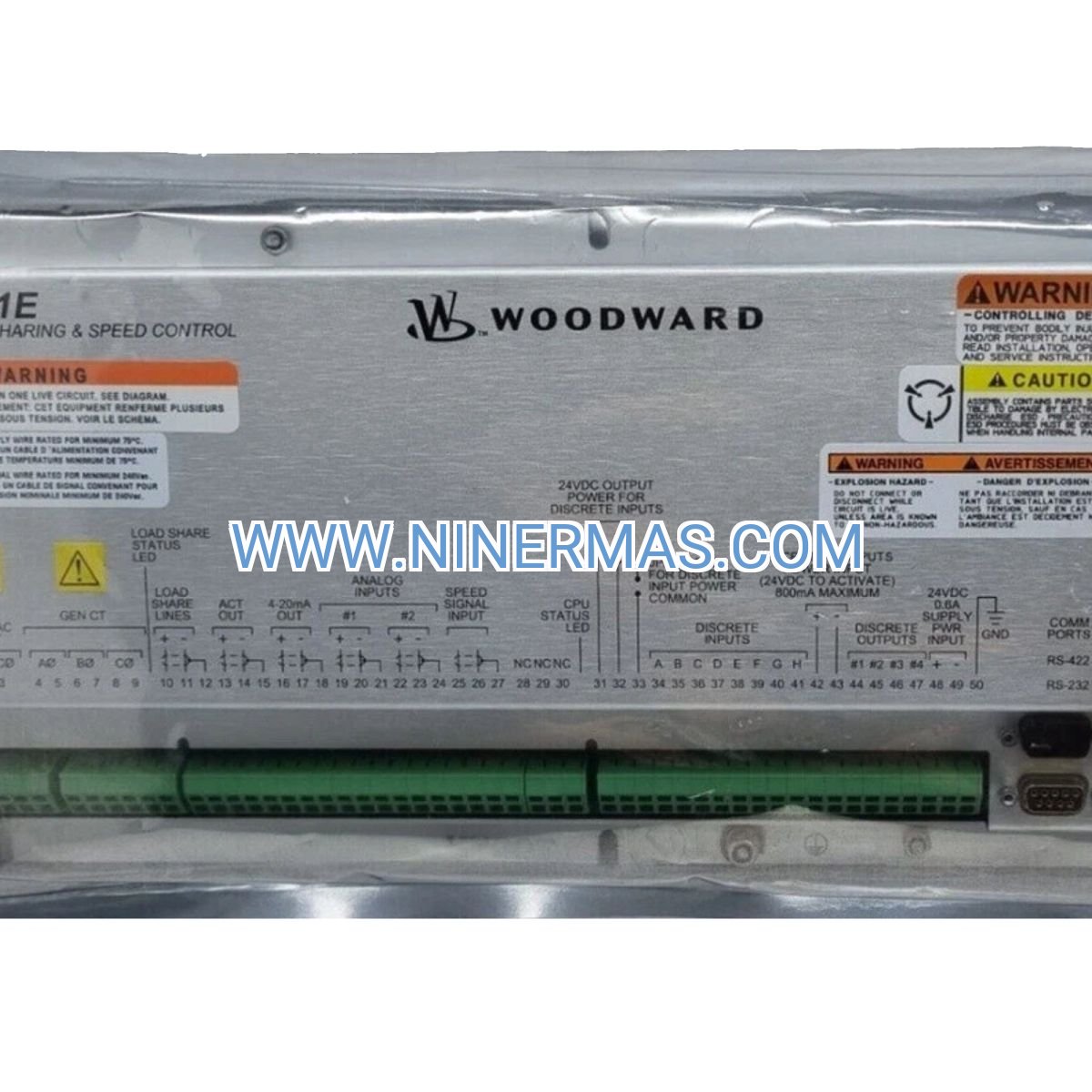

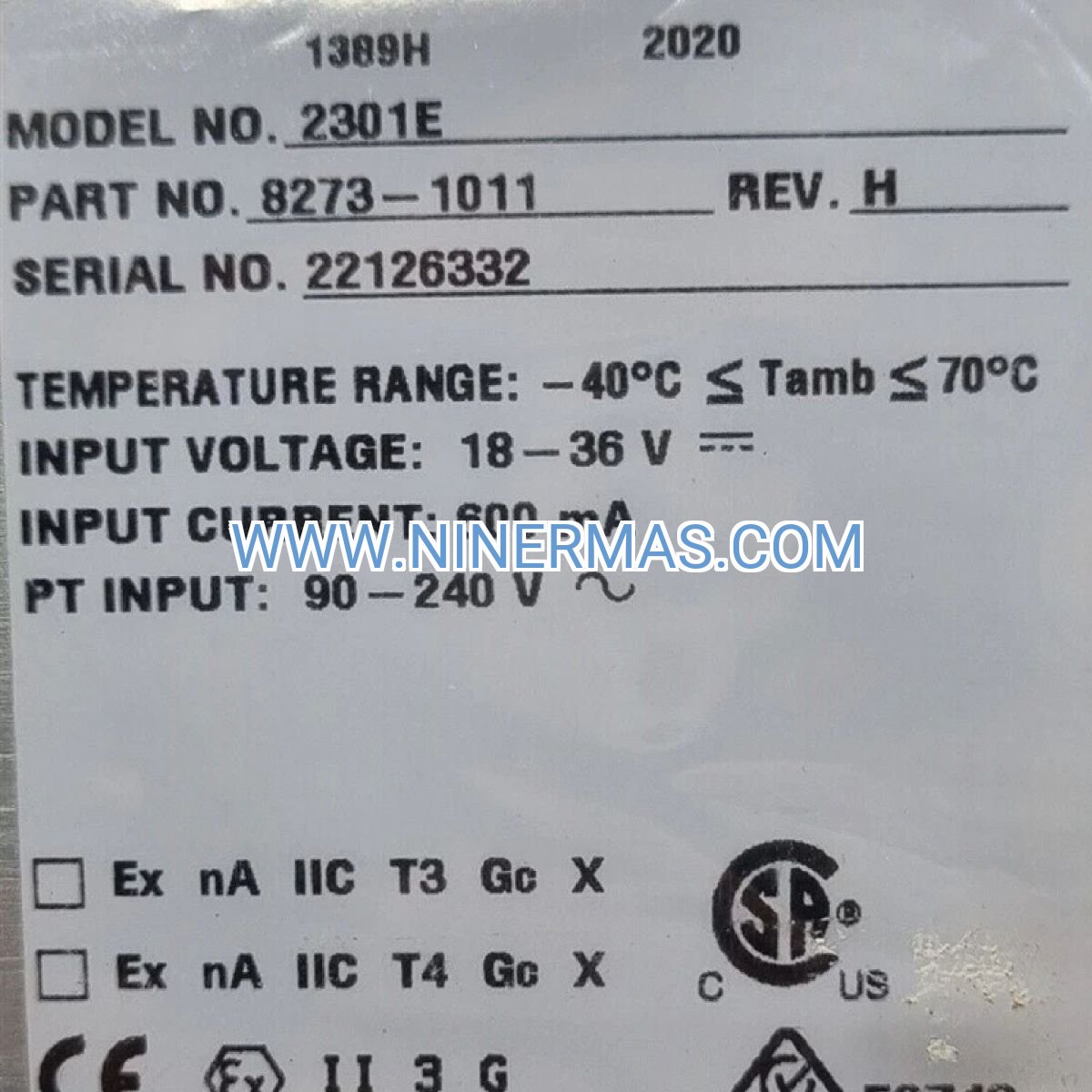

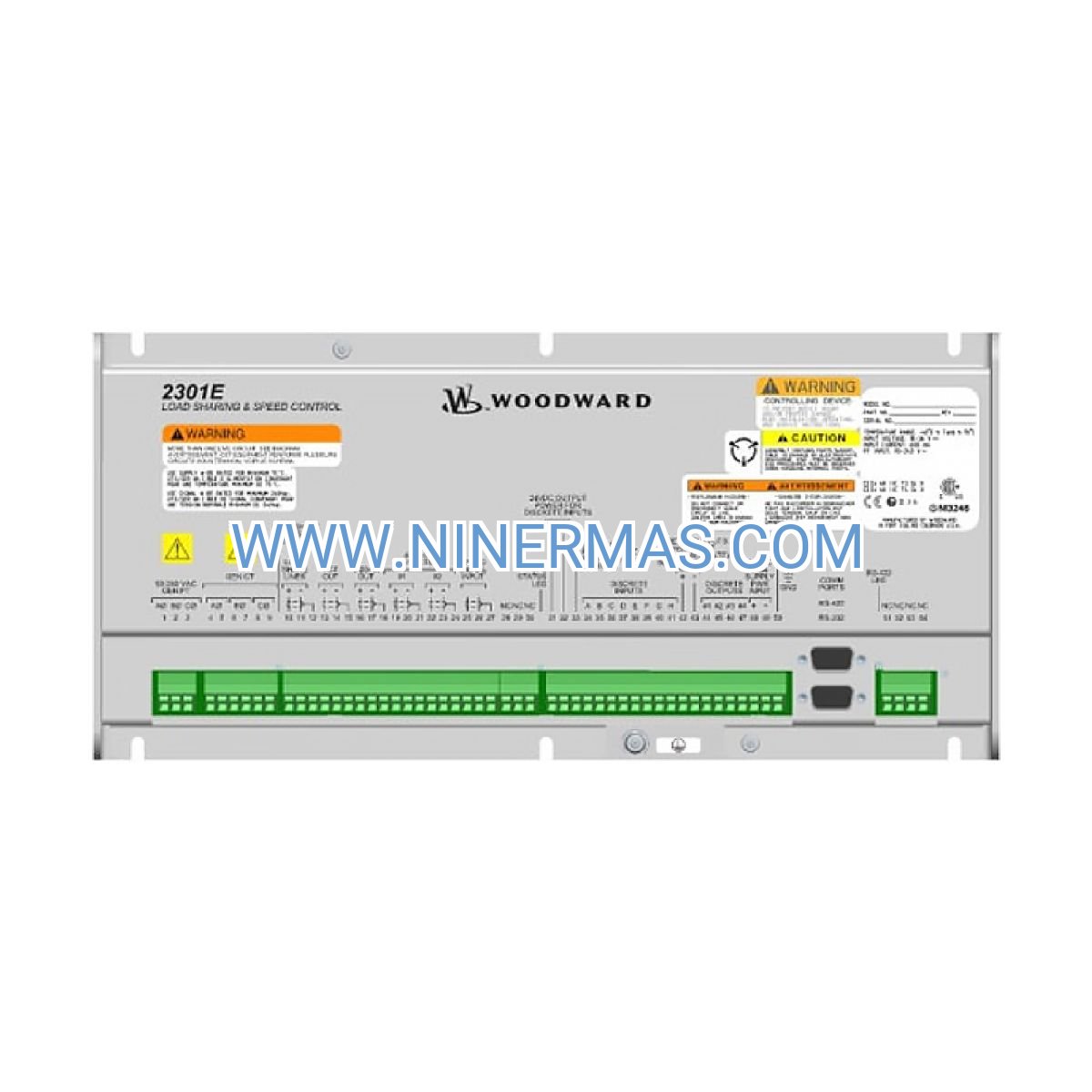

Woodward 2301E Digital Governor (Industrial-Grade Load Sharing Controller)

The Woodward 2301E (Model 8273-1011) is a microprocessor-based speed and load sharing controller engineered for critical power generation and propulsion systems. Designed to manage diesel, gas, and dual-fuel engines, this digital governor replaces mechanical systems with precision electronic control, delivering superior stability across parallel generator configurations and variable-load industrial drives.

Built for operators managing multi-engine power plants, marine vessels, and process-critical facilities, the 2301E eliminates governor hunting, reduces fuel consumption through optimized load distribution, and provides real-time diagnostics for predictive maintenance. Its modular architecture supports hot-swapping and field upgrades without system shutdown.

Whether you're synchronizing backup generators, balancing load across cogeneration units, or controlling compressor drives, the 2301E delivers repeatable ±0.25% speed regulation with industry-leading response times under 200ms. Certified for harsh environments (-40°C to +70°C), this controller ensures uptime in offshore platforms, mining operations, and utility peaking plants.

Core Capabilities & Technical Advantages

✓ Multi-Engine Load Sharing: Coordinates up to 32 parallel generator sets via RS-485 Modbus network, automatically balancing kW and kVAR distribution with ±1% accuracy to prevent overload and optimize fuel efficiency.

✓ Adaptive Speed Regulation: Configurable isochronous mode (±0.25% stability) or adjustable droop (0-10%) enables seamless grid synchronization, black-start capability, and smooth load transfers during utility outages.

✓ Universal Engine Compatibility: Interfaces with magnetic pickup sensors, Hall-effect transducers, and Woodward electric actuators (EG-3P, ProAct series) for diesel, natural gas, biogas, and dual-fuel applications without hardware changes.

→ Built-In Synchronization Logic: Eliminates external synch-check relays by managing voltage matching, phase alignment, and frequency tracking internally, reducing installation costs and panel complexity.

→ Fault Diagnostics & Alarming: Continuous monitoring of actuator position, speed sensor integrity, and communication health with event logging, configurable alarm outputs, and front-panel fault codes for rapid troubleshooting.

→ Hot-Swappable Design: Field-replaceable modules and bumpless transfer capability allow maintenance without taking generators offline, critical for 24/7 operations in hospitals, data centers, and manufacturing plants.

Industry Applications & Problem Solving

Utility & Distributed Generation: Peaking plants and cogeneration facilities use the 2301E to manage load following, frequency regulation, and seamless transitions between grid-parallel and island modes. Operators achieve 15-20% fuel savings through optimized load sharing compared to fixed-droop systems.

Marine & Offshore Propulsion: Commercial vessels, offshore supply boats, and drilling platforms rely on the 2301E for main engine control and auxiliary generator management. Its IP54-rated enclosure and EMI filtering withstand saltwater environments and electrical noise from VFDs and thrusters.

Oil & Gas Compression: Gas gathering stations and pipeline compressor drives benefit from precise speed control under fluctuating suction pressures. The controller's fast response prevents surge conditions and maintains process stability during rapid load changes.

Mining & Remote Power: Off-grid mining operations deploy the 2301E in genset configurations ranging from 500 kW to 5 MW, ensuring stable power for crushers, conveyors, and ventilation systems. Remote monitoring via Modbus enables predictive maintenance and reduces site visits.

Data Center Backup Systems: Mission-critical facilities integrate the 2301E with N+1 generator redundancy, achieving sub-second load pickup during utility failures while maintaining IEEE 519 power quality standards.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 2301E for applications requiring load sharing across 2-32 engines, isochronous operation, or integration with SCADA systems. For single-engine applications without load sharing, consider the Woodward 2301A analog controller. Verify actuator compatibility (electric vs. hydraulic) and ensure speed sensor output matches controller input specifications.

Advanced Integration & Customization

SCADA & Remote Monitoring: Modbus RTU interface enables real-time data acquisition of speed, load percentage, actuator position, and alarm status. Compatible with Wonderware, Ignition, and Siemens WinCC platforms for centralized control room monitoring.

Programmable Logic: User-configurable start/stop sequences, warm-up timers, and load ramp rates adapt the controller to specific operational procedures without custom firmware development.

Redundancy Options: Dual-controller configurations with automatic failover provide fault-tolerant control for critical applications. Bumpless transfer ensures continuous operation during controller switchover.

Delivery, Warranty & Technical Support

Lead Time: Standard units ship within 3-5 business days. Custom-configured controllers (special voltage ranges, extended temperature ratings) require 2-3 weeks for factory programming and testing.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranties and advance-exchange programs available for critical applications.

Technical Assistance: Factory-trained engineers provide commissioning support, parameter optimization, and troubleshooting via phone, email, and remote desktop sessions. On-site startup services available for complex installations.

Documentation Package: Each controller includes installation manual, wiring diagrams, Modbus register map, and configuration software (ServiceSuite or GAP). Replacement parts cross-reference and calibration procedures provided.

Frequently Asked Questions

What actuator types work with the Woodward 2301E digital governor?
The controller drives Woodward electric actuators including EG-3P, EG-A, and ProAct series. It also supports third-party proportional solenoids with 0-200 mA current input. Hydraulic actuators require an external current-to-pressure converter.

How many generator sets can the 2301E synchronize simultaneously?
Up to 32 units can participate in active load sharing via the RS-485 communication network. Each controller broadcasts its load percentage, and the network automatically balances kW distribution within ±1% accuracy.

Does the system require external synchronization relays for paralleling?
No. The 2301E includes integrated synch-check logic that manages voltage matching, frequency alignment, and phase-angle verification. External synchronizers are only needed for utility grid connections requiring redundant protection.

Can I retrofit the 2301E to replace an older analog governor?
Yes. The controller mounts in standard DIN rail or panel cutouts and uses industry-standard wiring. Existing speed sensors and actuators typically remain compatible. Configuration software allows parameter migration from legacy systems.

What is the typical response time for sudden load changes?
The digital control loop responds in under 200 milliseconds to load transients, preventing frequency excursions and maintaining stable operation during motor starts, transformer energization, or load shedding events.

Is the 2301E suitable for marine engine control applications?
Absolutely. The controller holds DNV-GL and ABS marine certifications, features IP54-rated front panel protection, and includes EMI/RFI filtering for shipboard electrical environments. It's widely deployed in propulsion and auxiliary power systems.

Get Started with Precision Engine Control

Upgrade your power generation or propulsion system with proven Woodward technology. Contact our technical sales team for application-specific configuration guidance, actuator compatibility verification, and volume pricing. Same-day quotes available for standard models.
