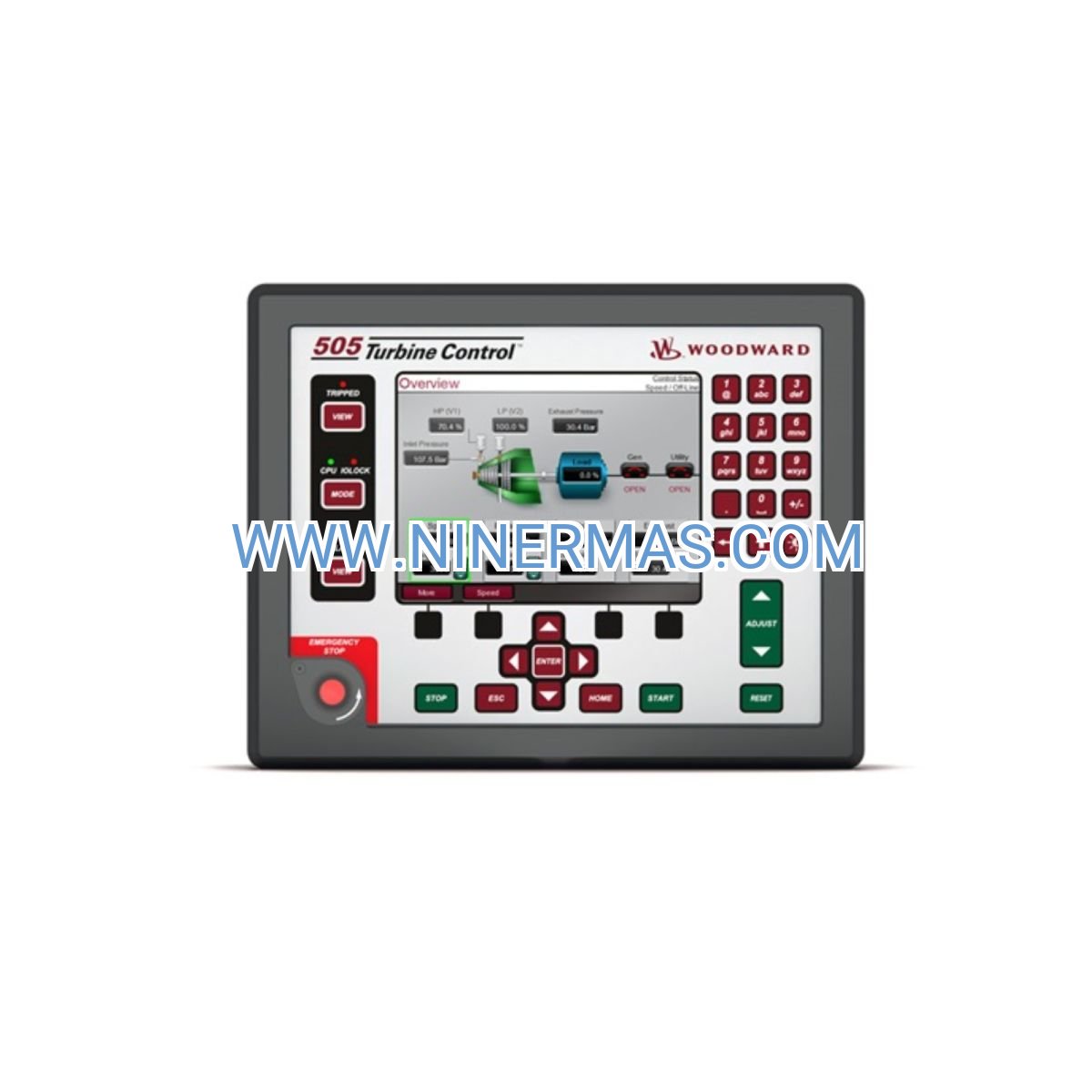

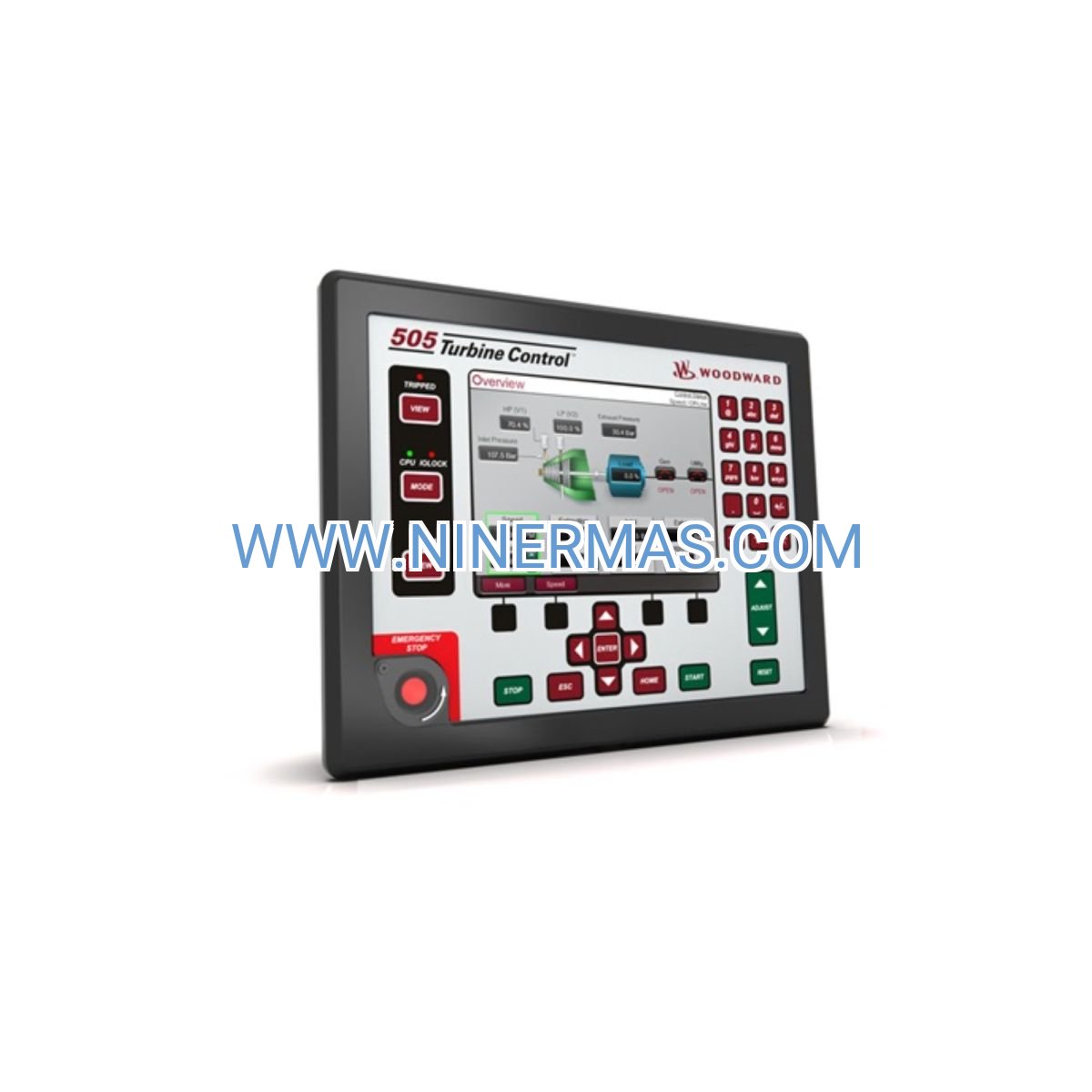

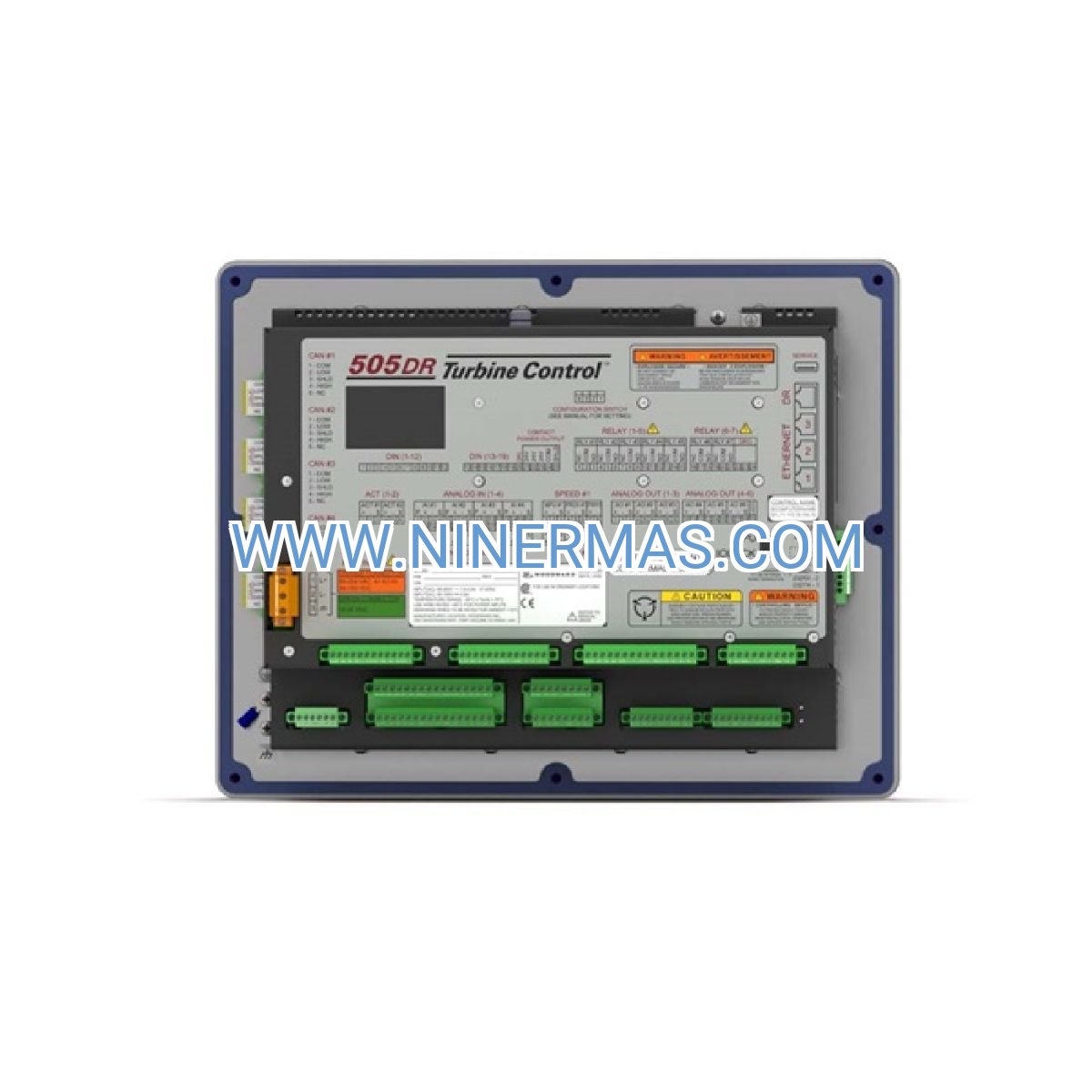

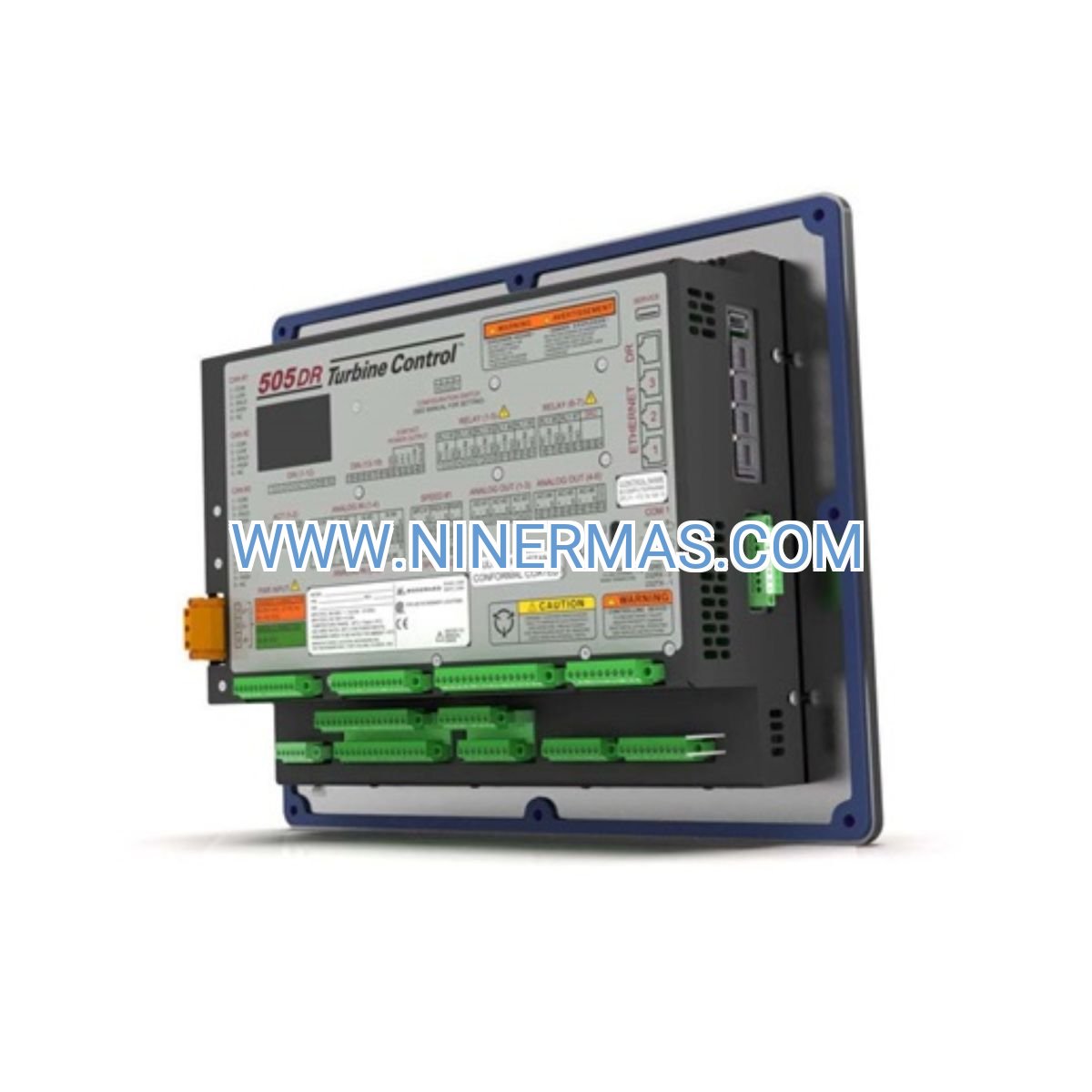

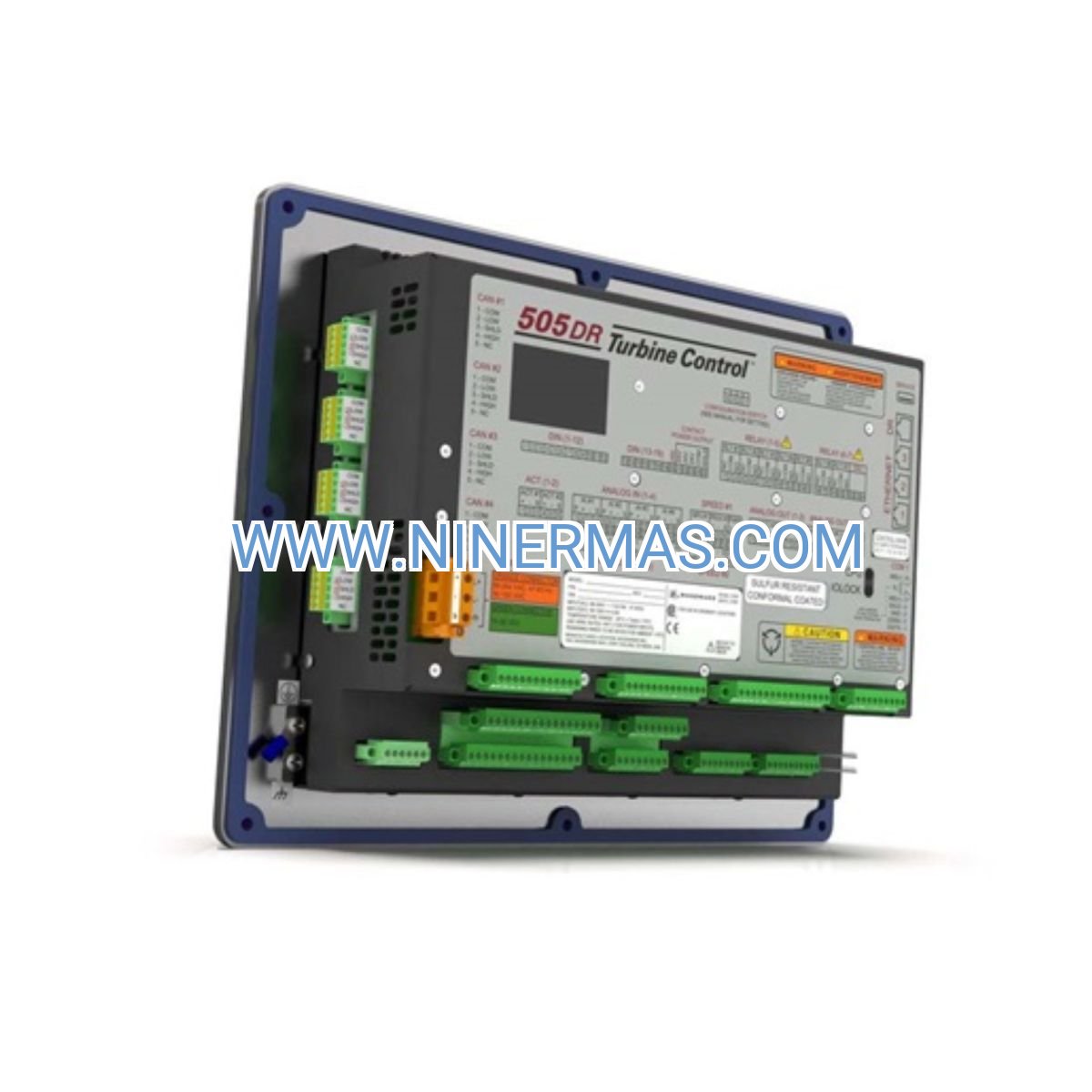

Woodward 8200-1330 Digital Governor (Industrial-Grade Turbine Speed Regulator)

The Woodward 8200-1330 is an advanced digital governor engineered for precise speed and load regulation in steam and gas turbine applications. Designed for power generation facilities, marine propulsion systems, and industrial mechanical drives, this 505D series controller combines proven reliability with modern digital control technology to ensure optimal turbine performance across demanding operational environments.

Built on Woodward's decades of turbine control expertise, the 8200-1330 addresses critical challenges in maintaining stable speed regulation during load fluctuations, grid synchronization, and multi-unit parallel operation. Industrial operators benefit from reduced fuel consumption, extended equipment lifespan, and minimized unplanned downtime through intelligent control algorithms and comprehensive diagnostic capabilities.

Whether you're upgrading legacy analog systems or implementing new turbine installations, the 8200-1330 delivers the precision, flexibility, and ruggedness required for mission-critical rotating equipment control in harsh industrial settings.

Core Features & Benefits

✓ Precision Speed Regulation: Maintains turbine speed within ±0.25% of setpoint across 0-15,000 RPM range, ensuring consistent power quality and mechanical stability even during rapid load changes.

✓ Adaptive PID Control: Self-tuning algorithms automatically optimize control parameters based on turbine response characteristics, eliminating manual tuning requirements and reducing commissioning time by up to 40%.

✓ Multi-Mode Operation: Supports isochronous, droop, and load-sharing modes for flexible deployment in isolated or grid-parallel configurations, enabling seamless integration into existing power systems.

✓ Industrial-Grade Reliability: Operates continuously in -40°C to +70°C environments with enhanced EMI/RFI immunity, meeting stringent requirements for offshore platforms, desert installations, and arctic facilities.

✓ Integrated Diagnostics: Real-time fault detection with LCD display and Modbus RTU communication provides instant visibility into system health, reducing troubleshooting time and enabling predictive maintenance strategies.

✓ Overspeed Protection: Redundant safety circuits with configurable trip points protect turbine assets from catastrophic failures, meeting IEC 61508 SIL-2 functional safety standards.

Typical Application Scenarios

→ Combined Heat & Power (CHP) Plants: In cogeneration facilities, the 8200-1330 maintains precise frequency control for grid-tied generators while coordinating with thermal load demands. Operators achieve 15-20% improvement in fuel efficiency through optimized speed regulation and automatic load distribution across multiple turbine-generator sets.

→ Petrochemical Process Drives: Controls mechanical drive turbines powering critical compressors and pumps in refineries and chemical plants. Fast response time (< 50ms) prevents process upsets during feed rate changes, while dual-fuel capability enables automatic switching between natural gas and diesel during supply interruptions.

→ Marine Propulsion Systems: Certified for shipboard installations, the 8200-1330 regulates main propulsion turbines and auxiliary power units in LNG carriers, naval vessels, and cruise ships. Salt-fog resistance and shock/vibration tolerance exceed DNV-GL and ABS marine classification requirements.

→ District Heating Networks: Manages steam turbine generators in municipal heating systems, balancing electrical output with thermal energy distribution. Seasonal load profile adaptation ensures optimal efficiency across summer and winter operating conditions.

→ Emergency Backup Generators: Provides rapid start and load acceptance for standby turbine generators in hospitals, data centers, and critical infrastructure. Black-start capability and automatic synchronization reduce emergency response time to under 10 seconds.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8200-1330 for turbine applications requiring 0-15,000 RPM speed control with standard I/O configuration. For applications demanding additional analog inputs, discrete outputs, or redundant control, consider the 8200-1340 variant. Verify actuator compatibility (hydraulic or electric) and ensure power supply voltage matches site standards before ordering.

Extended Functions

Remote Monitoring Integration: Modbus RTU interface enables seamless connection to SCADA systems, DCS platforms, and cloud-based IoT monitoring solutions. Export real-time speed, load, and diagnostic data for enterprise-level asset performance management and condition-based maintenance programs.

Custom Configuration Services: Factory programming available for application-specific control strategies, including custom droop curves, load-dependent speed bias, and multi-stage startup sequences. Contact our engineering team for specialized turbine control requirements.

Redundancy Options: Dual-governor configurations supported for critical applications requiring N+1 redundancy. Automatic failover logic ensures uninterrupted turbine control during primary controller maintenance or failure events.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from stock. Custom-configured controllers require 2-3 weeks for factory programming and testing.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to Woodward-certified application engineers for configuration assistance, commissioning support, and troubleshooting guidance. Phone and email support available during business hours (GMT+8).

Documentation Package: Each unit includes installation manual, wiring diagrams, Modbus register map, and quick-start commissioning guide. Firmware update utilities and configuration software provided via download portal.

Frequently Asked Questions

Q: How does the 8200-1330 integrate with existing DCS systems?
A: The controller communicates via Modbus RTU over RS-485, compatible with most industrial control systems including Honeywell, Siemens, and ABB DCS platforms. Standard register mapping simplifies integration without custom programming.

Q: What turbine power range is suitable for this governor?
A: The 8200-1330 effectively controls turbines from 100 kW to 10 MW, depending on actuator sizing and application requirements. Consult factory for larger capacity installations.

Q: Can this unit replace older analog 505 governors?
A: Yes, the 505D series maintains backward compatibility with legacy 505 actuators and sensors, enabling straightforward retrofits with minimal field wiring changes. Migration guides available upon request.

Q: What diagnostic capabilities help reduce maintenance costs?
A: Built-in fault logging captures 500+ events with timestamps, while trend analysis tracks speed deviation, actuator position, and control output over time. Predictive alerts identify developing issues before failures occur.

Q: Is the controller suitable for hazardous area installations?
A: The 8200-1330 carries ATEX Zone 2 certification for gas group IIC environments. For Zone 1 or Division 1 applications, specify the intrinsically safe barrier option during ordering.

Q: How quickly can the system respond to load changes?
A: Control loop update rate of 20ms enables rapid response to transient conditions, with typical settling time under 2 seconds for 50% load step changes in properly tuned systems.

Take the Next Step

Ready to upgrade your turbine control system? Contact our industrial automation specialists for application-specific recommendations, pricing quotations, and technical consultations. We provide complete support from initial selection through commissioning and ongoing operation.

Request a quote today or reach out with your turbine control challenges—our team is ready to deliver solutions that maximize uptime and operational efficiency.
