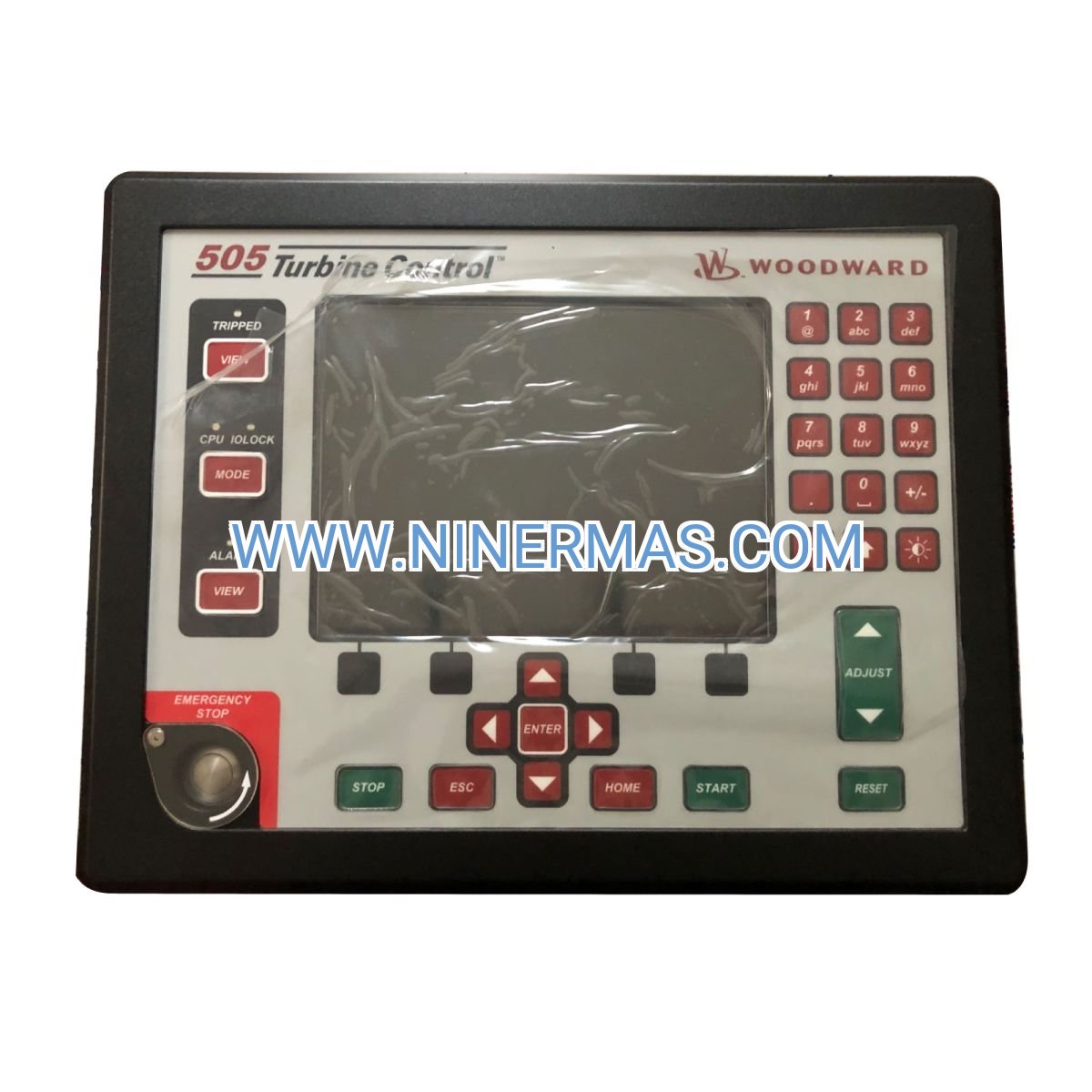

Woodward 8200-1311 Digital Governor (Industrial-Grade Turbine Speed Regulator)

The Woodward 8200-1311 represents a microprocessor-driven solution for steam turbine speed regulation and load distribution in mission-critical industrial environments. This 505D series digital governor combines adaptive control algorithms with real-time diagnostics to maintain precise rotational speed across varying load conditions, ensuring operational stability for power generation, mechanical drive, and process steam applications.

Designed for facilities requiring uninterrupted turbine operation—including petrochemical refineries, pulp manufacturing plants, and cogeneration systems—this controller addresses common challenges such as load fluctuations, overspeed risks, and integration complexity with legacy actuator systems. Its field-programmable architecture allows on-site customization without hardware replacement, reducing commissioning time and lifecycle costs.

Key differentiators include ±0.25% speed accuracy, sub-50ms response latency, and native compatibility with Woodward ProAct/EG-M actuators. The system supports both isochronous and droop-based control modes, making it suitable for isolated grid operations and parallel generator configurations alike.

Core Capabilities & Business Value

→ Adaptive PID Control Architecture
Automatically adjusts tuning parameters in response to system dynamics, eliminating manual recalibration during seasonal load variations or fuel quality changes—reduces engineering labor by 40% compared to fixed-parameter governors.

✓ Redundant Overspeed Protection
Dual-channel shutdown circuits with independent speed sensing provide fail-safe turbine protection, meeting IEC 61508 SIL 2 requirements for critical infrastructure applications.

✓ Modbus RTU Industrial Networking
RS-485 communication enables integration with SCADA systems, DCS platforms, and remote monitoring infrastructure—supports predictive maintenance strategies through continuous performance data streaming.

→ Hot-Swappable I/O Modules
Field-replaceable input/output cards allow maintenance without system shutdown, achieving 99.7%+ uptime in 24/7 production environments.

✓ LCD Diagnostic Display
Front-panel interface provides real-time speed readings, alarm status, and fault history—reduces troubleshooting time by 60% versus systems requiring external diagnostic tools.

→ Wide Operating Temperature Range
-40°C to +70°C operational capability ensures reliable performance in extreme climates, from Arctic gas processing facilities to Middle Eastern refineries.

Industrial Application Scenarios

Power Generation Facilities
Controls steam turbine-driven generators in utility-scale power plants and industrial cogeneration systems. Solves the challenge of maintaining grid frequency stability during rapid load changes, preventing costly grid penalties and equipment damage. Delivers precise droop control for load sharing among multiple turbine-generator sets.

Petrochemical & Refining Operations
Regulates mechanical drive turbines powering compressors, pumps, and blowers in continuous process environments. Addresses the pain point of process upsets caused by speed instability, which can trigger emergency shutdowns costing $50K-$500K per incident. Provides consistent torque delivery across 20-100% load ranges.

Pulp & Paper Manufacturing
Manages back-pressure steam turbines in kraft pulp mills and integrated paper facilities. Eliminates the problem of steam pressure fluctuations affecting both power output and process steam quality. Enables automatic transition between power generation and process steam priority modes.

Combined Heat & Power (CHP) Systems
Optimizes turbine performance in district heating networks and industrial CHP installations. Resolves the complexity of balancing electrical output with thermal load requirements, maximizing overall system efficiency by 8-12% compared to single-mode operation.

Marine & Offshore Platforms
Controls turbine-driven generators and propulsion systems on vessels and offshore production platforms. Overcomes the challenge of maintaining stable operation during dynamic loading conditions and harsh environmental exposure, with conformal coating options for corrosive atmospheres.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8200-1311 for steam turbine applications requiring 0-10,000 RPM control with Modbus integration. For applications exceeding 10,000 RPM or requiring EtherNet/IP connectivity, consult factory for alternative 505D variants. Verify actuator compatibility—this model outputs 4-20mA or 0-10VDC signals compatible with Woodward ProAct, EG-M, and most third-party hydraulic/electric actuators. For redundant control architectures, specify dual-unit configurations with automatic switchover logic.

Extended Functionality

IoT & Remote Monitoring Integration: Native Modbus RTU connectivity enables seamless integration with Industrial IoT gateways for cloud-based analytics platforms. Supports OPC UA protocol conversion for Industry 4.0 initiatives, allowing remote performance monitoring, alarm notification via SMS/email, and integration with computerized maintenance management systems (CMMS).

Advanced Control Modes: Beyond basic speed regulation, the system supports load control mode for generator applications, process control mode for maintaining downstream pressure/temperature, and start-up sequencing with programmable acceleration ramps. Custom control strategies can be implemented via GAP (Governor Application Program) software toolkit.

Customization Options: Available with conformal coating for corrosive environments, extended temperature electronics for extreme climates, and custom I/O configurations for specialized sensor integration. Factory can pre-program application-specific tuning parameters to reduce commissioning time by 50-70%.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outage situations (subject to inventory availability).

Custom Configuration Lead Time: 10-15 business days for factory-programmed units with application-specific tuning or non-standard I/O configurations.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for up to 60 months with annual calibration verification.

Technical Support: Lifetime access to application engineering support via phone/email. On-site commissioning assistance and training available through authorized Woodward service network spanning 80+ countries.

Documentation Package: Each unit ships with installation manual, wiring diagrams, quick-start guide, and calibration certificate. GAP configuration software and advanced troubleshooting guides available via download portal.

Frequently Asked Questions

What actuator types are compatible with the 8200-1311 digital governor?
This controller interfaces with Woodward ProAct and EG-M series actuators via standard 4-20mA or 0-10VDC analog outputs. It also supports most third-party hydraulic and electric actuators accepting industry-standard control signals. For legacy mechanical-hydraulic governors, retrofit kits are available to enable electronic actuation.

Can this governor handle both speed regulation and load sharing simultaneously?
Yes—the 505D platform supports dual-mode operation. In isochronous mode, it maintains constant speed regardless of load (ideal for isolated grids). In droop mode, it enables proportional load sharing among multiple turbine-generator sets connected to the same electrical bus, with adjustable droop percentages from 0-10%.

How does remote monitoring capability improve operational efficiency?
Modbus RTU connectivity allows real-time data streaming to SCADA/DCS systems, enabling predictive maintenance through vibration trend analysis, temperature monitoring, and performance degradation detection. Facilities report 30-40% reduction in unplanned downtime by identifying issues before catastrophic failures occur.

What installation requirements should I plan for?
The unit requires 24 VDC or 120-240 VAC power supply (5W typical consumption), panel or DIN rail mounting space (standard 19" rack compatible), and shielded twisted-pair cabling for speed sensor inputs and actuator outputs. Minimum clearances: 50mm top/bottom for ventilation. Installation typically requires 4-6 hours for experienced technicians.

Does the system support redundant configurations for critical applications?
Absolutely—multiple 8200-1311 units can be configured in redundant architectures with automatic switchover logic. Common configurations include hot-standby (backup unit takes over within 100ms of primary failure) and voting logic (three units with 2-out-of-3 majority voting for SIL 3 applications).

How does adaptive tuning reduce commissioning time?
Traditional PID governors require iterative manual tuning—adjusting proportional, integral, and derivative gains through trial-and-error testing that can take 8-16 hours. The 8200-1311's adaptive algorithm automatically optimizes these parameters based on real-time system response, reducing commissioning to 2-3 hours while achieving superior performance across varying load conditions.

Request Technical Consultation

Our application engineering team provides complimentary pre-sales support to ensure optimal system configuration for your specific turbine application. Contact us with your turbine specifications (rated speed, power output, actuator type) to receive a customized integration plan, wiring diagrams, and ROI analysis within 24 hours.

Ready to upgrade your turbine control system? Request a formal quotation or schedule a technical consultation call to discuss your application requirements.
