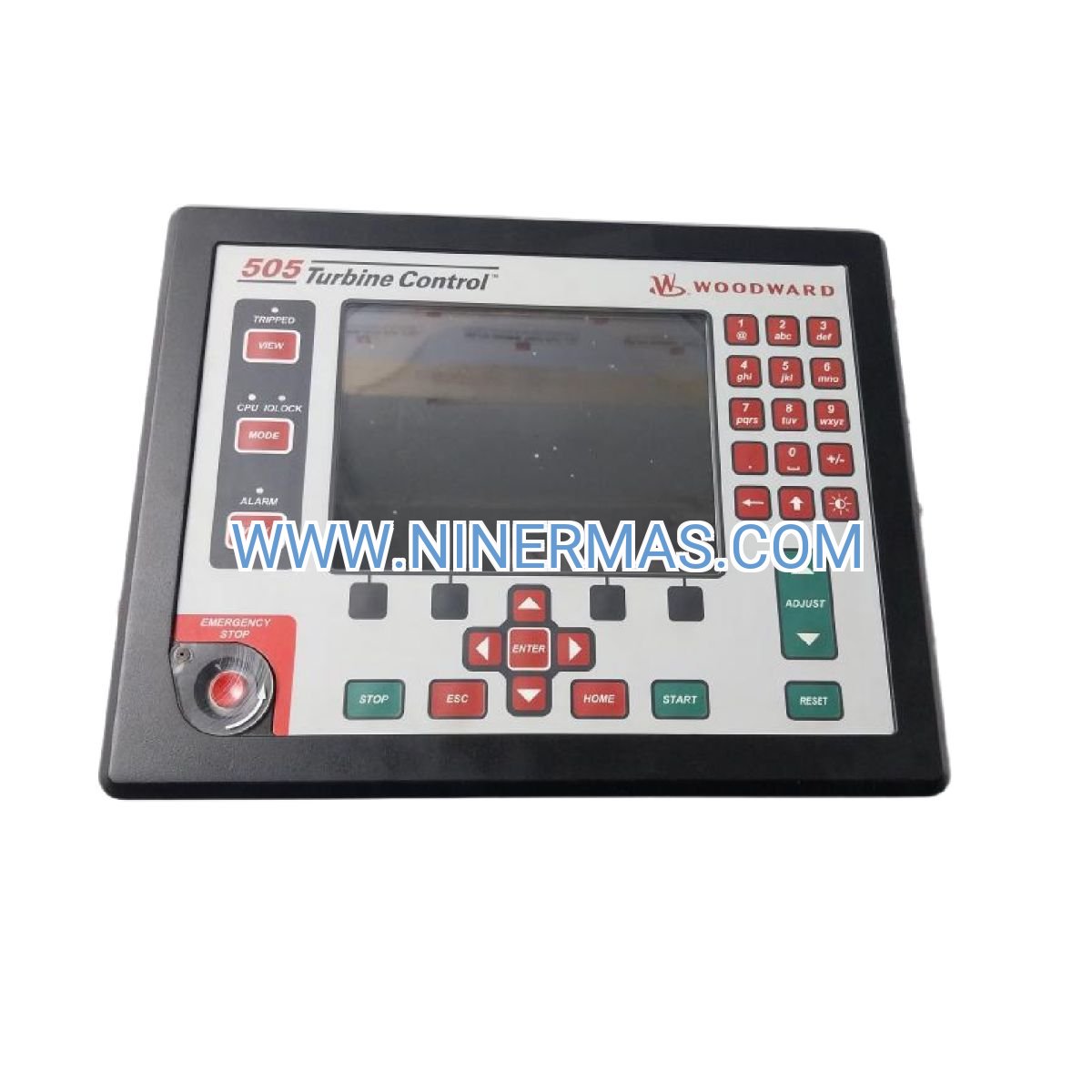

Woodward 8200-1301 REV.T (Industrial-Grade Steam Turbine Governor)

The Woodward 8200-1301 REV.T is a high-performance digital governor engineered for precise steam turbine speed and load regulation in industrial power generation and mechanical drive applications. Built on the proven 505D platform, this control system combines advanced PID algorithms with rugged hardware to deliver exceptional reliability in harsh operating environments.

Designed for facilities requiring continuous operation and tight speed regulation, the 8200-1301 REV.T addresses critical challenges in turbine control: maintaining stable speed during load transients, preventing overspeed conditions, and enabling seamless grid synchronization. Power plant operators, process engineers, and maintenance teams rely on this governor for mission-critical turbine automation.

With ±0.25% speed accuracy, comprehensive diagnostics, and field-proven durability across thousands of installations worldwide, the 8200-1301 REV.T represents the industry standard for steam turbine control systems in capacities from 100 kW to 30 MW.

Core Features & Benefits

✓ Precision Speed Regulation
Digital PID control with adaptive tuning maintains ±0.25% droop accuracy, ensuring stable operation during load variations and grid disturbances. Eliminates hunting and oscillation common in legacy analog systems.

✓ Rapid Load Response
2-3 second load acceptance capability enables fast power dispatch and frequency support. Programmable ramp rates protect mechanical components while maximizing operational flexibility.

✓ Comprehensive Protection Suite
Integrated overspeed detection, loss-of-speed signal monitoring, actuator fault diagnostics, and emergency shutdown logic safeguard turbine assets and personnel. Configurable alarm thresholds and trip points.

✓ Multi-Protocol Connectivity
Modbus RTU and RS-485 interfaces enable integration with SCADA systems, HMI panels, and plant-wide automation networks. Real-time data streaming supports predictive maintenance strategies.

✓ Flexible Control Modes
Supports isochronous (grid-forming), droop (load-sharing), and base-load operation modes. Automatic synchronization functions simplify parallel operation with utility grids or other generators.

✓ Simplified Commissioning
Intuitive configuration software and pre-loaded turbine templates reduce startup time by 40-60% compared to custom programming. Field-adjustable parameters accommodate site-specific requirements without factory recalibration.

Typical Application Scenarios

→ Cogeneration & Combined Heat Power (CHP)
Industrial facilities with simultaneous electricity and steam demands benefit from precise load tracking and automatic grid synchronization. The 8200-1301 REV.T manages turbine speed during utility grid paralleling while maintaining process steam pressure stability.

→ Petrochemical & Refinery Operations
Process plants requiring continuous mechanical drive for compressors, pumps, and blowers depend on the governor's fast load response and fail-safe protection. Operates reliably in high-temperature, high-vibration environments typical of refinery service.

→ Pulp & Paper Manufacturing
Mills utilizing back-pressure steam turbines for power generation and process heat leverage the system's load-sharing capabilities across multiple turbine-generator sets. Reduces electrical demand charges while maximizing steam utilization efficiency.

→ District Heating & Utility Power Plants
Municipal and independent power producers achieve regulatory compliance for frequency regulation and spinning reserve requirements. The governor's droop control enables proportional load distribution among parallel units.

→ Food Processing & Pharmaceutical Manufacturing
Facilities with stringent uptime requirements benefit from the system's diagnostic capabilities and hot-standby redundancy options. Supports validation protocols for GMP-compliant installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8200-1301 REV.T for steam turbine applications requiring digital control with standard I/O configurations. For applications demanding expanded analog/digital inputs, Ethernet connectivity, or redundant control architectures, consider the 505E platform (Model 9907-167). Verify actuator compatibility and speed sensor specifications during system design.

Extended Functions

IoT Integration & Remote Monitoring
When paired with Woodward communication gateways, the governor enables cloud-based performance analytics, remote parameter adjustment, and predictive maintenance alerts. OPC UA and MQTT protocol support facilitates Industry 4.0 integration.

Advanced Control Features
Optional software modules unlock capabilities including multi-fuel operation, extraction pressure control, inlet pressure compensation, and exhaust temperature limiting. Custom logic programming accommodates unique process requirements.

Customization Options
Factory configuration services available for specialized I/O requirements, custom enclosures (NEMA 4X, explosion-proof), and application-specific tuning. Consult with our application engineers for non-standard installations.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days. Custom-configured systems require 2-3 weeks for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and factory calibration. Extended warranty programs available for critical applications.

Technical Support: Global support network provides 24/7 emergency assistance, application engineering consultation, and on-site commissioning services. Remote diagnostics capabilities minimize downtime.

Documentation Package: Each unit includes installation manual, wiring diagrams, configuration software, sample turbine templates, and calibration certificates. Online training resources and video tutorials available.

Frequently Asked Questions

What types of steam turbines work with the 8200-1301 REV.T governor?
This controller supports single-stage, multi-stage, condensing, back-pressure, and extraction turbines across industrial and utility applications. Compatible with both impulse and reaction turbine designs in the 100 kW to 30 MW range.

Can I retrofit this digital governor onto an existing mechanical-hydraulic system?
Yes, the 505D platform offers direct replacement solutions for legacy Woodward mechanical governors (PG, PGG, TG series) and analog electronic controls. Minimal actuator modifications required in most cases. Retrofit kits and migration guides available.

How does the system handle communication with my plant SCADA?
The governor provides Modbus RTU over RS-485 as standard. Protocol converters enable integration with Profibus, DeviceNet, and Ethernet/IP networks. Real-time data includes speed, load, actuator position, and diagnostic status.

What maintenance intervals are recommended for optimal performance?
The digital controller requires minimal maintenance—annual inspection of wiring connections and backup battery replacement every 3-5 years. Speed sensor and actuator maintenance follows turbine manufacturer recommendations, typically 12-24 month intervals.

Does the governor support automatic startup and shutdown sequences?
Yes, programmable startup/shutdown logic manages warming, acceleration, synchronization, loading, and cooldown sequences. Configurable timers, interlocks, and permissive conditions ensure safe automated operation.

What energy efficiency improvements can I expect versus older control systems?
Digital governors typically improve turbine heat rate by 2-4% through tighter speed regulation and optimized valve positioning. Reduced steam consumption translates to fuel savings of $15,000-$50,000 annually for typical industrial installations.

Ready to Upgrade Your Turbine Control?

Contact our turbine automation specialists for application review, system sizing, and pricing. We provide detailed proposals including ROI analysis, migration planning, and commissioning support. Request a quote today or schedule a technical consultation to discuss your specific requirements.
