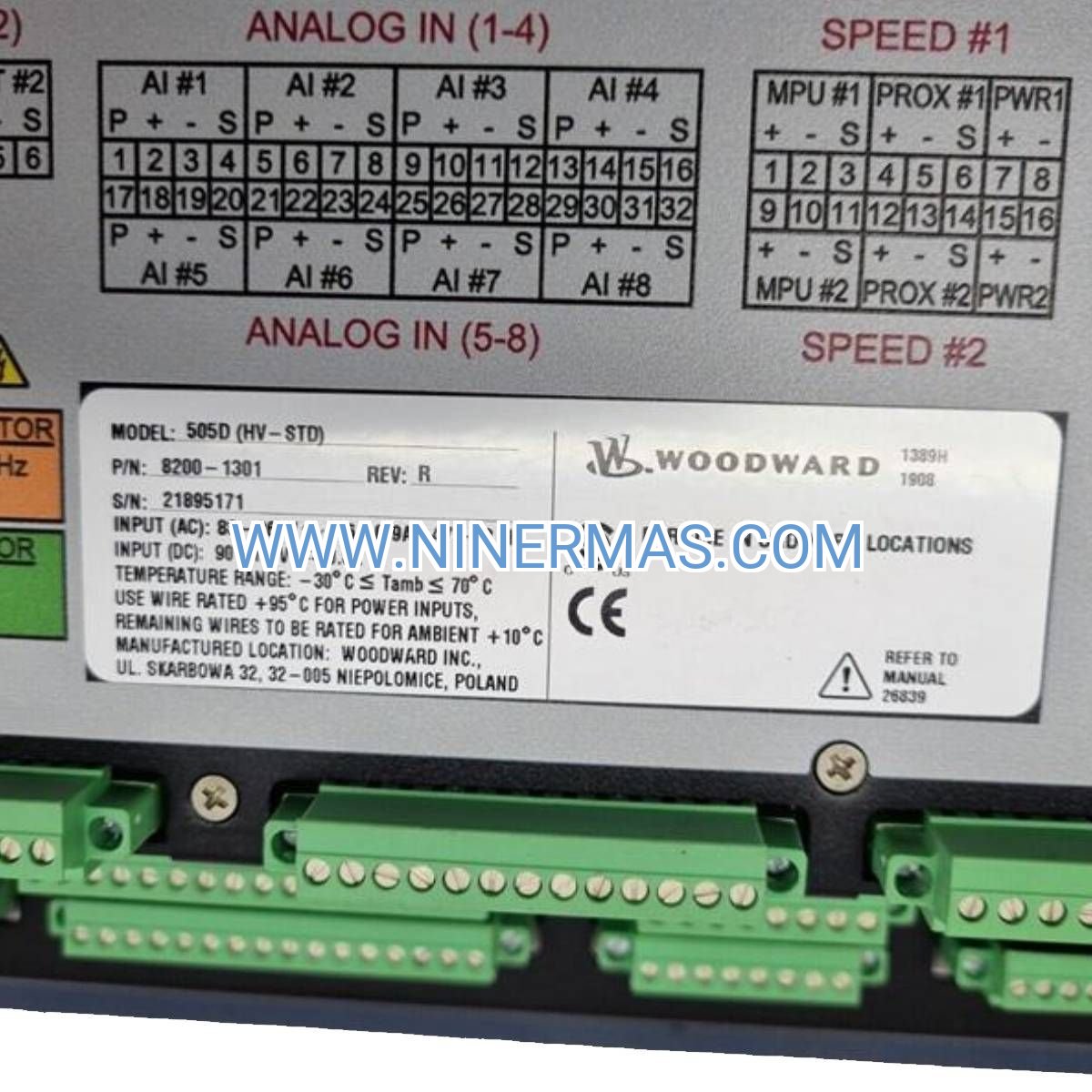

Woodward 8200-1301 Digital Governor (Industrial-Grade Steam Turbine Controller)

The Woodward 8200-1301 represents a next-generation digital governor engineered for precision speed and load management in steam turbine installations. Built on the proven 505D platform, this controller combines field-programmable logic with an intuitive graphical HMI to deliver adaptive control, real-time diagnostics, and seamless integration across power generation, cogeneration, and industrial process environments. Whether you're managing utility-scale turbines or mechanical drive systems, the 8200-1301 provides the reliability and flexibility demanded by mission-critical applications.

Designed for operators who require both performance and ease of use, this digital governor eliminates the complexity of legacy analog systems while offering advanced features like dual-channel redundancy, adaptive PID tuning, and multi-protocol connectivity. From initial commissioning to long-term operation, the 8200-1301 reduces downtime, simplifies troubleshooting, and supports predictive maintenance strategies that extend asset life and optimize total cost of ownership.

With certifications spanning CE, UL, CSA, and ATEX Zone 2, the 8200-1301 meets global safety and performance standards, making it the ideal choice for multinational projects and retrofit installations where compliance and interoperability are non-negotiable.

Core Features & Benefits

✓ Field-Programmable Control Logic
Customize control algorithms, protective trips, and sequencing logic without hardware modifications. This flexibility accelerates commissioning, supports application-specific tuning, and future-proofs your investment against evolving operational requirements.

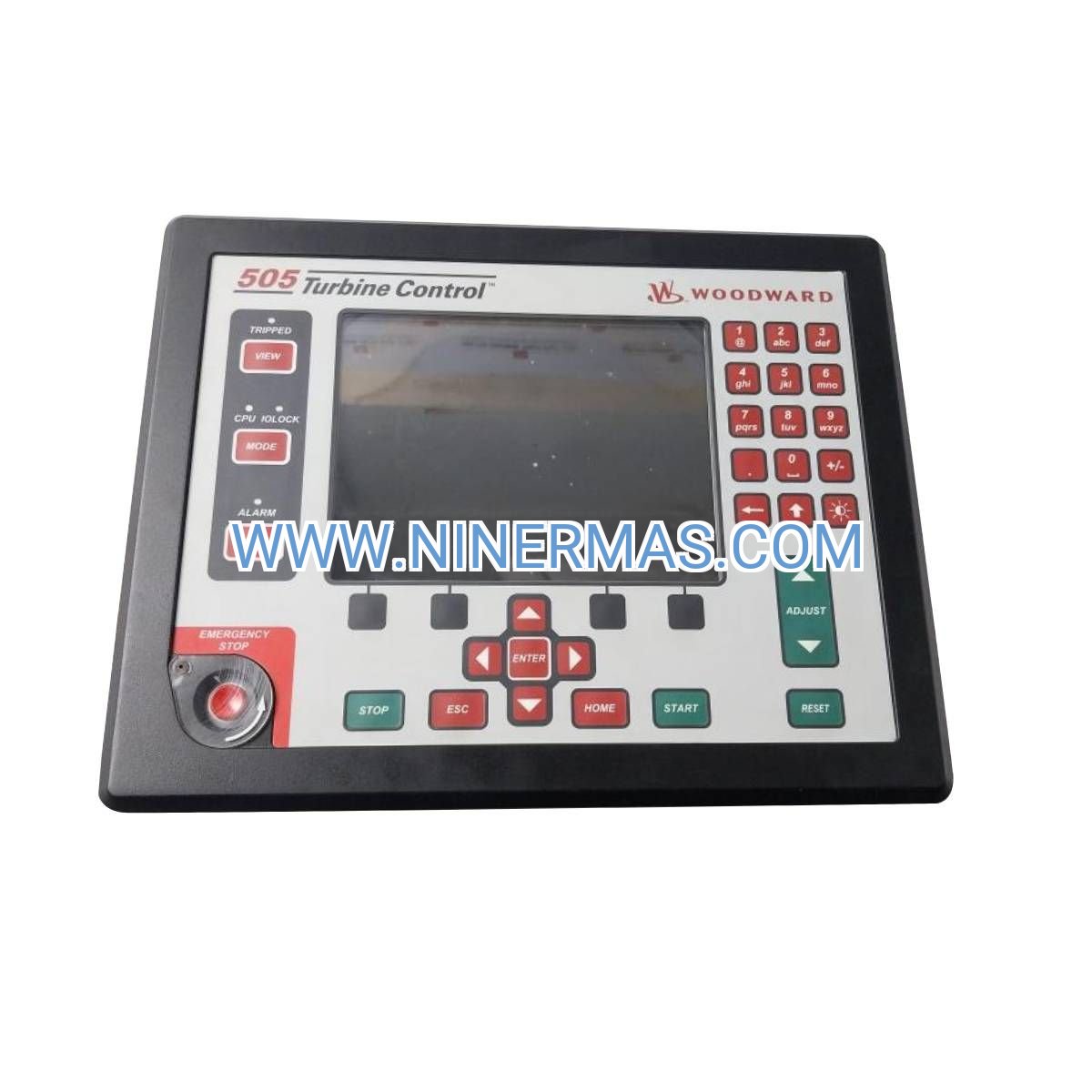

✓ Integrated Graphical HMI
Backlit LCD display with intuitive menu navigation enables on-site configuration, real-time parameter monitoring, and fault diagnostics—eliminating the need for external programming devices during routine maintenance.

✓ Adaptive PID Tuning
Automatically adjusts proportional, integral, and derivative gains based on turbine response characteristics, ensuring optimal stability across varying load conditions and steam pressures without manual intervention.

✓ Multi-Protocol Connectivity
Ethernet TCP/IP, Modbus RTU, and CAN 2.0B interfaces provide seamless integration with DCS, SCADA, and PLC systems, supporting both modern digital architectures and legacy control networks.

✓ Dual-Channel Redundancy (Optional)
Hot-standby configuration ensures uninterrupted turbine operation during controller faults, delivering the high availability required for critical power generation and process applications.

✓ Predictive Diagnostics
Built-in event logging, fault detection, and maintenance alerts enable condition-based servicing strategies that reduce unplanned outages and extend mean time between failures (MTBF).

Application Scenarios

→ Utility-Scale Power Generation
Manage frequency regulation and load sharing across multiple steam turbine-generator sets in central power stations. The 8200-1301's isochronous and droop control modes enable precise grid synchronization and automatic load distribution, reducing operator workload during peak demand periods.

→ Cogeneration & Combined Heat-Power Systems
Balance electrical output and steam extraction in CHP plants serving industrial campuses, district heating networks, or institutional facilities. Dynamic load control ensures optimal fuel efficiency while meeting fluctuating thermal and electrical demands.

→ Industrial Process Steam Turbines
Control backpressure and extraction turbines driving mechanical equipment in paper mills, chemical plants, refineries, and food processing facilities. The governor's fast response time and stable regulation prevent process upsets caused by steam pressure variations.

→ Marine Propulsion & Auxiliary Power
Provide reliable speed control for ship turbine propulsion systems and onboard generators. Redundant control paths and harsh-environment ratings ensure continuous operation in demanding maritime conditions.

→ Mechanical Drive Applications
Regulate turbine-driven compressors, pumps, and blowers in oil & gas, petrochemical, and HVAC installations where precise speed control directly impacts process efficiency and equipment longevity.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8200-1301 when your application requires field-programmable flexibility, graphical HMI access, and multi-protocol connectivity in a single-channel configuration. For applications demanding triple-modular redundancy (TMR) or expanded I/O capacity, consider the 505E series or contact our technical team for application-specific recommendations.

Extended Functions

Remote Monitoring & Control
Web-based interface enables authorized personnel to monitor turbine performance, adjust setpoints, and download event logs from any location with network access—supporting centralized operations centers and remote asset management strategies.

Load Sharing & Synchronization
CAN bus daisy-chaining allows multiple governors to coordinate load distribution and frequency control across turbine trains, ensuring balanced operation and preventing overload conditions.

Custom Application Templates
Pre-configured control strategies for common turbine types (condensing, backpressure, extraction) accelerate commissioning and reduce the risk of configuration errors during startup.

Built-In Oscilloscope Function
Real-time waveform display aids in troubleshooting actuator response, sensor signal quality, and control loop stability—eliminating the need for external test equipment during commissioning and maintenance activities.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; custom-configured systems ship within 10-15 business days

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship; extended service plans available

Technical Support: Access to Woodward-certified application engineers for pre-sale consultation, commissioning assistance, and post-installation troubleshooting

Documentation Package: Includes installation manual, configuration guide, wiring diagrams, and ToolKit software for firmware updates and advanced programming

Frequently Asked Questions

Can the Woodward 8200-1301 replace legacy analog governors in existing installations?
Yes, the 505D platform is designed as a retrofit-friendly replacement for older analog governors including the 2301A and PG-PL series. Adapter kits are available to interface with existing actuators and sensors, minimizing installation time and preserving your investment in field instrumentation.

What types of actuators are compatible with this digital governor?
The 8200-1301 supports electro-hydraulic actuators (EG, EGB, EPG series), electric actuators (ProAct series), and proportional control valves with 4-20mA or PWM signal inputs. Consult the configuration guide for actuator-specific wiring and calibration procedures.

How do I perform firmware updates on the 8200-1301 governor?
Firmware updates are loaded via Ethernet connection using Woodward's ToolKit software, which provides a guided update process with automatic backup and rollback capabilities. Configuration files can also be uploaded/downloaded through the HMI or remotely via FTP for multi-site deployments.

Is this governor suitable for gas turbine or dual-fuel engine applications?
The 8200-1301 is optimized for steam turbine control. For gas turbines, dual-fuel engines, or applications requiring triple-modular redundancy, we recommend the 505E series or MicroNet TMR controllers, which offer enhanced safety features and fuel management capabilities.

What communication protocols does the 8200-1301 support for SCADA integration?
The governor includes Ethernet TCP/IP for modern DCS/SCADA systems, Modbus RTU for legacy PLC interfaces, and CAN 2.0B for multi-governor load sharing networks. OPC UA and DNP3 protocols can be enabled through gateway devices if required by your plant architecture.

Does the 8200-1301 include built-in overspeed protection?
Yes, the governor provides configurable overspeed trip setpoints with independent monitoring channels. However, for applications subject to regulatory safety requirements (e.g., API 612, NFPA 85), a separate mechanical overspeed trip device is typically required as a redundant protection layer.

Ready to Upgrade Your Turbine Control System?

Contact our technical sales team to discuss your specific application requirements, request a detailed quotation, or schedule a commissioning consultation. Our engineers are available to provide sizing assistance, compatibility verification, and integration planning support to ensure successful project execution.
