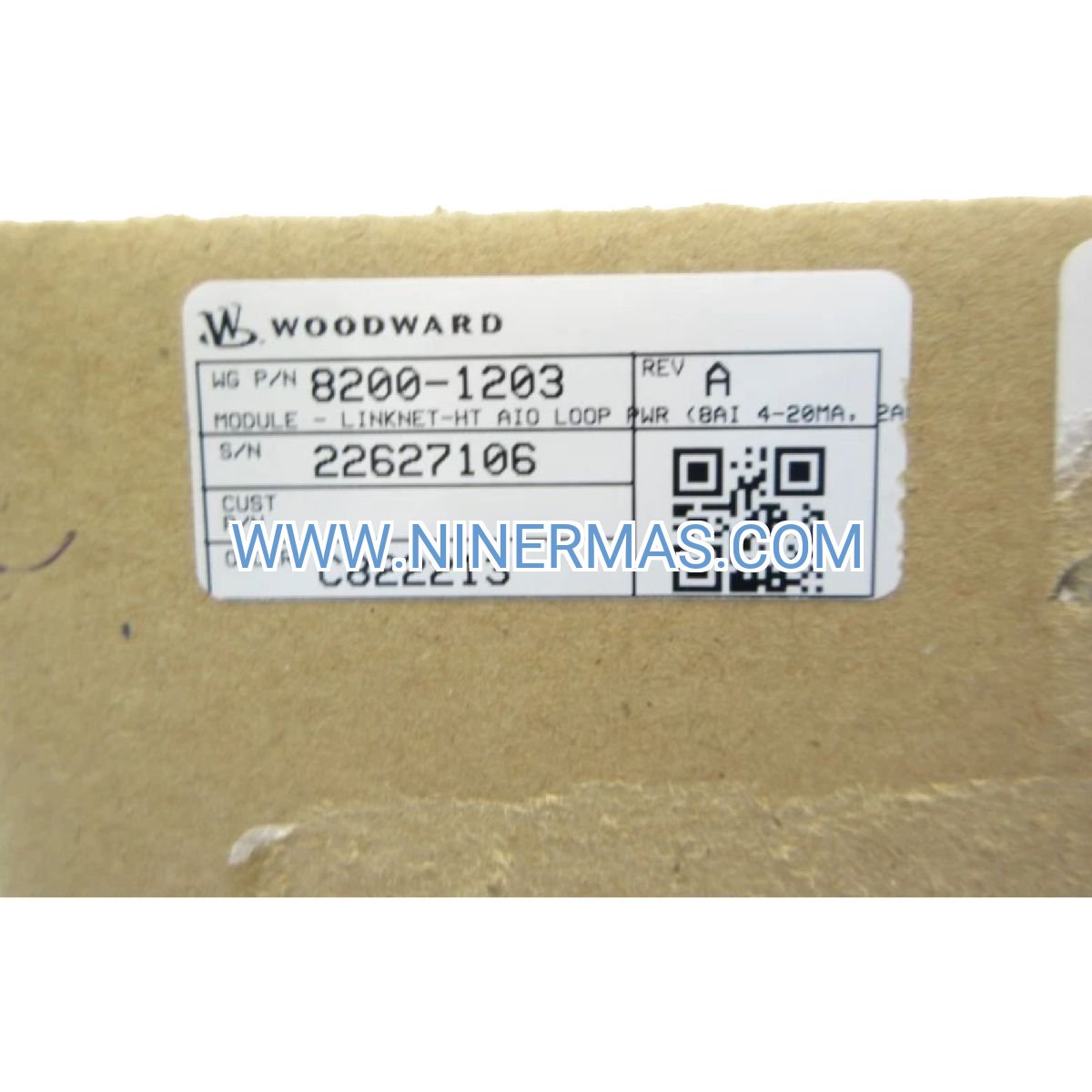

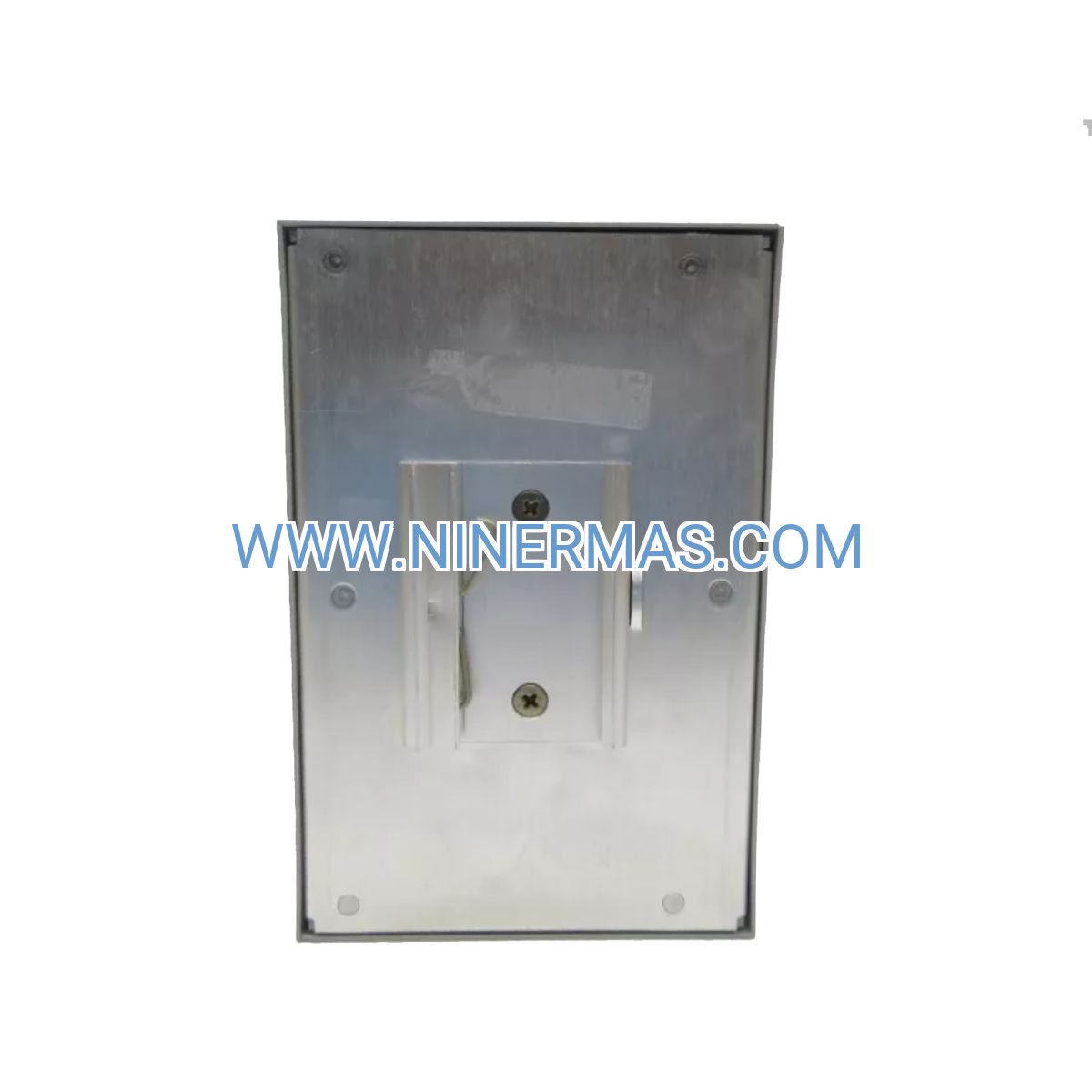

8200-1203 Digital Governor (Industrial-Grade Steam Turbine Speed Controller)

The Woodward 8200-1203 represents a field-proven solution for steam turbine speed and load management in demanding industrial environments. Engineered around the 505D digital platform, this controller delivers microsecond-level response times and adaptive control strategies that automatically compensate for changing steam conditions, load transients, and mechanical wear—ensuring your turbine operates at peak efficiency regardless of external variables.

Designed for facilities where unplanned downtime translates directly to revenue loss, the 8200-1203 addresses critical challenges: maintaining grid synchronization during load swings, preventing overspeed trips during sudden load rejections, and coordinating multiple turbines in parallel operation. Whether you're managing a 50 MW utility generator or a 5 MW cogeneration unit, this governor provides the precision and reliability your operation demands.

With certifications spanning UL, CE, and CSA standards, plus compatibility with legacy Woodward actuators and modern SCADA infrastructure, the 8200-1203 simplifies both new installations and retrofit projects. Factory-calibrated control algorithms reduce commissioning time from weeks to days, while field-adjustable parameters allow fine-tuning to match your specific turbine characteristics.

Core Capabilities & Performance Advantages

→ Adaptive PID Control Architecture
Self-tuning algorithms continuously monitor turbine response and adjust gain parameters in real time, eliminating the manual trial-and-error tuning process. This results in 40% faster load acceptance compared to fixed-parameter controllers, critical during grid disturbances or process upsets.

✓ Dual-Redundant Operation Mode
Optional hot-standby configuration with automatic failover ensures zero-interruption control during component failures. Redundant power supplies, processors, and I/O modules provide 99.97% availability—meeting the reliability requirements of baseload power generation and continuous process industries.

✓ Multi-Turbine Load Distribution
Proprietary load-sharing algorithms balance output across 2-8 parallel turbines with ±2% accuracy, preventing overload conditions on individual units. Supports both droop-based and isochronous modes, with automatic switchover during master controller failures.

→ Integrated Overspeed Protection
Triple-redundant speed sensing with voting logic detects sensor failures and rejects erroneous signals. Configurable overspeed trip points (typically 110-115% rated speed) with independent shutdown relays meet NFPA 85 and API 612 safety requirements.

✓ Wide Environmental Operating Range
Military-grade components withstand -40°C to +70°C ambient temperatures and 95% non-condensing humidity, suitable for outdoor enclosures, tropical climates, and high-altitude installations without derating.

→ Modbus RTU Connectivity
RS-485 interface enables real-time data exchange with DCS, PLC, and HMI systems at baud rates up to 115.2 kbps. Pre-configured register maps simplify integration, providing access to 200+ process variables including speed error, valve position, and alarm status.

Industry Applications & Use Cases

Utility-Scale Power Generation
In combined-cycle and coal-fired plants, the 8200-1203 maintains generator frequency within ±0.05 Hz during load ramps from 20% to 100% capacity. Automatic gain scheduling compensates for steam pressure variations between morning startup and peak afternoon demand, reducing frequency deviations that trigger grid penalties.

Combined Heat & Power (CHP) Facilities
Chemical plants and district heating systems experience fluctuating steam extraction rates as process loads vary. The governor's feedforward control anticipates extraction changes and preemptively adjusts valve position, preventing speed excursions that would otherwise trip protective relays and interrupt production.

Refinery & Petrochemical Turbines
Back-pressure turbines driving compressors and pumps require precise speed control despite inlet pressure swings from upstream process units. The 8200-1203's pressure compensation algorithms maintain ±0.25% speed regulation even when steam pressure varies by 15%, ensuring consistent compressor performance and product quality.

Pulp & Paper Mill Steam Systems
Extraction turbines supplying process steam to digesters and dryers face rapid load changes during grade transitions. The controller's rate-limiting functions prevent valve slamming and water hammer while still achieving 95% load acceptance within 3 seconds—balancing mechanical protection with production responsiveness.

Marine Propulsion & Auxiliary Power
Naval vessels and LNG carriers utilize steam turbines for main propulsion and electrical generation. The governor's anti-surge logic and acceleration limiters provide smooth speed transitions during maneuvering, while redundant operation ensures mission-critical reliability in combat or emergency scenarios.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 8200-1203 for steam turbines rated 500 kW to 50 MW with single or dual valve configurations. For turbines requiring triple-redundant control or SIL-rated safety functions, consider the 505E platform. Verify actuator compatibility—electrohydraulic servos require 4-20 mA input, while pneumatic actuators need an external I/P converter such as the Woodward 9907-1199.

Advanced Integration Options

IoT-Enabled Predictive Maintenance
When paired with edge computing gateways, the governor's diagnostic data streams enable condition-based monitoring. Algorithms analyze valve stroke times, control effort trends, and sensor noise patterns to predict actuator wear, speed sensor degradation, and impending failures—typically providing 2-4 weeks advance warning.

Cybersecurity Hardening
For critical infrastructure applications, optional firmware supports encrypted Modbus TCP, role-based access control, and audit logging compliant with NERC CIP standards. Firmware updates via digitally signed packages prevent unauthorized modifications.

Custom Control Strategies
Factory engineering services develop application-specific algorithms for non-standard requirements: coordinated control of extraction and admission valves, steam temperature compensation, or integration with boiler master controllers. Custom logic is implemented in IEC 61131-3 structured text for transparency and maintainability.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-configured systems with custom I/O or redundant options.
Warranty Period: 12 months from shipment date, covering defects in materials and workmanship under normal operating conditions.
Technical Support: Lifetime access to application engineers for troubleshooting, parameter optimization, and upgrade consultation via email and phone.
Documentation Package: Includes installation manual, wiring diagrams, Modbus register map, and sample PLC/SCADA integration code.

Frequently Asked Questions

How does the 8200-1203 interface with existing DCS systems for remote setpoint control?
The Modbus RTU interface exposes holding registers for speed setpoint, droop percentage, and operating mode. Your DCS writes new values to these registers; the governor acknowledges and implements changes within one control cycle (typically 20 ms). Sample code for Siemens S7, Allen-Bradley ControlLogix, and Emerson DeltaV is available upon request.

What speed sensing configurations are compatible with retrofit installations?
The controller accepts magnetic pickups (MPU) generating 1-20 VAC signals or proximity probes requiring 8-30 VDC excitation. Configurable pulse counts (60, 120, 180, 360 teeth) accommodate existing gear wheels without mechanical modifications. For dual-sensor redundancy, connect two sensors to separate input channels and enable voting logic in software.

Can this governor manage turbines with variable inlet steam pressure?
Yes—the pressure compensation feature accepts a 4-20 mA signal from an upstream pressure transmitter and adjusts control gains accordingly. This maintains consistent speed regulation when inlet pressure varies from 600 to 1200 psig, common in process plants with fluctuating boiler loads.

What actuator stroke times are required for stable control?
Optimal performance occurs with actuators achieving 0-100% stroke in 1-3 seconds. Faster actuators (< 1 second) may require derivative gain reduction to prevent oscillation; slower actuators (> 5 seconds) limit load acceptance rates and may necessitate feedforward tuning.

Is the controller suitable for hazardous area installations?
The standard version is rated for Zone 2 / Division 2 locations when installed in a purged enclosure. For Zone 1 / Division 1 applications, specify the ATEX-certified variant with intrinsically safe barriers on all field wiring.

How do firmware updates affect existing tuning parameters?
Firmware upgrades preserve all user-configured parameters in non-volatile memory. After update completion, the controller automatically validates parameter ranges against new firmware limits and flags any incompatibilities for review before resuming operation.

Request Technical Consultation

Our application engineers provide complimentary pre-sale support to verify compatibility with your turbine model, actuator type, and control system architecture. Contact us with your turbine nameplate data, current governor model, and control objectives—we'll respond within 24 hours with a detailed feasibility assessment and integration plan.
