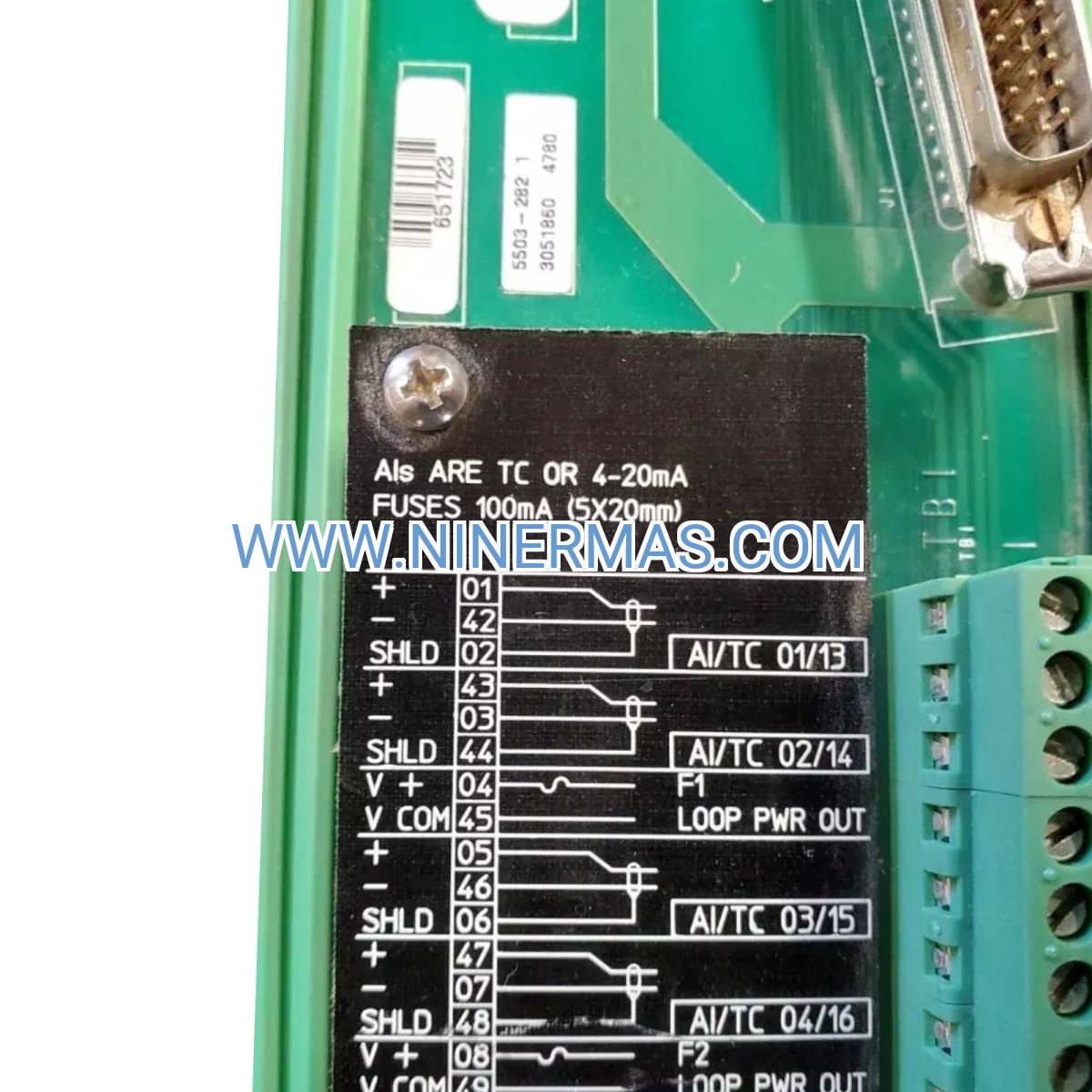

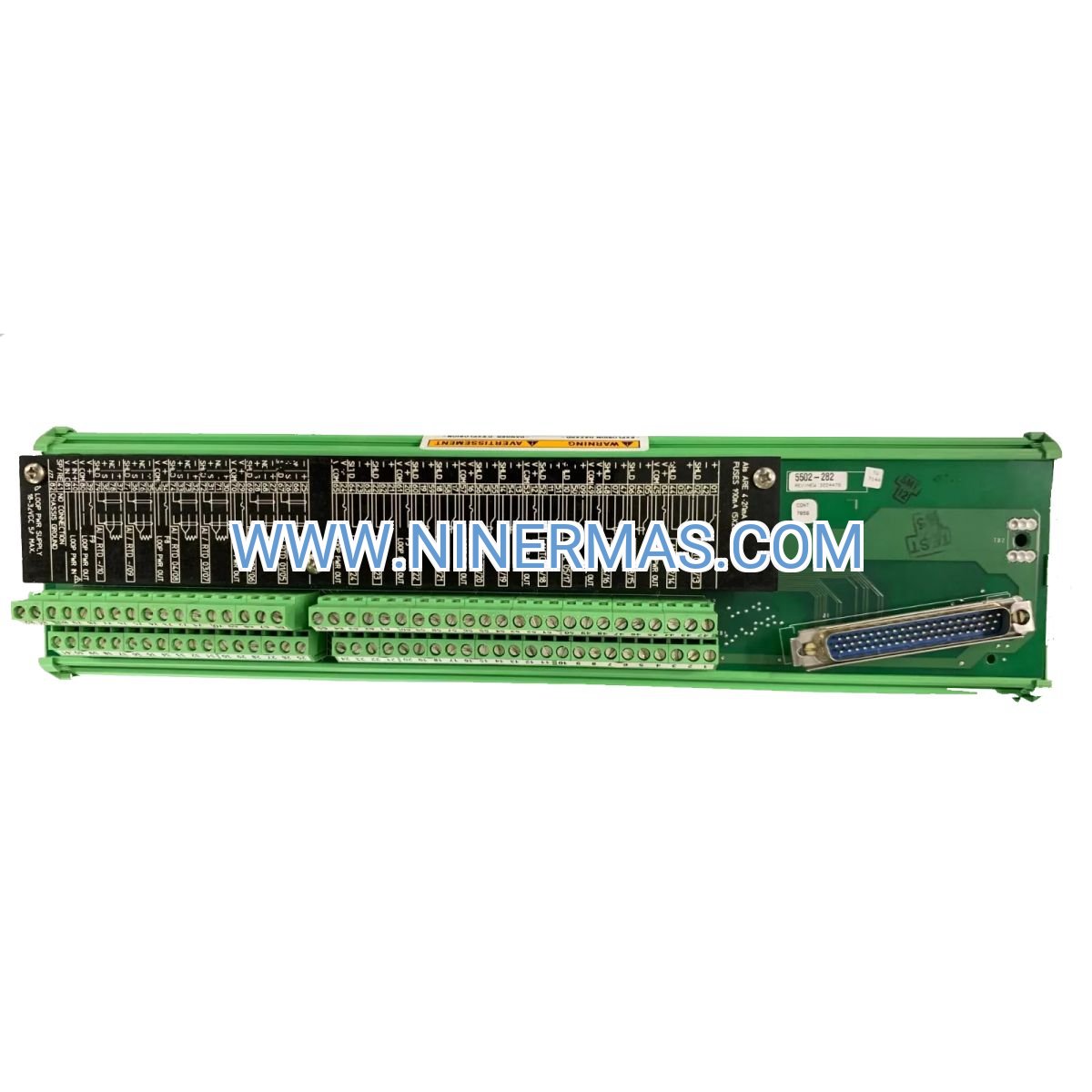

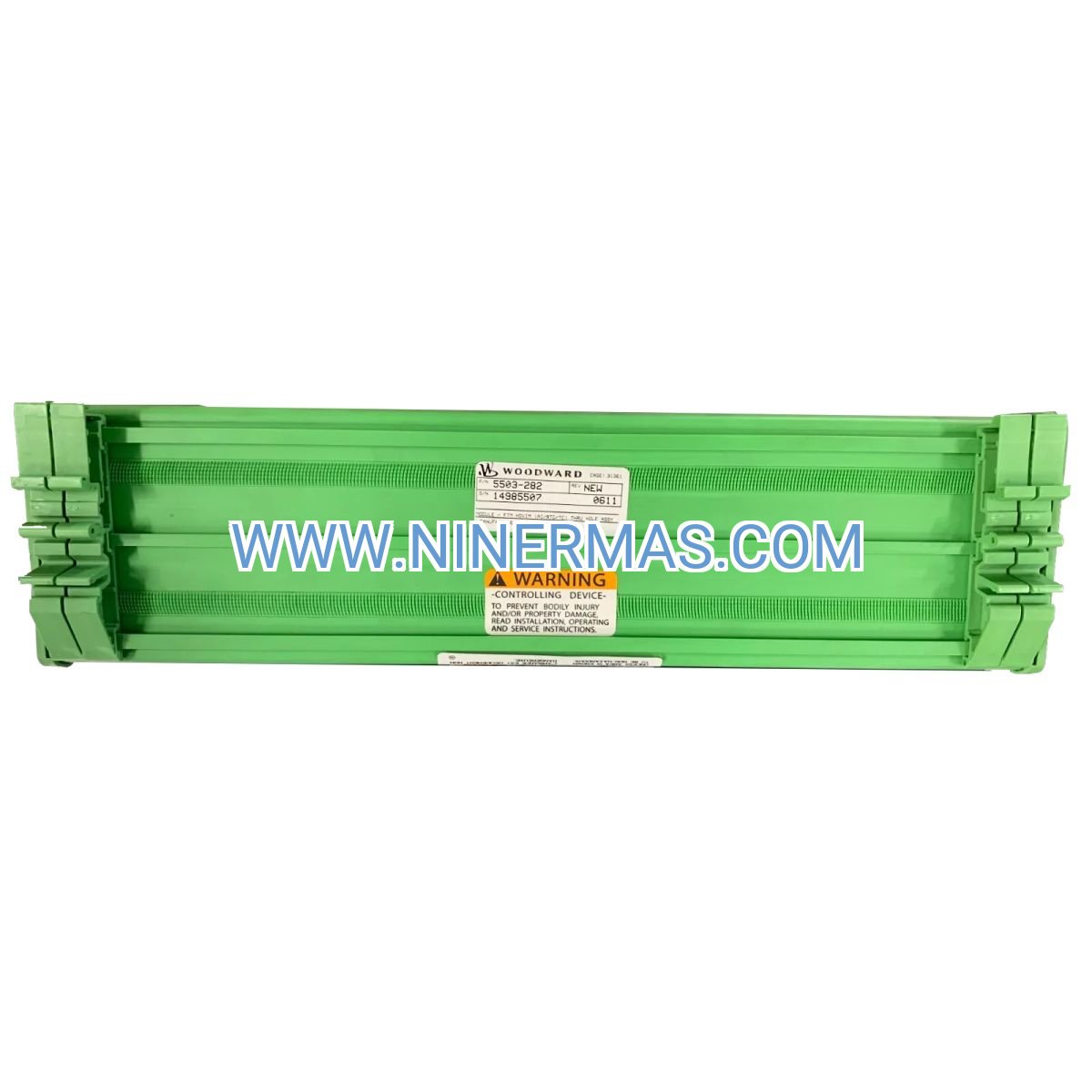

5503-282 MicroNet Analog Interface Module (Industrial-Grade Signal Processing)

The 5503-282 represents Woodward's commitment to precision control in mission-critical turbomachinery applications. Designed as a core component within the MicroNet distributed control architecture, this analog interface module bridges the gap between field instrumentation and supervisory control logic. Whether you're managing gas turbine generators, steam-driven compressors, or marine propulsion units, the 5503-282 delivers the signal fidelity and environmental resilience demanded by 24/7 industrial operations.

Built for engineers and plant operators who cannot afford downtime, this module addresses the persistent challenge of maintaining accurate process measurements in harsh environments. From offshore platforms to desert power stations, the 5503-282 ensures your control system receives clean, reliable analog data—even when ambient conditions push equipment to its limits. Its field-proven design serves industries where a single point of failure can cascade into costly shutdowns or safety incidents.

What sets the 5503-282 apart is its versatility in sensor interfacing combined with hot-swap capability. You gain the flexibility to monitor temperature, pressure, flow, and position using a single module type, while maintaining the ability to perform maintenance without halting production. This translates to reduced spare parts inventory, simplified training, and maximized uptime—three pillars of operational excellence in process industries.

Core Capabilities & Business Value

→ Multi-Signal Compatibility: Accepts 4-20mA current loops, 0-10V voltage signals, RTD temperature sensors, and thermocouple inputs through software-configurable channels. Eliminates the need for multiple module types and reduces engineering complexity during system design.

→ Extended Temperature Performance: Operates reliably from -40°C to +70°C without derating, making it suitable for Arctic installations, desert climates, and high-temperature enclosures near turbine casings. Reduces cooling infrastructure costs and expands deployment options.

→ Hot-Swap Architecture: Supports online module replacement in redundant configurations, allowing maintenance teams to swap failed units without initiating emergency shutdowns. Directly improves mean time to repair (MTTR) and system availability metrics.

✓ High-Resolution Conversion: Delivers 16-bit analog-to-digital conversion for superior measurement granularity, enabling tighter control loops and early detection of process drift. Critical for applications like fuel-air ratio optimization and vibration trending.

✓ MicroNet Bus Integration: Communicates via Woodward's deterministic proprietary protocol, ensuring predictable scan times and synchronized data acquisition across distributed I/O racks. Supports control strategies requiring coordinated multi-point measurements.

✓ Flexible Mounting Options: Installs on standard DIN rail or panel-mount configurations, accommodating both compact control cabinets and large marshalling panels. Simplifies retrofit projects and new installations alike.

Industry Applications & Problem Solving

Power Generation Facilities: In combined-cycle plants, the 5503-282 monitors exhaust temperatures across multiple zones to optimize heat recovery steam generator (HRSG) performance. By providing accurate thermal mapping, operators can maximize efficiency while preventing tube overheating—a common cause of forced outages. The module's redundancy support ensures continuous monitoring even during maintenance activities.

Oil & Gas Processing: Offshore platforms use the 5503-282 to track compressor discharge pressures and temperatures in real-time. When process conditions approach trip limits, the module's fast response time enables protective logic to activate before equipment damage occurs. Its corrosion-resistant design withstands salt-laden atmospheres that degrade standard electronics.

Marine Propulsion Systems: Ship engine rooms demand compact, vibration-tolerant instrumentation. The 5503-282 interfaces with fuel flow meters and lube oil pressure sensors to support automated load-sharing between multiple engines. Its wide temperature range accommodates both tropical and polar voyages without recalibration.

Industrial Manufacturing: Cement kilns, steel mills, and chemical reactors rely on the 5503-282 for multi-zone temperature profiling. By connecting RTD arrays to a single module, maintenance teams reduce wiring complexity and troubleshooting time. The module's diagnostic capabilities flag sensor failures before they compromise product quality.

District Heating Networks: Municipal energy systems use the 5503-282 to balance flow and return temperatures across distribution loops. Precise analog control minimizes energy waste while maintaining comfort levels in residential and commercial buildings. The module's long-term stability reduces calibration frequency and operational costs.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 5503-282 when your application requires versatile analog interfacing within an existing MicroNet ecosystem. If you need triple modular redundancy (TMR) for safety-instrumented systems, consider the 5458-series modules instead. For applications mixing analog and discrete signals, the 5466-series combo modules may reduce overall I/O count. Always verify that your sensor output ranges match the module's configurable input spans to avoid external signal conditioning.

Advanced Integration Features

Diagnostic Capabilities: The 5503-282 continuously monitors sensor health, detecting open circuits, short circuits, and out-of-range conditions. These diagnostics integrate with plant-wide asset management systems, enabling predictive maintenance strategies that replace sensors before failure rather than after.

Calibration Flexibility: Field technicians can adjust zero and span settings via the MicroNet configuration software without removing the module from service. This capability supports periodic verification against reference standards while maintaining process continuity.

Retrofit Compatibility: The module maintains protocol compatibility with legacy MicroNet installations dating back to earlier platform generations. This backward compatibility protects your investment in existing infrastructure while enabling incremental system upgrades.

Delivery Timeline & Support Services

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Custom-configured modules with pre-programmed settings require 7-10 business days for factory preparation and testing.

Warranty Coverage: Each 5503-282 module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options are available for critical applications requiring longer coverage periods.

Technical Assistance: Our applications engineering team provides pre-sales consultation to verify compatibility with your specific sensor types and control architecture. Post-installation support includes configuration guidance, troubleshooting assistance, and performance optimization recommendations.

Documentation Package: Every shipment includes the module datasheet, quick-start installation guide, wiring diagrams, and factory calibration certificate. Comprehensive user manuals and configuration software are available for download from our technical library.

Frequently Asked Questions

Can the 5503-282 interface with third-party DCS platforms?
The module is designed exclusively for Woodward MicroNet systems and uses a proprietary communication protocol. For integration with other control platforms, consider Woodward's gateway modules that bridge MicroNet to Modbus, PROFIBUS, or OPC protocols.

What is the maximum cable length between sensors and the module?
For 4-20mA current loops, you can extend up to 1000 meters using shielded twisted-pair cable. Voltage inputs should be limited to 100 meters to minimize noise pickup. RTD and thermocouple circuits depend on sensor type but typically support 300-500 meter runs with proper cable selection.

Does the module require external power supplies for sensor excitation?
The 5503-282 provides internal excitation for RTD sensors and loop power for 2-wire 4-20mA transmitters. Thermocouples are passive devices requiring no excitation. Verify that your transmitter's power requirements fall within the module's 24V DC supply capacity.

How does the module handle sensor failures in redundant configurations?
When deployed in redundant architectures, the MicroNet control logic can automatically switch to backup sensors upon detecting a primary sensor fault. The 5503-282's diagnostic flags trigger this failover, ensuring continuous process monitoring without operator intervention.

Is factory calibration required after module replacement?
No. Each 5503-282 ships with factory calibration traceable to NIST standards. The module stores calibration coefficients in non-volatile memory, so replacement units are ready for service immediately after installation and configuration download.

Can I mix different signal types on a single module?
Yes. The 5503-282's channels are individually configurable, allowing you to monitor a thermocouple on channel 1, a 4-20mA transmitter on channel 2, and an RTD on channel 3 simultaneously. This flexibility reduces the variety of spare modules you need to stock.

Take the Next Step

Ready to enhance your turbine control system's reliability and precision? Contact our technical sales team to discuss your specific application requirements. We'll help you determine the optimal I/O configuration, provide detailed integration guidance, and ensure you have the right modules and accessories for a successful installation.

Request a formal quotation, technical datasheet, or application note by reaching out via email or phone. For urgent inquiries regarding stock availability or expedited shipping, our customer service team is available during business hours to assist you.
