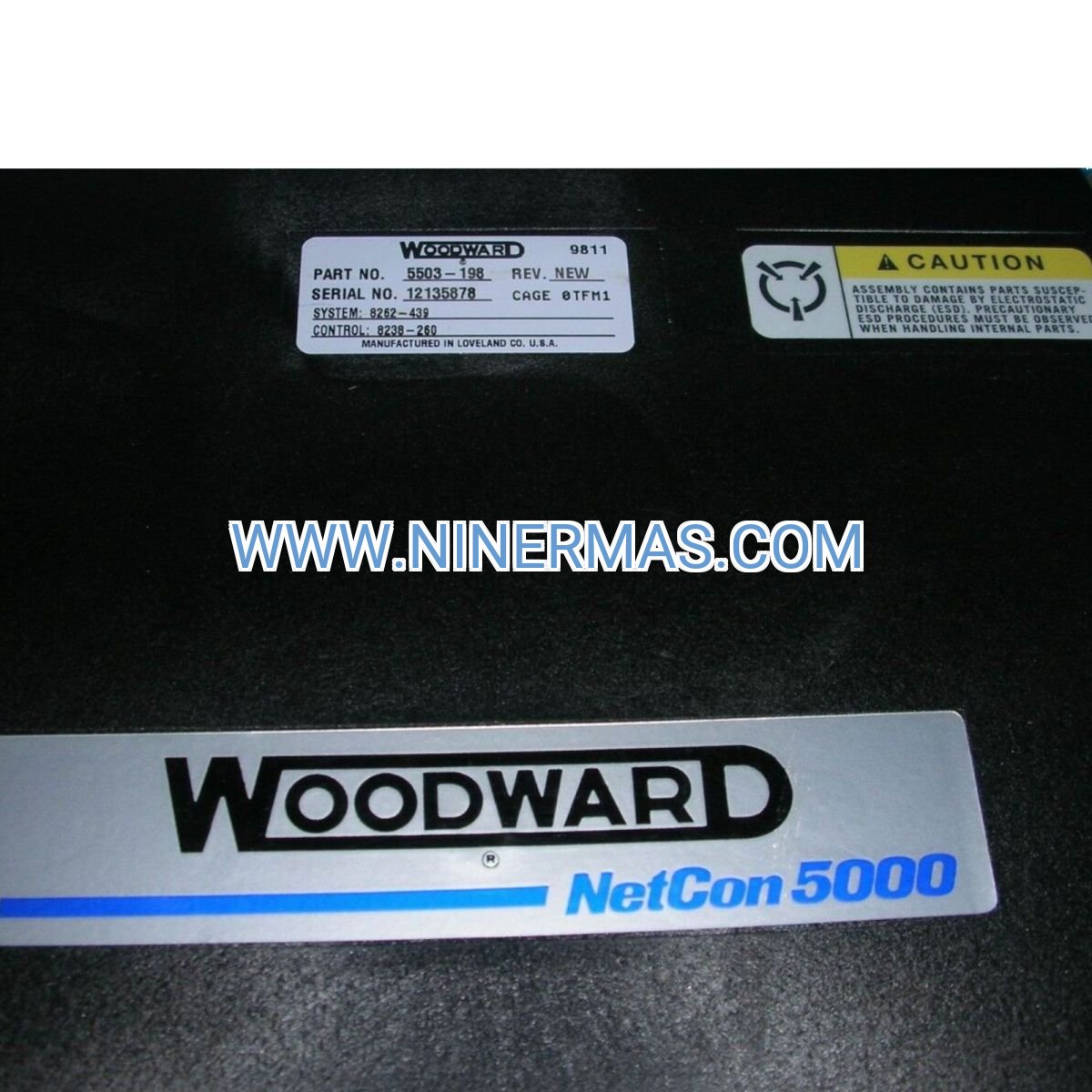

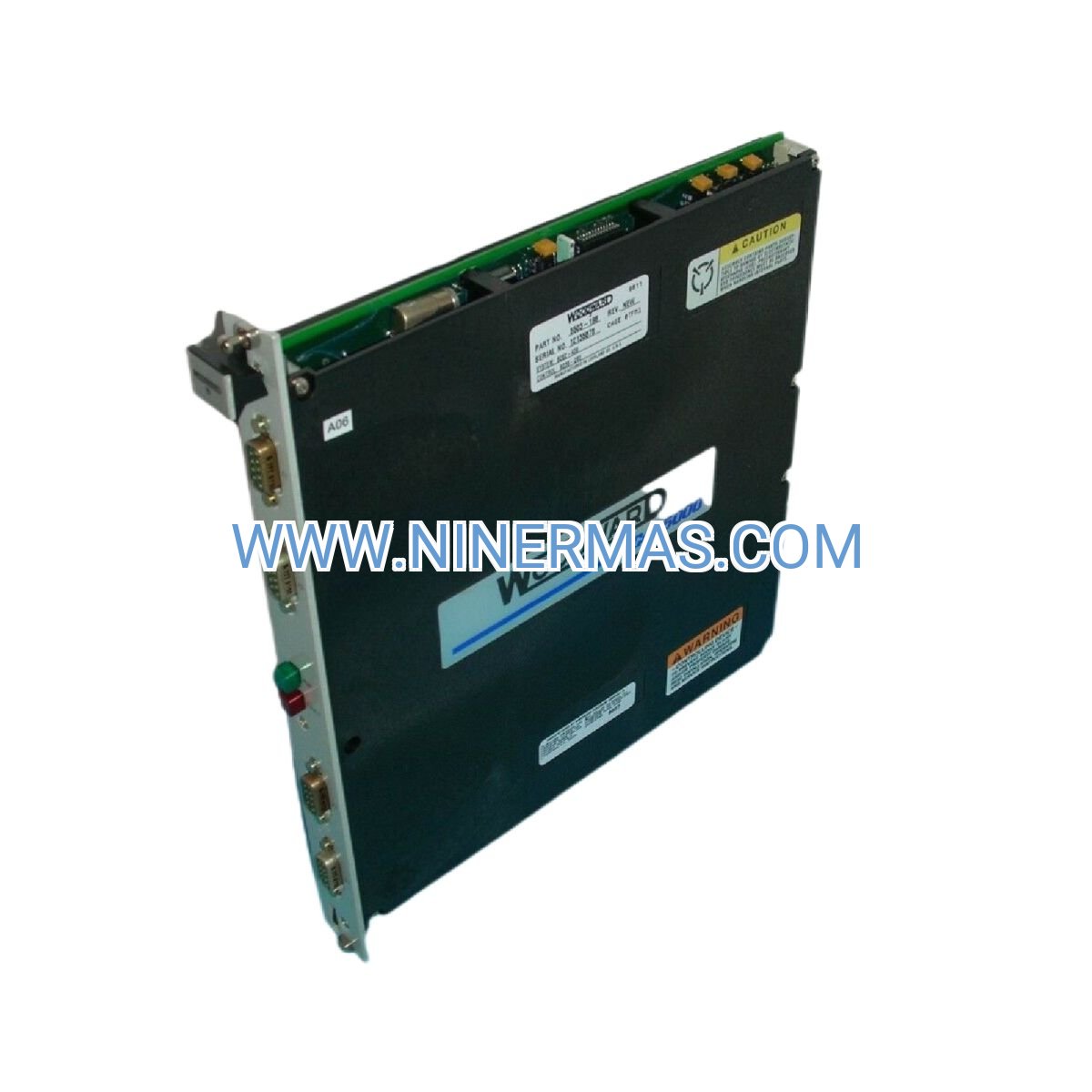

Woodward 5503-198 Field Terminal Module (Industrial-Grade Distributed I/O Solution)

The Woodward 5503-198 represents a field-proven approach to distributed control architecture, delivering 8 discrete input and 8 discrete output channels through a compact, DIN-rail mountable package. Built for the MicroNet platform, this Field Terminal Module (FTM) extends control system reach while reducing installation complexity and wiring costs across power generation, oil & gas, and process automation facilities.

Industrial operators face mounting pressure to improve system reliability while controlling capital expenditure. The 5503-198 addresses both challenges through modular design that simplifies maintenance, reduces mean time to repair (MTTR), and enables phased system expansion without wholesale infrastructure replacement. Whether you're retrofitting legacy systems or designing greenfield installations, this module integrates seamlessly into existing MicroNet networks.

With an operating temperature range of -40°C to +70°C and IP20-rated protection (when properly enclosed), the 5503-198 performs reliably in environments where temperature extremes, vibration, and electrical noise challenge lesser components. Backed by Woodward's engineering heritage in critical control applications, this FTM delivers the uptime your operations demand.

Core Features & Benefits

→ Distributed Architecture Reduces Installation Costs
By positioning I/O modules closer to field devices, you eliminate hundreds of meters of point-to-point wiring. Typical installations report 30-40% reduction in cable runs compared to centralized I/O configurations, translating to lower material costs and faster commissioning timelines.

→ Modular Design Accelerates Troubleshooting
Field-replaceable modules mean technicians can swap suspect units in minutes rather than hours. Pre-configured spare modules reduce diagnostic time, minimizing production interruptions during maintenance events.

→ Wide Temperature Range Ensures Year-Round Operation
Rated for -40°C to +70°C ambient conditions, the 5503-198 operates reliably in unheated enclosures, outdoor installations, and high-temperature process areas where standard electronics fail. This thermal resilience eliminates the need for costly climate control in remote equipment shelters.

→ MicroNet Protocol Integration Simplifies Engineering
Native compatibility with MicroNet CPU modules (5501-381, 5466-1035 series) means straightforward configuration through Woodward development tools. I/O points map directly into your control logic without custom interface programming.

→ 24 VDC Power Supply Matches Industry Standards
Standard industrial power requirements eliminate special power conditioning equipment. The module integrates into existing 24 VDC distribution systems common in automation panels.

→ DIN Rail Mounting Optimizes Panel Space
Standard 35mm DIN rail compatibility allows flexible panel layout and efficient use of enclosure real estate. Modules can be positioned for optimal cable routing and maintenance access.

Application Scenarios

✓ Power Generation Turbine Control
In combined-cycle power plants, the 5503-198 interfaces with auxiliary equipment including lube oil pumps, cooling water valves, and generator breaker controls. Distributed I/O placement near the turbine skid reduces cable tray congestion and simplifies troubleshooting during outages. Operators report 25% faster fault isolation compared to centralized I/O architectures.

✓ Oil & Gas Compressor Stations
Remote compressor facilities demand reliable control in harsh environments. The 5503-198's extended temperature rating and modular design support unmanned operation in locations where service visits occur quarterly. Discrete I/O channels monitor vibration sensors, pressure switches, and emergency shutdown devices while controlling valve actuators and alarm annunciators.

✓ Industrial Process Safety Systems
Safety instrumented systems (SIS) benefit from the 5503-198's deterministic response and field-proven reliability. The module handles emergency stop circuits, fire detection inputs, and safety valve outputs in applications requiring SIL-rated performance when properly configured within certified system architectures.

✓ Marine Propulsion Engine Control
Vessel automation systems leverage the 5503-198 for engine room monitoring and control. The module's vibration tolerance and compact footprint suit space-constrained marine installations. Discrete channels interface with bilge alarms, fuel valve controls, and navigation light circuits.

✓ Water Treatment Plant Automation
Municipal water facilities use distributed I/O to monitor pump stations, valve actuators, and level sensors across multi-acre sites. The 5503-198 reduces conduit runs between process areas and central control rooms, lowering installation costs while improving system maintainability.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5503-198 when your application requires distributed I/O within a MicroNet control system. Verify that your CPU module supports the required number of remote I/O drops and that network cable distances fall within recommended limits (typically 1000m with shielded twisted pair). For applications requiring analog I/O, consider companion MicroNet analog modules. Confirm that discrete I/O voltage levels match your field device specifications.

Extended Functions

System Expansion Capability: Multiple 5503-198 modules can be networked on a single MicroNet communication link, enabling scalable architectures that grow with your facility. Add I/O capacity without redesigning the control network topology.

Diagnostic Feedback: Module status indicators provide at-a-glance health monitoring. Communication fault detection alerts operators to network issues before they impact process control.

Customization Options: While the 5503-198 ships with standard discrete I/O configuration, system integrators can develop custom logic within the MicroNet CPU to implement specialized control sequences, alarm prioritization, and equipment interlocks tailored to your process requirements.

Delivery & Service Assurance

Lead Time: Standard delivery 3-5 business days for in-stock units. Custom-configured systems may require 2-3 weeks depending on specification complexity. Expedited shipping available for critical outage support.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Warranty service includes repair or replacement at manufacturer's discretion.

Technical Support: Our applications engineering team provides pre-sale consultation, system design review, and post-installation troubleshooting assistance. Support available via email, phone, and remote diagnostics.

Documentation Package: Each module ships with installation quick-start guide. Complete technical manuals, wiring diagrams, and configuration examples available for download from manufacturer support portal.

Frequently Asked Questions

What MicroNet CPU modules are compatible with the 5503-198 Field Terminal Module?
The 5503-198 integrates with all MicroNet CPU modules including the 5501-381 and 5466-1035 series. Compatibility extends to legacy MicroNet controllers when firmware versions meet minimum requirements specified in product documentation.

How many 5503-198 modules can I connect to a single MicroNet network?
Network capacity depends on CPU module specifications and communication loading. Typical systems support 8-16 remote I/O modules per network segment. Consult your system integrator for application-specific network design guidance.

Can the 5503-198 operate in hazardous area classifications?
The module itself is not intrinsically safe rated. For hazardous area applications, install the 5503-198 in a properly rated enclosure located in a safe area, using approved barriers or isolators for field device connections in classified zones.

What cable type is recommended for MicroNet communication wiring?
Use shielded twisted pair cable with impedance characteristics specified in MicroNet installation guidelines. Proper cable selection and grounding practices are critical for reliable communication in electrically noisy industrial environments.

Does the 5503-198 require specialized programming knowledge for configuration?
Basic I/O mapping is straightforward using Woodward MicroNet development tools. Advanced features such as custom diagnostics or complex interlocks require familiarity with MicroNet programming environment. Training courses available through Woodward and authorized distributors.

What is the typical service life of the 5503-198 in continuous operation?
When operated within specified environmental limits and properly maintained, the 5503-198 delivers 10+ years of reliable service. Actual lifespan varies based on operating conditions, duty cycle, and maintenance practices.

Take the Next Step

Ready to optimize your distributed control architecture? Contact our technical sales team for application-specific recommendations, pricing, and delivery timelines. Whether you're expanding an existing MicroNet system or designing a new installation, we'll help you specify the right configuration for your requirements.
