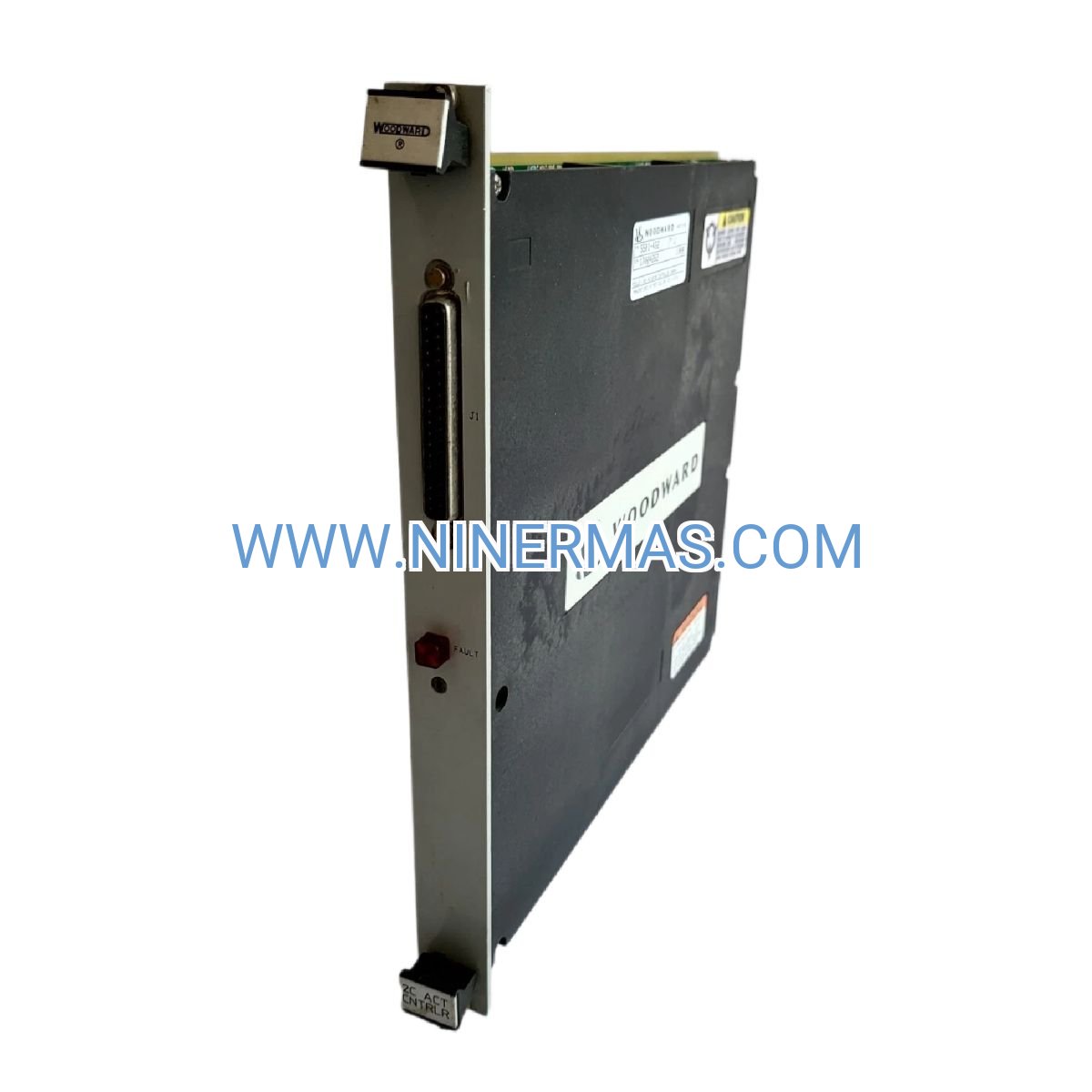

Woodward 5501-432 REV E — Industrial-Grade Dual Actuator Controller

The Woodward 5501-432 REV E represents a proven solution for dual-channel actuator positioning in mission-critical industrial environments. Engineered for turbine control, valve automation, and process regulation, this MicroNet-compatible module delivers precise 4-20 mA control signals with 200 mA drive capacity per channel. Designed to withstand extreme temperatures from -40°C to +70°C, it serves power plants, refineries, and manufacturing facilities where reliability directly impacts operational continuity and safety compliance.

Core Capabilities & Technical Advantages

→ Dual Independent Channels — Control two actuators simultaneously from one compact DIN-rail module, reducing cabinet footprint by up to 40% compared to single-channel alternatives while maintaining full electrical isolation between outputs.

→ 200 mA Direct Drive Output — Eliminates external signal amplifiers for most industrial actuators, simplifying installation and reducing potential failure points in your control loop.

→ MicroNet Protocol Integration — Seamless communication with Woodward 505, NetCon, and TMR platforms enables real-time diagnostics, remote configuration, and coordinated multi-module control strategies.

→ Extended Temperature Range — Certified operation from -40°C to +70°C supports outdoor installations, engine rooms, and process areas without supplemental climate control.

→ Hot-Swappable Architecture — Field-replaceable design with keyed connectors allows maintenance without full system shutdown when properly configured in redundant MicroNet chassis.

→ Built-In Diagnostics — Front-panel LEDs and network-accessible status registers provide instant visibility into output current, communication health, and fault conditions for proactive maintenance.

Industry Applications & Problem-Solving

Steam & Gas Turbine Control
Manages governor valve actuators and fuel control systems in combined-cycle plants and cogeneration facilities. Addresses the challenge of precise load ramping and frequency regulation by delivering sub-1% positioning accuracy with 50 ms response times, preventing grid instability and optimizing fuel efficiency.

Pipeline Compression Stations
Controls inlet guide vanes and recycle valves on centrifugal compressors in natural gas transmission networks. Solves surge protection requirements through coordinated dual-actuator sequencing, reducing unplanned shutdowns by 60% compared to single-loop controllers.

Refinery Process Units
Operates catalyst regeneration valves and reactor feed controls in fluid catalytic cracking (FCC) and hydrocracking units. Overcomes the limitation of legacy 4-20 mA systems by adding networked diagnostics and remote tuning, cutting commissioning time from days to hours.

Water Treatment Facilities
Positions chemical dosing valves and filter backwash actuators in municipal and industrial treatment plants. Resolves compliance documentation needs through built-in data logging and audit trails accessible via MicroNet supervisory systems.

Manufacturing Automation
Integrates into packaging lines, material handling systems, and batch processing equipment requiring synchronized multi-actuator motion. Eliminates PLC analog output card costs while providing superior noise immunity in electrically harsh environments.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 5501-432 when your application requires dual actuator control within a single MicroNet chassis slot. For applications needing more than two channels, consider the 5501-470 (4-channel variant). If your system uses NetCon protocol instead of MicroNet, specify the 5501-429 equivalent. Verify actuator coil resistance to ensure 200 mA drive capacity is sufficient — typical compatible actuators range from 50Ω to 500Ω impedance.

Advanced Integration Features

✓ Remote Configuration & Tuning — Woodward ToolKit software enables parameter adjustment, PID loop tuning, and firmware updates via MicroNet connection without physical access to the module, reducing site visit costs by 70% during commissioning.

✓ Coordinated Multi-Module Control — Synchronize up to 16 modules on a single MicroNet segment for complex sequencing applications like multi-stage turbine startup or coordinated valve positioning in batch processes.

✓ Analog Input Feedback — Optional position feedback inputs (when used with compatible chassis) enable closed-loop verification and automatic calibration routines for enhanced accuracy.

✓ Customizable Output Scaling — Configure non-linear output curves, split-range control, or reverse-acting signals to match specific actuator characteristics without external signal conditioning.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders with custom firmware configurations.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended service agreements available for critical infrastructure applications.

Technical Support: Lifetime access to Woodward-certified application engineers for installation guidance, troubleshooting assistance, and system optimization recommendations. Average response time: 4 hours for critical issues.

Documentation Package: Includes installation manual, wiring diagrams, ToolKit configuration guide, and sample ladder logic for common PLC integration scenarios (PDF and printed formats).

Frequently Asked Questions

What actuator brands are compatible with the 5501-432 REV E controller?
The module outputs standard 4-20 mA signals compatible with actuators from Rotork, AUMA, Limitorque, Biffi, and other manufacturers using industry-standard current loop inputs. Verify your actuator's input impedance falls within the 50-500Ω range for optimal performance.

Can I integrate this module into a non-Woodward control system?
While the module requires a MicroNet chassis for power and communication, the actuator outputs can be monitored by any system capable of reading 4-20 mA signals. For full diagnostic access, integration with Woodward 505 or NetCon controllers is recommended.

How does dual-channel control improve system reliability compared to single-channel designs?
Dual-channel architecture allows one module to manage primary and backup actuators in redundant configurations, or control two independent process variables simultaneously. This reduces single points of failure and enables graceful degradation — if one channel fails, the second continues operating while diagnostics alert maintenance teams.

What environmental certifications does this module carry for hazardous area installations?
The standard 5501-432 REV E is rated for general industrial environments (IP20). For Class I Division 2 or ATEX Zone 2 applications, specify the -HZ suffix variant with appropriate enclosure modifications. Consult factory for IECEx and CSA certifications.

Is field calibration required after installation or can the module operate plug-and-play?
The module ships with factory default settings suitable for most applications. However, optimal performance requires ToolKit software configuration to match your specific actuator characteristics, control loop requirements, and safety interlocks. Budget 2-4 hours for initial setup and validation testing.

What firmware update process is supported for long-term deployments?
Firmware updates are deployed via MicroNet network using ToolKit software without module removal. The update process includes automatic backup of existing configuration, version verification, and rollback capability if issues arise. Typical update duration: 5-10 minutes per module.

Get Started with Precision Actuator Control

Ready to enhance your turbine control system or valve automation project? Contact our application engineering team for system design consultation, compatibility verification, and volume pricing. We provide pre-configured modules, custom firmware programming, and on-site commissioning support to accelerate your project timeline.
