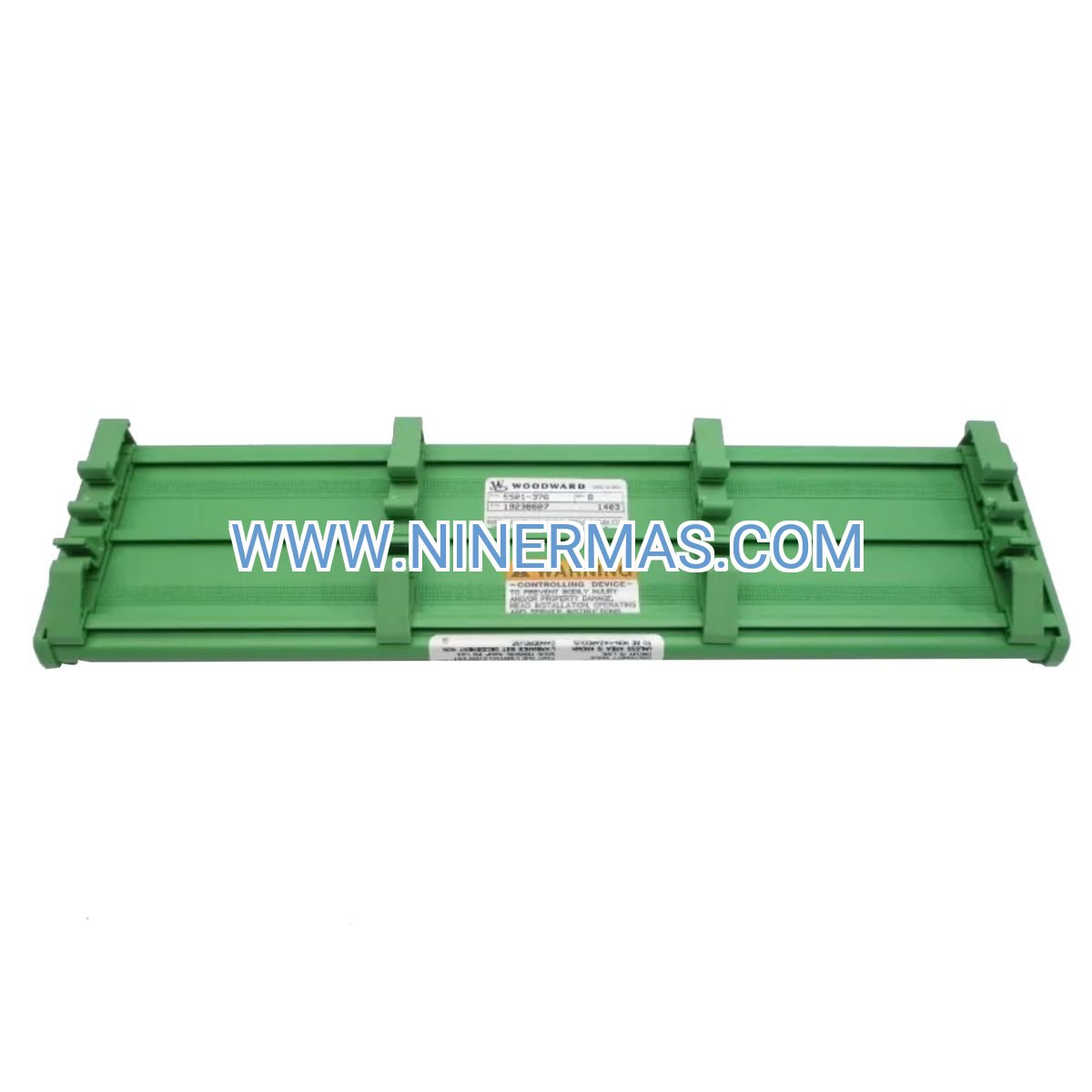

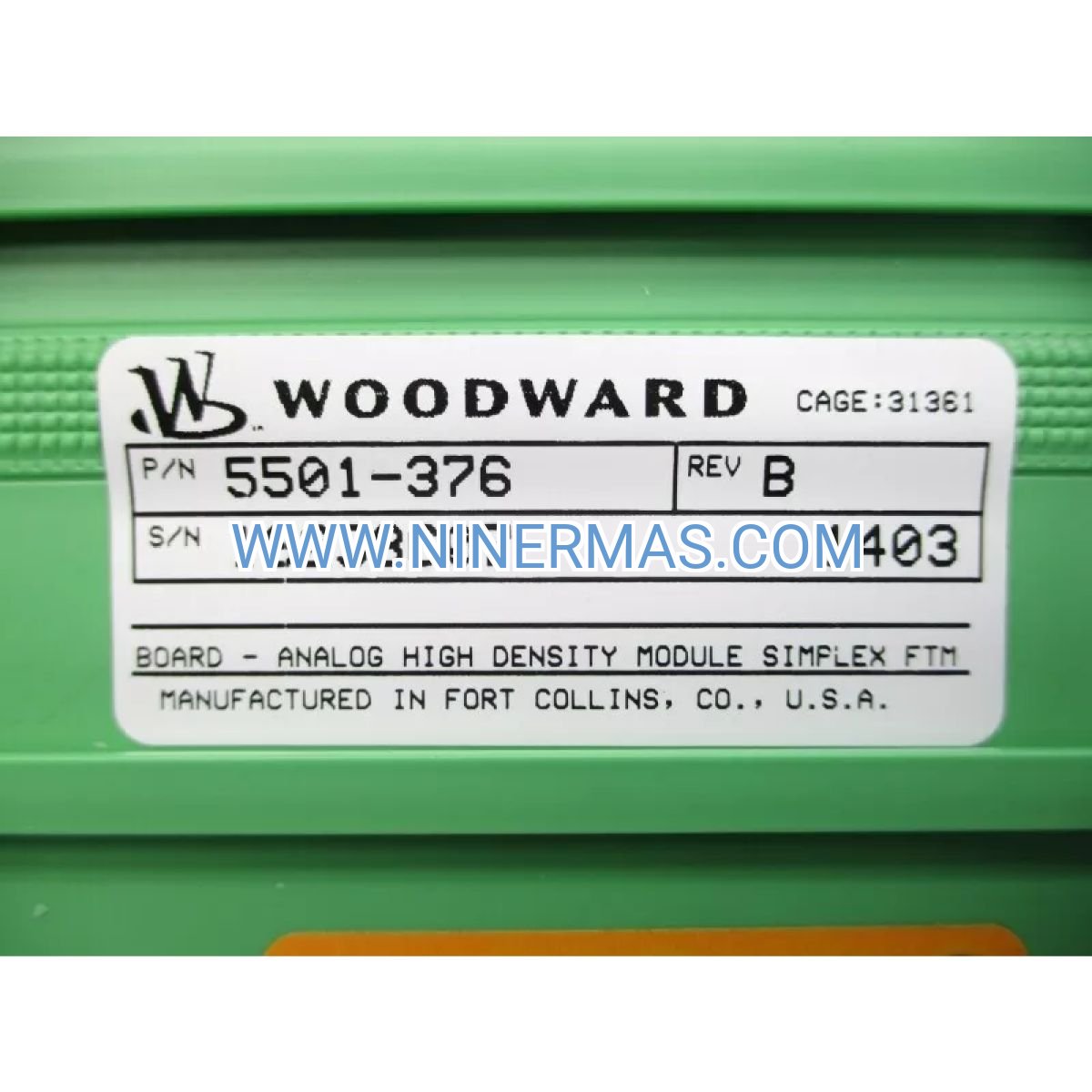

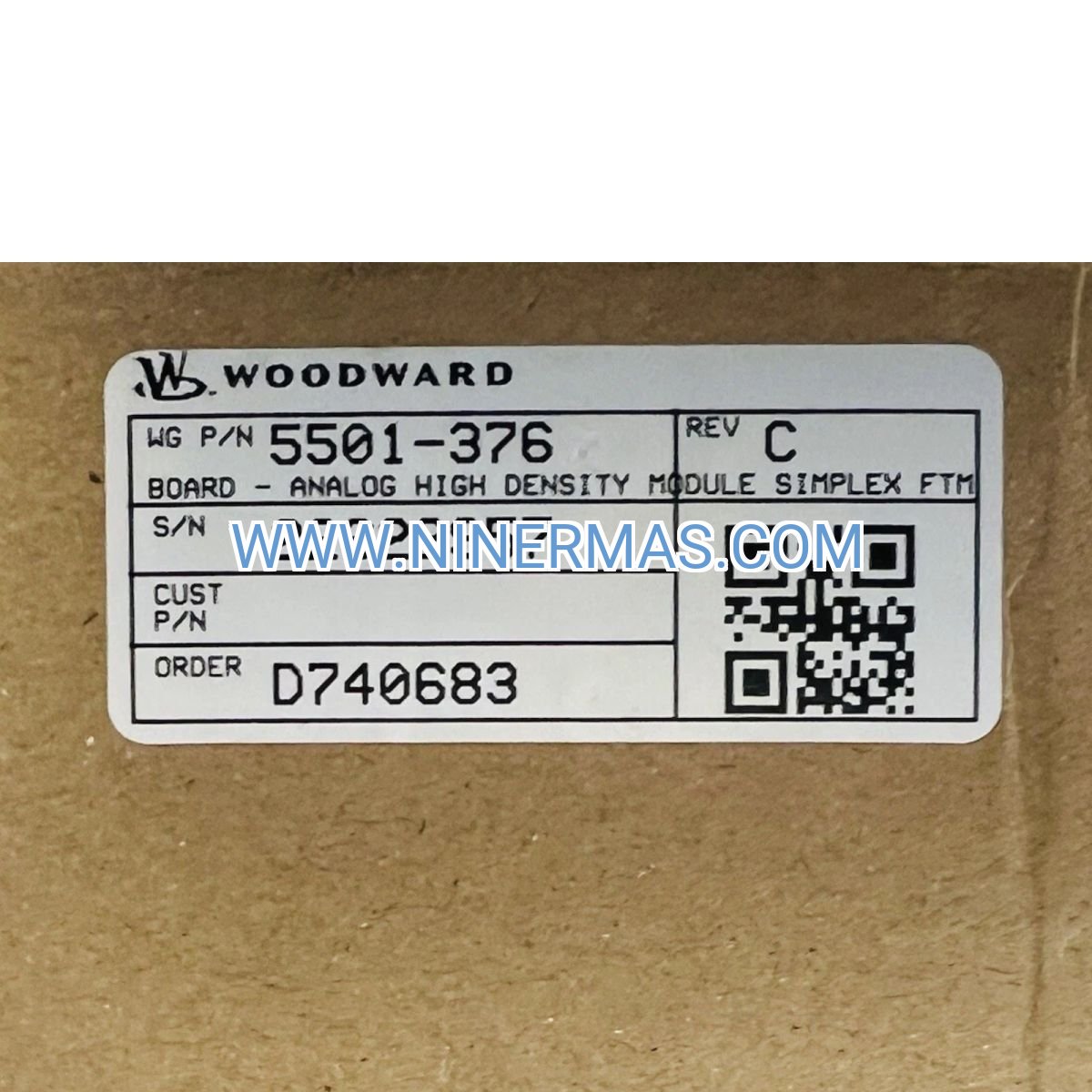

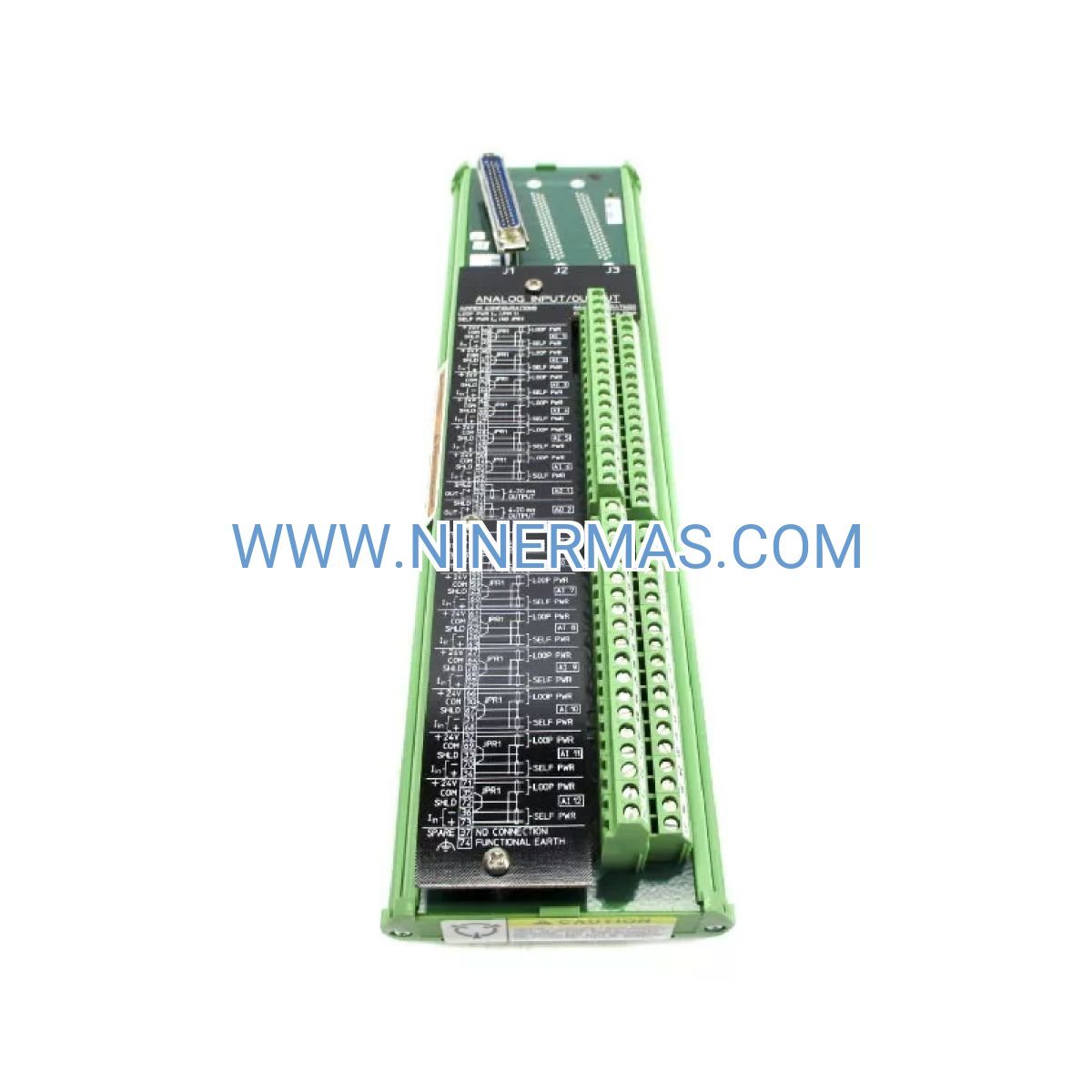

Woodward 5501-376 Analog Combo Module (Industrial-Grade MicroNet Simplex I/O)

The Woodward 5501-376 represents a field-proven analog combo module designed specifically for turbine control and power generation applications. Engineered with 4 speed input channels, 8 analog input channels, 4 analog output channels, and 2 dedicated actuator outputs, this MicroNet Simplex module delivers precision signal processing in mission-critical industrial environments. Built to withstand extreme temperatures from -40°C to +70°C, the 5501-376 ensures continuous operation in the harshest conditions.

Industrial operators face constant challenges maintaining uptime in turbine control systems where sensor integration, signal accuracy, and actuator response times directly impact operational efficiency. The 5501-376 addresses these pain points by consolidating multiple I/O functions into a single, hot-swappable module that integrates seamlessly with existing Woodward control platforms. Whether you're managing steam turbines in power plants, gas turbines in oil refineries, or hydro generators in renewable facilities, this module provides the reliability and flexibility your operations demand.

With support for both 4-20mA current loops and voltage signals, DIN rail or panel mounting options, and built-in diagnostic capabilities, the Woodward 5501-376 streamlines system integration while reducing installation complexity. Its MicroNet protocol compatibility ensures backward compatibility with legacy systems while supporting modern distributed control architectures. Request technical specifications or a customized quote to discover how this module can enhance your turbine control infrastructure.

Core Features & Technical Advantages

→ Multi-Channel Signal Processing: 4 dedicated speed inputs deliver accurate RPM monitoring for turbine shaft speed detection, while 8 analog inputs accommodate temperature probes, pressure transducers, and flow sensors with configurable 4-20mA or voltage ranges.

→ Precision Actuator Control: 4 analog output channels and 2 specialized actuator outputs command fuel valves, guide vanes, and positioning systems with millisecond-level response times, ensuring tight control loop performance.

→ Extended Temperature Rating: Operates reliably across -40°C to +70°C ambient conditions without derating, making it suitable for outdoor installations, engine rooms, and process areas with extreme thermal cycling.

✓ Hot-Swappable Architecture: Field-replaceable design allows module exchange during system operation in redundant configurations, minimizing downtime during maintenance or upgrades.

✓ Universal Mounting Flexibility: Compatible with standard 35mm DIN rail or direct panel mounting, the module adapts to existing cabinet layouts without custom fabrication.

✓ Integrated Diagnostics: Built-in self-test routines and status indicators enable predictive maintenance strategies, alerting operators to potential failures before they impact production.

Industrial Application Scenarios

Power Generation Facilities: In combined-cycle power plants, the 5501-376 processes critical sensor data from steam and gas turbines, coordinating fuel control, temperature monitoring, and vibration analysis. Operators achieve 99.5%+ uptime by leveraging the module's redundant configuration capabilities and real-time diagnostic feedback.

Oil & Gas Compression Stations: Natural gas pipeline operators deploy the module to control turbine-driven compressors, where it manages inlet guide vane positioning, fuel gas metering, and anti-surge protection. The extended temperature rating ensures reliable operation in remote locations with minimal climate control.

Marine Propulsion Systems: Ship propulsion turbines utilize the 5501-376 for shaft speed governing, fuel rack control, and auxiliary system monitoring. Its compact footprint and vibration-resistant construction meet maritime classification society requirements for engine room installations.

Hydroelectric Generating Stations: Hydro turbine governors integrate the module to process wicket gate position feedback, generator frequency signals, and penstock pressure measurements. The module's 24VDC power requirement aligns with standard station battery systems for uninterrupted operation during grid disturbances.

Industrial Cogeneration Plants: Manufacturing facilities with on-site power generation use the 5501-376 to coordinate turbine control with process steam demands, optimizing fuel efficiency while maintaining thermal output specifications.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5501-376 when your application requires consolidated analog I/O with dedicated speed sensing in a single module. For systems needing more than 8 analog inputs, consider pairing with additional I/O expansion modules. Verify MicroNet network compatibility with your existing Woodward controller platform (NetCon, 505E, or MicroNet TMR systems). For redundant control architectures, specify dual modules with automatic failover configuration.

Extended Functionality & Integration Options

IoT Connectivity: When integrated with Woodward's NetCon gateway modules, the 5501-376 enables remote monitoring via Modbus TCP/IP or OPC UA protocols, allowing SCADA systems to access real-time I/O data and diagnostic status.

Advanced Control Algorithms: The module supports custom scaling, linearization tables, and filtering algorithms configured through Woodward's GAP software suite, enabling precise sensor signal conditioning without external signal conditioners.

Customization Services: Factory-configured modules are available with pre-programmed I/O ranges, custom cable assemblies, and application-specific firmware for turnkey integration into OEM turbine packages.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Custom-configured modules require 3-4 weeks for factory programming and testing.

Warranty Coverage: Each 5501-376 module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Our application engineers provide pre-sale configuration assistance, installation guidance, and post-commissioning troubleshooting support. Access to Woodward's global service network ensures rapid response for urgent field issues.

Documentation Package: Every module ships with installation manual, wiring diagrams, configuration software, and calibration certificates. CAD drawings and 3D STEP files available for panel design integration.

Frequently Asked Questions

How does the 5501-376 interface with non-Woodward control systems?
While optimized for MicroNet networks, the module can interface with third-party PLCs through analog signal mapping. Contact our integration team for protocol converter recommendations and wiring schematics.

What is the maximum cable distance for speed input sensors?
Magnetic pickup sensors support cable runs up to 300 meters using shielded twisted-pair cable. Proximity sensors are limited to 100 meters depending on sensor output current and cable capacitance.

Can I retrofit this module into existing MicroNet systems from the 1990s?
Yes, the 5501-376 maintains backward compatibility with legacy MicroNet controllers. Firmware updates may be required on older systems to recognize the module's extended diagnostic features.

Does the module support redundant power supply inputs?
The standard configuration accepts a single 24VDC input. For redundant power applications, external power supply modules with diode isolation are recommended to prevent backfeed.

What environmental protection rating does the enclosure provide?
The module housing meets IP20 protection standards for indoor panel mounting. For outdoor or washdown environments, install within a NEMA 4X or IP65-rated enclosure.

Are replacement parts available for field repair?
Woodward recommends module-level replacement rather than component-level repair to maintain certification compliance. Exchange programs offer cost-effective alternatives with expedited turnaround.

Request Your Technical Consultation

Ready to integrate the Woodward 5501-376 into your turbine control system? Our application specialists will review your I/O requirements, recommend optimal configuration settings, and provide detailed pricing for your specific quantity and delivery timeline. Contact us today to receive technical datasheets, compatibility verification, and a customized quotation.
