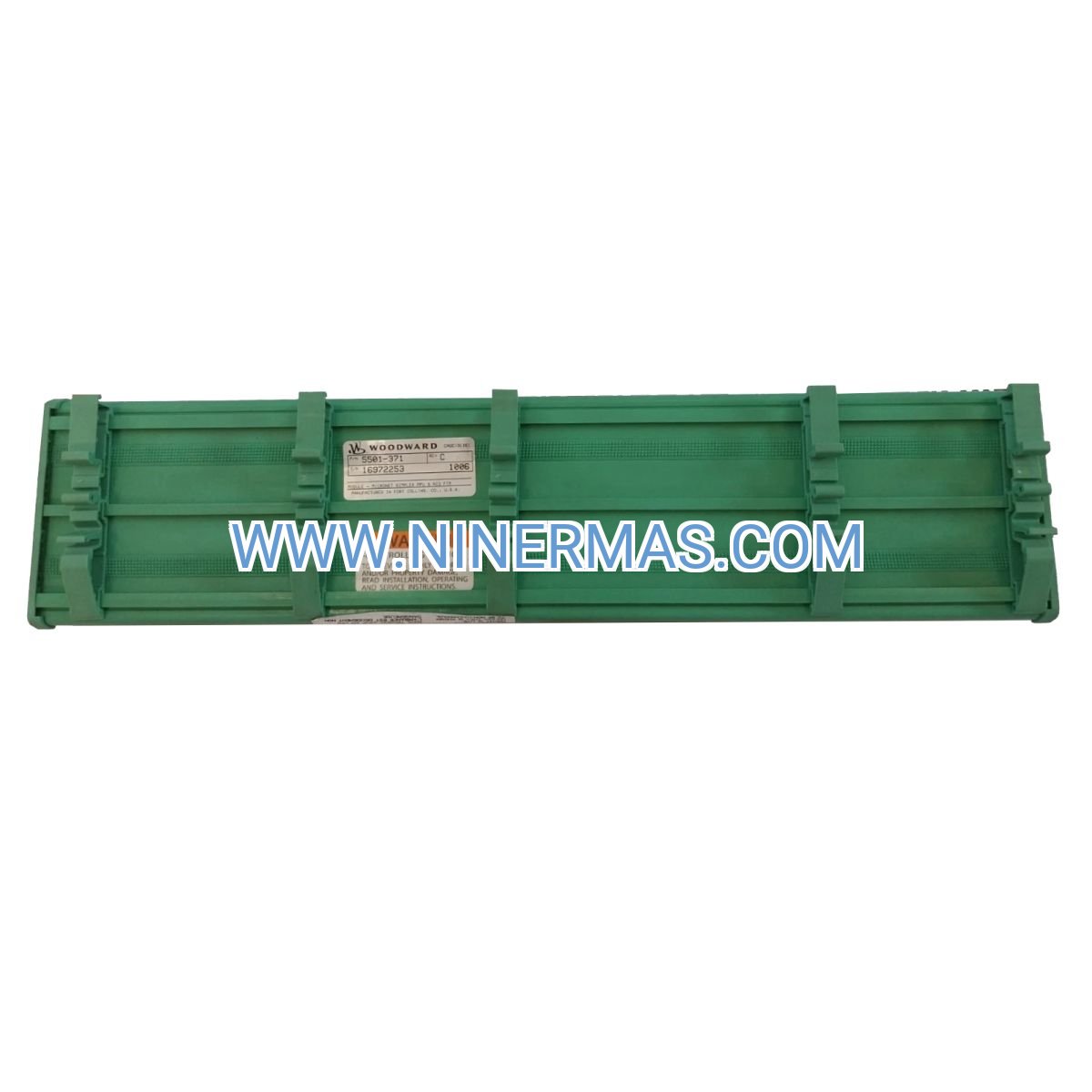

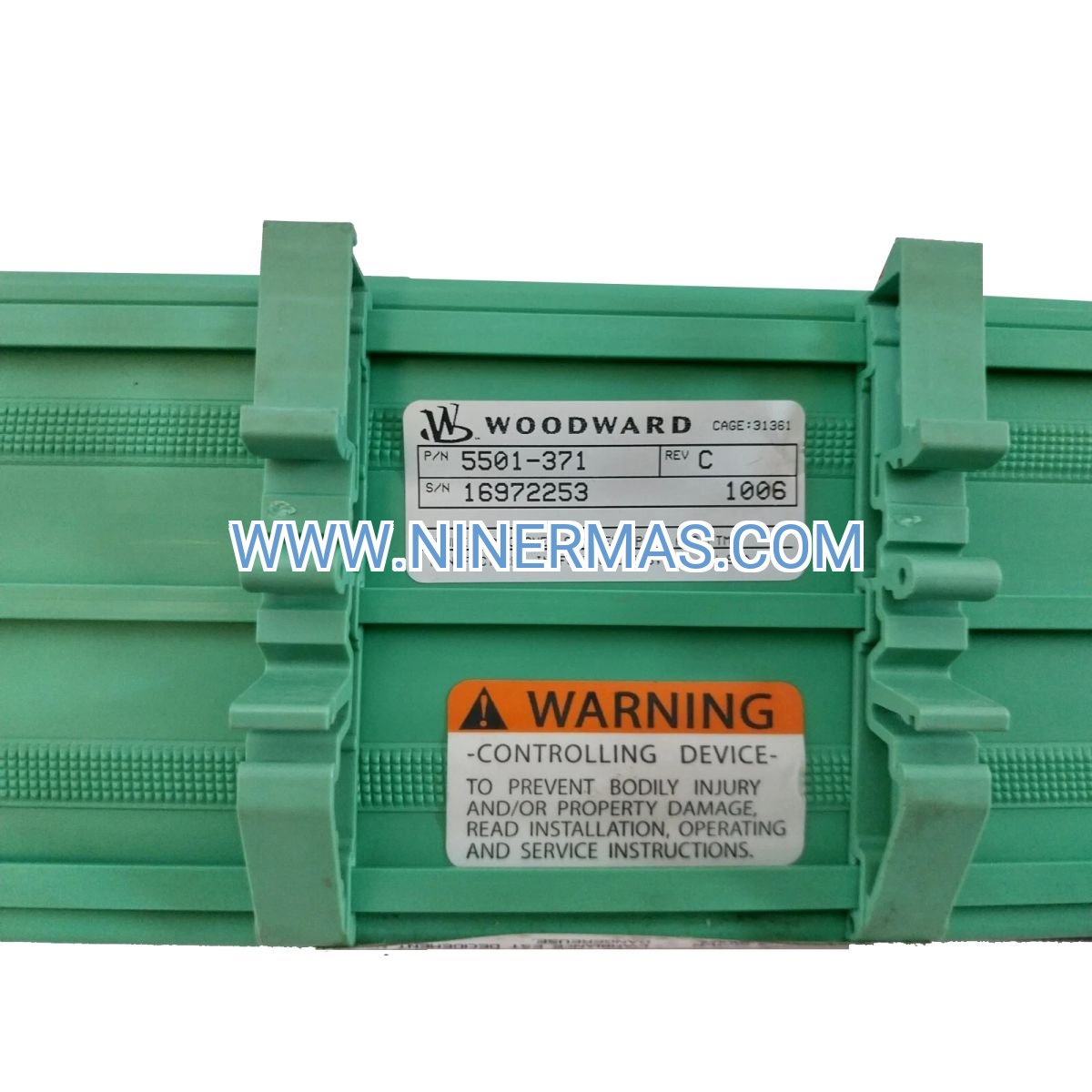

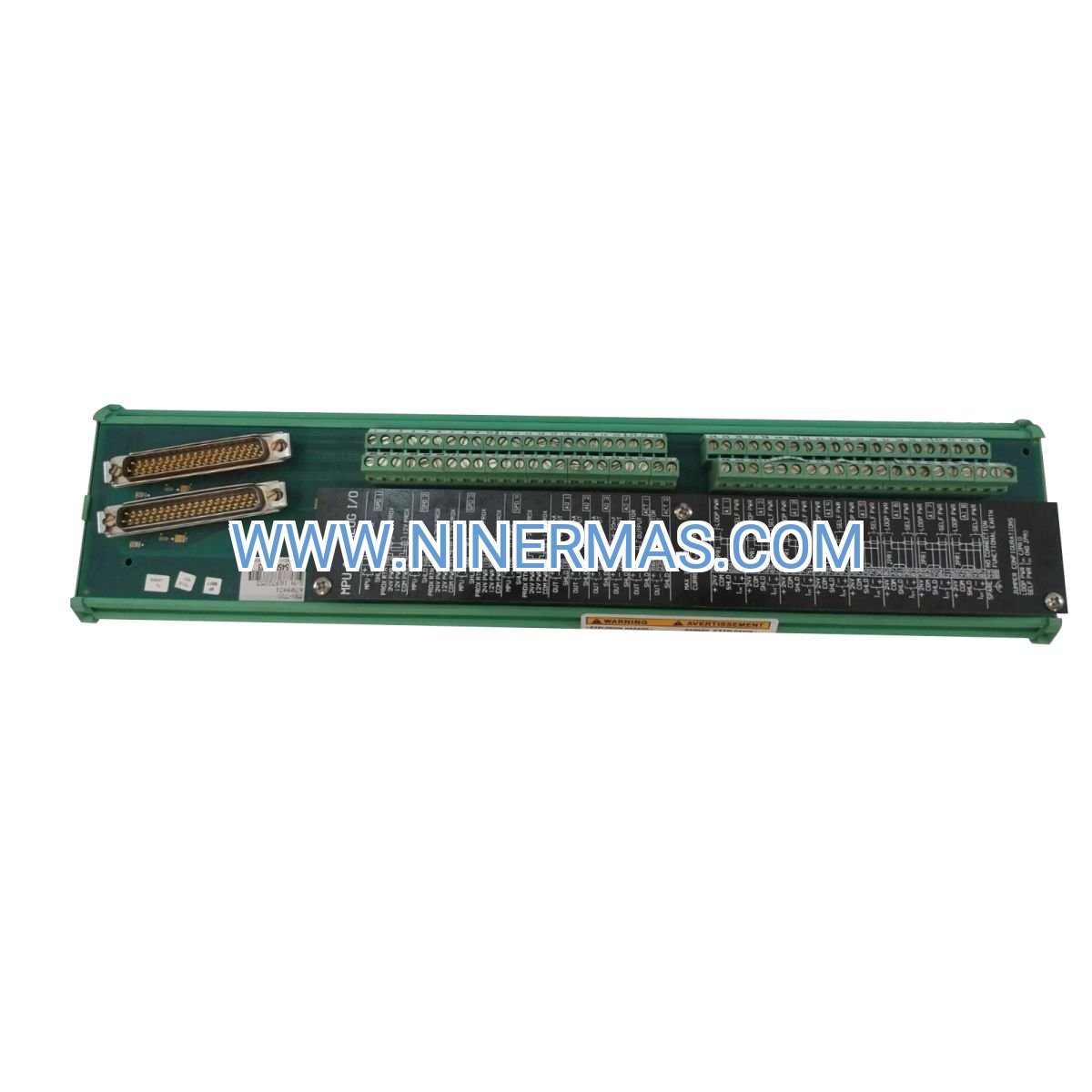

Woodward 5501-371 MicroNet MPU & Analog I/O Module (Industrial-Grade Turbine Monitoring)

The Woodward 5501-371 represents a breakthrough in turbine monitoring technology, merging four independent magnetic pickup (MPU) speed sensing channels with comprehensive analog signal processing in one ruggedized enclosure. Designed for power generation, oil & gas, and marine propulsion environments, this MicroNet-compatible module eliminates system complexity while delivering the precision and redundancy demanded by critical rotating equipment applications.

Industrial operators face mounting pressure to maximize uptime while meeting stringent safety standards. Traditional monitoring architectures require separate modules for speed sensing, analog inputs, and signal conditioning—creating installation bottlenecks, wiring complexity, and multiple failure points. The 5501-371 addresses these challenges head-on by consolidating essential monitoring functions into a single, factory-tested platform that integrates seamlessly with Woodward control ecosystems.

Whether you're retrofitting legacy turbine systems or engineering new installations, this module delivers measurable advantages: 40% reduction in panel footprint, plug-and-play MicroNet connectivity, and NIST-traceable calibration that eliminates costly field commissioning delays. With operating temperature range extending to -40°C and proven reliability in Class I Div 2 hazardous locations, the 5501-371 stands ready for your most demanding applications.

Core Features & Technical Advantages

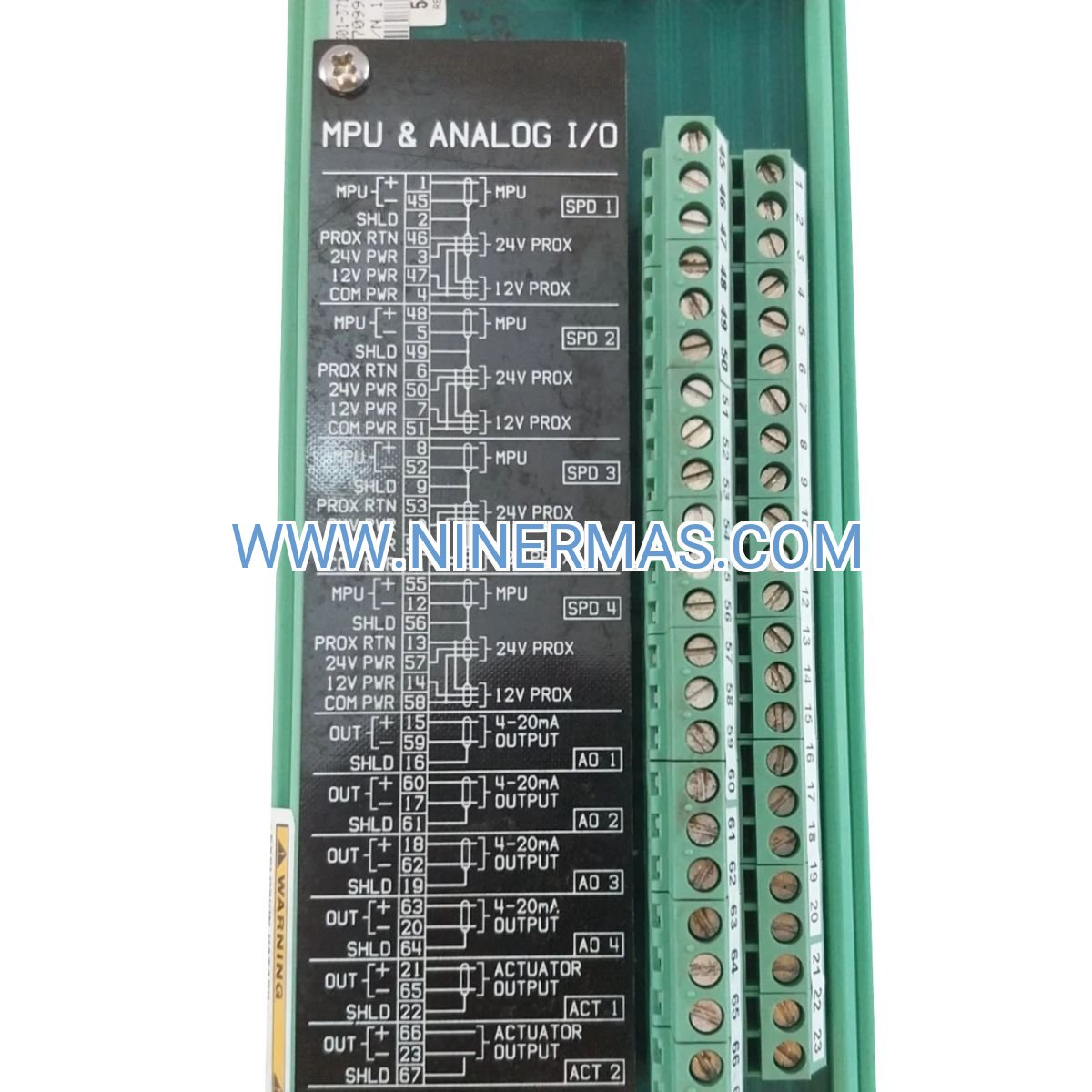

→ Quad-Channel MPU Speed Monitoring
Four galvanically isolated speed inputs support 2oo3 or 2oo4 voting configurations for SIL 2/3 overspeed protection systems. Each channel processes frequencies from 0.5 Hz to 20 kHz with ±0.01% accuracy, accommodating both passive magnetic pickups and active proximity sensors without external signal conditioning.

✓ Versatile Analog Signal Processing

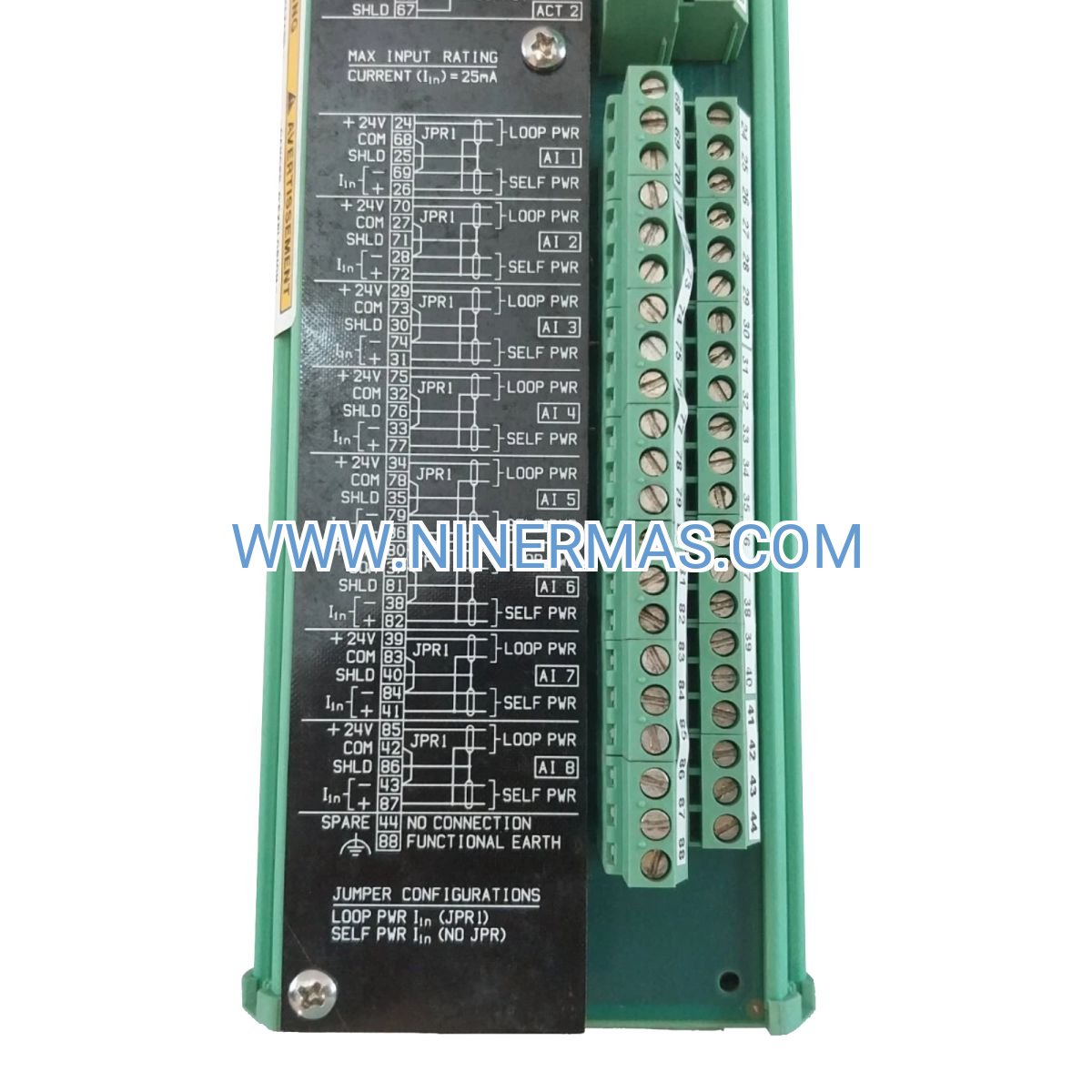

Eight universal analog inputs accept 4-20mA loops, 0-10V signals, and ratiometric sensors through software-selectable ranging. Four isolated analog outputs provide control signals or retransmission to SCADA systems, supporting closed-loop control strategies and remote monitoring architectures.

✓ Factory Calibration & Certification
Every unit ships with traceable calibration documentation meeting ISO 17025 standards. Pre-configured accuracy eliminates field calibration requirements, reducing commissioning time by 60% compared to traditional multi-module installations.

✓ MicroNet Protocol Integration
Native compatibility with Woodward MicroNet TMR and Simplex controllers enables deterministic communication at 1ms update rates. Hot-swappable design supports online replacement without system shutdown in redundant configurations.

✓ Industrial Environmental Hardening
Conformal-coated circuitry withstands humidity, vibration (5G continuous), and temperature extremes. EMI/RFI shielding meets EN 61000-6-2 immunity standards for installation near VFDs, switchgear, and RF transmitters.

✓ Diagnostic Intelligence
Built-in self-test routines monitor input signal integrity, power supply health, and communication status. LED indicators and MicroNet diagnostic registers accelerate troubleshooting, reducing mean time to repair (MTTR) by 45%.

Application Scenarios Across Industries

Steam Turbine Governor Systems
Combines primary/backup speed sensing with valve position feedback, steam pressure monitoring, and temperature compensation in a single I/O point. Enables precise load control while maintaining overspeed protection integrity per NFPA 85 requirements.

Gas Turbine Packaged Units
Monitors compressor speed, exhaust temperature, fuel pressure, and vibration sensors simultaneously. Analog outputs drive fuel control valves and IGV actuators, creating a complete turbine management solution with minimal wiring infrastructure.

Hydroelectric Generator Protection
Tracks shaft speed via multiple MPU sensors while processing bearing temperature RTDs, oil pressure transmitters, and wicket gate position feedback. Supports both standalone protection and integration with plant DCS systems.

Reciprocating Engine Control
Processes crankshaft and camshaft speed signals for ignition timing and fuel injection control. Analog inputs monitor manifold pressure, coolant temperature, and oil pressure—critical parameters for emissions compliance and engine longevity.

Industrial Compressor Monitoring
Detects critical speed zones through high-resolution frequency measurement while tracking suction/discharge pressures, bearing temperatures, and anti-surge valve positions. Prevents catastrophic failures in pipeline compression and refrigeration applications.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5501-371 when your application requires integrated speed monitoring with analog I/O in a single module. For applications needing only speed inputs without analog processing, consider the dedicated 5464-337 MPU module. If your system demands more than 8 analog inputs, the 5466-332 expanded I/O module offers 24 input channels with HART protocol support.

Extended Capabilities & System Integration

Modbus TCP Gateway Compatibility: When paired with Woodward's MicroNet-to-Modbus gateway modules, the 5501-371 exposes all process variables to plant SCADA systems, historians, and cloud analytics platforms without compromising real-time control performance.

Redundancy Architectures: Supports N+1 and 2oo3 redundant configurations in MicroNet TMR systems. Automatic failover occurs within 10ms of primary module failure, maintaining continuous monitoring without process interruption.

Custom Scaling & Linearization: Onboard microprocessor applies user-defined transfer functions, square-root extraction for differential pressure flow measurement, and polynomial curve fitting for non-linear sensor compensation.

Firmware Updateability: Field-upgradable firmware via MicroNet Toolbox software enables feature enhancements and protocol updates without hardware replacement, protecting long-term investment value.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe). Express shipping available for critical outage situations with 24-hour dispatch options.

Custom Configuration Services: Factory pre-programming of I/O scaling, alarm setpoints, and MicroNet addresses available with 7-10 day lead time. Reduces on-site commissioning to simple cable connection and power-up verification.

Warranty Coverage: 18-month manufacturer warranty from ship date, covering materials, workmanship, and calibration drift. Extended 36-month warranty packages available for critical applications.

Technical Support Access: Lifetime access to Woodward's global support network, including 24/7 emergency hotline, configuration assistance, and firmware update notifications. Comprehensive documentation package includes wiring diagrams, MicroNet integration guides, and troubleshooting flowcharts.

Calibration Services: Annual recalibration services available with 5-day turnaround. Loaner modules provided during calibration period to eliminate downtime.

Frequently Asked Questions

What sensor types are compatible with the MPU speed inputs?
The 5501-371 accepts passive magnetic pickups (8-18 VDC bias voltage), active proximity sensors (NPN/PNP, 10-30 VDC), and Hall-effect speed sensors. Sensor impedance range: 50Ω to 10kΩ. Maximum cable length: 300 meters with shielded twisted-pair wiring.

Can I mix 4-20mA and 0-10V signals on the analog inputs?
Yes, each of the 8 analog input channels is independently configurable via MicroNet Toolbox software. You can simultaneously monitor current loops, voltage signals, and ratiometric sensors without external signal conditioning.

Does this module support overspeed protection for SIL-rated safety systems?
The 5501-371 provides speed measurement inputs for SIL 2/3 systems when integrated with certified Woodward safety controllers (ProTech GII, MicroNet TMR). The module itself is not SIL-certified as a standalone device but contributes to overall system safety integrity when properly configured.

What is the maximum turbine speed this module can monitor?
With a 20 kHz frequency limit and typical 60-tooth gear configurations, the module accurately measures shaft speeds up to 20,000 RPM. For higher-speed applications (gas turbines exceeding 15,000 RPM), consult factory engineering for gear tooth count optimization.

Is the 5501-371 backward compatible with older MicroNet systems?
Full compatibility maintained with MicroNet Simplex and TMR systems manufactured since 2003. Firmware version 4.2 or later required on host controllers. Legacy systems running earlier firmware may require controller updates available through Woodward service centers.

How do I configure the analog input ranges and scaling?
Configuration performed via MicroNet Toolbox software (free download from Woodward). USB-to-MicroNet interface cable required (sold separately, part number 8200-226). Software provides graphical setup wizards for sensor types, engineering units, and alarm thresholds.

Take the Next Step in Turbine Monitoring Excellence

Ready to simplify your control system architecture while enhancing monitoring precision? The Woodward 5501-371 delivers proven reliability in thousands of installations worldwide. Our technical team stands ready to assist with application engineering, system integration planning, and migration from legacy platforms.

Request a detailed quotation today or consult with our turbine control specialists to verify compatibility with your specific equipment. Volume pricing available for multi-unit projects and OEM integrations.
