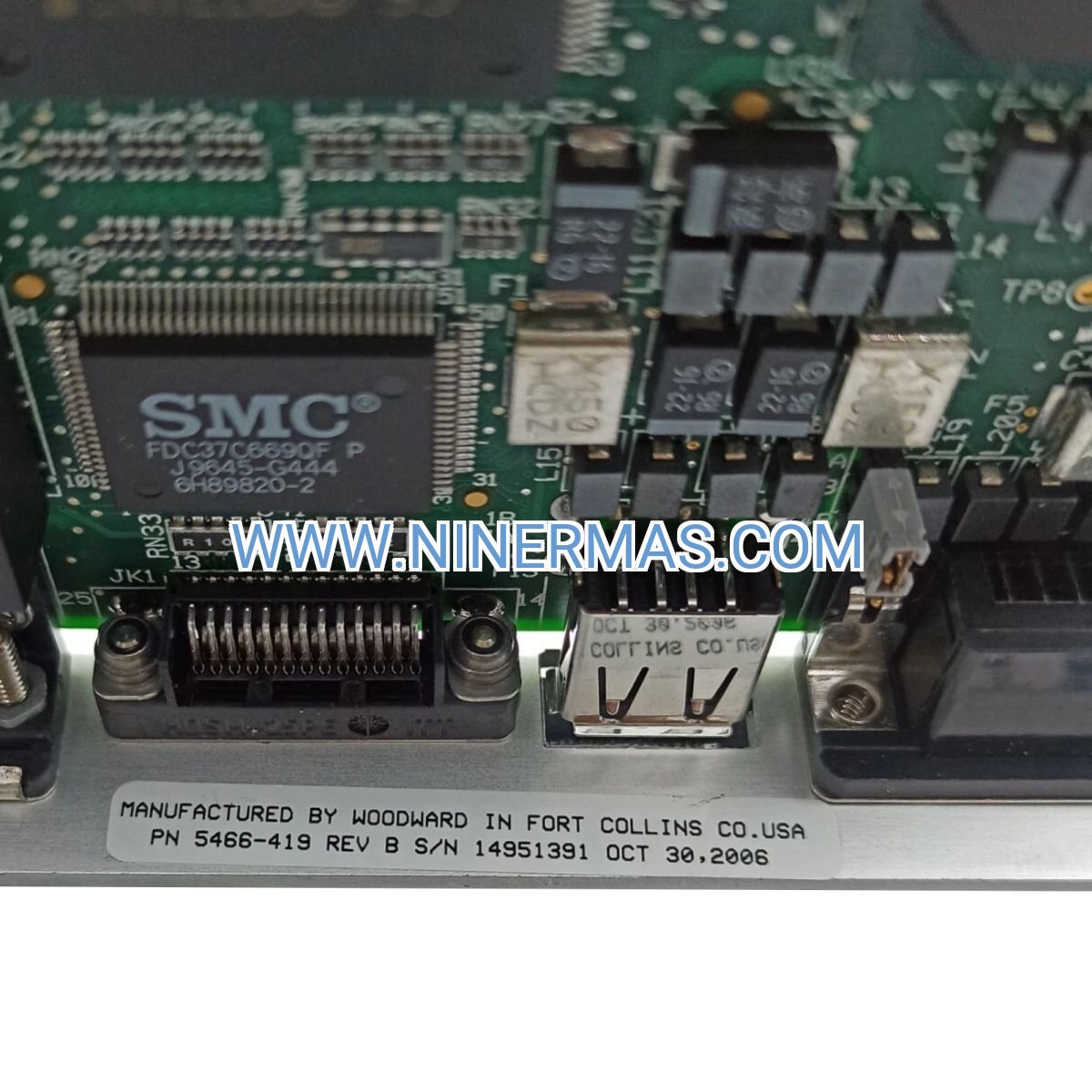

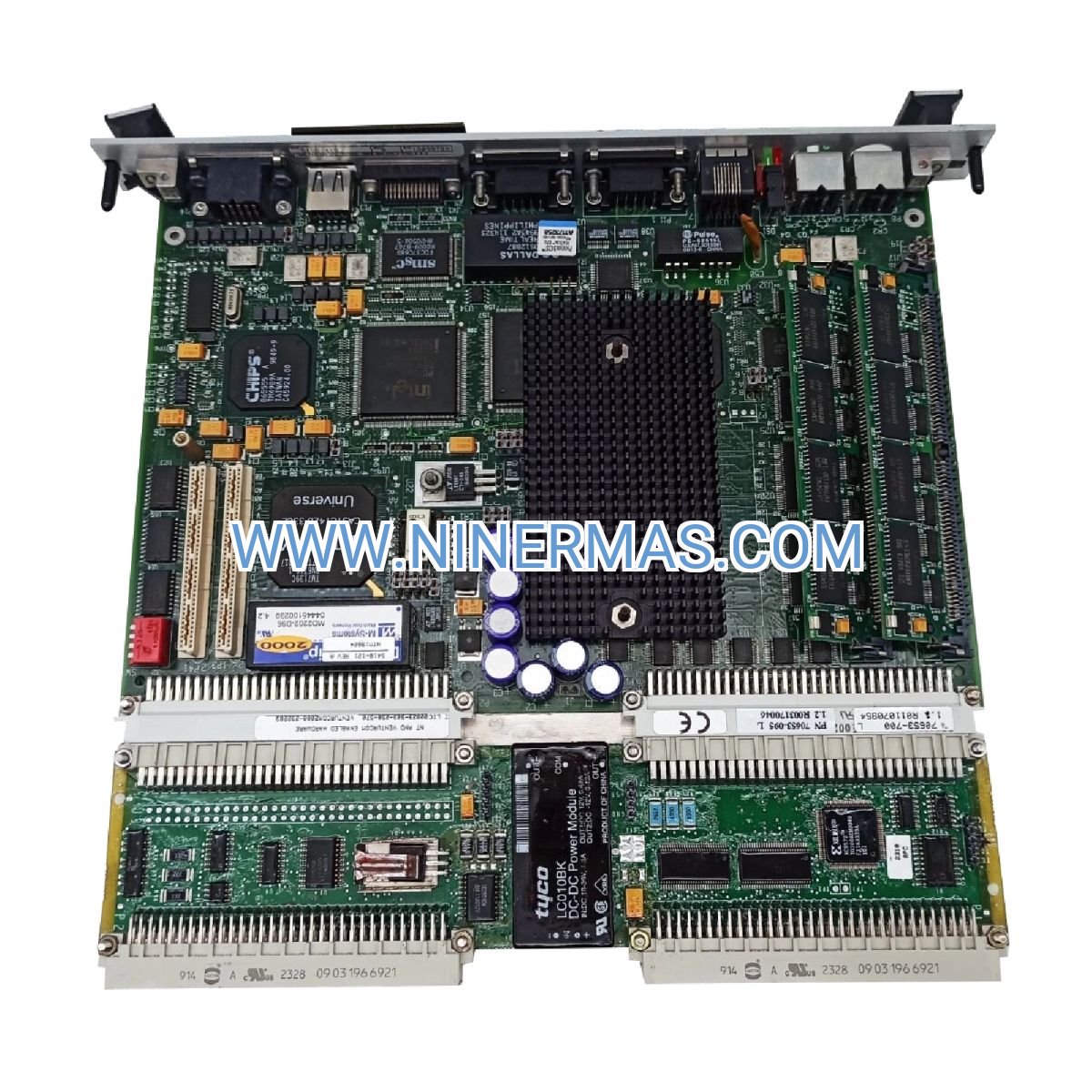

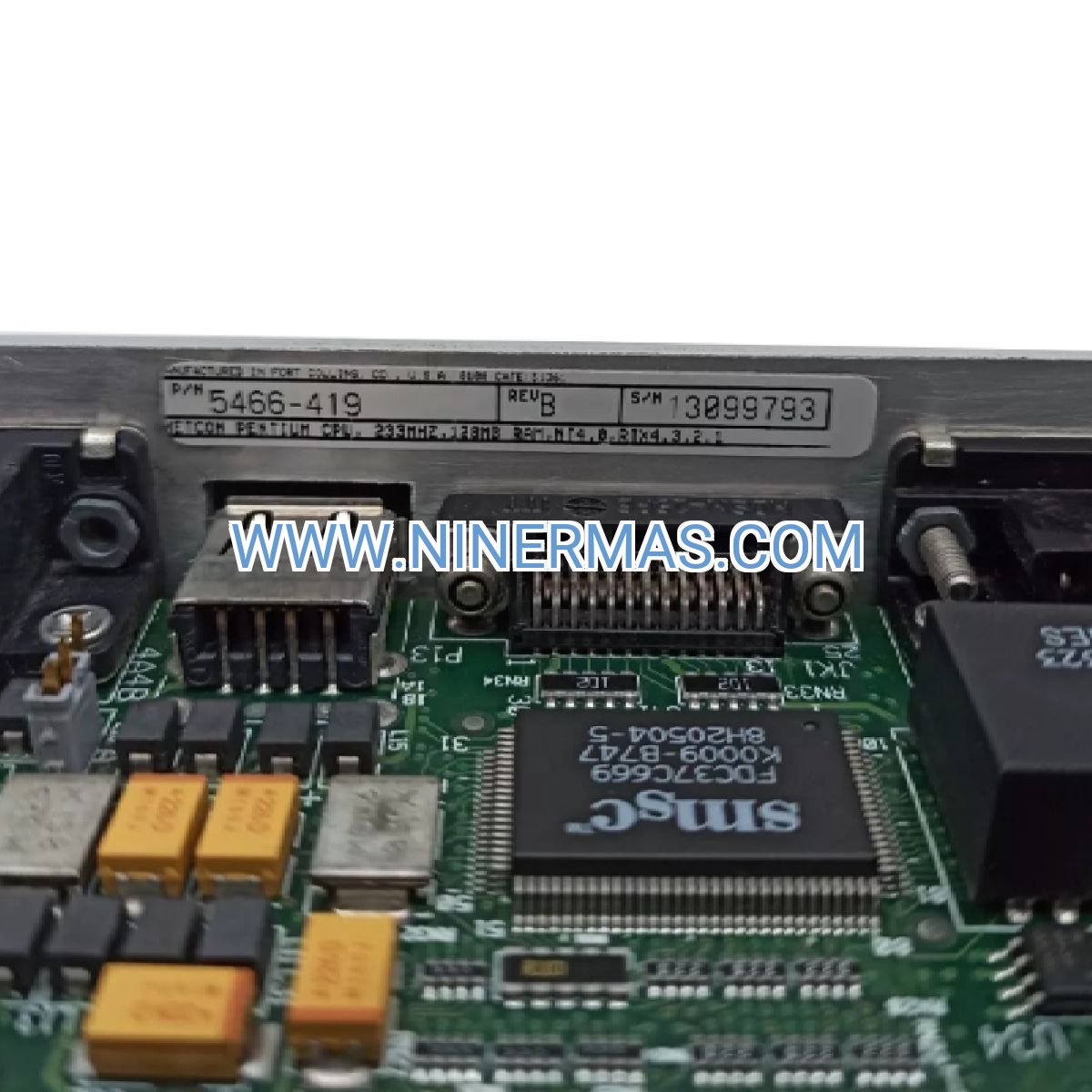

Woodward 5466-419 REV B MicroNet TMR CPU Module (Industrial-Grade Redundant Controller)

The Woodward 5466-419 REV B is a triple modular redundancy (TMR) CPU module engineered for mission-critical industrial control applications where system availability exceeds 99.99%. Designed for turbine governors, compressor anti-surge systems, and power generation control, this MicroNet TMR processor delivers continuous operation through automatic fault detection, isolation, and recovery—eliminating single points of failure in your control architecture.

Built for harsh industrial environments, the 5466-419 REV B serves process industries requiring uninterrupted control authority: combined-cycle power plants, offshore oil & gas platforms, petrochemical facilities, and marine propulsion systems. Its hot-swappable design enables field maintenance without process shutdown, while 2-out-of-3 voting logic ensures control integrity even during component failures.

With proven reliability in thousands of installations worldwide, this TMR CPU module reduces unplanned downtime by up to 95%, cuts maintenance costs through predictive diagnostics, and provides the fault tolerance demanded by safety-instrumented systems (SIS) and critical control loops.

Core Capabilities & Technical Advantages

→ Triple Modular Redundancy Architecture
Three independent processing channels execute control algorithms simultaneously with continuous cross-comparison. 2oo3 voting logic automatically masks single-channel faults without process interruption, maintaining full control authority during component failures.

→ Hot-Swappable Field Maintenance
Replace failed modules during operation without system shutdown or process disturbance. Automatic channel synchronization restores full TMR protection within 30 seconds of module insertion, minimizing exposure to single-fault conditions.

→ Extended Temperature Range Operation
Qualified for -40°C to +70°C ambient operation without derating, enabling deployment in extreme climates from Arctic installations to desert power plants. Conformal coating protects against humidity, salt spray, and industrial contaminants.

✓ Built-In Diagnostic Intelligence
Continuous self-testing monitors processor health, memory integrity, I/O communication, and power supply status. Predictive fault annunciation alerts operators to degrading components before failure occurs, reducing troubleshooting time by 70%.

✓ MicroNet Protocol Integration
Native support for Woodward's deterministic MicroNet communication ensures microsecond-level synchronization across distributed control nodes. Seamless integration with MicroNet I/O modules, HMI interfaces, and legacy TMR systems.

✓ Industrial Cybersecurity Features
Hardened firmware with secure boot verification, role-based access control, and audit logging. Compliant with IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Industry Applications & Use Cases

Power Generation – Steam & Gas Turbine Control
Combined-cycle plants deploy the 5466-419 REV B for coordinated turbine-generator control, managing speed governing, load control, and protective shutdown functions. The TMR architecture ensures grid stability during component failures, preventing costly forced outages that can exceed $500,000 per event.

Oil & Gas – Compressor Anti-Surge Protection
Offshore platforms and pipeline compression stations rely on this CPU module for real-time anti-surge control, preventing catastrophic compressor damage during rapid load changes. Fault-tolerant operation maintains production throughput even during maintenance activities.

Petrochemical – Safety Instrumented Systems (SIS)
Chemical processing facilities integrate the 5466-419 REV B into SIL 3-rated safety systems for emergency shutdown (ESD) and fire & gas detection. The TMR design meets IEC 61508 requirements for high-demand safety functions with proof test intervals exceeding 10 years.

Marine Propulsion – Engine Governor Control
LNG carriers and cruise ships utilize this TMR CPU for diesel and gas turbine propulsion control, ensuring vessel maneuverability during dynamic positioning operations. Hot-swap capability enables at-sea repairs without drydock downtime.

Industrial Compression – Process Gas Applications
Refinery hydrogen compressors and air separation units depend on the 5466-419 REV B for precise capacity control and surge prevention. Continuous operation during planned maintenance maximizes asset utilization and production efficiency.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 5466-419 REV B when your application requires fault-tolerant control with automatic failover, operates in harsh environmental conditions, or must meet SIL 2/3 safety integrity requirements. For simplex (non-redundant) applications with lower availability requirements, consider standard MicroNet CPU modules. For quad-redundant architectures, consult Woodward application engineering.

Advanced Integration & Customization Options

SCADA & HMI Connectivity: Modbus TCP/IP and OPC UA gateways enable integration with plant-wide distributed control systems (DCS) and supervisory control platforms. Real-time data streaming supports predictive maintenance analytics and performance optimization.

Cybersecurity Hardening: Optional firewall modules and encrypted communication channels protect against industrial cyber threats. Network segmentation isolates critical control functions from enterprise IT networks per ISA/IEC 62443 zone/conduit models.

Custom Control Algorithms: Woodward application engineers can develop specialized control strategies for unique turbomachinery configurations, including variable geometry compressors, multi-shaft turbines, and hybrid power systems.

Retrofit & Upgrade Paths: Backward-compatible with legacy MicroNet TMR systems, enabling phased modernization of installed control platforms without complete system replacement. Migration tools preserve existing control logic and tuning parameters.

Delivery Timeline & Service Commitments

Standard Lead Time: 4-6 weeks for factory-new units with full factory testing and calibration documentation. Expedited delivery available for critical outage support (contact for emergency response options).

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects and workmanship failures. Warranty includes free firmware updates and technical support during the coverage period.

Technical Support: Global application engineering support for system design, commissioning assistance, and troubleshooting. 24/7 emergency hotline for critical production issues. Remote diagnostic capabilities via secure VPN connections.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and IEC 61508 safety manual. CAD drawings and 3D STEP models available for mechanical integration planning.

Frequently Asked Questions

How does the TMR voting logic handle channel disagreements in the 5466-419 REV B?
The 2-out-of-3 voting algorithm compares outputs from all three channels every scan cycle. When one channel deviates beyond tolerance thresholds, the system automatically excludes that channel's vote while maintaining control using the two agreeing channels. Operators receive immediate fault notification with diagnostic codes identifying the failed channel.

What is the maximum I/O capacity supported by this TMR CPU module?
The 5466-419 REV B supports up to 2,048 I/O points distributed across MicroNet I/O modules. Typical configurations range from 256-512 points for turbine control applications. Consult the MicroNet system planning guide for network loading calculations and scan time optimization.

Can I upgrade firmware on the 5466-419 REV B without process shutdown?
Yes, the TMR architecture enables online firmware updates using a sequential channel upgrade procedure. Each channel is updated individually while the remaining two channels maintain control authority. The entire upgrade process completes in approximately 15 minutes with zero process interruption.

Does this CPU module meet safety integrity level (SIL) requirements for safety systems?
The 5466-419 REV B is certified for use in SIL 3 safety instrumented functions when configured per IEC 61508 guidelines. The TMR architecture achieves hardware fault tolerance (HFT) of 1, and diagnostic coverage exceeds 95%. Consult Woodward's safety manual for proof test intervals and failure rate data.

What environmental qualifications does the 5466-419 REV B carry for offshore installations?
The module is qualified to DNV GL and ABS marine standards for vibration, shock, and EMI/RFI immunity. Conformal coating provides protection against salt spray (per ASTM B117) and humidity cycling. Operating temperature range of -40°C to +70°C covers Arctic and tropical offshore environments.

How do I migrate from a legacy MicroNet TMR system to the 5466-419 REV B?
The REV B maintains full backward compatibility with earlier MicroNet TMR CPU modules. Existing control logic, I/O configurations, and tuning parameters transfer directly using Woodward's migration utility. Mechanical mounting and electrical connections remain unchanged, enabling drop-in replacement during planned maintenance windows.

Request Technical Consultation & Pricing

Our industrial automation specialists are ready to assist with system design, compatibility verification, and application-specific configuration. Contact us for detailed technical specifications, certified test reports, and volume pricing for multi-unit projects.
